- Load per castor70kg per castor
- Wheel diameter100mm
- Overall height128mm
- WheelAnti-static rubber
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Bolt Hole Castor
- Wheel Diameter
- 100mm
- Wheel Material
- Anti-static rubber
- Wheel Colour
- Black
- Tread Width
- 22mm
- Hardness of Tread
- 80 Shore A
- Bearing Type
- Roller bearing
- Temperature Range
- -20°C to +60°C
- Fixing
- Single bolt hole
- Bolt Hole Size
- 12mm
- Swivel Radius
- 80mm
- Total Castor Height
- 128mm
- Load Capacity
- 70kg per castor
Will it fit?
- Bolt hole12mm
- Overall height128mm
- Swivel radius80mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +60°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Anti-Static Bolt Hole Castors

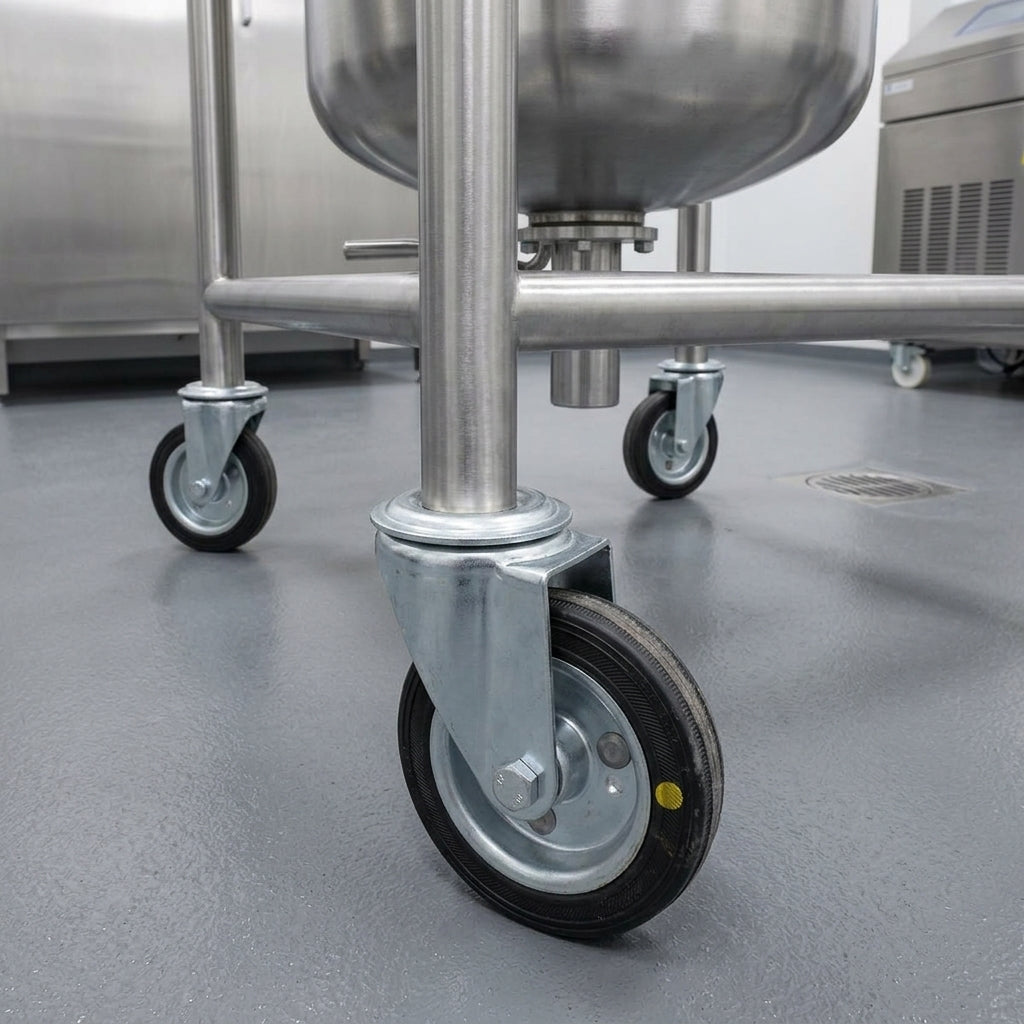

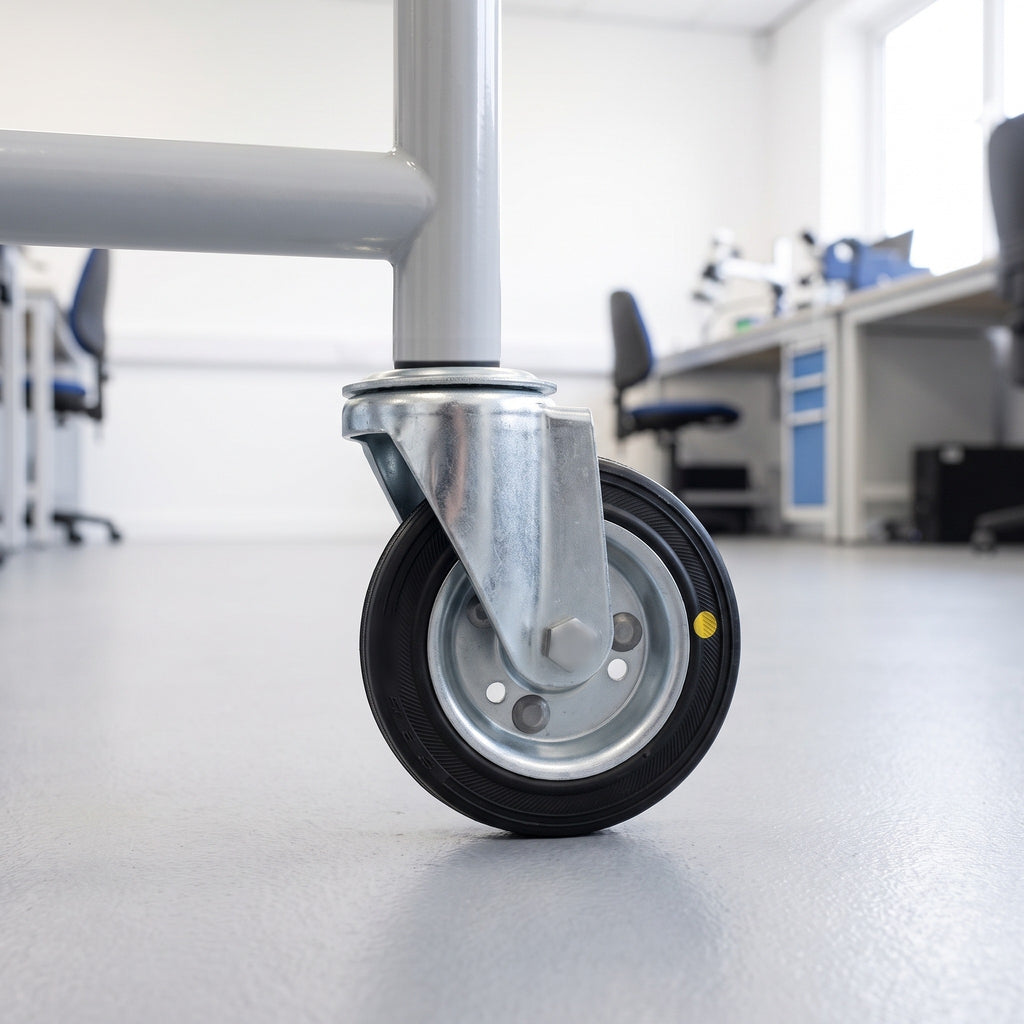

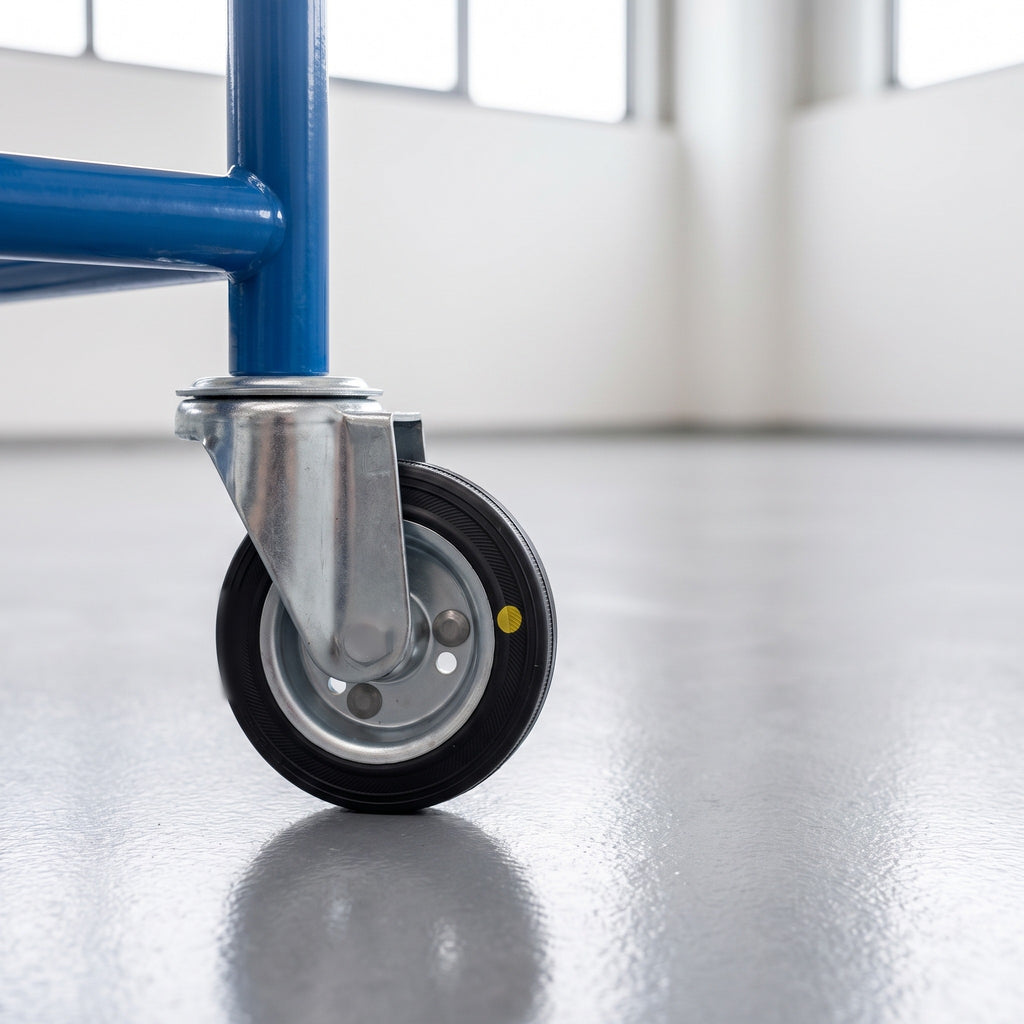

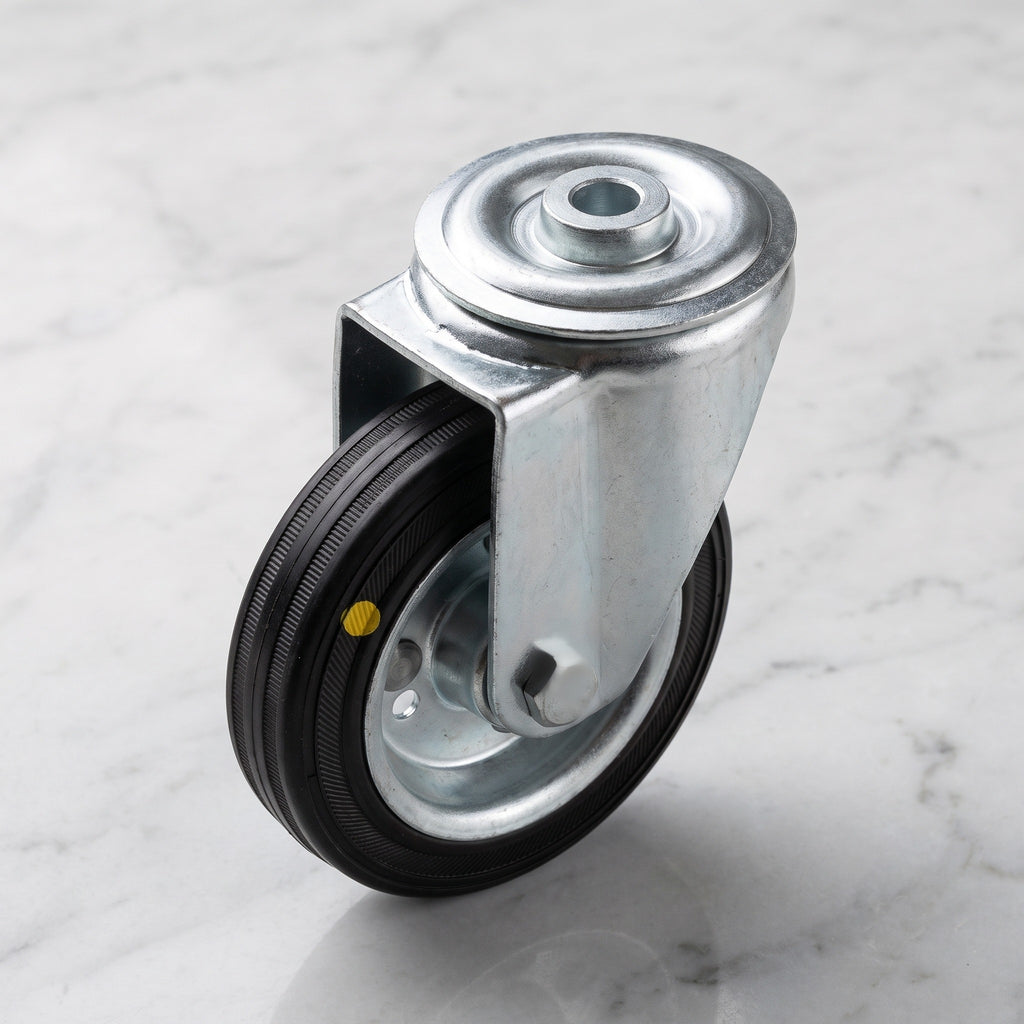

This 100mm swivel castor has a black anti-static rubber wheel, made for industrial equipment that needs easy movement and static control. The anti-static rubber is electrically conductive and helps prevent static build-up. The swivel head turns a full 360 degrees, and the roller bearing gives smooth movement. It works from -20°C to +60°C and carries 70kg per castor.
It fixes through a single 12mm bolt hole, has an 80mm swivel radius and stands 128mm tall.
Why Choose This Castor
- ✓ Anti-static rubber wheel electrically conductive, helps prevent static build-up.
- ✓ 80 Shore A tyre 22mm wide, balancing grip and durability.
- ✓ Roller bearing for smooth movement.
- ✓ 360-degree swivel head with an 80mm swivel radius for tight turning.
- ✓ 70kg load capacity per castor.
- ✓ Temperature range from -20°C to +60°C.
- ✓ Single 12mm bolt hole for quick fitting to legs and frames.
* Load capacity is per castor on a smooth, level floor. Check that the bolt hole size and swivel clearance suit your equipment before fitting.
Where It Works Best
This anti-static bolt hole castor suits:
- ✓ Industrial equipment: trolleys, carts and machinery for easy movement.
- ✓ Electronics manufacturing: areas where static discharge needs to be controlled.
- ✓ Warehousing: storage units and other handling equipment.
Frequently Asked Questions
Does this castor have a brake?
No. This is a swivel castor without a brake, made for full 360-degree movement in tight spaces.
Why choose an anti-static wheel?
The anti-static rubber is electrically conductive, so it helps stop static building up on your equipment. It is useful where static discharge needs to be controlled, such as electronics manufacturing.
How hard is the tyre?
The tyre is 80 Shore A, which gives a balance of grip and durability in industrial settings. It works from -20°C to +60°C.
How much weight can this castor carry?
Each castor is rated for 70kg. Add up the castors under your equipment to work out the total load.
How is the castor fitted?
It fits with a single bolt through the 12mm hole in the centre of the swivel head, into the tube leg or frame of your equipment.
How much space does it need to swivel?
The swivel radius is 80mm and the total castor height is 128mm.
Where can I use this castor?
It suits trolleys, carts and machinery, electronics manufacturing areas where static must be controlled, and storage units in warehouses.
