- Load per castor90kg per castor
- Wheel diameter75mm
- Overall height100mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Twin Wheel Swivel Top Plate Castor
- Wheel Diameter
- 75mm
- Wheel Material
- Rubber on Polypropylene
- Wheel Colour
- Grey
- Fixing
- Top Plate (4 Bolt Holes)
- Plate Size
- 60mm x 60mm
- Plate Hole Centres
- 48/37mm x 48/37mm
- Plate Hole Diameter
- 6mm
- Bearing Type
- Plain
- Swivel Radius
- 74mm
- Total Castor Height
- 100mm
- Load Capacity
- 90kg per castor
- Brake
- No (swivel only)
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Light Duty Top Plate Twin Wheel Castors

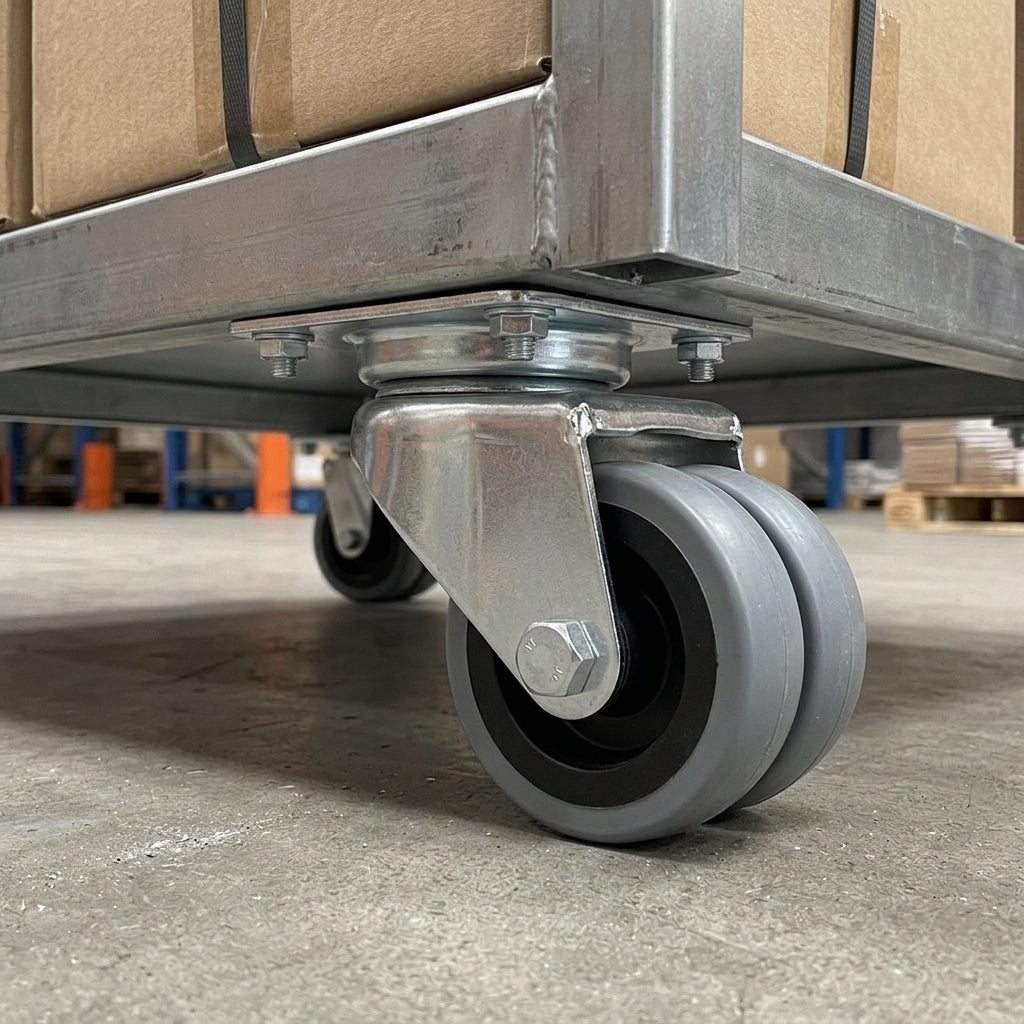

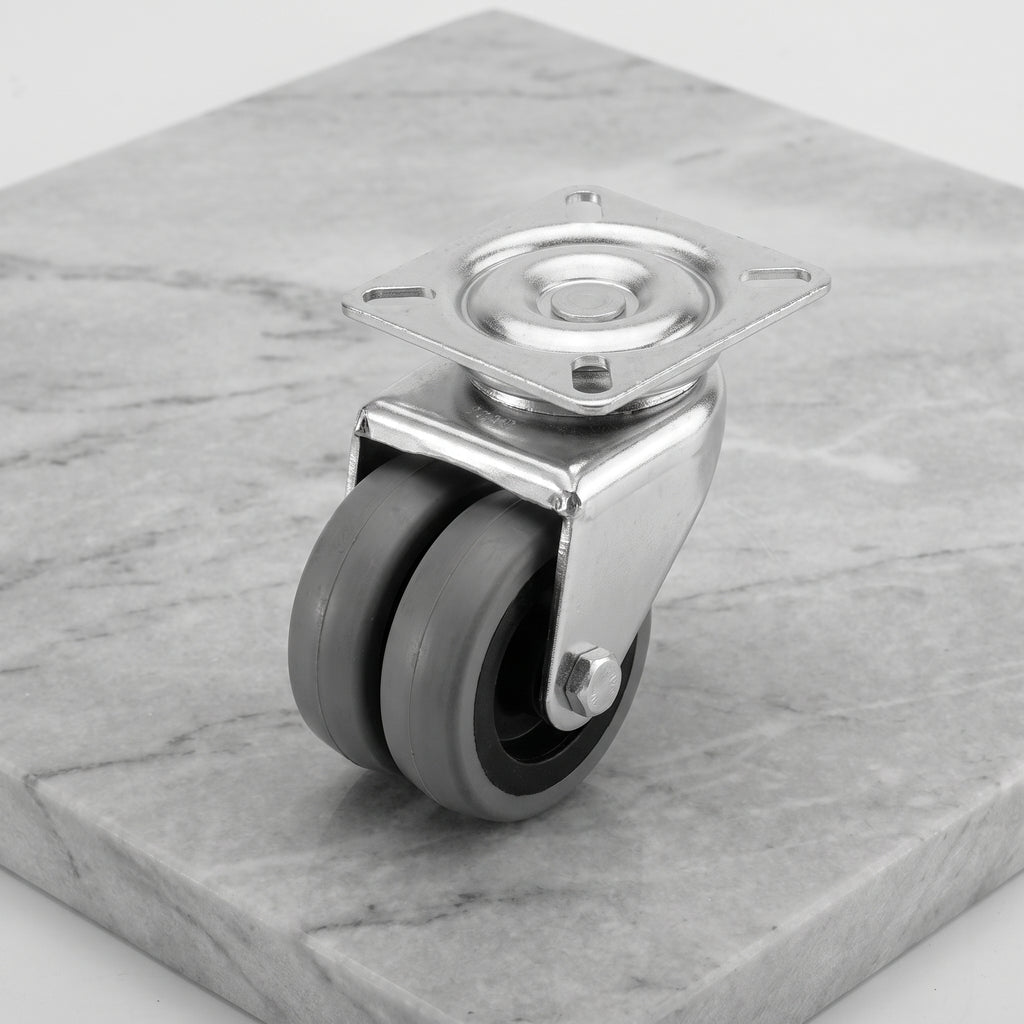

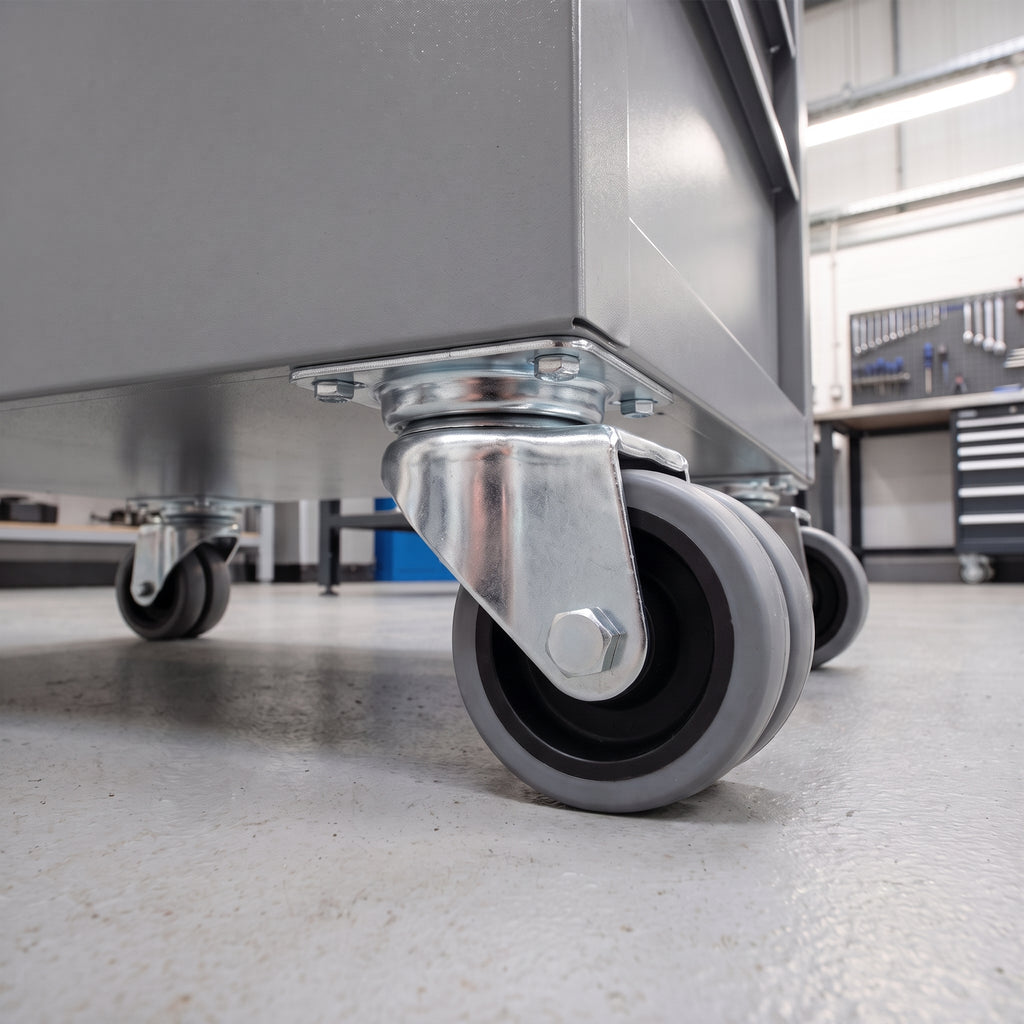

This 75mm twin wheel swivel castor bolts to any flat base with its 60 x 60mm top plate and carries up to 90kg per castor. Two grey rubber wheels run side by side on a smooth swivel head, so display units, shelving and office furniture turn easily, run quietly and spread their weight gently across the floor.
A popular choice for shop fittings, retail display stands and office equipment, this grey rubber twin wheel top plate castor combines a compact 100mm total height with a 74mm swivel radius. The rubber on polypropylene wheels grip well and roll quietly on indoor floors, and the plain bearing keeps the castor simple and low maintenance.
Why Choose This Castor
- ✓ Twin wheel design spreads the load over two wheels for easy steering and gentle floor contact.
- ✓ 90kg load capacity per castor for light duty display units, shelving and office furniture.
- ✓ 60 x 60mm top plate with four 6mm holes on 48/37mm centres for secure bolt-on fitting.
- ✓ Full swivel movement with a compact 74mm swivel radius for tight shop aisles.
- ✓ Grey rubber on polypropylene wheels for quiet running and good floor grip.
- ✓ Low 100mm total height keeps furniture and display units close to the floor.
* Load capacity is per castor on a smooth, level floor. Fix the plate through all four holes with bolts or screws that suit the 6mm holes.
Where It Works Best
This twin wheel top plate castor is made for everyday light duty movement indoors:
- ✓ Shop fittings: support and manoeuvre display units and fixtures.
- ✓ Retail environments: fitted to movable shelving and display stands.

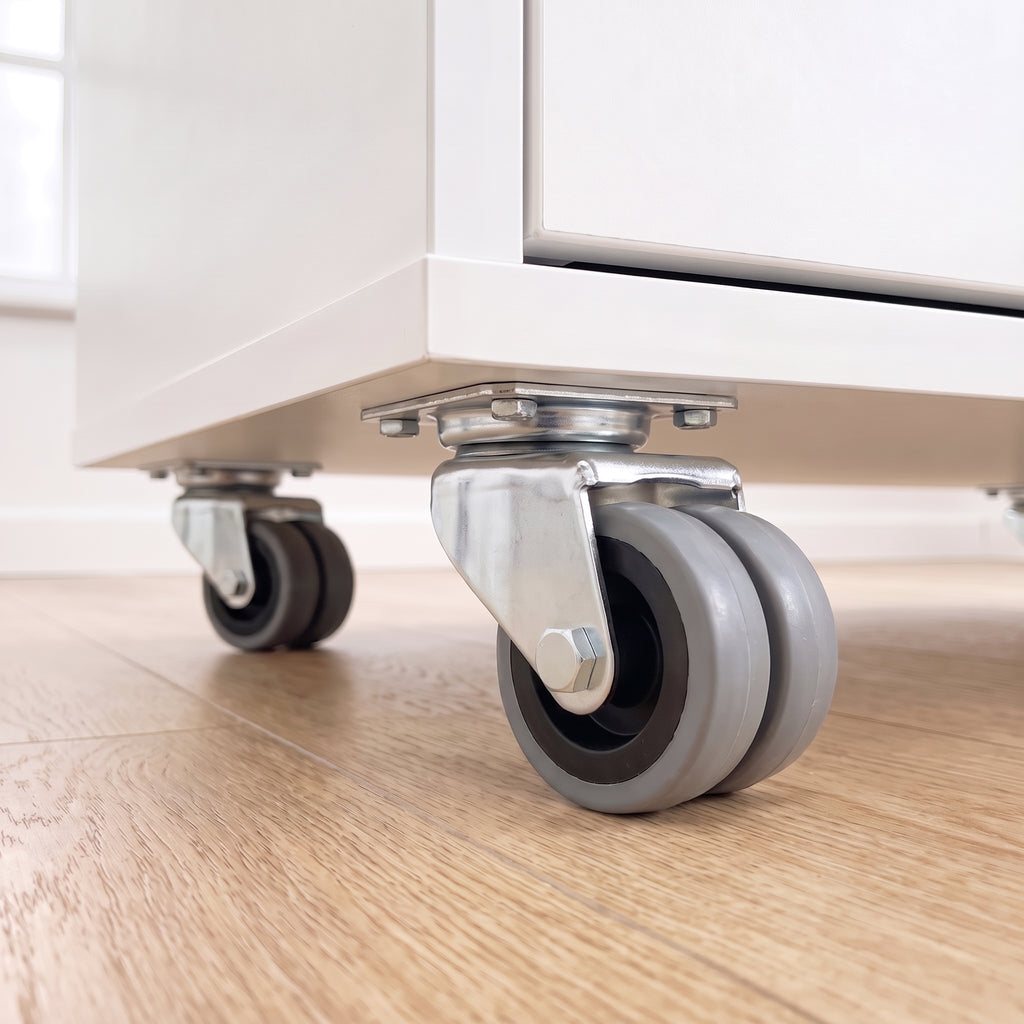

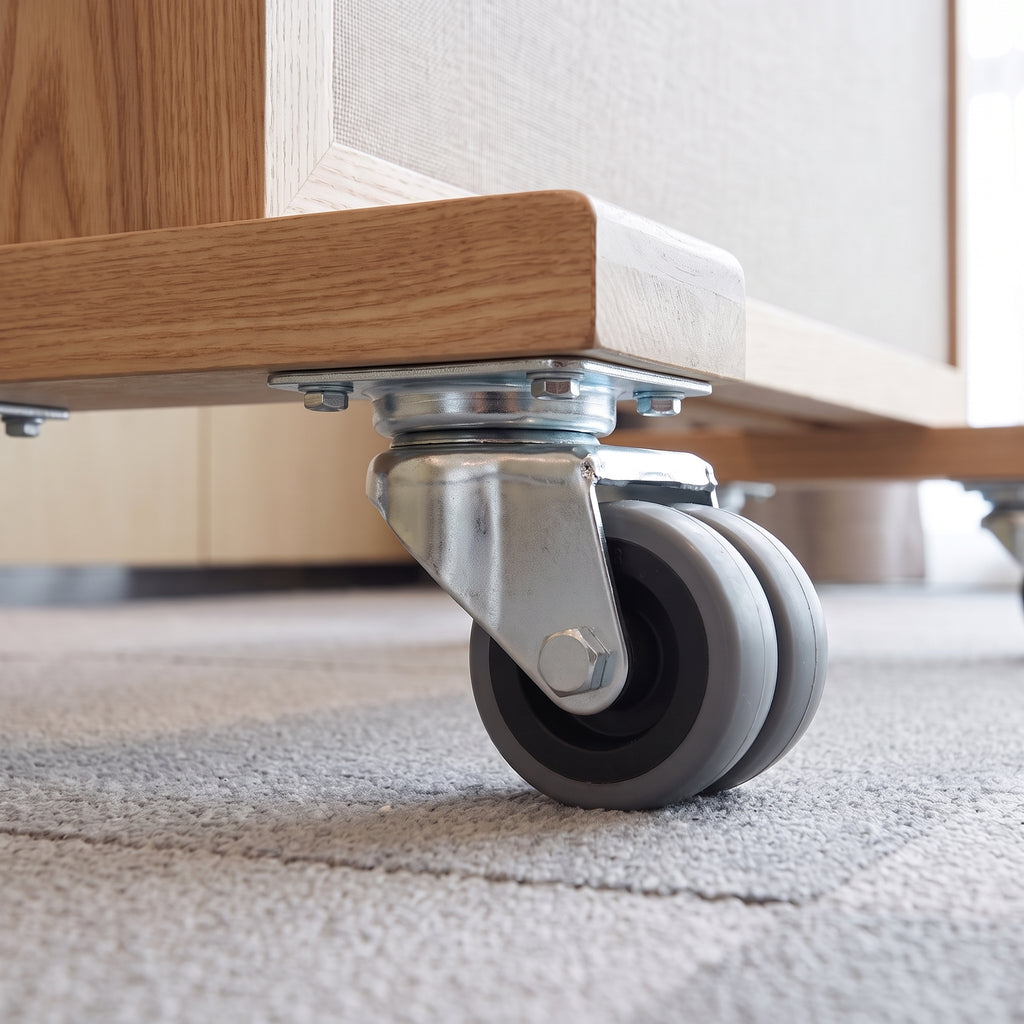

- ✓ Office equipment: mobile partitions and furniture.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 90kg on a smooth, level floor.
What size is the top plate?
The plate is 60mm x 60mm with 6mm holes on 48/37mm centres, so it lines up with more than one fixing pattern.
How do I fit it?
Hold the plate flat against the underside of your unit and fix it through all four holes with bolts or screws that suit the 6mm holes.
How tall is the castor?
The total castor height is 100mm and the swivel radius is 74mm.
Does this castor have a brake?
No, this is a swivel castor without a brake.
