- Load per castor90kg per castor
- Wheel diameter75mm
- Overall height100mm
- WheelPolypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Twin wheel swivel, top plate fixing
- Wheel Diameter
- 75mm
- Wheel Material
- Polypropylene
- Wheel Colour
- Black
- Bearing Type
- Plain
- Top Plate Size
- 60mm x 60mm
- Plate Hole Centres
- 48mm or 37mm x 48mm or 37mm (slotted)
- Plate Hole Diameter
- 6mm (suits M6 bolts)
- Load Capacity
- 90kg per castor
- Load Capacity, Set of 4
- 270kg*
- Total Castor Height
- 100mm
- Swivel Radius
- 74mm
- Housing
- Zinc-plated pressed steel
- Brake
- None
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Light Duty Twin Wheel Castors

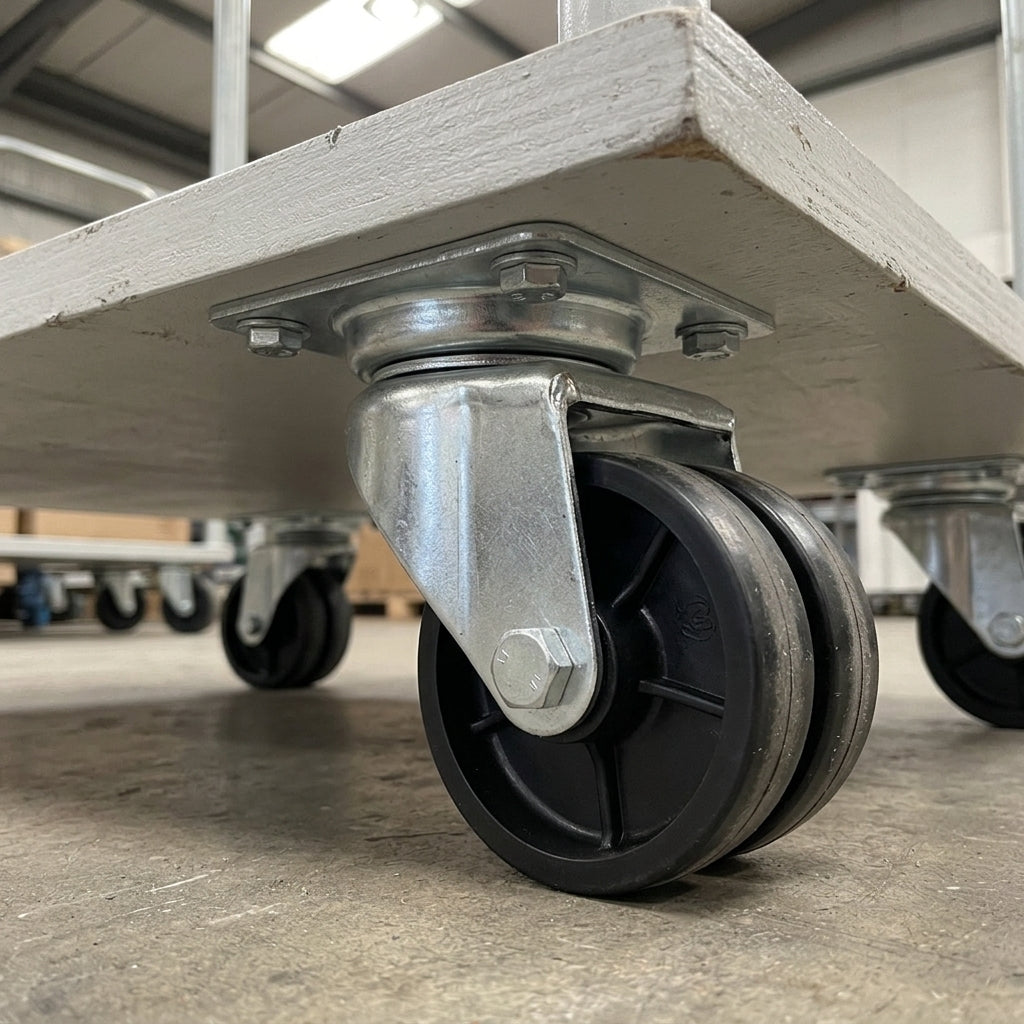

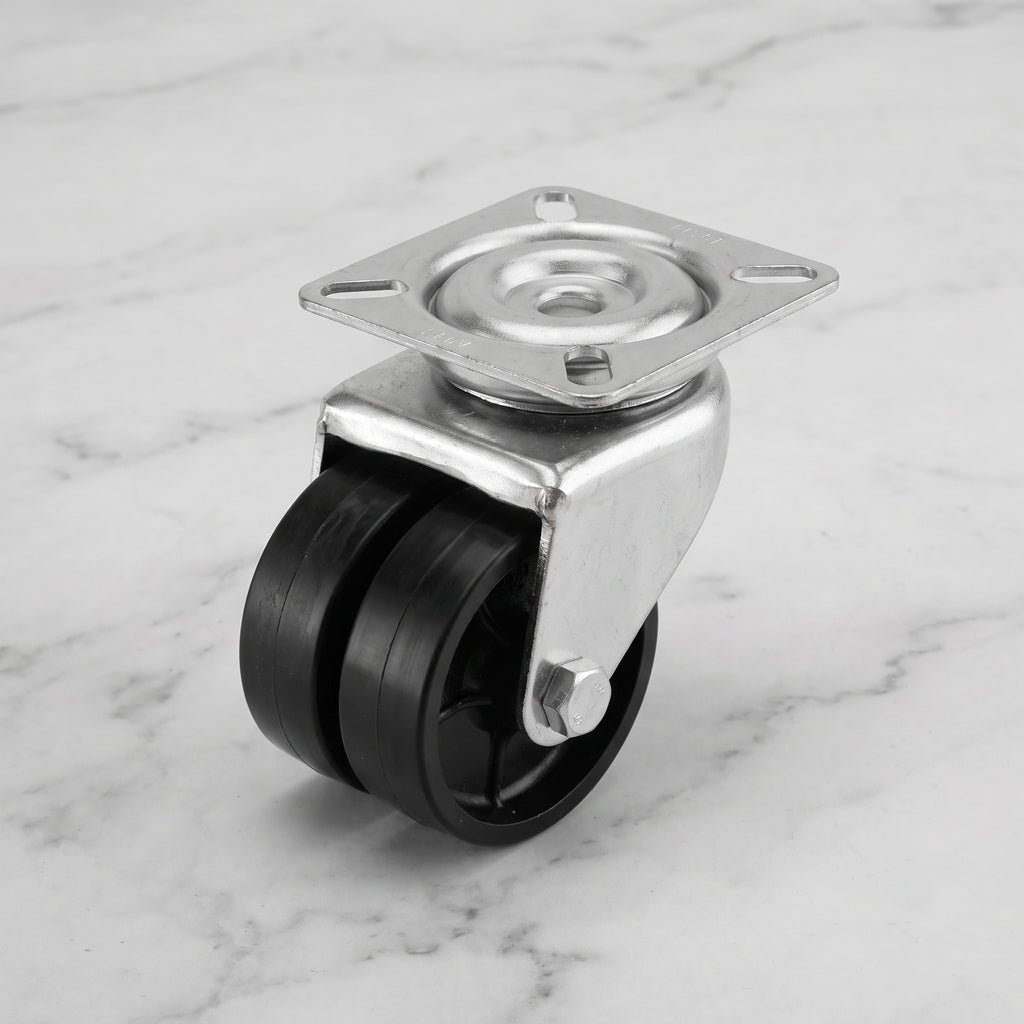

This 75mm twin wheel swivel castor pairs two black polypropylene wheels with a zinc-plated pressed steel housing and a 60mm x 60mm four-hole top plate. Rated to 90kg per castor and standing 100mm tall, it bolts flat to the underside of trolleys, cabinets, cleaning carts, serving trolleys, display units and furniture, giving smooth, easy movement and tight turning on hard indoor floors.
If you are looking for a 75mm twin wheel castor, a top plate swivel castor with M6 fixings, black plastic trolley castors or replacement castors for cabinets, carts and catering equipment, this twin wheel design is a dependable, easy-rolling choice.
Why Choose This Castor
- ✓ Twin wheel design lets the two wheels turn independently, so the castor swivels easily with less floor scrubbing.
- ✓ 90kg per castor, 270kg for a set of four.
- ✓ 60mm x 60mm top plate with slotted 6mm holes that suit 48mm or 37mm hole centres.
- ✓ Black polypropylene wheels that are light, hard wearing and do not absorb water.
- ✓ Compact 74mm swivel radius for easy turning in tight spaces.
* Set load is calculated on three castors carrying the weight, to allow for uneven floors. Fixing bolts or screws not included.
Where It Works Best

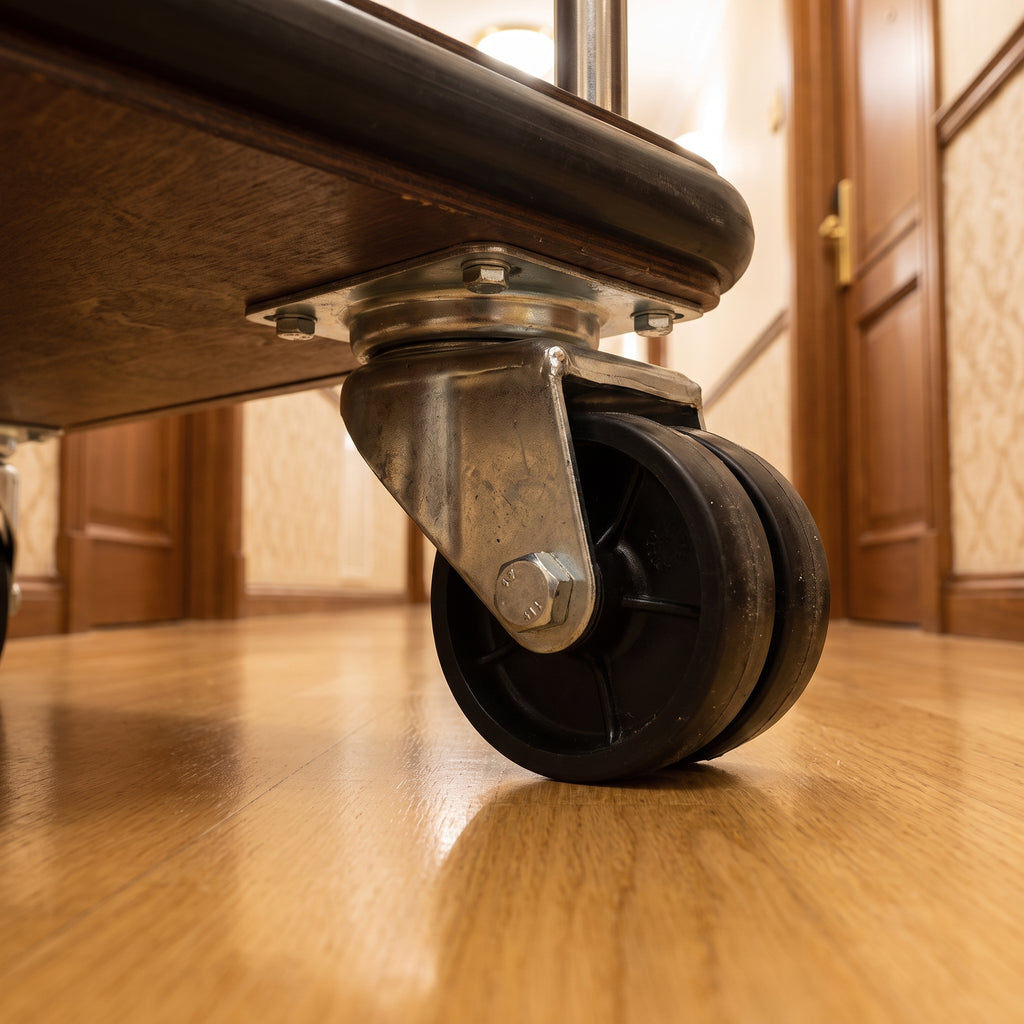

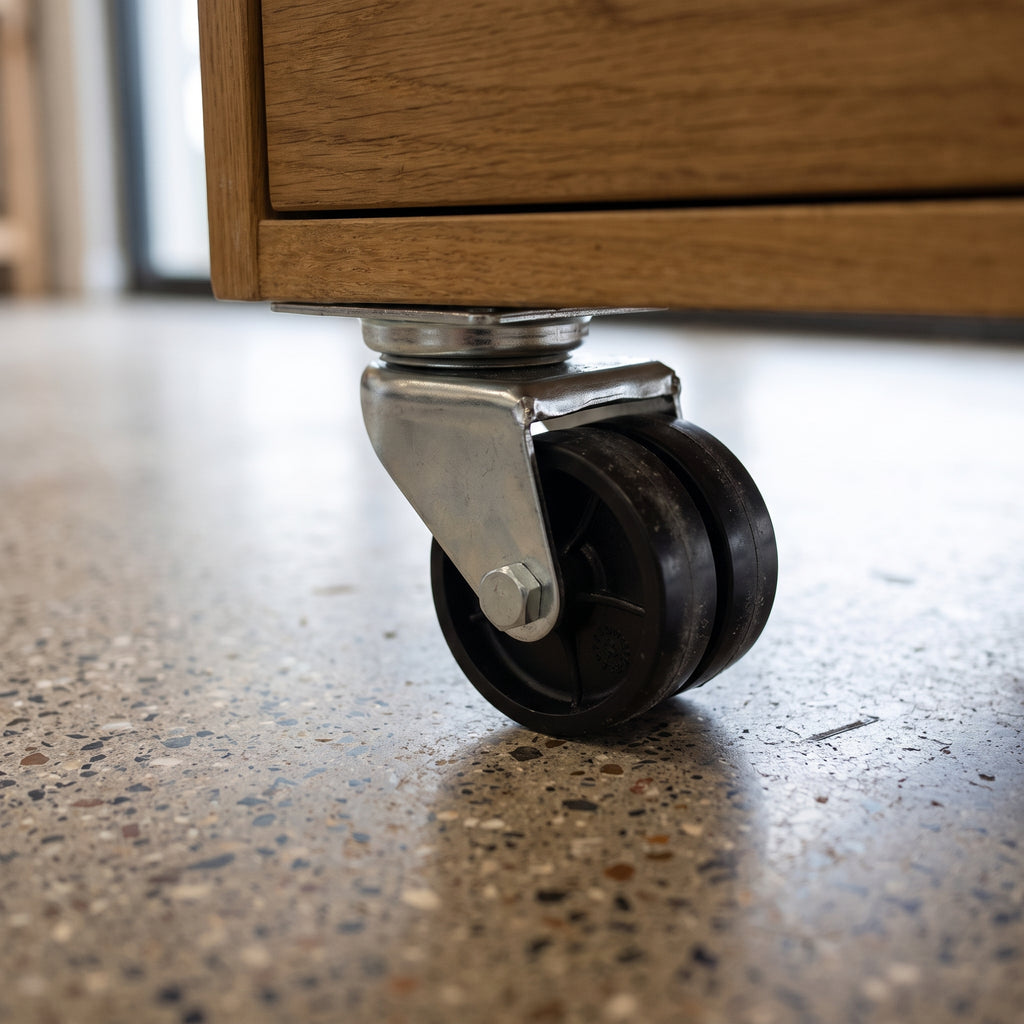

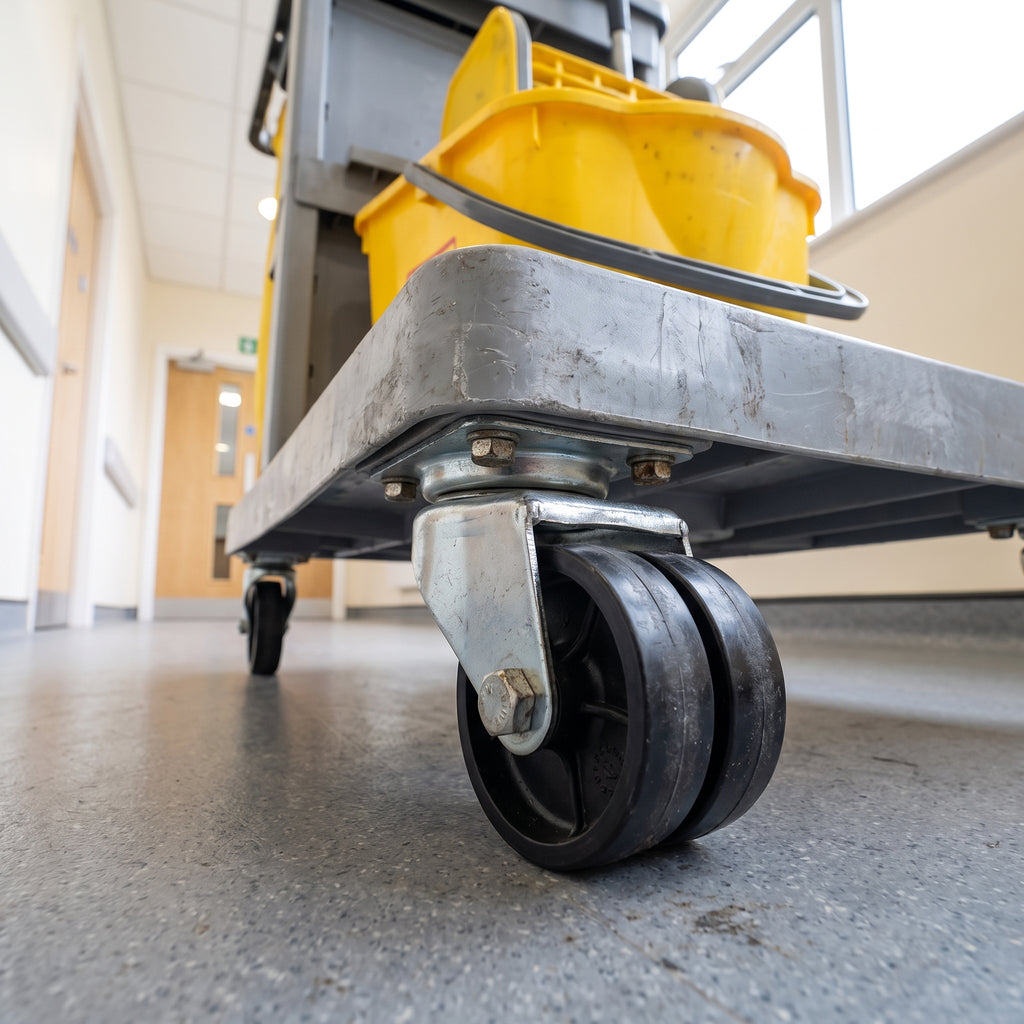

Ideal for mobile storage cabinets and drawer pedestals, hotel serving and room service trolleys, cleaning carts and mop trolleys, light workshop and stock trolleys, retail display units, equipment stands and furniture that needs to move for cleaning. It runs best on smooth, hard indoor floors such as vinyl, tiles, sealed concrete and laminate.
Frequently Asked Questions
What is the load capacity of this 75mm twin wheel castor?
Each castor is rated to 90kg. A set of four is rated to 270kg, because the load is calculated on three castors to allow for uneven floors.
What size bolts do I need?
The plate holes are 6mm, so use M6 bolts and nuts, or screws of a similar size into solid timber. The slotted holes suit 48mm or 37mm centres. Fixings are not supplied.
Why choose a twin wheel castor?
The two wheels rotate independently when the castor turns, which makes steering lighter and reduces wear on the floor compared with a single wide wheel.
Are polypropylene wheels suitable for all floors?
They roll easily on smooth, hard indoor floors. They are firmer and a little noisier than rubber, so for delicate floors or quiet running choose a rubber wheel castor.
Does this castor have a brake?
No, this is a plain swivel castor. Where equipment must stay in place, fit braked castors on at least two corners.
