75mm Twin Wheel Braked Swivel Castor Grey Rubber Black Polypropylene Wheel Top Plate 90kg Load Capacity

Light Duty Twin Wheel Castors

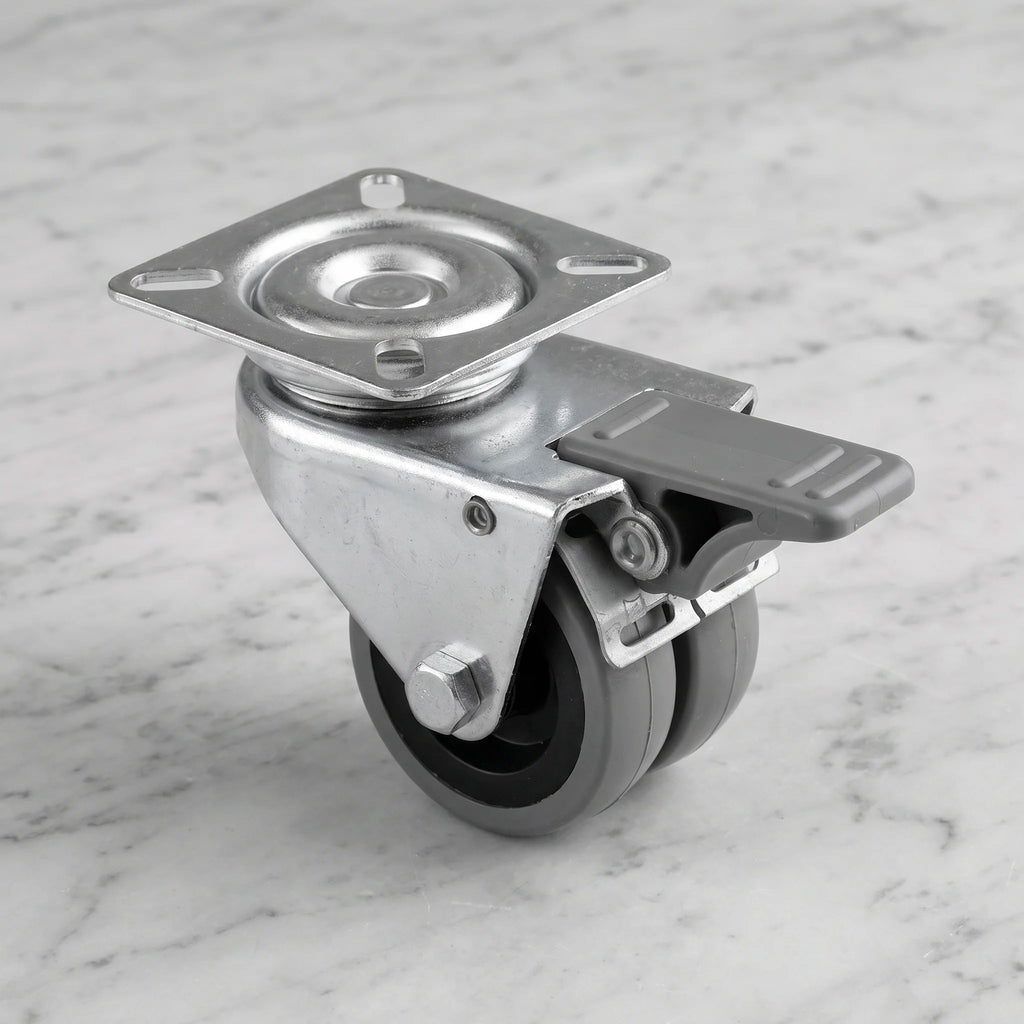

This 75mm twin wheel braked swivel castor runs quietly on grey rubber tyres, protects your floors and locks firmly in place when you need it to. It has a 60mm x 60mm four-hole top plate, a zinc-plated pressed steel housing and a foot-operated total lock brake that holds both the wheels and the swivel head. Rated to 90kg per castor with a 100mm fitting height, it suits medical and laboratory trolleys, hotel serving trolleys, tool cabinets, office pedestals, display units and furniture.

If you are looking for a 75mm braked twin wheel castor, a grey rubber non-marking style castor, a total lock top plate castor or quiet locking castors for trolleys and cabinets, this design combines smooth, quiet rolling with secure parking.

Why Choose This Castor

• ✓ Grey rubber tyres on polypropylene centres run quietly and are kind to vinyl, tiles, laminate and sealed wood.
• ✓ Total lock foot brake locks the wheels and the swivel head together, so the castor can neither roll nor spin.
• ✓ Twin wheel design lets the two wheels turn independently for lighter steering and less floor wear.
• ✓ 90kg per castor, 270kg for a set of four.
• ✓ 60mm x 60mm top plate with slotted 6mm holes that suit 48mm or 37mm hole centres.

* Set load is calculated on three castors carrying the weight, to allow for uneven floors. Allow 98mm clearance for the swivel. Fixing bolts or screws not included.

Where It Works Best

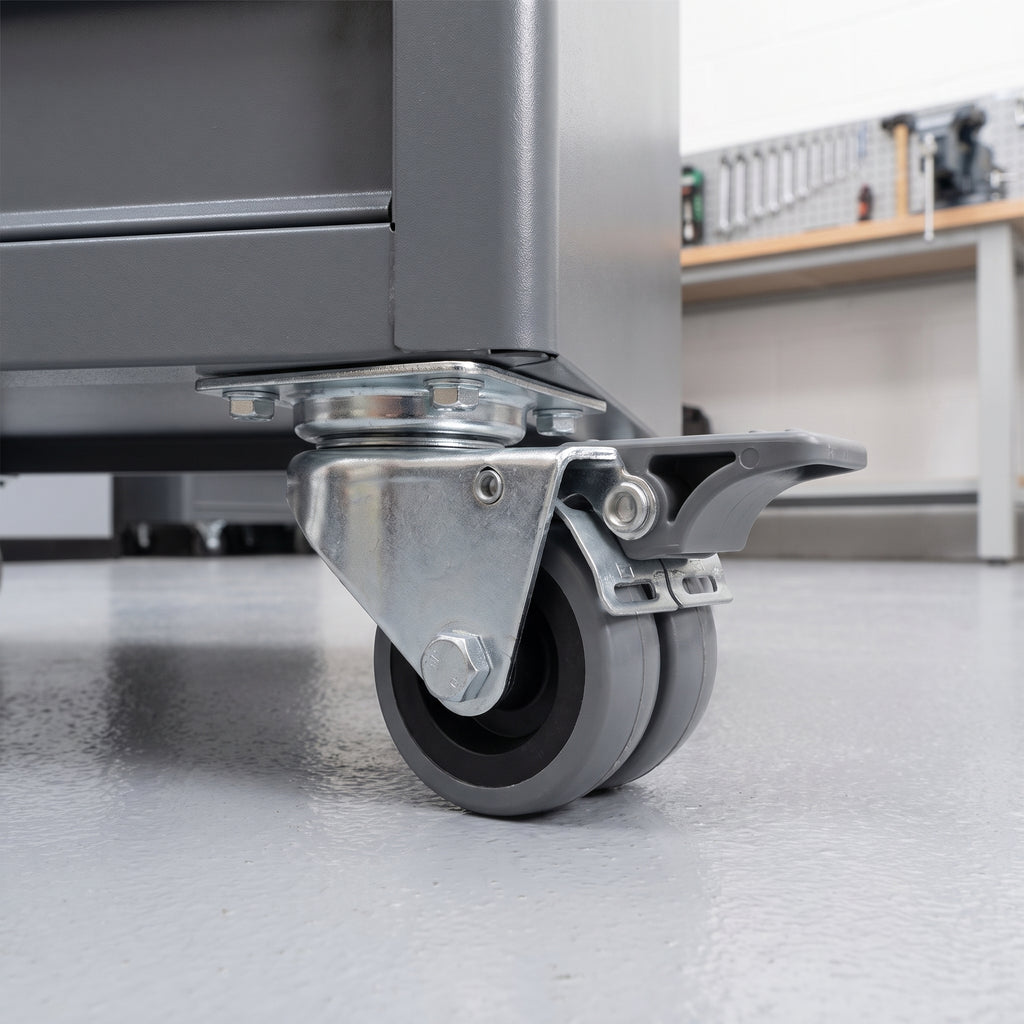

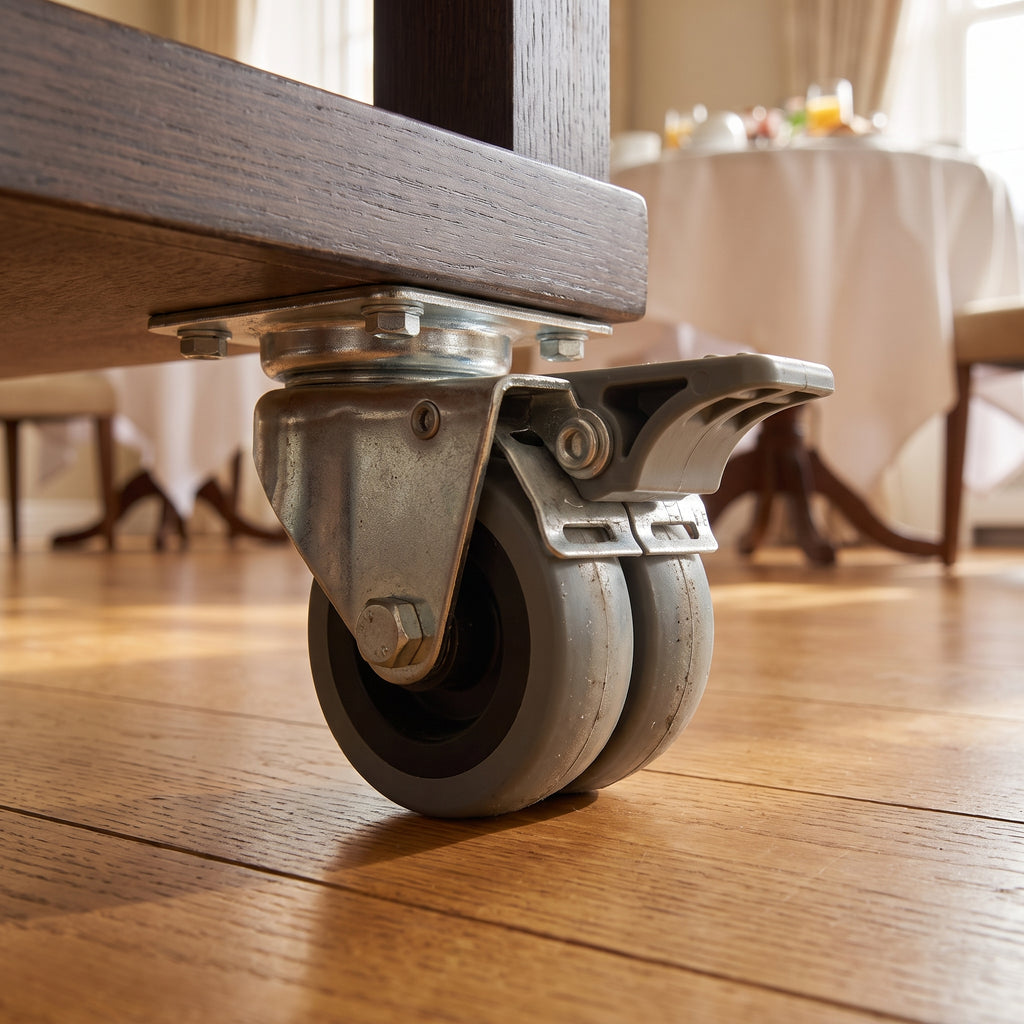

Ideal for medical and laboratory equipment trolleys, hotel serving and breakfast trolleys, mobile tool cabinets, office and school furniture, AV and IT trolleys, retail display units and storage pedestals, wherever quiet running and a secure parking brake both matter. It runs best on smooth indoor floors such as vinyl, tiles, laminate, sealed wood and sealed concrete.

Frequently Asked Questions

What does total lock mean?

The foot brake locks both the wheels and the swivel head, so the castor can neither roll nor spin round. Press the grey pedal down to lock and lift it to release.

Will grey rubber wheels mark my floor?

Grey rubber is less likely to leave dark marks than black rubber and runs quietly on hard floors. Keep the wheels clean to avoid carrying grit across delicate surfaces.

What is the load capacity of this braked castor?

Each castor is rated to 90kg. A set of four is rated to 270kg, because the load is calculated on three castors to allow for uneven floors.

What size bolts do I need?

The plate holes are 6mm, so use M6 bolts and nuts, or screws of a similar size into solid timber. The slotted holes suit 48mm or 37mm centres. Fixings are not supplied.

Should I fit brakes on every corner?

Most equipment needs braked castors on two corners and plain swivel castors on the other two. For items that must not move at all, fit braked castors on every corner.
