75mm Twin Wheel Braked Swivel Castor Black Polypropylene Wheel Top Plate 90kg Load Capacity

Light Duty Twin Wheel Castors

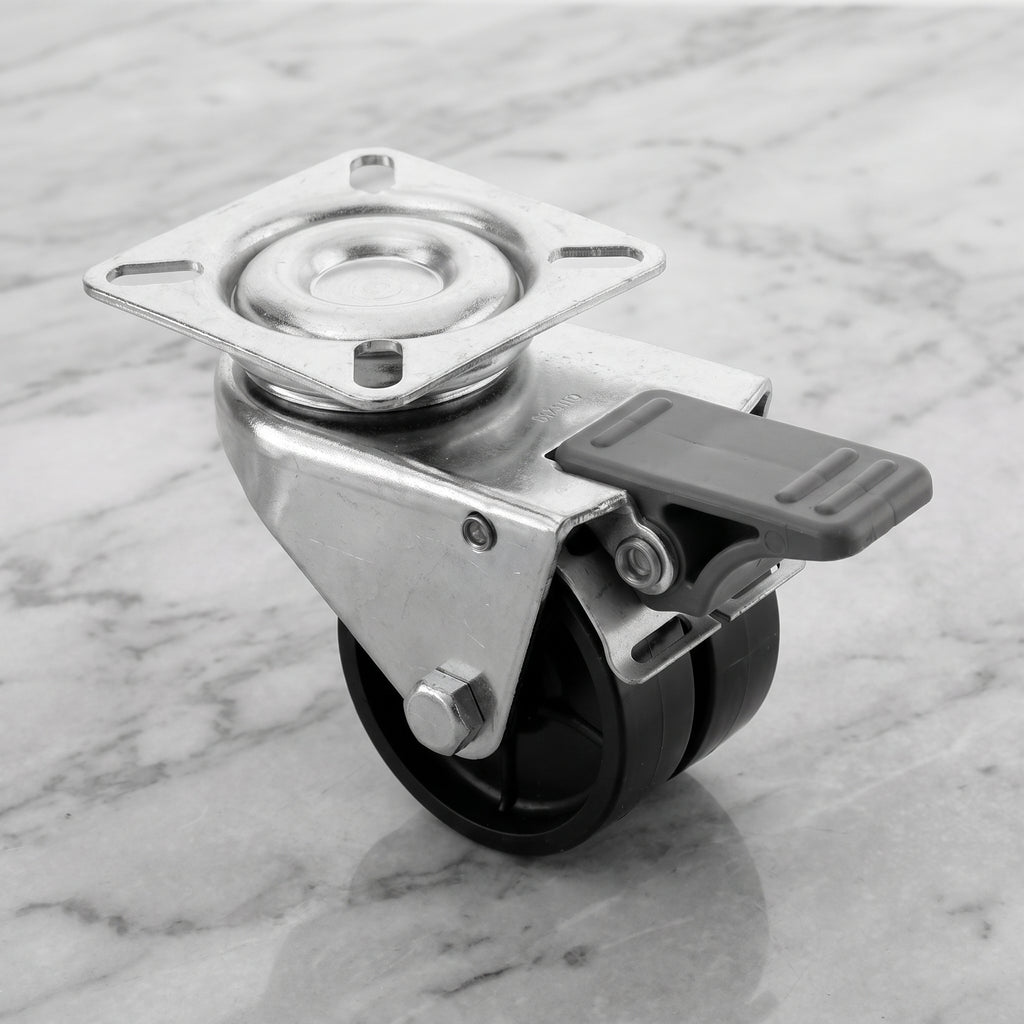

This 75mm twin wheel braked swivel castor rolls smoothly when you need to move and locks firmly when you need to stop. It has two black polypropylene wheels, a zinc-plated pressed steel housing, a 60mm x 60mm four-hole top plate and a foot-operated total lock brake that holds both the wheels and the swivel head. Rated to 90kg per castor with a 100mm fitting height, it suits trolleys, cabinets, workbenches, display units and catering equipment that must stay put while in use.

If you are looking for a 75mm braked twin wheel castor, a total lock top plate castor, black plastic trolley castors with brake or locking castors for furniture and workshop equipment, this twin wheel design gives you easy rolling and secure parking in one.

Why Choose This Castor

• ✓ Total lock foot brake locks the wheels and the swivel head together, so the castor can neither roll nor spin.
• ✓ Twin wheel design lets the two wheels turn independently for lighter steering and less floor wear.
• ✓ 90kg per castor, 270kg for a set of four.
• ✓ 60mm x 60mm top plate with slotted 6mm holes that suit 48mm or 37mm hole centres.
• ✓ Same 100mm height as the matching unbraked castor, so a mixed set sits level.

* Set load is calculated on three castors carrying the weight, to allow for uneven floors. Allow 98mm clearance for the swivel. Fixing bolts or screws not included.

Where It Works Best

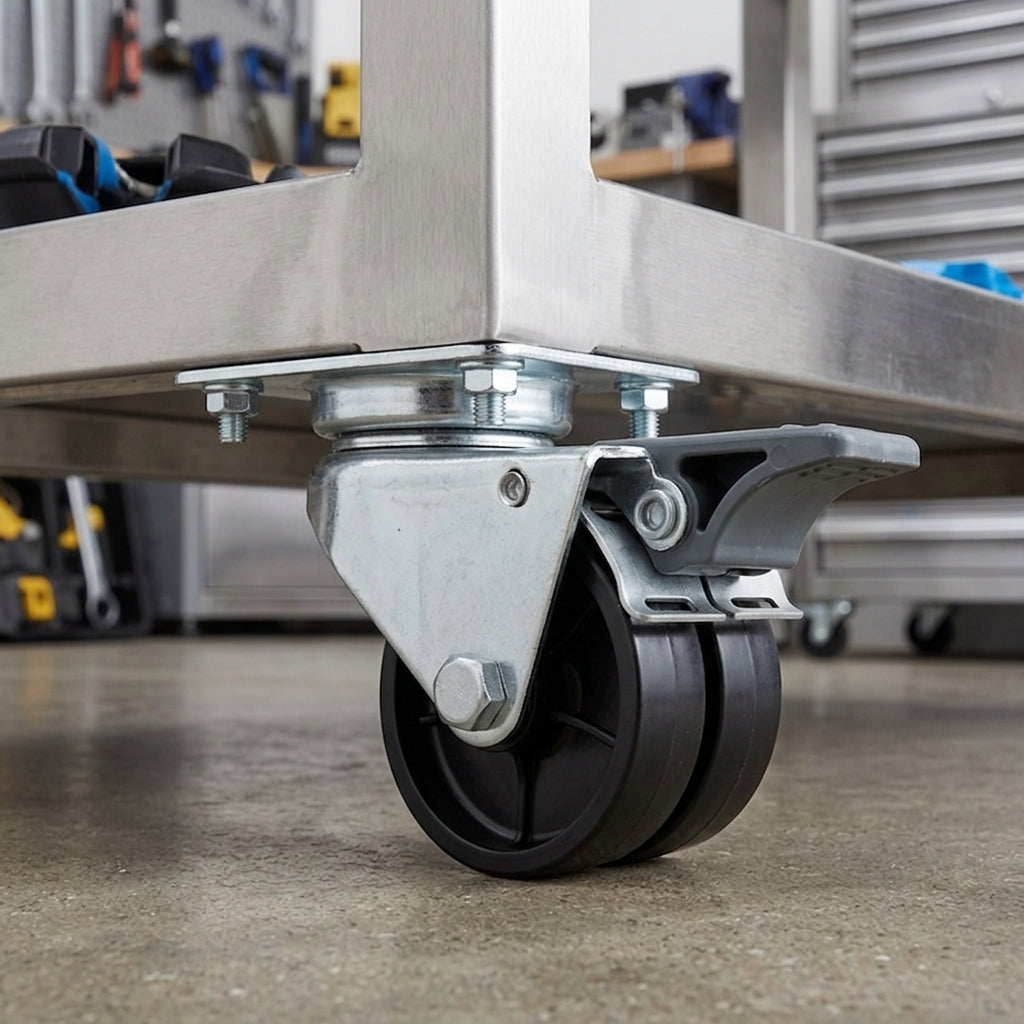

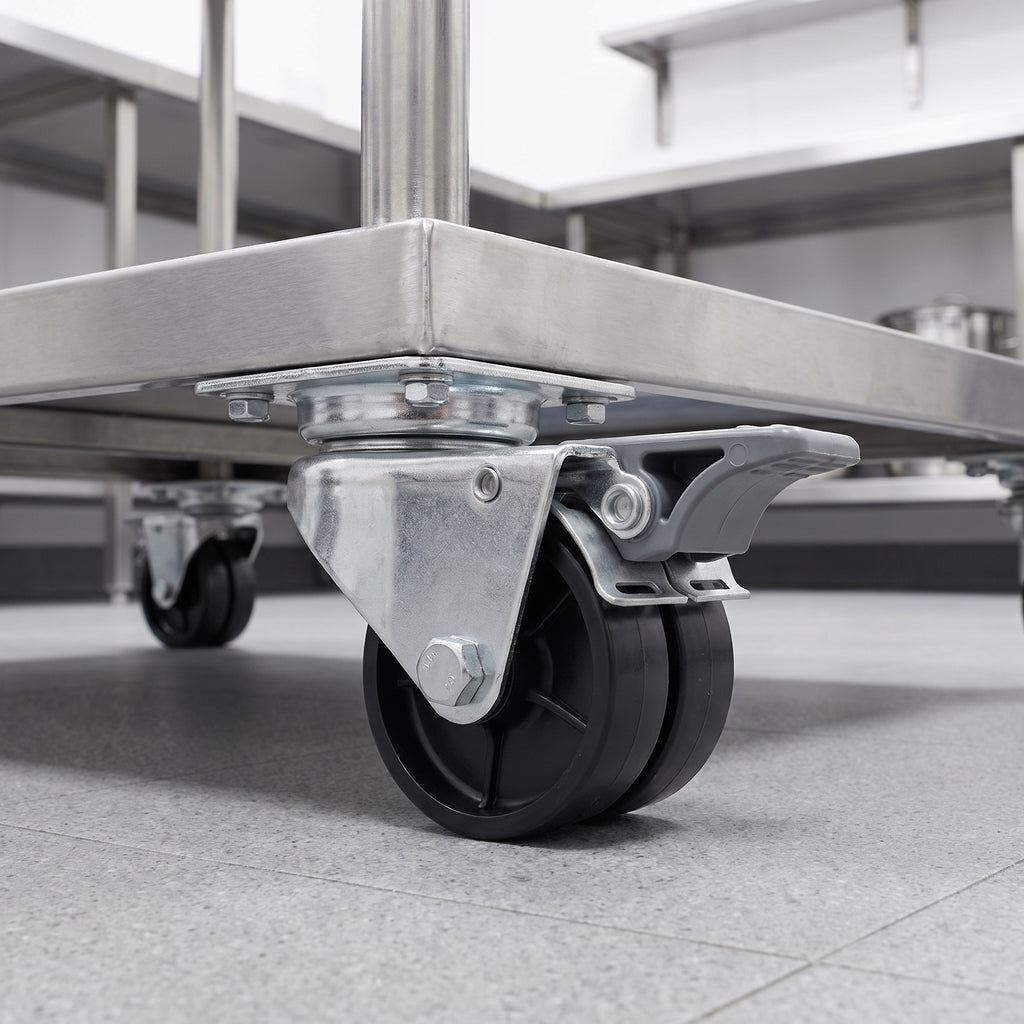

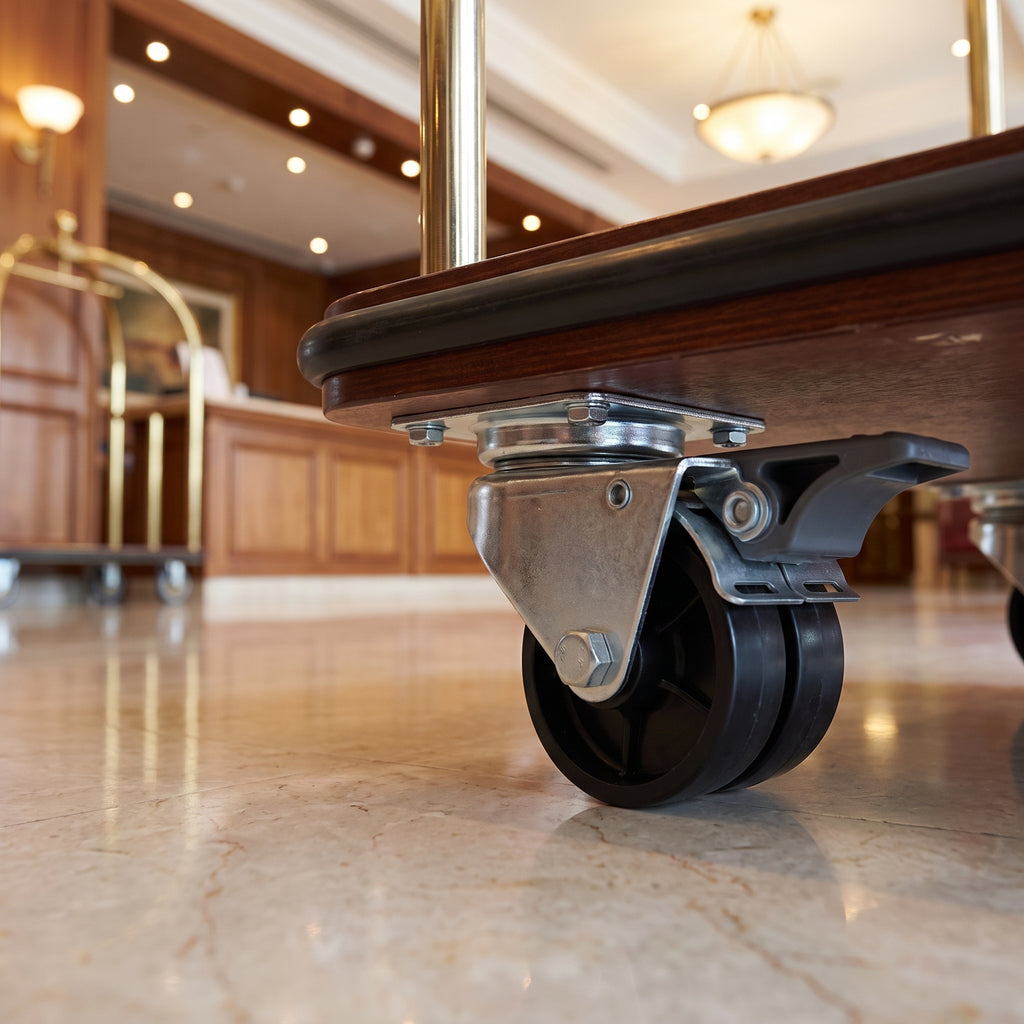

Ideal for catering and serving trolleys, hotel luggage trolleys, mobile workbenches on assembly lines, workshop and stock trolleys, mobile storage cabinets and pedestals, retail display units and equipment stands that must stay still while in use. Most users fit braked castors on two corners and plain swivel castors on the other two. It runs best on smooth, hard indoor floors such as vinyl, tiles, sealed concrete and laminate.

Frequently Asked Questions

How does the brake work?

Press the grey foot pedal down to lock and lift it to release. It is a total lock brake, so it locks both the wheels and the swivel head at the same time.

What is the load capacity of this braked castor?

Each castor is rated to 90kg. A set of four is rated to 270kg, because the load is calculated on three castors to allow for uneven floors.

What size bolts do I need?

The plate holes are 6mm, so use M6 bolts and nuts, or screws of a similar size into solid timber. The slotted holes suit 48mm or 37mm centres. Fixings are not supplied.

Can I mix braked and unbraked castors?

Yes. The matching unbraked 75mm twin wheel top plate castor has the same plate and 100mm height, so two of each gives a level set with brakes on two corners.

Are polypropylene wheels suitable for all floors?

They roll easily on smooth, hard indoor floors. They are firmer and a little noisier than rubber, so for delicate floors or quiet running choose a rubber wheel castor.
