- Load per castor60kg per castor
- Wheel diameter50mm
- Overall height72mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Twin Wheel Braked Swivel Top Plate Castor
- Wheel Diameter
- 50mm
- Wheel Material
- Rubber on Polypropylene
- Wheel Colour
- Grey
- Fixing
- Top Plate (4 Bolt Holes)
- Plate Size
- 60mm x 60mm
- Plate Hole Centres
- 48/37mm x 48/37mm
- Plate Hole Diameter
- 6mm
- Bearing Type
- Plain
- Swivel Radius
- 84mm
- Total Castor Height
- 72mm
- Load Capacity
- 60kg per castor
- Brake
- Yes, locks wheels and swivel head
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Light Duty Twin Wheel Castors

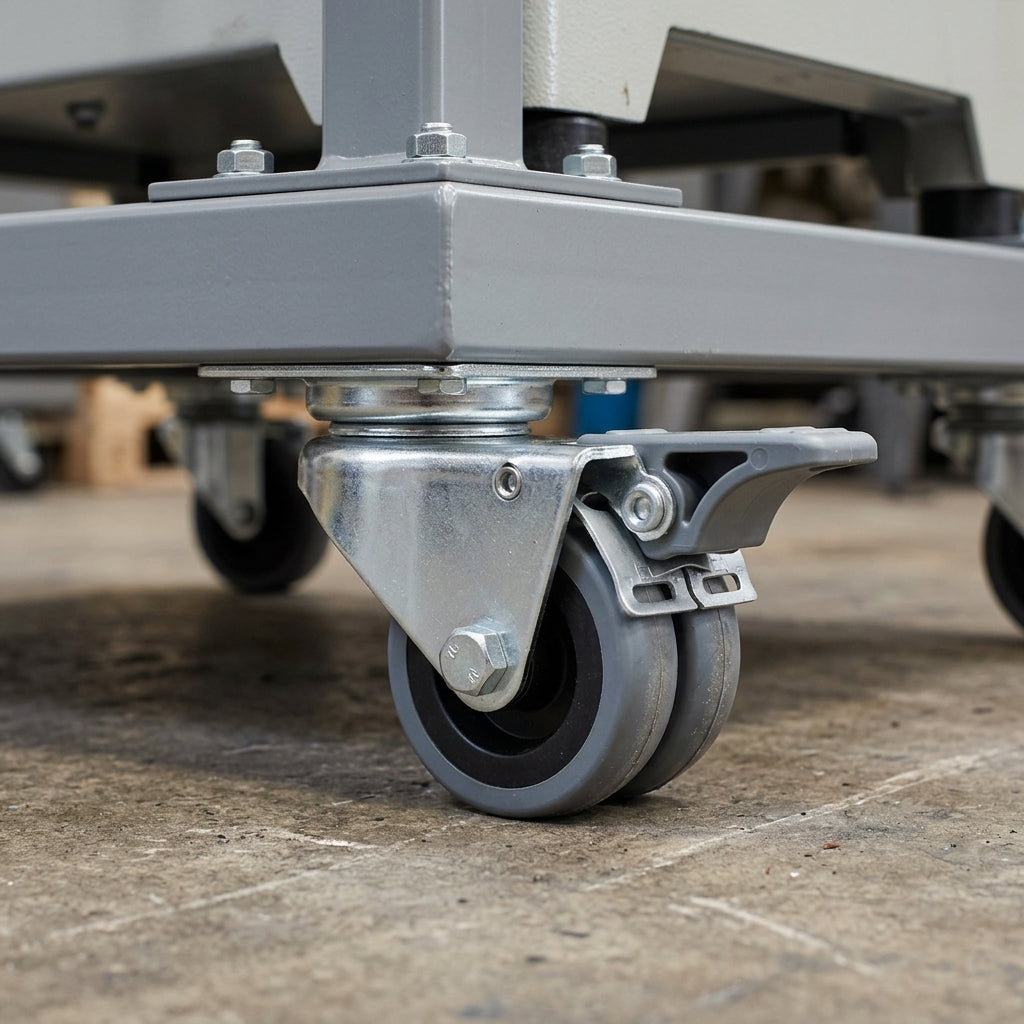

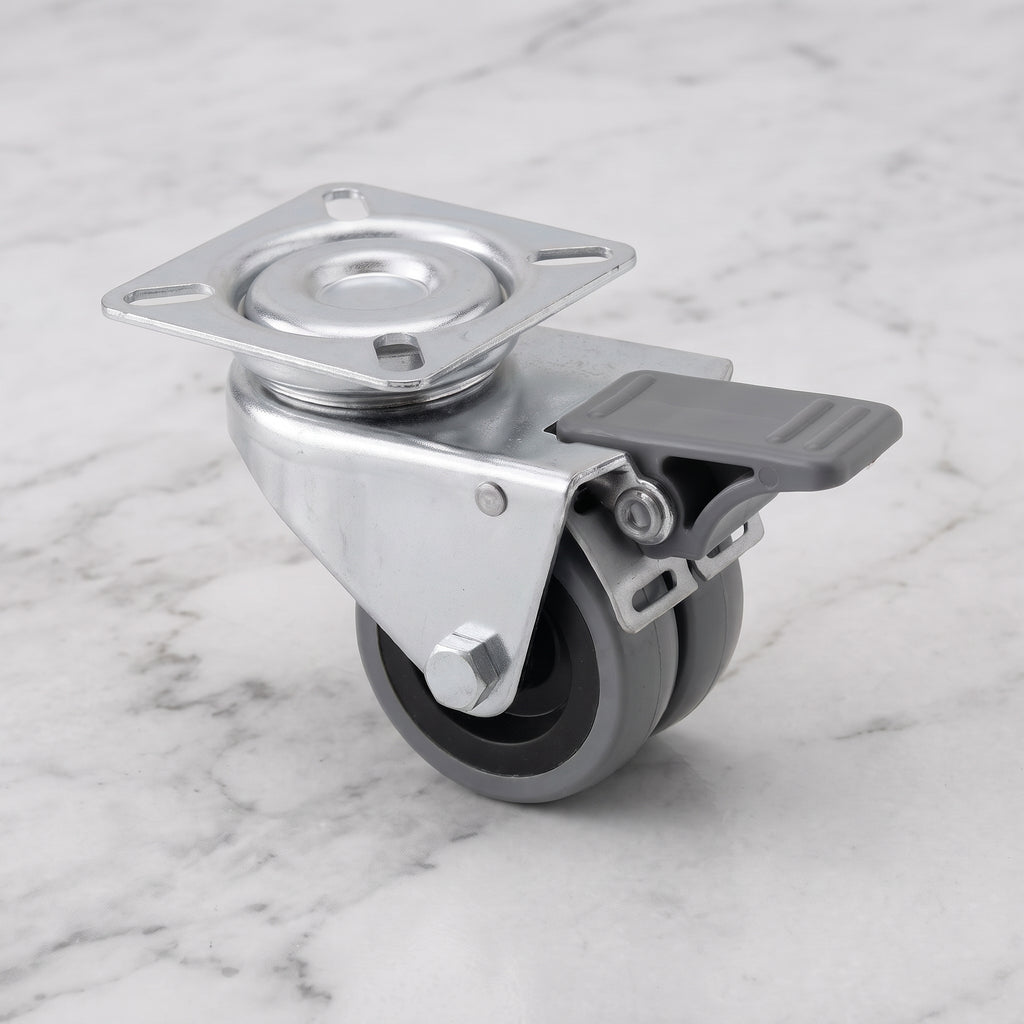

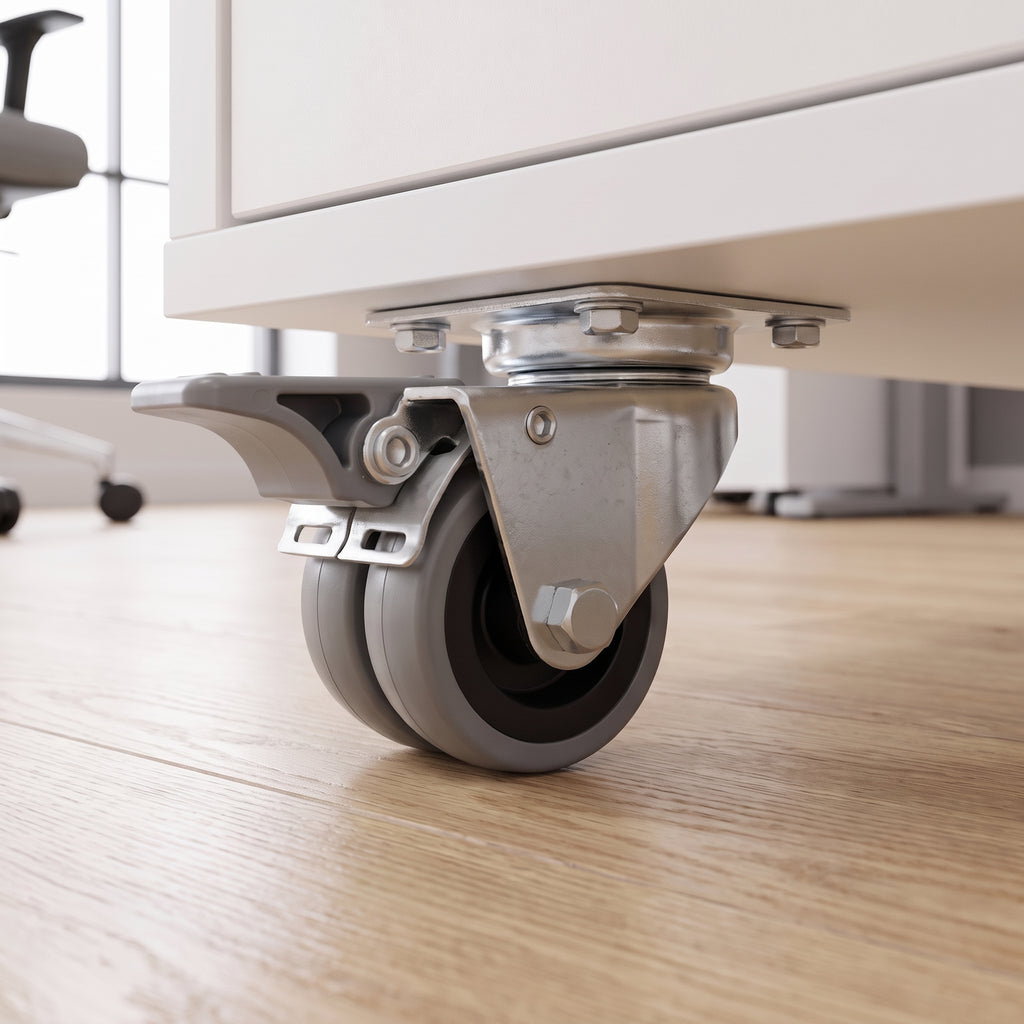

This compact 50mm twin wheel braked castor bolts to any flat base with its 60 x 60mm top plate and carries up to 60kg per castor. Two grey rubber wheels roll quietly side by side on a smooth swivel head, and the foot brake locks both the wheels and the swivel head, so shop displays, retail stands and commercial furniture move easily and stay firmly in place when parked.
A popular choice for shop fitting, retail displays and furniture movement, this braked top plate twin wheel castor combines a low 72mm total height with an 84mm swivel radius. The grey rubber on polypropylene wheels grip well and roll quietly on shop floors, and the plain bearing keeps the castor simple and low maintenance.
Why Choose This Castor
- ✓ Twin wheel design spreads the load over two wheels for easy steering and gentle floor contact.
- ✓ Foot brake locks both the wheels and the swivel head for secure positioning.
- ✓ 60 x 60mm top plate with four 6mm holes on 48/37mm centres for secure bolt-on fitting.
- ✓ 60kg load capacity per castor with an 84mm swivel radius for easy steering.
- ✓ Grey rubber on polypropylene wheels for quiet running and good floor grip.
- ✓ Low 72mm total height keeps displays and fixtures close to the floor.
* Load capacity is per castor on a smooth, level floor. Fix the plate through all four holes with bolts or screws that suit the 6mm holes.
Where It Works Best
This braked twin wheel top plate castor is made for light duty equipment that must move easily and then stay put:
- ✓ Shop fitting: mobility and stability for display units and fixtures.
- ✓ Retail displays: easy repositioning of merchandise stands.
- ✓ Furniture movement: relocating furniture in commercial settings.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 60kg on a smooth, level floor.
What size is the top plate?
The plate is 60mm x 60mm with 6mm holes on 48/37mm centres, so it lines up with more than one fixing pattern.
How do I fit it?
Hold the plate flat against the underside of your unit and fix it through all four holes with bolts or screws that suit the 6mm holes.
How tall is the castor?
The total castor height is 72mm and the swivel radius is 84mm.
What does the brake lock?
Pressing the foot pedal locks both the wheels and the swivel head, so the castor can neither roll nor turn.
