- Load per castor60kg per castor
- Wheel diameter50mm
- Overall height72mm
- WheelPolypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Twin Wheel Braked Swivel Top Plate Castor
- Wheel Diameter
- 50mm
- Wheel Material
- Polypropylene
- Wheel Colour
- Black
- Fixing
- Top Plate (4 Bolt Holes)
- Plate Size
- 60mm x 60mm
- Plate Hole Centres
- 48/37mm x 48/37mm
- Plate Hole Diameter
- 6mm
- Bearing Type
- Plain
- Swivel Radius
- 84mm
- Total Castor Height
- 72mm
- Load Capacity
- 60kg per castor
- Brake
- Yes, locks wheels and swivel head
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Light Duty Twin Wheel Castors

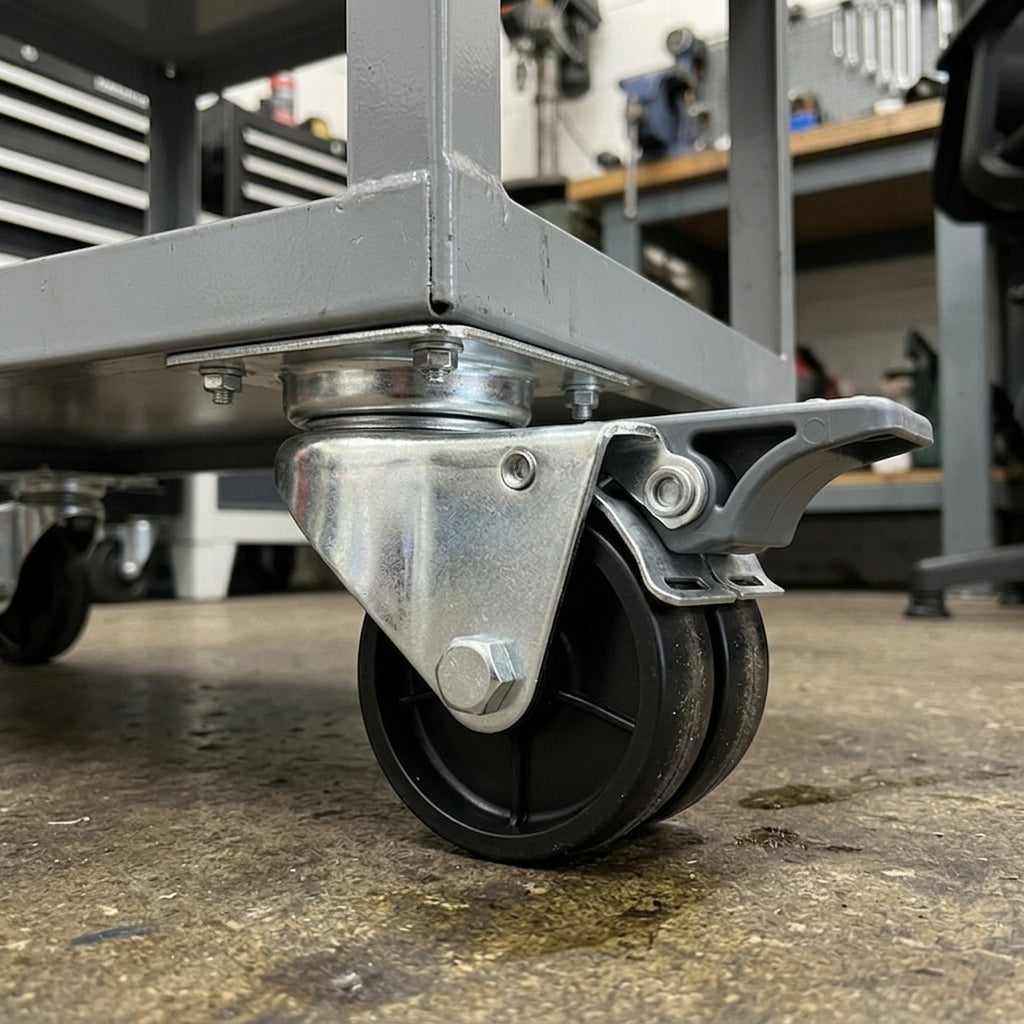

This compact 50mm twin wheel braked castor bolts to any flat base with its 60 x 60mm top plate and carries up to 60kg per castor. Two black wheels roll side by side on a smooth swivel head, and the foot brake locks both the wheels and the swivel head, so shop displays, office furniture and exhibition stands move easily and stay firmly in place when parked.
A popular choice for shop fitting, office furniture and exhibition stands, this braked top plate twin wheel castor combines a low 72mm total height with an 84mm swivel radius. The polypropylene wheels roll smoothly on shop floors, and the plain bearing keeps the castor simple and low maintenance.
Why Choose This Castor
- ✓ Twin wheel design spreads the load over two wheels for easy steering and gentle floor contact.
- ✓ Foot brake locks both the wheels and the swivel head for secure positioning.
- ✓ 60 x 60mm top plate with four 6mm holes on 48/37mm centres for secure bolt-on fitting.
- ✓ 60kg load capacity per castor with an 84mm swivel radius for easy steering.
- ✓ Black polypropylene wheels for easy, smooth rolling.
- ✓ Low 72mm total height keeps displays and fixtures close to the floor.
* Load capacity is per castor on a smooth, level floor. Fix the plate through all four holes with bolts or screws that suit the 6mm holes.
Where It Works Best
This braked twin wheel top plate castor is made for light duty equipment that must move easily and then stay put:

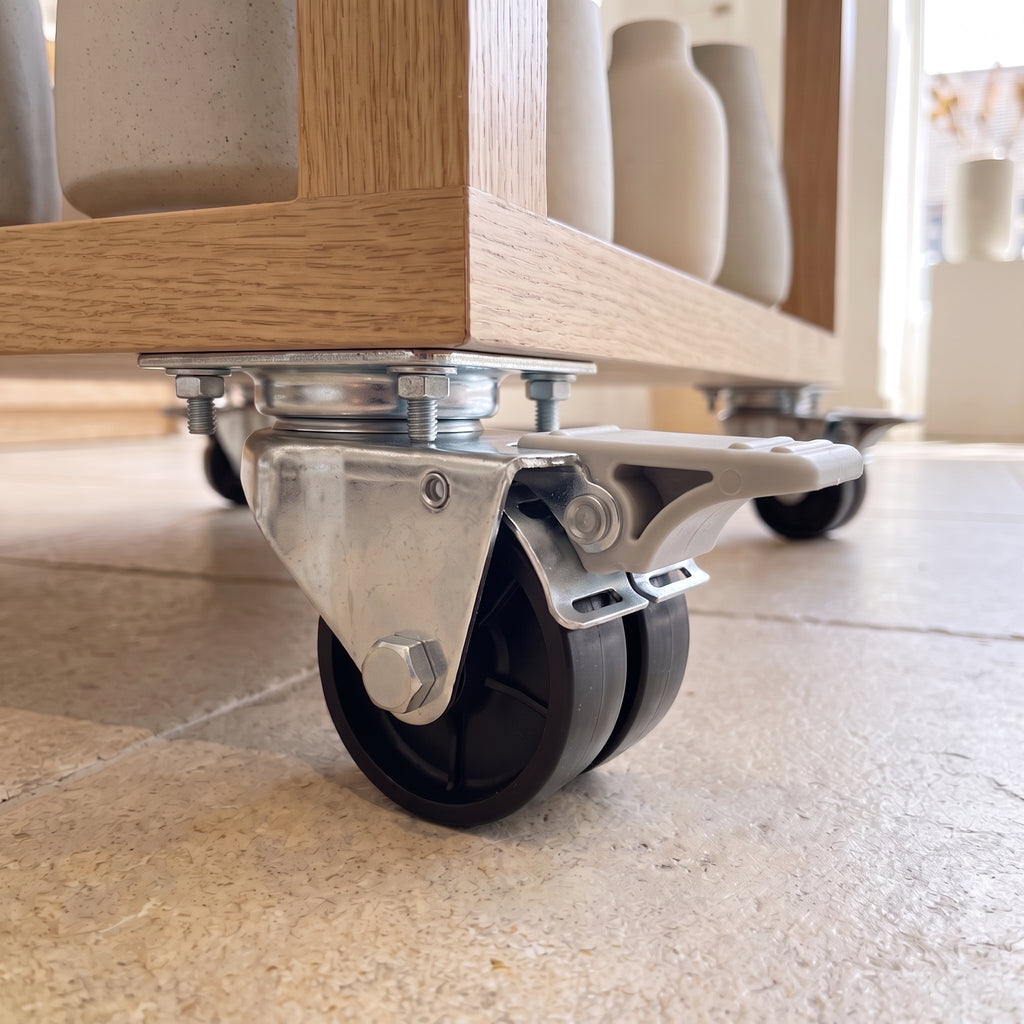

- ✓ Shop fitting: movable displays and fixtures in retail environments.

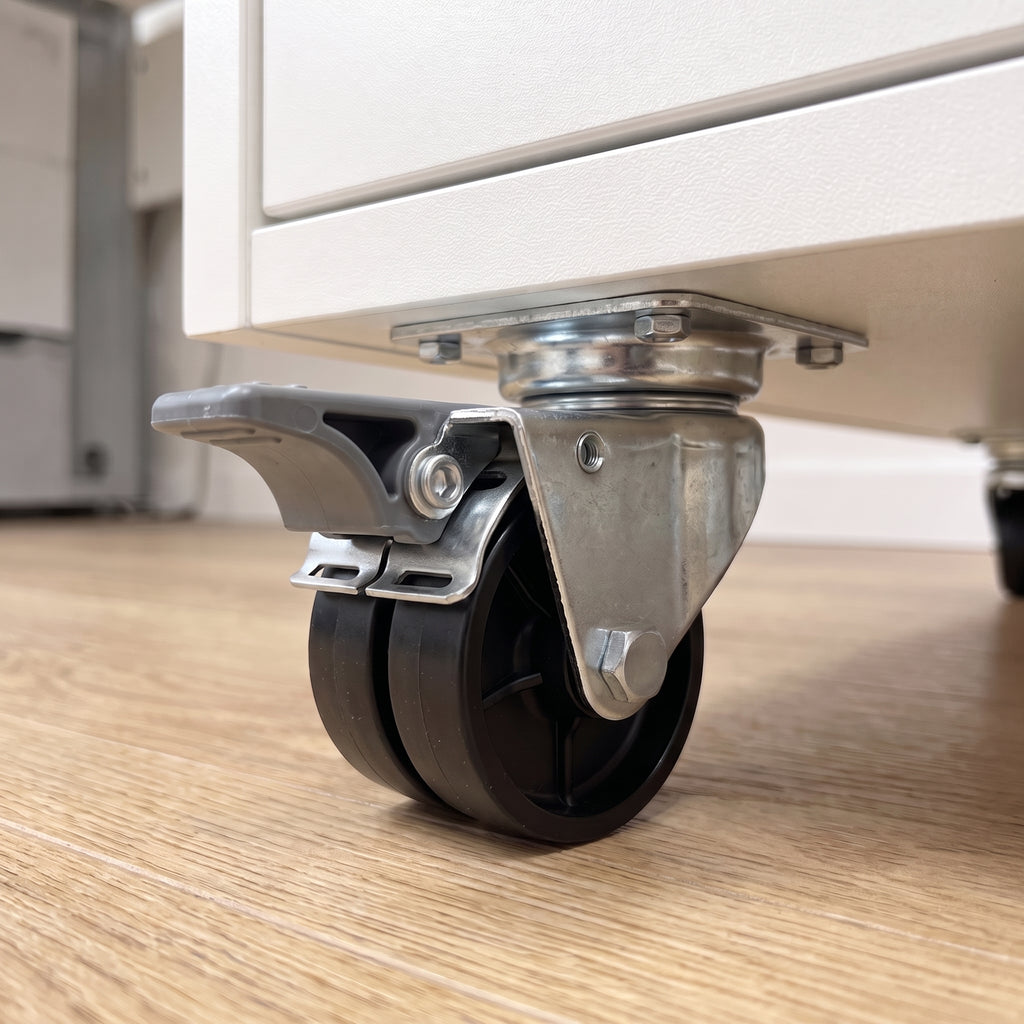

- ✓ Office furniture: mobile desks and storage units.

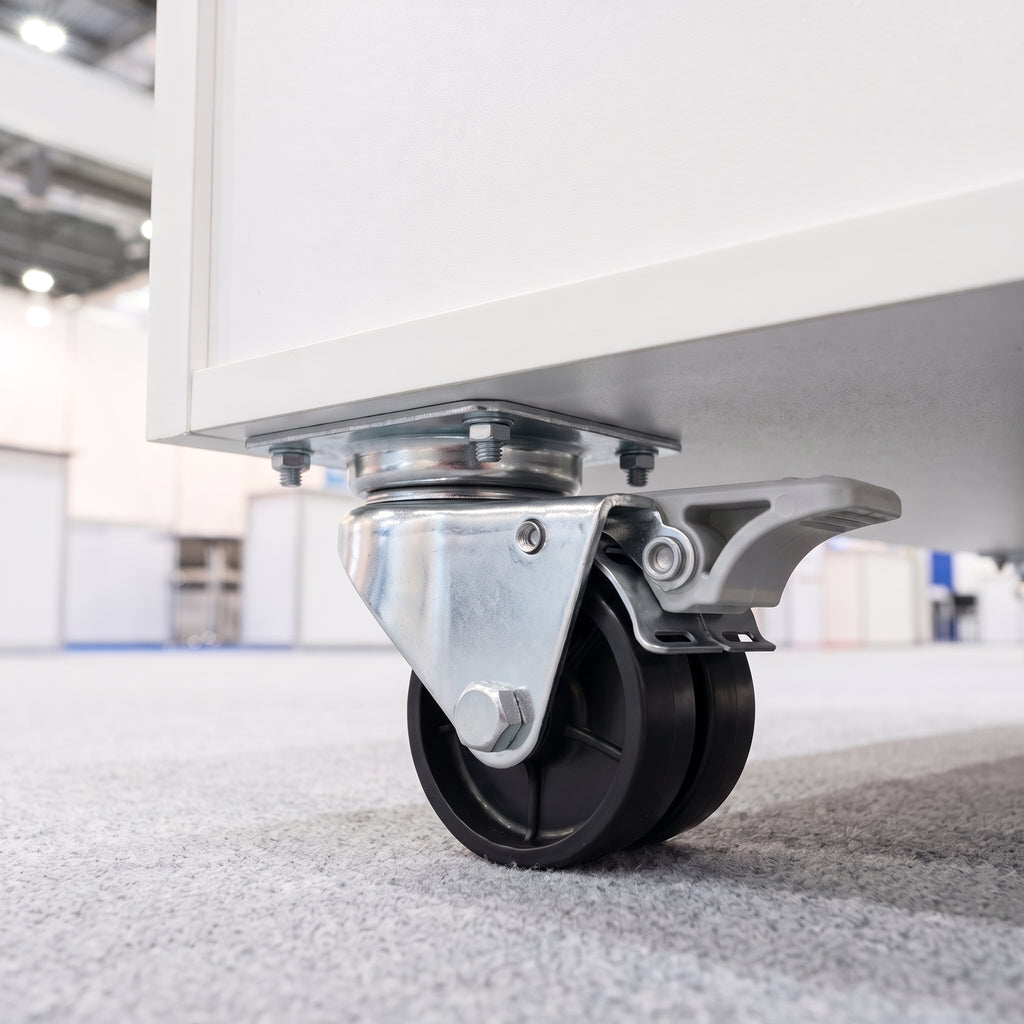

- ✓ Exhibition stands: easy movement and positioning of display units.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 60kg on a smooth, level floor.
What size is the top plate?
The plate is 60mm x 60mm with 6mm holes on 48/37mm centres, so it lines up with more than one fixing pattern.
How do I fit it?
Hold the plate flat against the underside of your unit and fix it through all four holes with bolts or screws that suit the 6mm holes.
How tall is the castor?
The total castor height is 72mm and the swivel radius is 84mm.
What does the brake lock?
Pressing the foot pedal locks both the wheels and the swivel head, so the castor can neither roll nor turn.
