75mm Twin Wheel Braked Swivel Castor Black Polypropylene Wheel M10 Bolt Hole 90kg Load Capacity

Light Duty Twin Wheel Castors

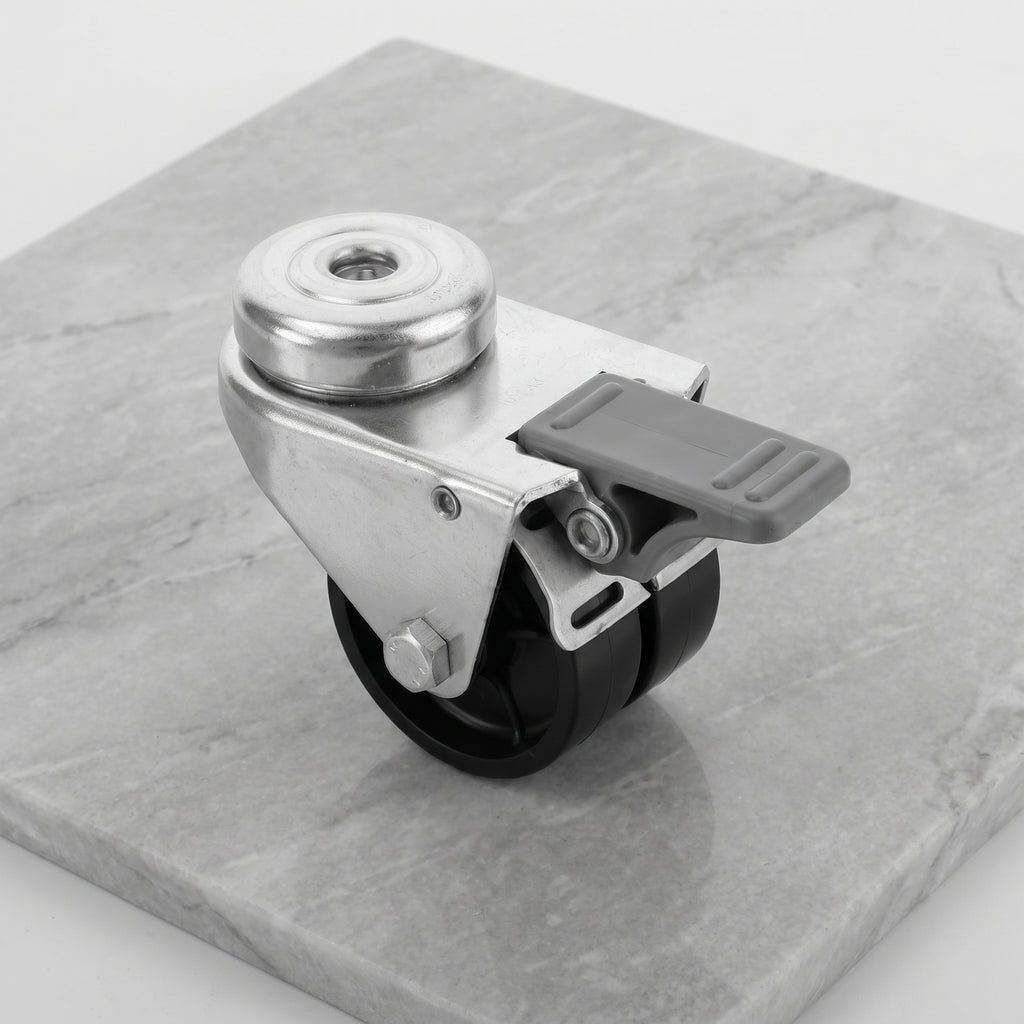

This 75mm twin wheel braked swivel castor fixes with a single M10 bolt straight into a tube leg or threaded insert, then rolls smoothly and locks firmly when you need it to stay put. It has two black polypropylene wheels, a zinc-plated pressed steel housing and a foot-operated total lock brake that holds both the wheels and the swivel head. Rated to 90kg per castor with a 100mm height, it suits catering tables, hospital and serving trolleys, workbenches, shop fittings and tube-framed furniture.

If you are looking for a 75mm braked bolt hole castor, an M10 total lock twin wheel castor, black plastic locking castors for tube legs or replacement braked castors for trolleys and tables, this compact design gives easy rolling and secure parking with a neat, plate-free fixing.

Why Choose This Castor

• ✓ Total lock foot brake locks the wheels and the swivel head together, so the castor can neither roll nor spin.
• ✓ Single M10 bolt hole for a tidy fixing under tube legs, with no top plate sticking out.
• ✓ Twin wheel design lets the two wheels turn independently for lighter steering and less floor wear.
• ✓ 90kg per castor, 270kg for a set of four.
• ✓ Zinc-plated steel housing with black polypropylene wheels that do not absorb water.

* Set load is calculated on three castors carrying the weight, to allow for uneven floors. Allow 98mm clearance for the swivel. Fixing bolt not included.

Where It Works Best

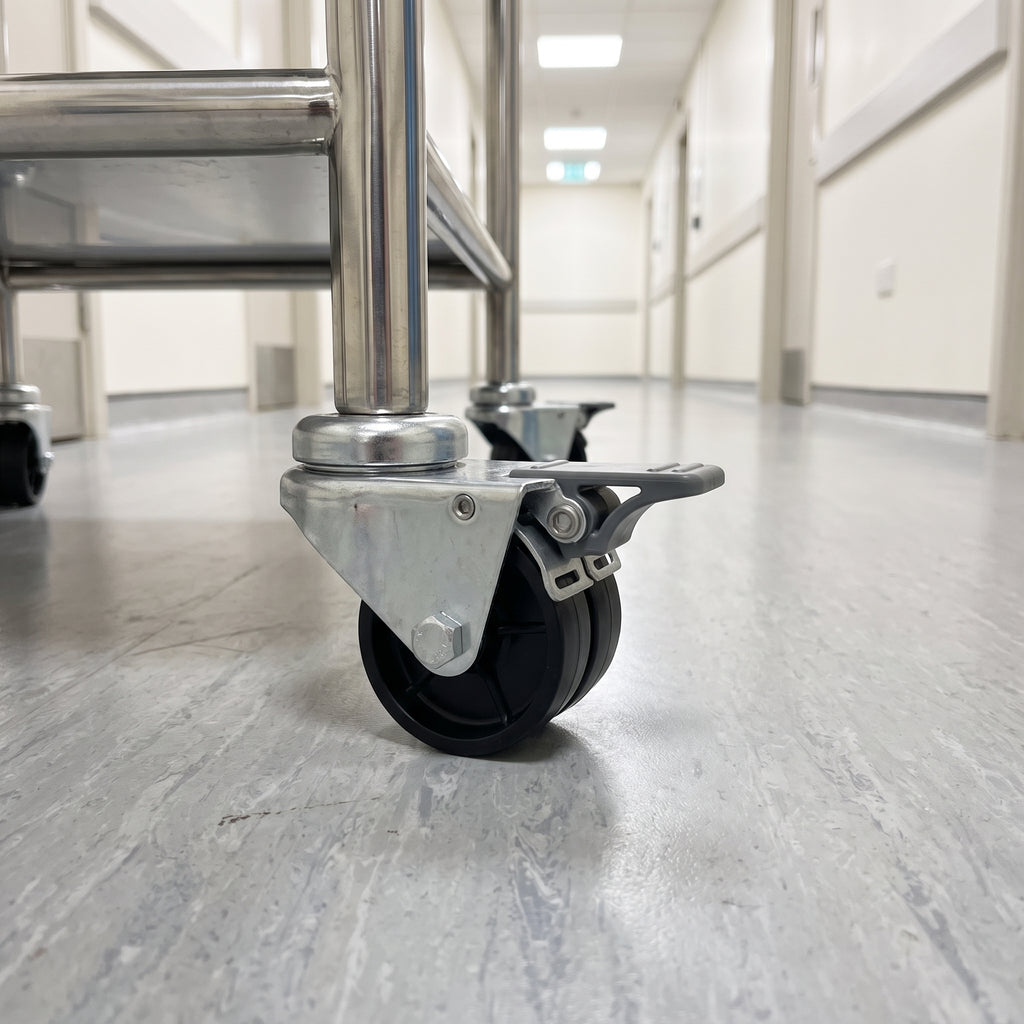

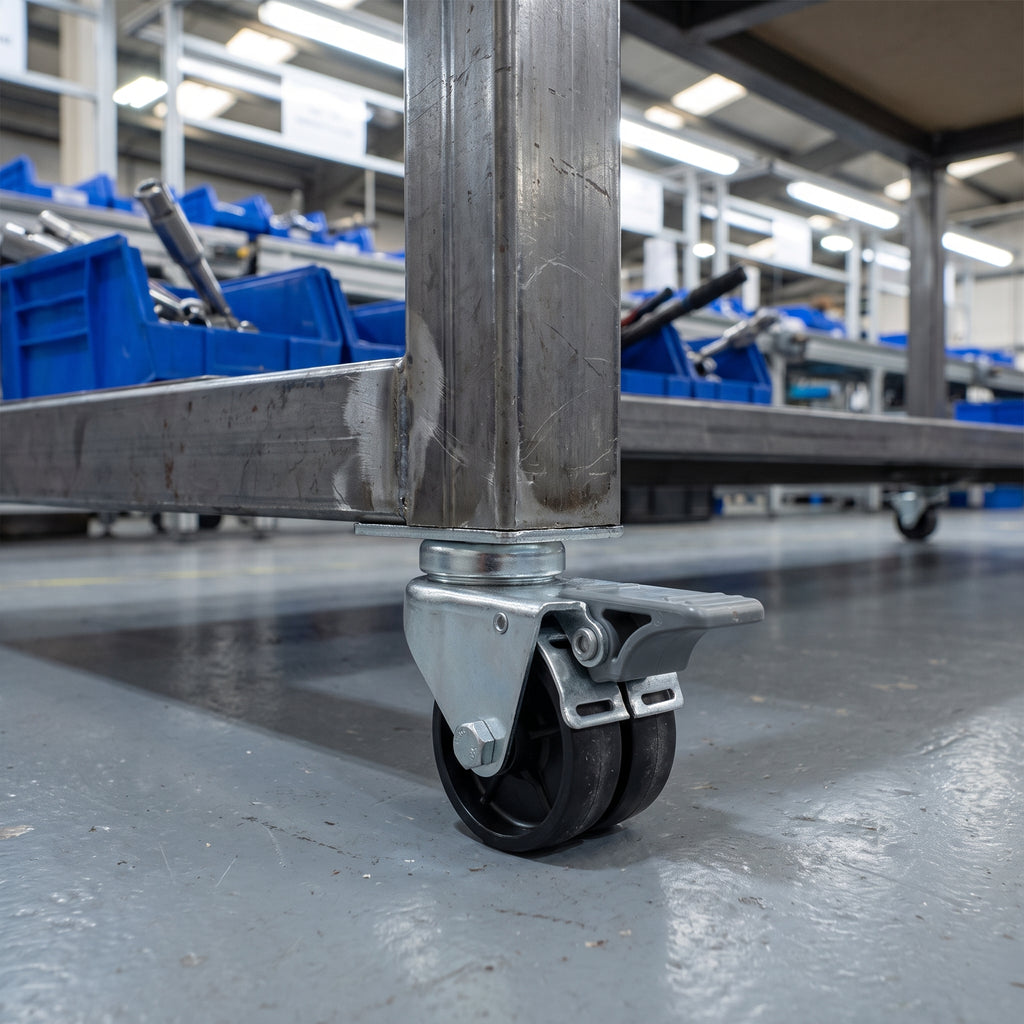

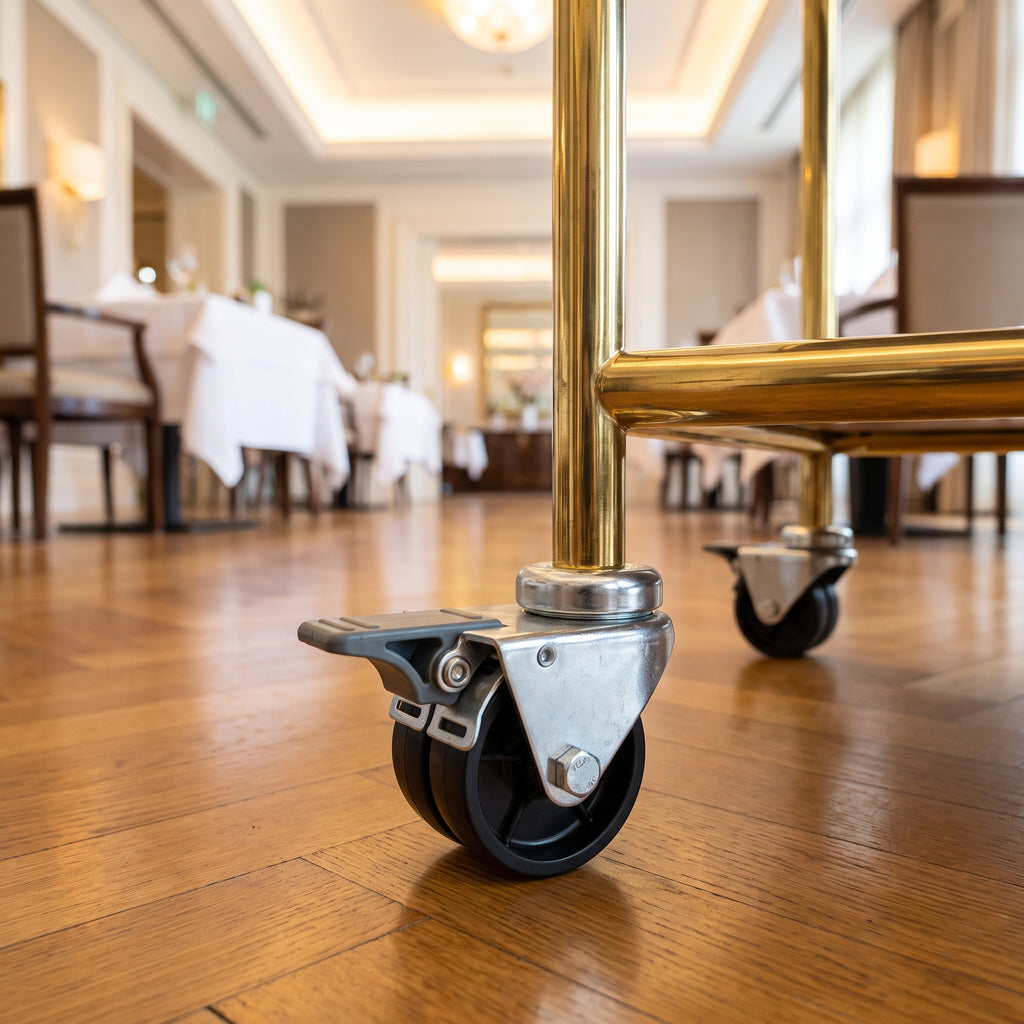

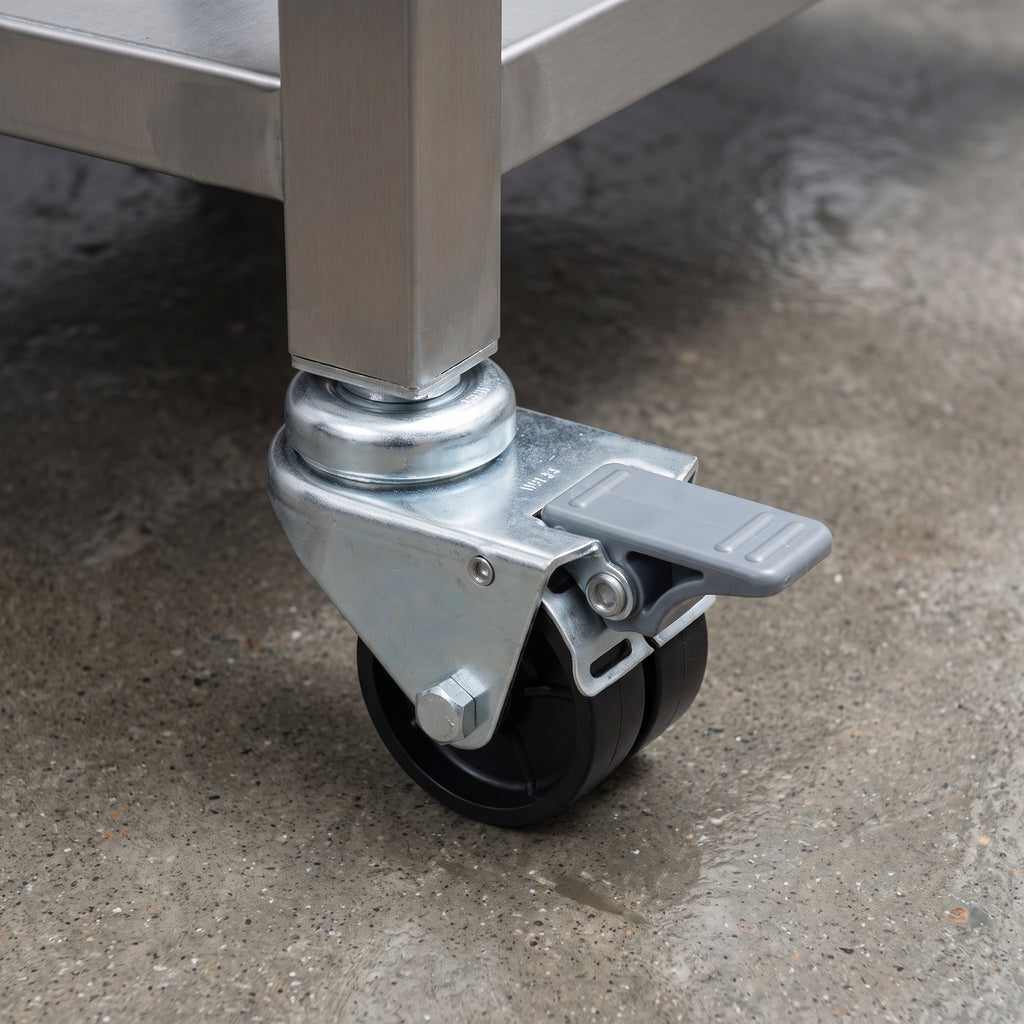

Ideal for stainless steel catering and prep tables, hospital and medical trolleys, hotel serving trolleys, mobile workbenches on assembly lines, shop fittings and display units, laboratory furniture and any equipment on tube legs that must be moved for cleaning and then held firmly in place. It runs best on smooth, hard indoor floors such as sealed concrete, vinyl, tiles and laminate.

Tube Adaptors Also Available

Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.

• ✓ Shop Round Tube Adaptors
• ✓ Shop Square Tube Adaptors

Frequently Asked Questions

What does total lock mean?

The foot brake locks both the wheels and the swivel head, so the castor can neither roll nor spin round. Equipment stays put even when it is leaned on or worked at.

What size bolt do I need?

An M10 bolt or M10 threaded insert. The length depends on your leg or insert. For open tube legs, use a matching round or square tube adaptor. Bolts are not supplied.

What is the load capacity of this braked castor?

Each castor is rated to 90kg. A set of four is rated to 270kg, because the load is calculated on three castors to allow for uneven floors.

Should I fit brakes on every corner?

Many users fit braked castors on two corners and plain swivel castors on the other two. For work tables that must not move at all, braked castors on all four corners give the firmest result.

Are polypropylene wheels suitable for all floors?

They roll easily on smooth, hard indoor floors. They are firmer and a little noisier than rubber, so for delicate floors or quiet running choose a rubber wheel castor.
