- Load per castor75kg
- Wheel diameter75mm
- Overall height100mm
- WheelPolypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel
- Fixing Type
- Single Bolt Hole
- Bolt Hole Size
- 10mm (for M10 bolt)
- Top Plate
- None (bolt hole fitting)
- Wheel Diameter
- 75mm
- Tread Width
- 22mm
- Wheel Material
- Polypropylene
- Wheel Colour
- Black
- Housing
- Zinc-plated pressed steel
- Bearing Type
- Plain
- Load Capacity (per castor)
- 75kg
- Max Load (set of 4 castors)
- 225kg *
- Total Castor Height
- 100mm
- Swivel Radius
- 70mm
Will it fit?
- Bolt hole10mm (for M10 bolt)
- Overall height100mm
- Swivel radius70mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Light Duty Bolt Hole Castors

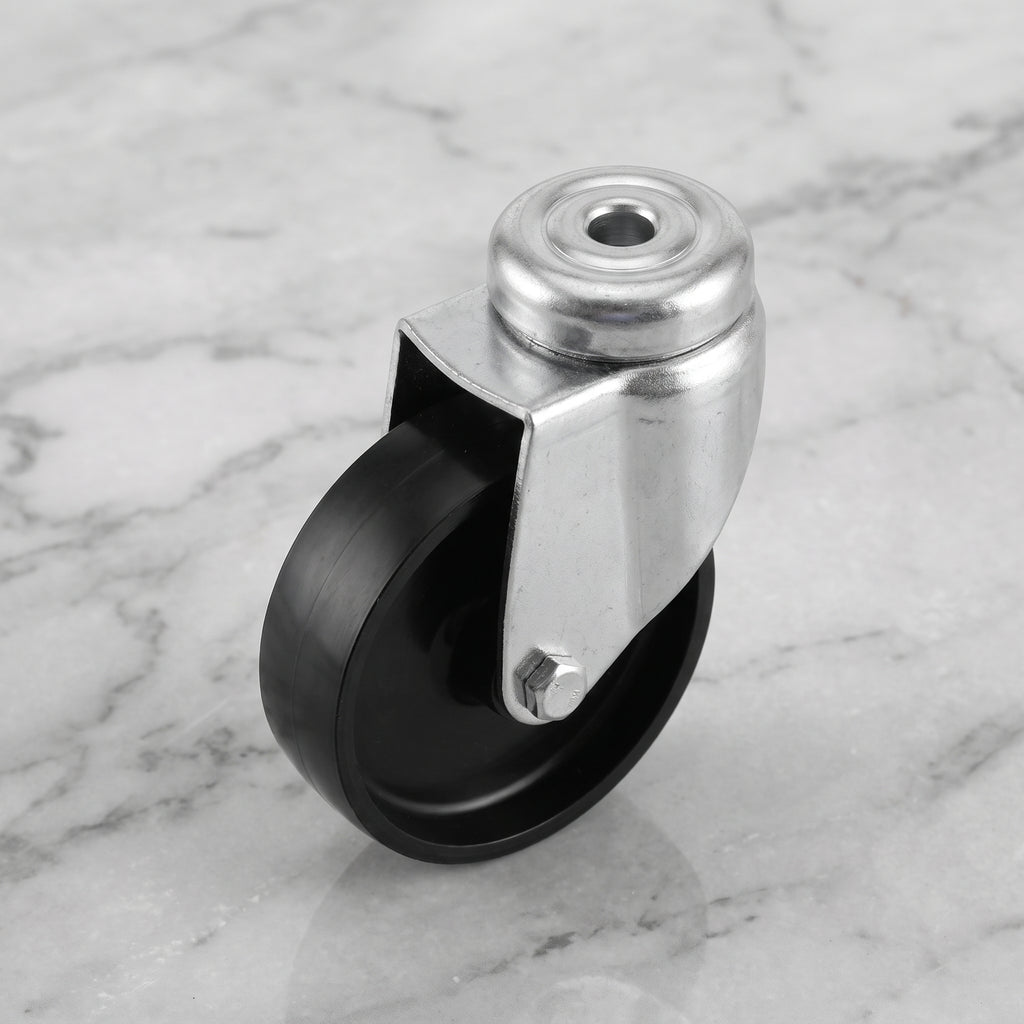

This 75mm swivel castor pairs a tough black polypropylene wheel with a single 10mm bolt hole for an M10 bolt. It turns freely through 360 degrees for easy steering and carries up to 75kg per castor, making it a smooth, cost-effective choice for light trolleys, shop fittings, display units, workbenches and tube-leg furniture.
If you are looking for a 75mm bolt hole castor, a black plastic swivel wheel with an M10 fitting, a replacement trolley castor or a compact castor for shop display stands, this castor gives you simple central mounting and reliable movement.
Why Choose This Castor
- ✓ Black polypropylene wheel that is light, hard-wearing and easy to wipe clean.
- ✓ Single bolt hole fitting for an M10 bolt, ideal for tube legs and tube adaptors.
- ✓ Full 360 degree swivel with a compact 70mm swivel radius.
- ✓ 75kg per castor with a 225kg rating for a set of four.
- ✓ Zinc-plated pressed steel housing for a clean finish and good corrosion protection indoors.
- ✓ 100mm total height keeps equipment low and stable.
* The set-of-four figure allows for only three castors being in full contact with the floor at any time (3 x 75kg), which gives a safer working load on real-world floors.
Where It Works Best

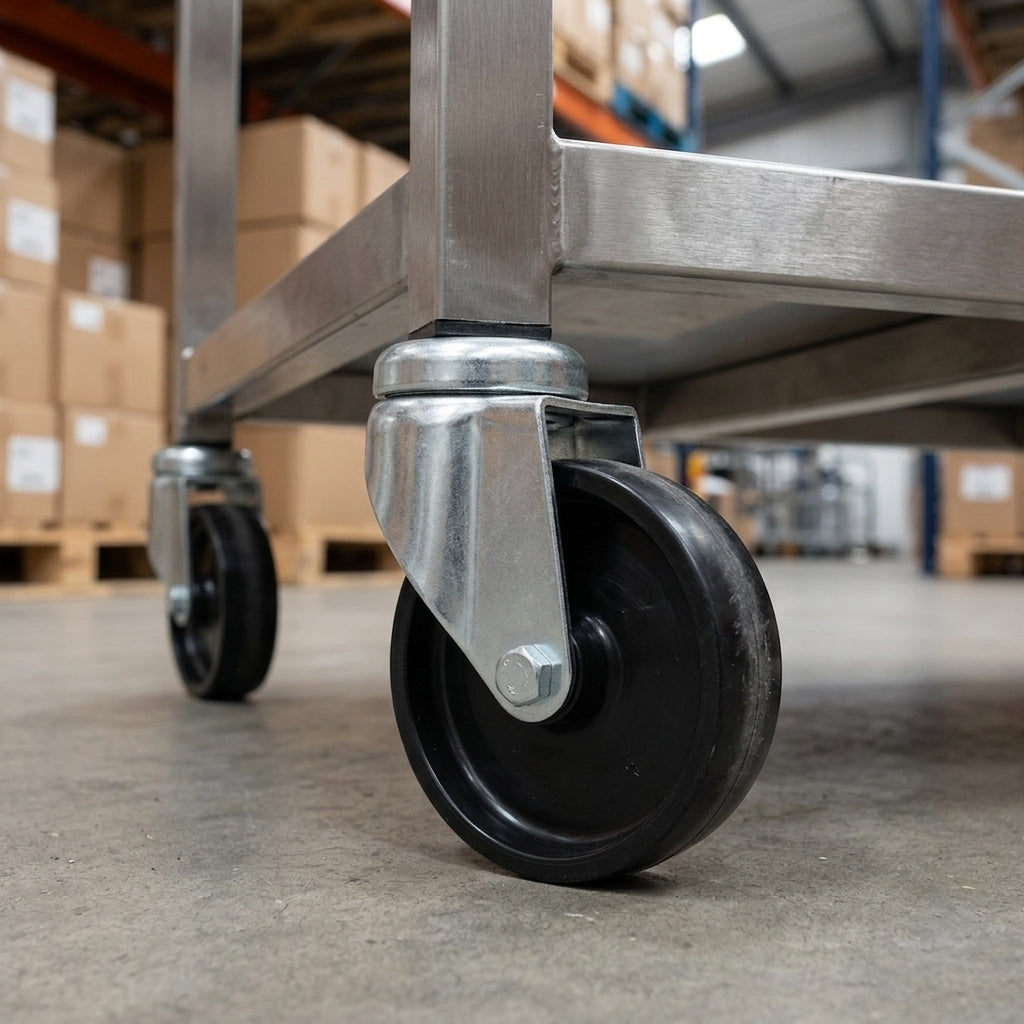

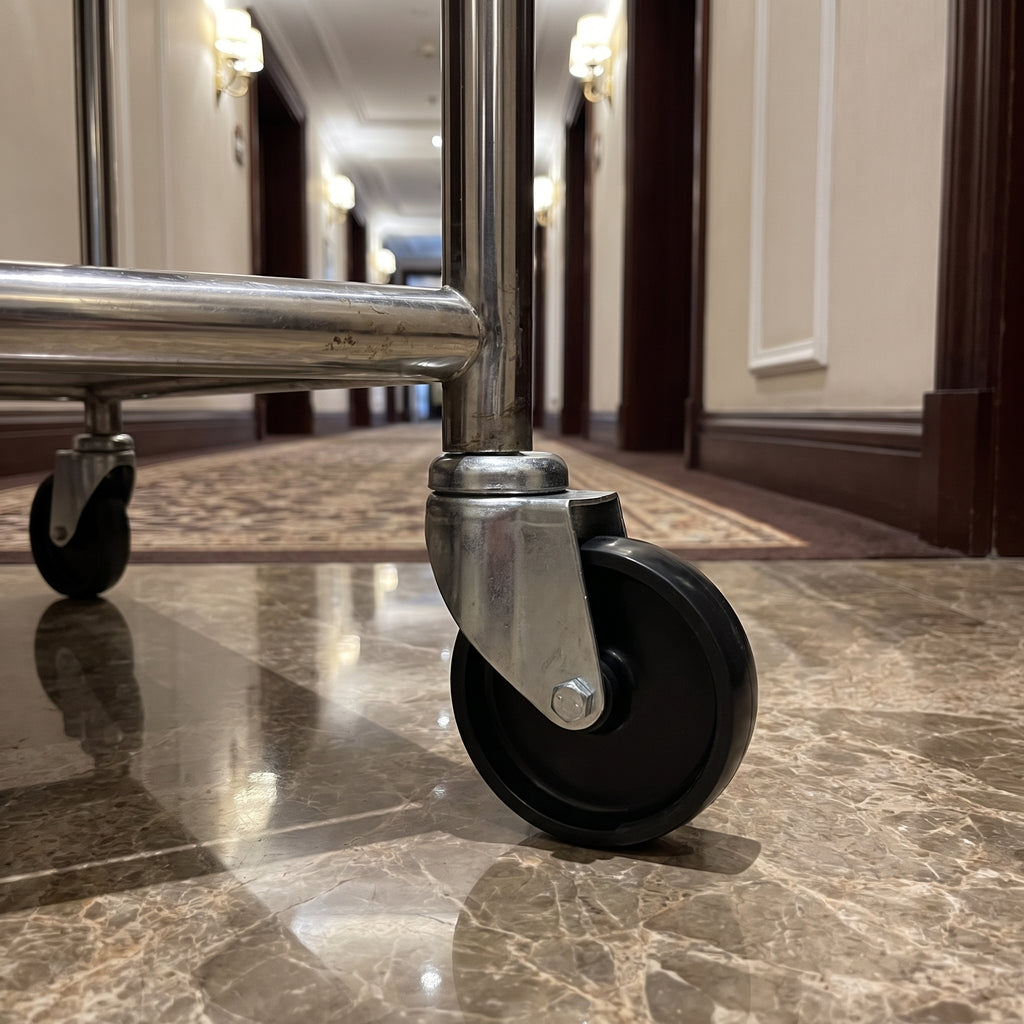

This black polypropylene bolt hole castor suits light warehouse and stock trolleys, hotel and room service trolleys, shop display units and clothes rails, mobile workbenches on assembly lines, catering trolleys and tube-framed furniture. It performs best on smooth indoor floors such as concrete, vinyl and tiles.
Tube Adaptors Also Available
Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.
✓ Shop Round Tube Adaptors
✓ Shop Square Tube Adaptors
Frequently Asked Questions
How do I fit a bolt hole castor?
Pass an M10 bolt through the 10mm hole in the top of the castor and secure it into your furniture, a threaded insert or a tube adaptor fitted inside the leg.
How much weight can a set of four carry?
Each castor is rated at 75kg. For a set of four we recommend a maximum of 225kg, as only three castors are usually in full contact with the floor at once.
Will the polypropylene wheel mark my floor?
Polypropylene is a hard wheel that rolls easily on smooth floors. On delicate or polished surfaces, a rubber wheel will be quieter and gentler.
Does this castor have a brake?
No, this is a plain swivel castor. A matching braked version is available if your equipment needs to stay in place.
What is the total height of the castor?
The total castor height is 100mm from the floor to the top of the fitting.
Is this castor suitable for outdoor use?
It is best suited to indoor use on smooth, level floors. For rough ground or outdoor areas, choose a larger wheel with a softer tyre.
