- Load per castor70kg
- Wheel diameter75mm
- Overall height100mm
- WheelRubber tyre on polypropylene centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Castor
- Brake Type
- Foot-operated wheel brake
- Fixing Type
- Single bolt hole
- Bolt Hole Size
- 10mm (for M10 bolt)
- Top Plate
- None (bolt hole fitting)
- Wheel Diameter
- 75mm
- Tread Width
- 24mm
- Wheel Material
- Rubber tyre on polypropylene centre
- Tyre Colour
- Grey
- Centre Colour
- Black
- Housing
- Zinc-plated pressed steel
- Bearing Type
- Plain
- Load Capacity (per castor)
- 70kg
- Max Load (set of 4 castors)
- 210kg*
- Total Castor Height
- 100mm
- Swivel Radius
- 92mm
Will it fit?
- Bolt hole10mm (for M10 bolt)
- Overall height100mm
- Swivel radius92mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Light Duty Braked Castors

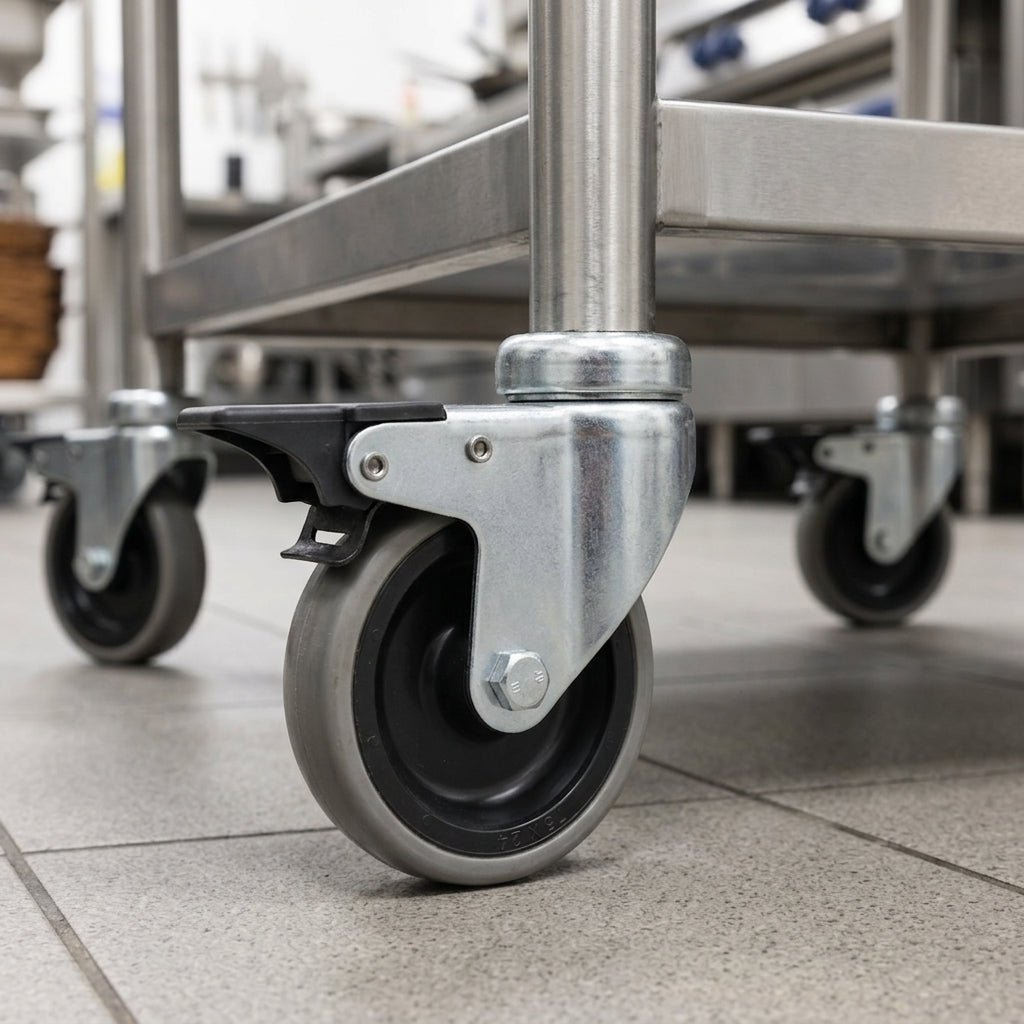

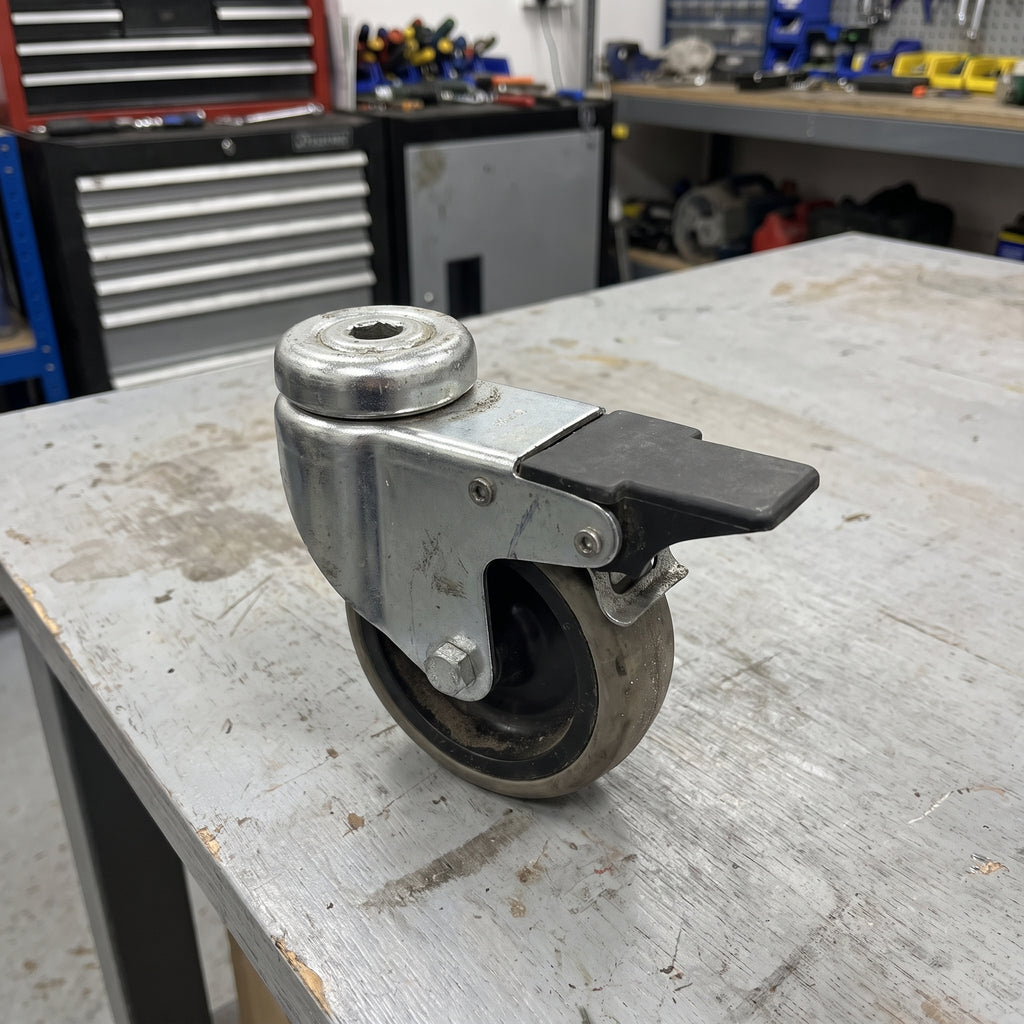

This 75mm braked swivel castor has a soft grey rubber tyre on a tough black polypropylene centre, so it rolls quietly and is gentle on floors. A foot-operated brake locks the wheel firmly in place when you need it. It fixes through a single 10mm (M10) bolt hole, with no top plate needed, and carries up to 70kg per castor, making it ideal for shop display units, serving and medical trolleys, mobile workbenches and office furniture.
If you need a braked rubber castor, a quiet locking castor for furniture or a light duty bolt hole castor with brake for tube legs, this model gives smooth 360-degree steering and a secure stop in one compact fitting. Fit it with an M10 bolt, or use a tube adaptor on round and square tubing.
Why Choose This Castor
- ✓ Foot-operated brake: press to lock the wheel, lift to release
- ✓ Grey rubber tyre for quiet rolling that is kind to floors
- ✓ 360-degree swivel for easy turning in tight spaces
- ✓ Single bolt hole fixing, 10mm (M10), with no top plate needed
- ✓ 70kg load capacity per castor, 210kg for a set of four*
- ✓ Zinc-plated steel housing with a plain bearing that needs very little maintenance
* The set-of-four figure allows for only three castors being in full contact with the floor at any time (3 x 70kg), which is the standard way to rate castor sets.
Where It Works Best

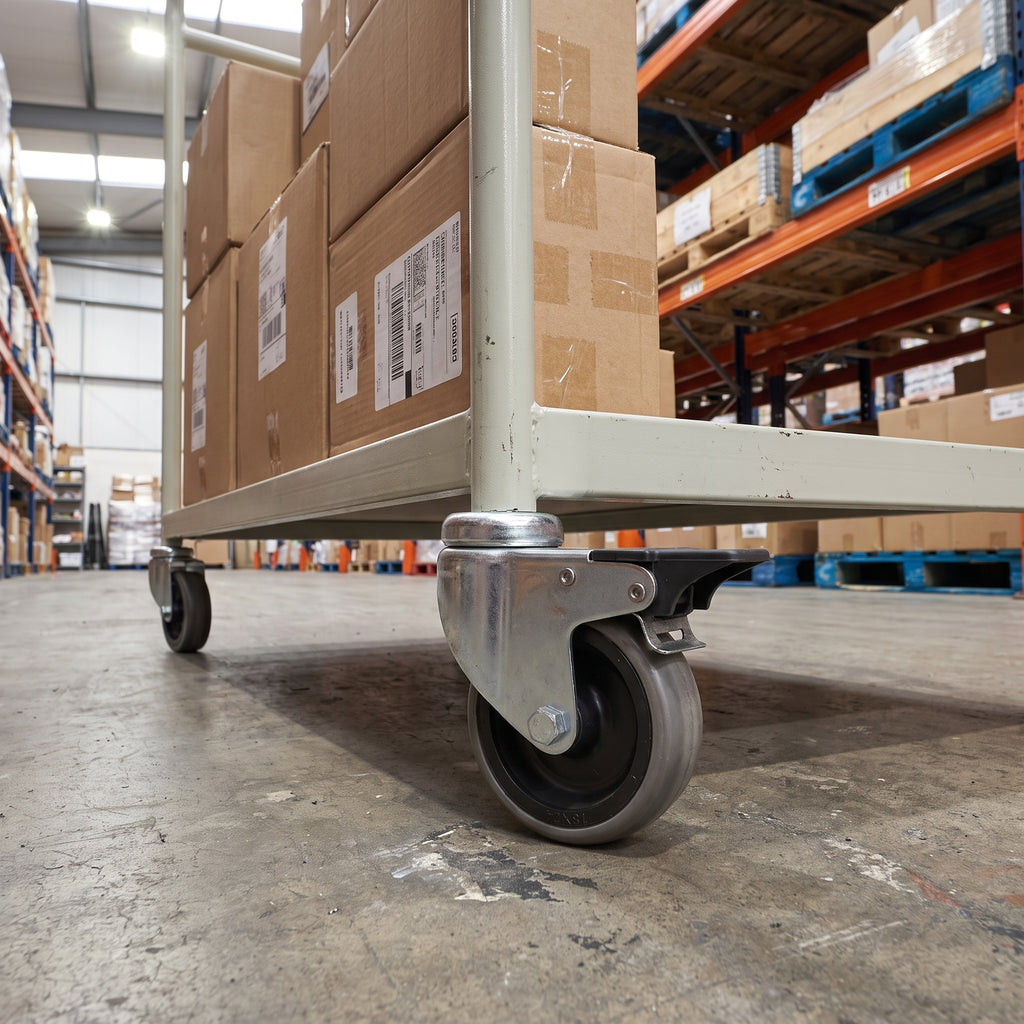

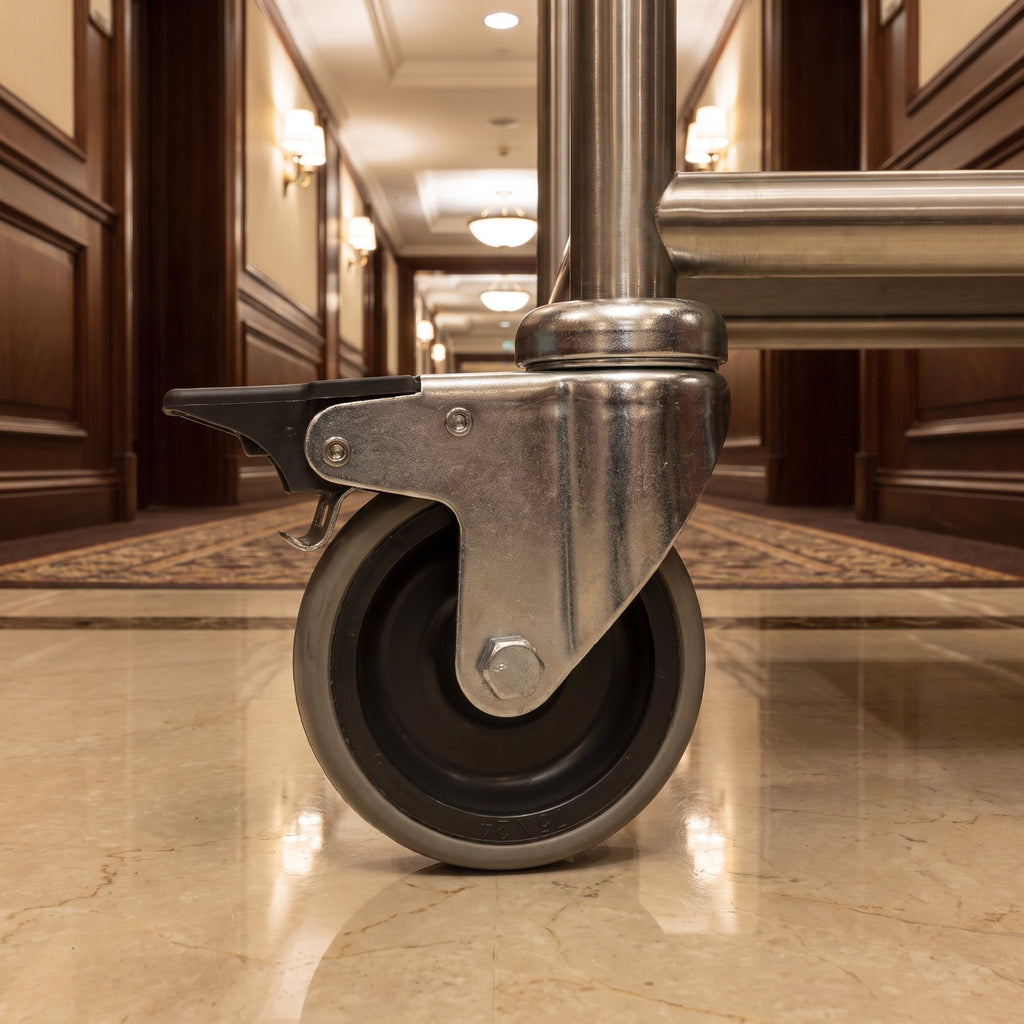

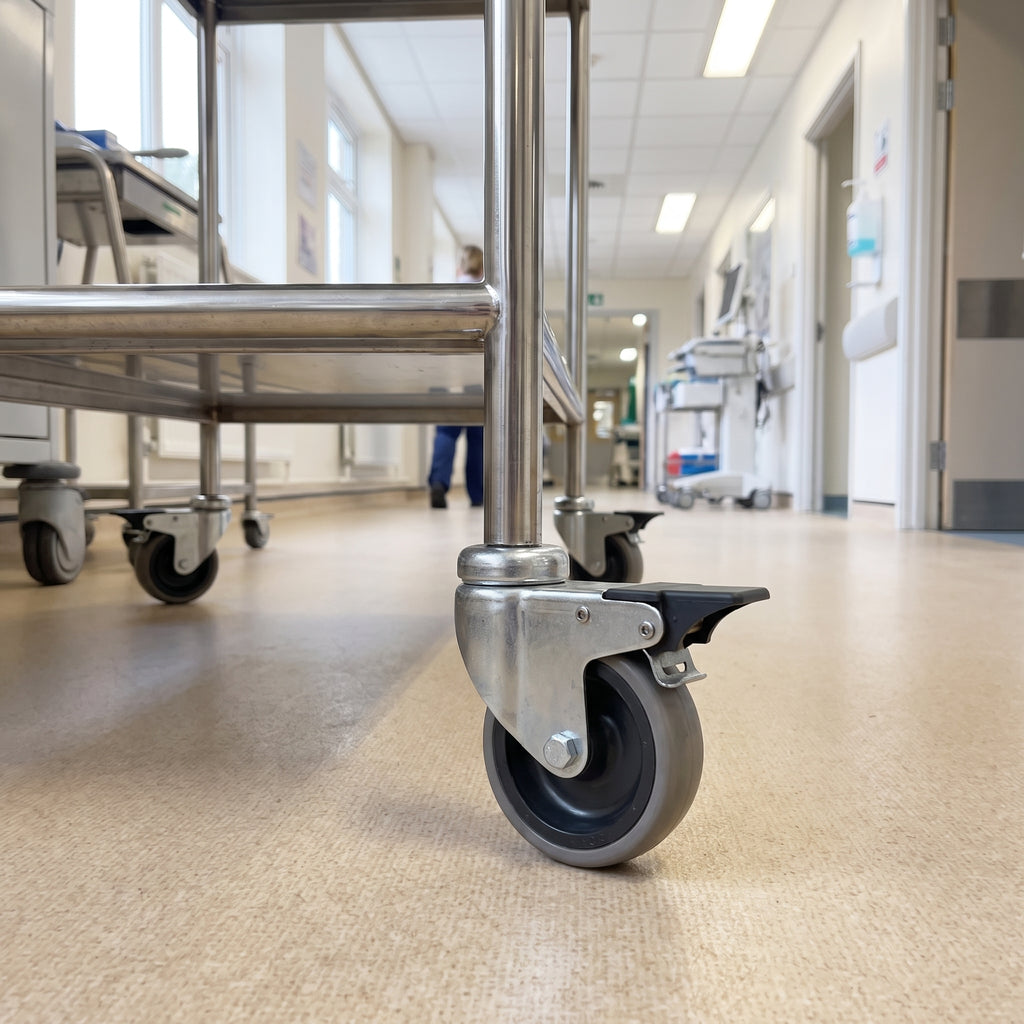

Shop display stands and exhibition racks, serving, room service and medical trolleys, light warehouse trolleys, mobile workbenches, tool and storage cabinets, office furniture and home projects. The rubber tyre suits hard indoor floors such as wood, laminate, vinyl, tiles and sealed concrete, where quiet rolling matters.
Tube Adaptors Also Available
Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.
✓ Shop Round Tube Adaptors
✓ Shop Square Tube Adaptors
Frequently Asked Questions
How does the brake work?
Press the pedal down with your foot to lock the wheel, and lift it to release. It keeps equipment firmly in place once positioned.
How much weight can this castor carry?
Each castor is rated at 70kg. A set of four is rated at 210kg.
How do I fit a bolt hole castor?
Pass an M10 bolt through the 10mm centre hole and secure it with a nut. On tube legs, use a suitable tube adaptor for a neat, secure fit.
Should I use braked castors on all four corners?
Most setups use two braked and two non-braked swivel castors. That's enough to hold the load steady while keeping costs down.
Will the rubber wheel mark my floor?
The soft grey rubber tyre is kind to floors and rolls much more quietly than a hard plastic wheel, which makes it a good choice for homes, offices, shops and hospitals.
How tall is the castor once fitted?
The total castor height is 100mm, measured from the floor to the top of the fixing. Allow 92mm swivel radius as clear space so it can turn freely.
