- Load per castor70kg
- Wheel diameter75mm
- Overall height100mm
- WheelNylon (one-piece wheel)
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Castor, no brake
- Fixing Type
- Single bolt hole
- Bolt Hole Size
- 10mm (for M10 bolt)
- Top Plate
- None (bolt hole fitting)
- Wheel Diameter
- 75mm
- Tread Width
- 22mm
- Wheel Material
- Nylon (one-piece wheel)
- Wheel Colour
- White
- Housing
- Zinc-plated pressed steel
- Bearing Type
- Plain
- Load Capacity (per castor)
- 70kg
- Max Load (set of 4 castors)
- 210kg*
- Total Castor Height
- 100mm
- Swivel Radius
- 70mm
Will it fit?
- Bolt hole10mm (for M10 bolt)
- Overall height100mm
- Swivel radius70mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Light Duty Nylon Castors

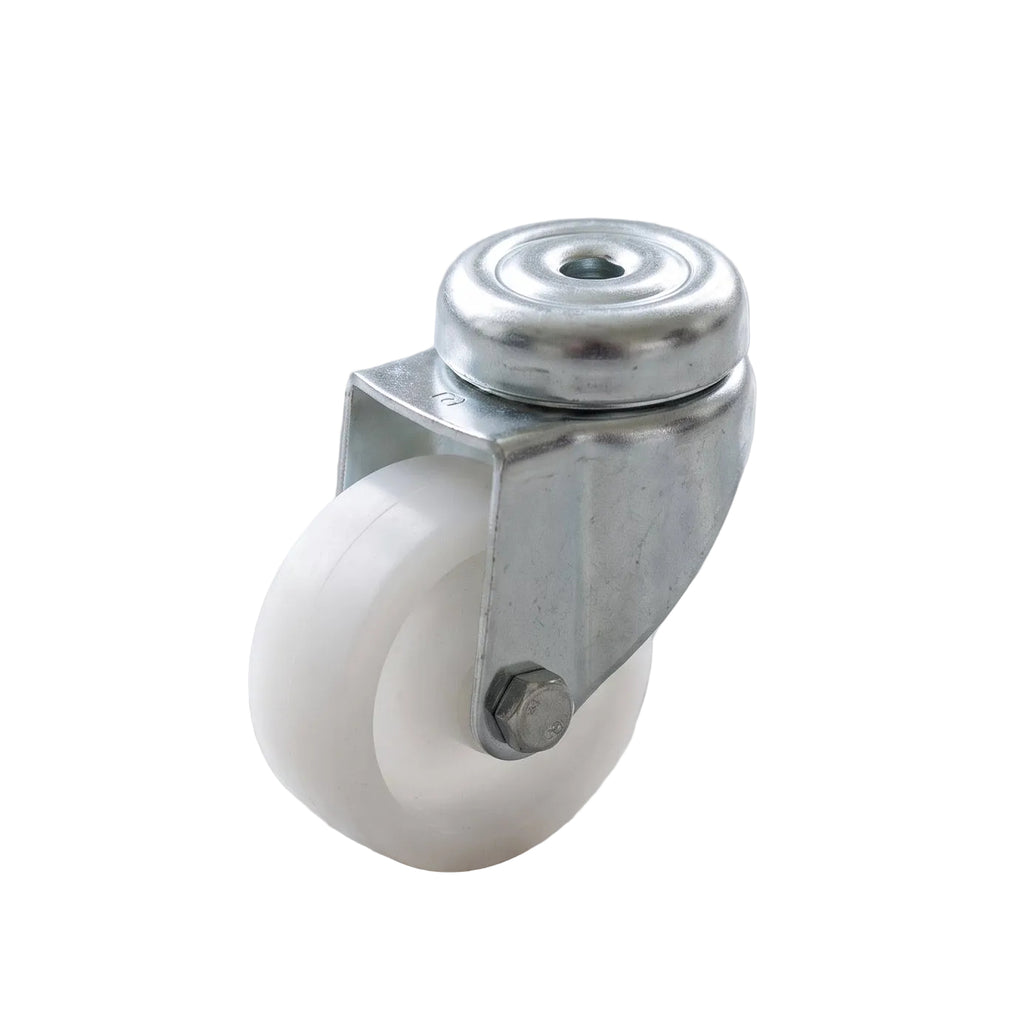

This 75mm swivel castor has a hard-wearing white nylon wheel that rolls with very little effort on smooth floors. It fixes through a single 10mm (M10) bolt hole, with no top plate needed, and carries up to 70kg per castor. With a 100mm fitted height, it is a practical choice for light trolleys, shop display units, mobile workbenches, office furniture and home projects.
If you need a nylon swivel castor, a white wheel castor for catering or retail trolleys, or a light duty bolt hole castor for tube legs, this model gives smooth 360-degree steering and easy rolling. Fit it with an M10 bolt, or use a tube adaptor on round and square tubing.
Why Choose This Castor
- ✓ White nylon wheel that is hard-wearing, easy to clean and rolls with little effort
- ✓ 360-degree swivel for easy turning in tight spaces
- ✓ Single bolt hole fixing, 10mm (M10), with no top plate needed
- ✓ 70kg load capacity per castor, 210kg for a set of four*
- ✓ 100mm fitted height, a good balance of ground clearance and stability
- ✓ Zinc-plated steel housing with a plain bearing that needs very little maintenance
* The set-of-four figure allows for only three castors being in full contact with the floor at any time (3 x 70kg), which is the standard way to rate castor sets.
Where It Works Best

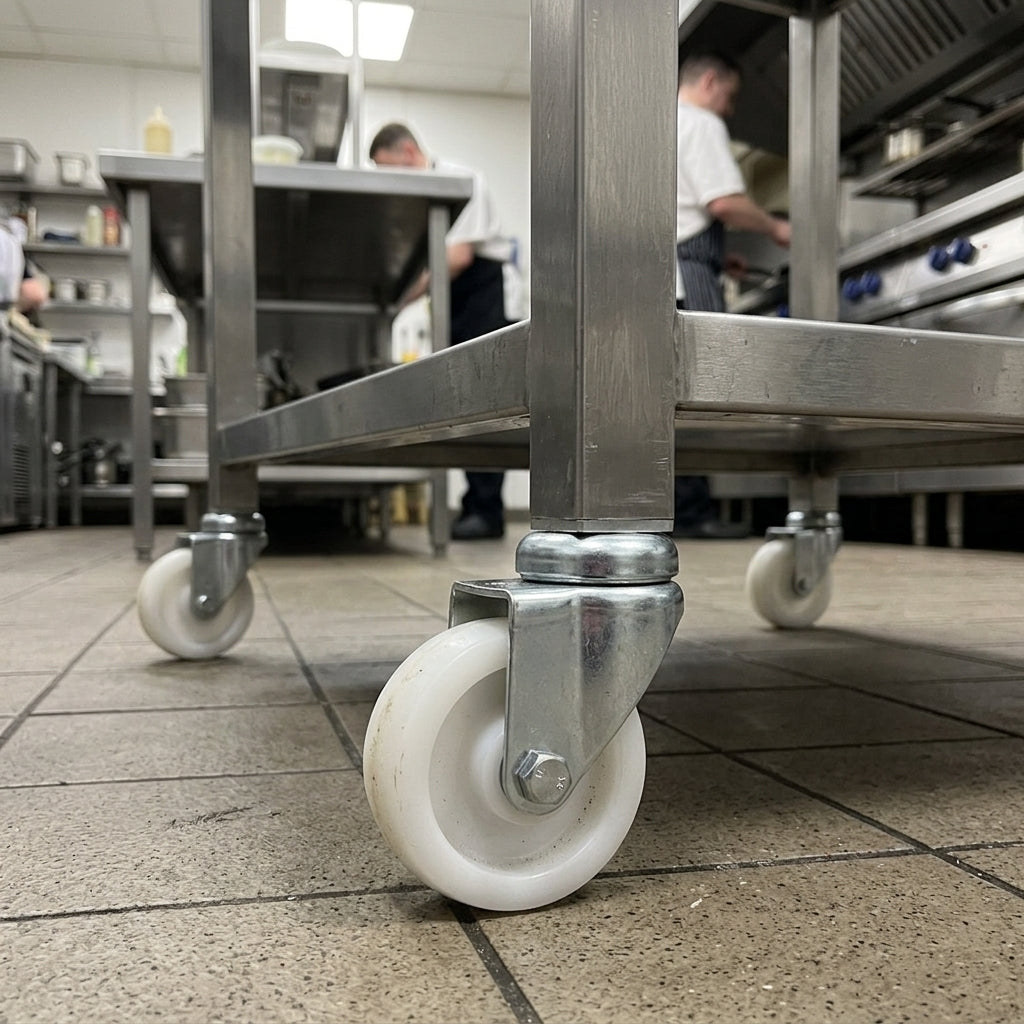

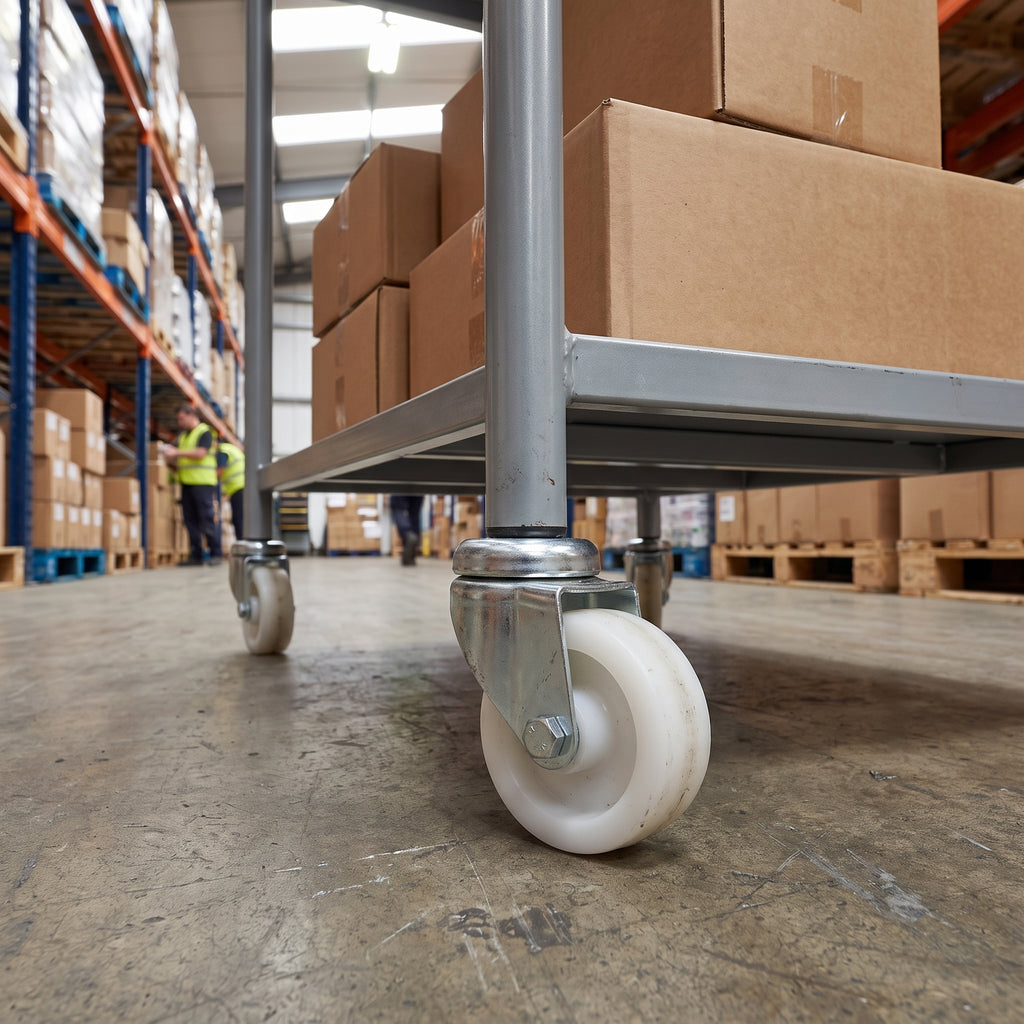

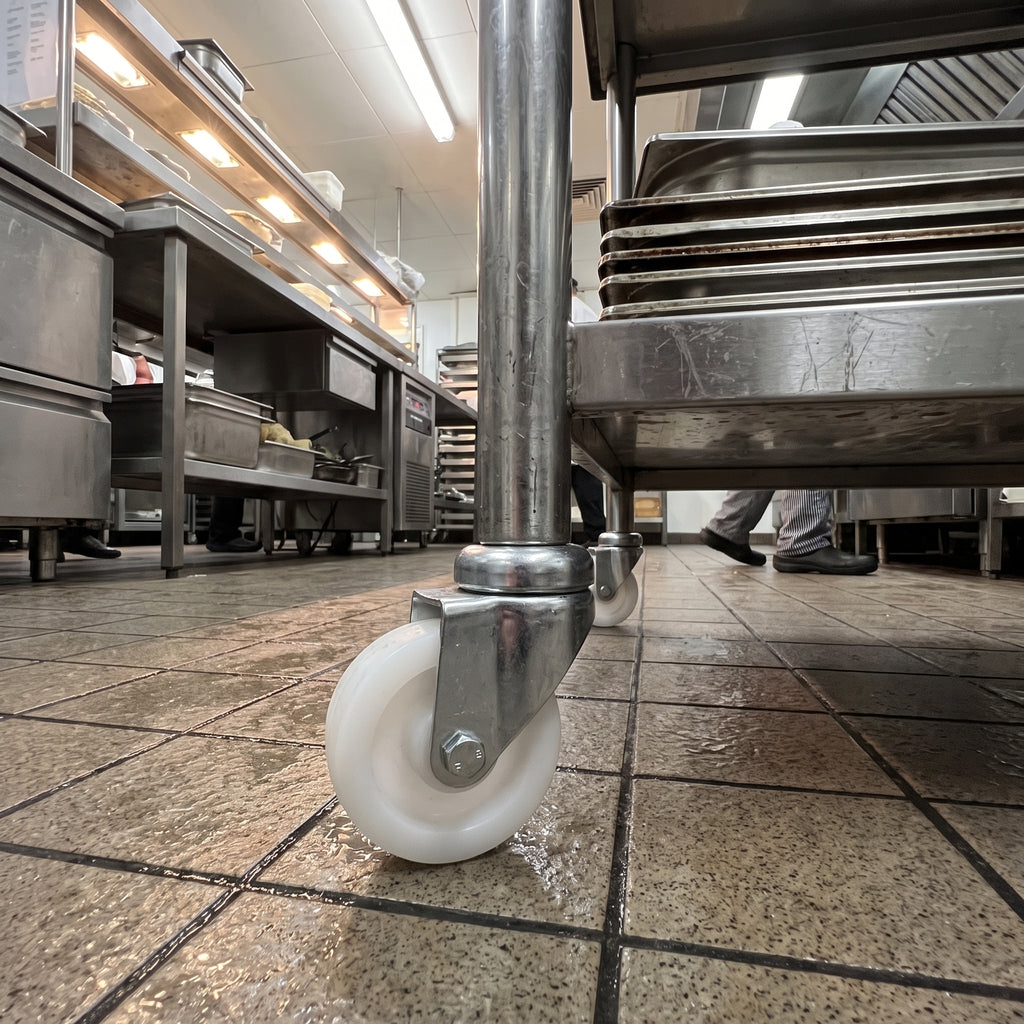

Light warehouse and serving trolleys, catering and food racks, shop display stands and exhibition racks, mobile workbenches, tool and storage cabinets, office furniture and home projects. The nylon wheel suits smooth, hard indoor floors such as sealed concrete, vinyl, tiles and laminate.
Tube Adaptors Also Available
Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.
✓ Shop Round Tube Adaptors
✓ Shop Square Tube Adaptors
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated at 70kg. A set of four is rated at 210kg.
How do I fit a bolt hole castor?
Pass an M10 bolt through the 10mm centre hole and secure it with a nut. On tube legs, use a suitable tube adaptor for a neat, secure fit.
Why choose a nylon wheel?
Nylon is hard and tough, so it rolls with very little effort and resists wear. It is best on smooth, hard floors. For soft or delicate floors, or where quiet running matters, a rubber tyred wheel is a better choice.
How tall is the castor once fitted?
The total castor height is 100mm, measured from the floor to the top of the fixing. Allow 70mm swivel radius as clear space so it can turn freely.
Does this castor have a brake?
No. This is a free-swivelling castor with no brake.
Can I use it outdoors?
It is designed for indoor use on smooth, hard floors. For rough ground, gravel or regular outdoor use, a larger rubber or pneumatic wheel is a better choice.
