- Load per castor65kg
- Wheel diameter60mm
- Overall height82mm
- WheelRubber tyre on polypropylene centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Castor, no brake
- Fixing Type
- Single bolt hole
- Bolt Hole Size
- 10mm (for M10 bolt)
- Top Plate
- None (bolt hole fitting)
- Wheel Diameter
- 60mm
- Tread Width
- 24mm
- Wheel Material
- Rubber tyre on polypropylene centre
- Tyre Colour
- Grey
- Centre Colour
- Black
- Housing
- Zinc-plated pressed steel
- Bearing Type
- Plain
- Load Capacity (per castor)
- 65kg
- Max Load (set of 4 castors)
- 195kg*
- Total Castor Height
- 82mm
- Swivel Radius
- 51mm
Will it fit?
- Bolt hole10mm (for M10 bolt)
- Overall height82mm
- Swivel radius51mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Light Duty Rubber Castors
This compact 60mm swivel castor has a soft grey rubber tyre on a tough black polypropylene centre, so it rolls quietly and is gentle on floors. It fixes through a single 10mm (M10) bolt hole, with no top plate needed, and carries up to 65kg per castor. That makes it a neat, low-profile choice for furniture, shop display units, office storage, light trolleys and DIY projects.
If you need a small rubber swivel castor, a quiet furniture castor or a light duty bolt hole castor for tube legs, this model gives smooth 360-degree steering in a compact 82mm fitted height. Fit it with an M10 bolt, or use a tube adaptor on round and square tubing.
Why Choose This Castor
- ✓ Grey rubber tyre for quiet rolling that is kind to floors
- ✓ 360-degree swivel for easy turning in tight spaces
- ✓ Single bolt hole fixing, 10mm (M10), with no top plate needed
- ✓ Compact 82mm height, ideal where space under the item is limited
- ✓ 65kg load capacity per castor, 195kg for a set of four*
- ✓ Zinc-plated steel housing with a plain bearing that needs very little maintenance
* The set-of-four figure allows for only three castors being in full contact with the floor at any time (3 x 65kg), which is the standard way to rate castor sets.
Where It Works Best

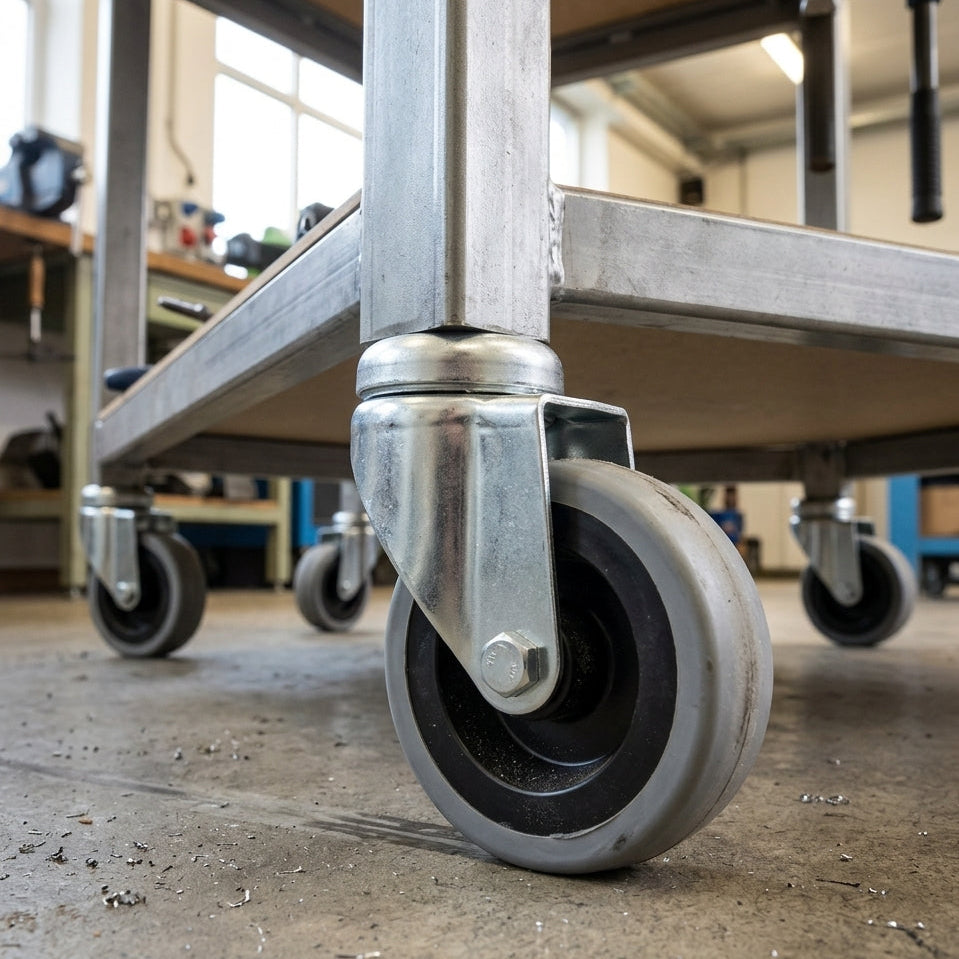

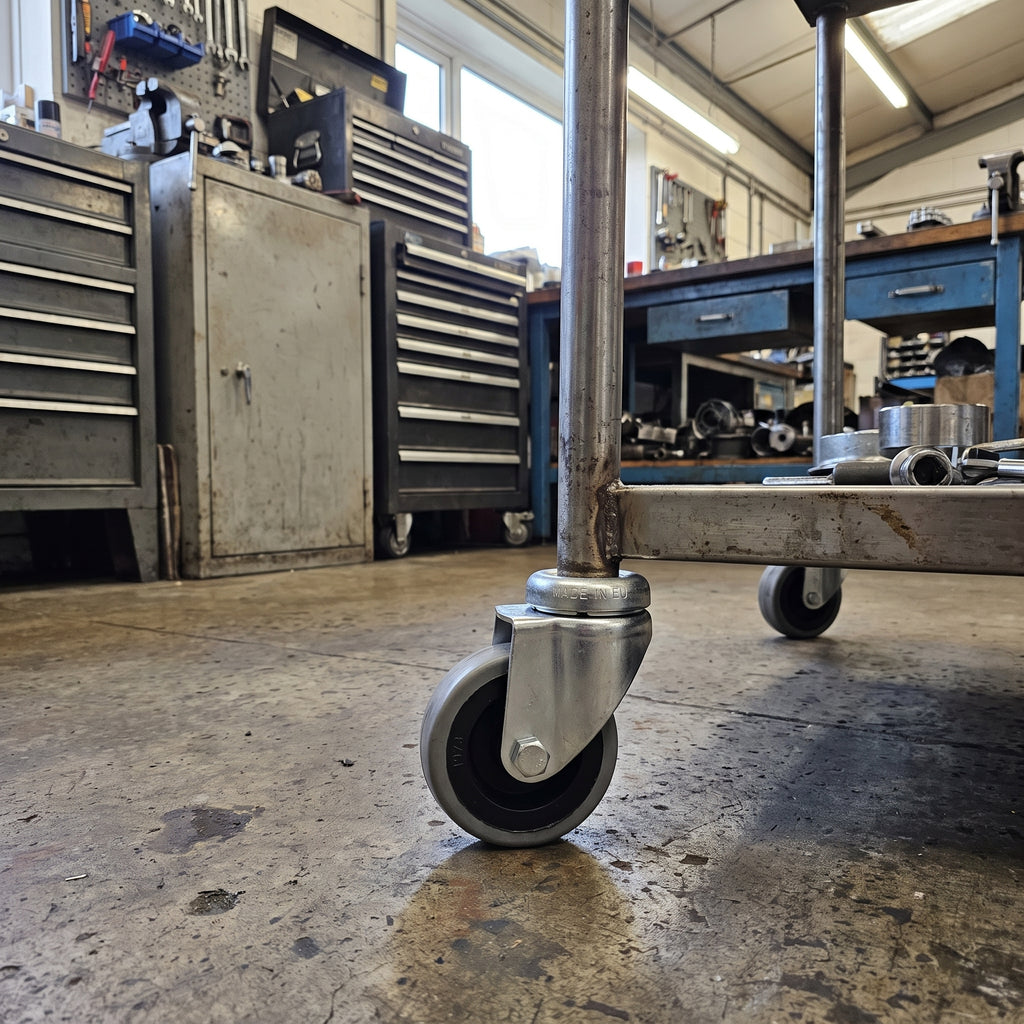

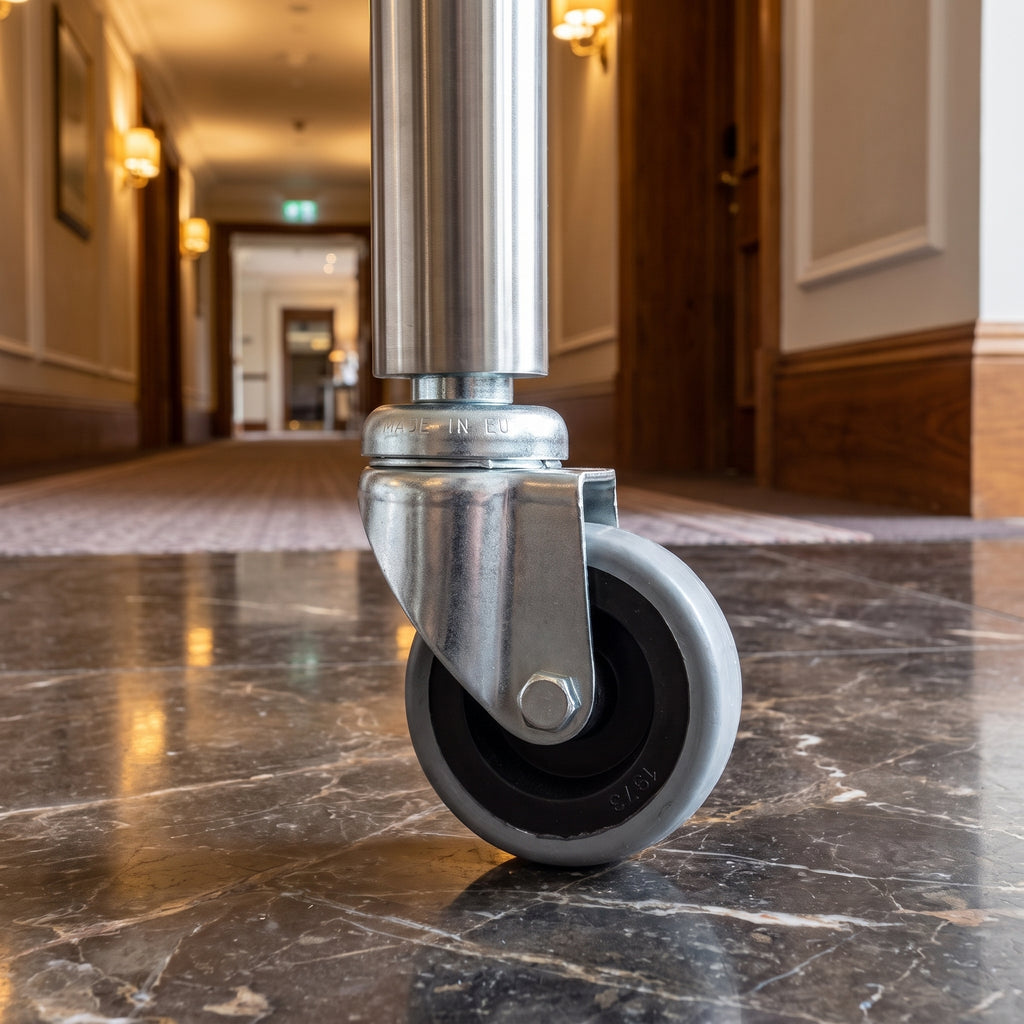

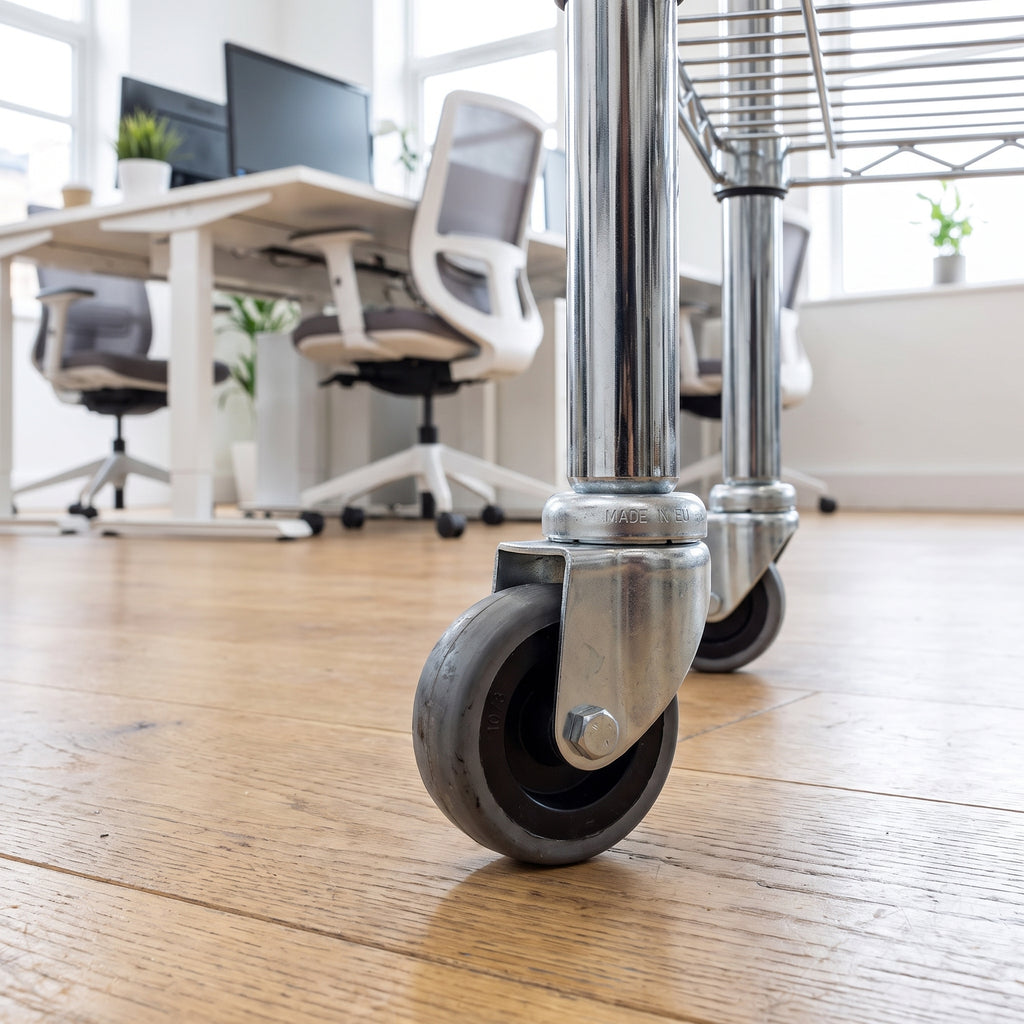

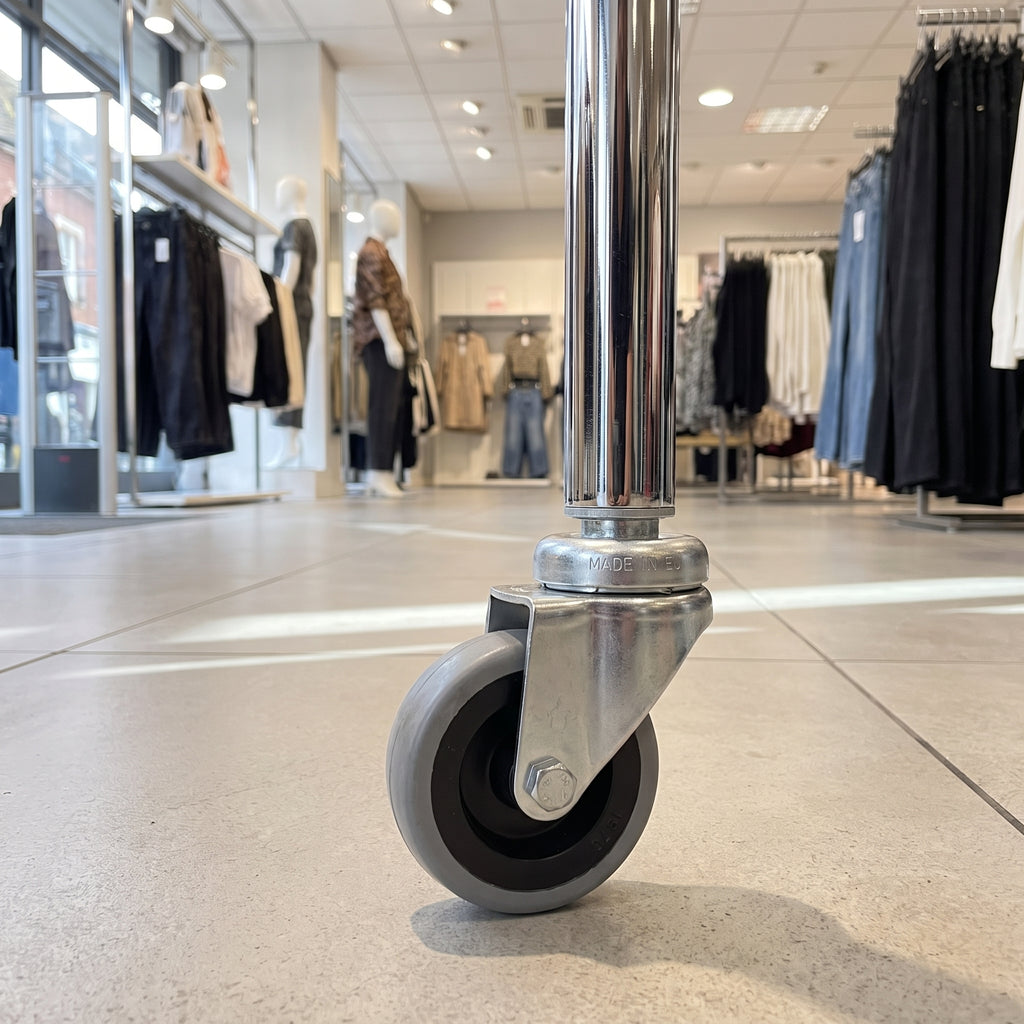

Furniture and movable storage racks, shop display stands and exhibition racks, office storage units and drawer pedestals, serving and room service trolleys, small tool trolleys and hobby projects. The rubber tyre suits hard indoor floors such as wood, laminate, vinyl, tiles and sealed concrete, where quiet rolling matters.
Tube Adaptors Also Available
Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.
✓ Shop Round Tube Adaptors
✓ Shop Square Tube Adaptors
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated at 65kg. A set of four is rated at 195kg.
How do I fit a bolt hole castor?
Pass an M10 bolt through the 10mm centre hole and secure it with a nut. On tube legs, use a suitable tube adaptor for a neat, secure fit.
Will the rubber wheel mark or scratch my floor?
The soft grey rubber tyre is kind to floors and rolls much more quietly than a hard plastic wheel, which makes it a good choice for homes, offices and shops.
How tall is the castor once fitted?
The total castor height is 82mm, measured from the floor to the top of the fixing. Allow 51mm swivel radius as clear space so it can turn freely.
Does this castor have a brake?
No. This is a free-swivelling castor. A matching braked version is also available if you need to lock the wheel in place.
Can I use it outdoors?
It is designed for indoor use on smooth, hard floors. For rough ground, gravel or regular outdoor use, a larger wheel is a better choice.
