- Load per castor65kg per castor
- Wheel diameter60mm
- Overall height82mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Bolt Hole Castor
- Wheel Diameter
- 60mm
- Wheel Material
- Rubber on Polypropylene
- Wheel Colour
- Grey
- Tread Width
- 24mm
- Fixing
- Single Bolt Hole
- Bolt Hole Size
- 10mm (M10)
- Bearing Type
- Plain
- Swivel Radius
- 82mm
- Total Castor Height
- 82mm
- Load Capacity
- 65kg per castor
- Brake
- Yes, foot operated
Will it fit?
- Bolt hole10mm (M10)
- Overall height82mm
- Swivel radius82mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

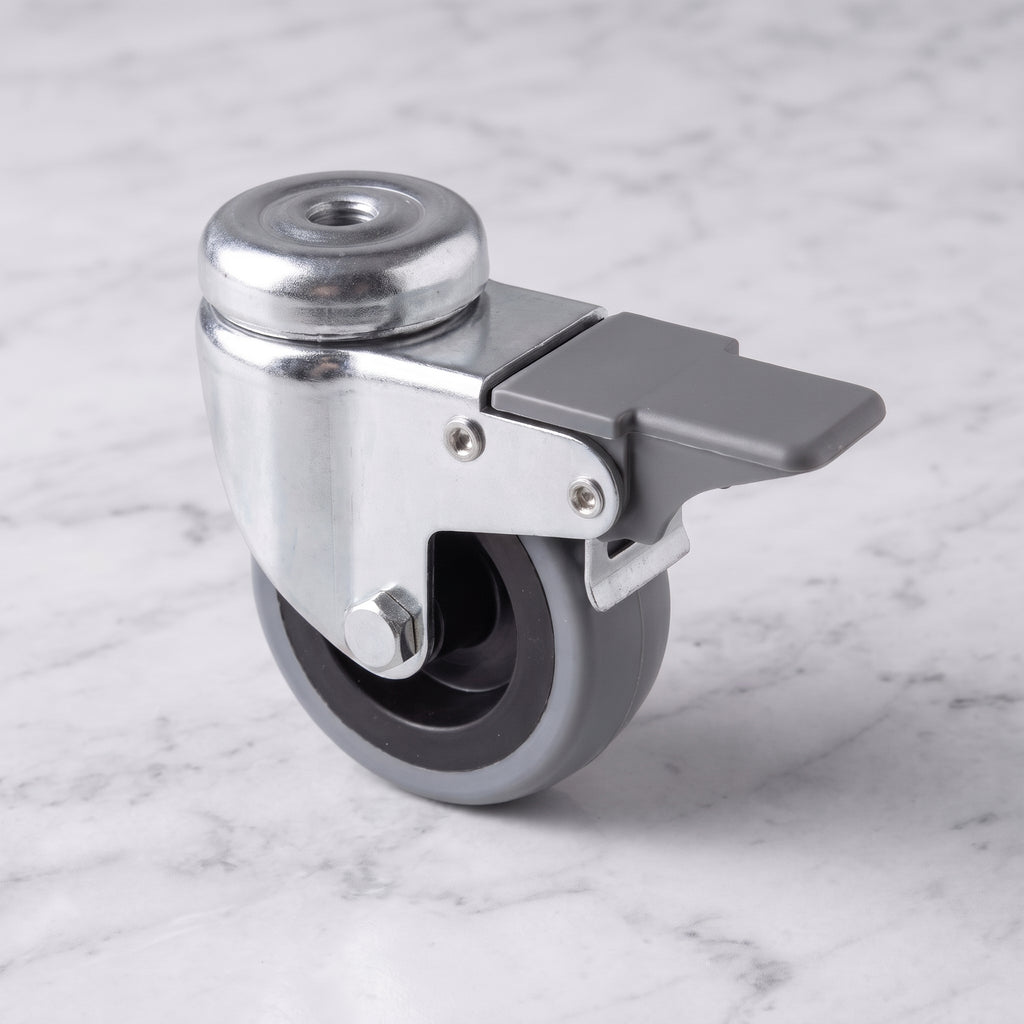

Light Duty Bolt Hole Castors
This compact 60mm braked swivel castor fits through a single 10mm bolt hole and carries up to 65kg per castor. Its grey rubber wheel rolls quietly on indoor floors, and the foot brake gives secure locking when you need it, so chairs, tables, carts, trolleys and retail displays move easily and then stay firmly in place.
A popular choice for furniture, light industrial carts and retail displays, this braked grey rubber bolt hole castor combines a low 82mm total height with an 82mm swivel radius and a 24mm tread. The rubber on polypropylene wheel grips well and runs quietly on indoor floors, and the plain bearing keeps the castor simple and low maintenance.
Why Choose This Castor
- ✓ Compact 60mm wheel keeps furniture and equipment low to the floor.
- ✓ 65kg load capacity per castor for light duty furniture and equipment.
- ✓ Single 10mm bolt hole fixing for quick fitting into tube legs with a tube adaptor.
- ✓ Foot brake provides secure locking and prevents unwanted movement when stationary.
- ✓ Full swivel movement with an 82mm swivel radius for easy turning in confined areas.
- ✓ Grey rubber on polypropylene wheel with a 24mm tread for quiet running and good floor grip.
- ✓ Plain bearing for simple, low maintenance operation.
* Load capacity is per castor on a smooth, level floor. Choose a bolt and tube adaptor that match the 10mm bolt hole and the inside of your tube leg.
Where It Works Best
This braked bolt hole castor is made for light furniture and equipment that must move easily and then stay put:

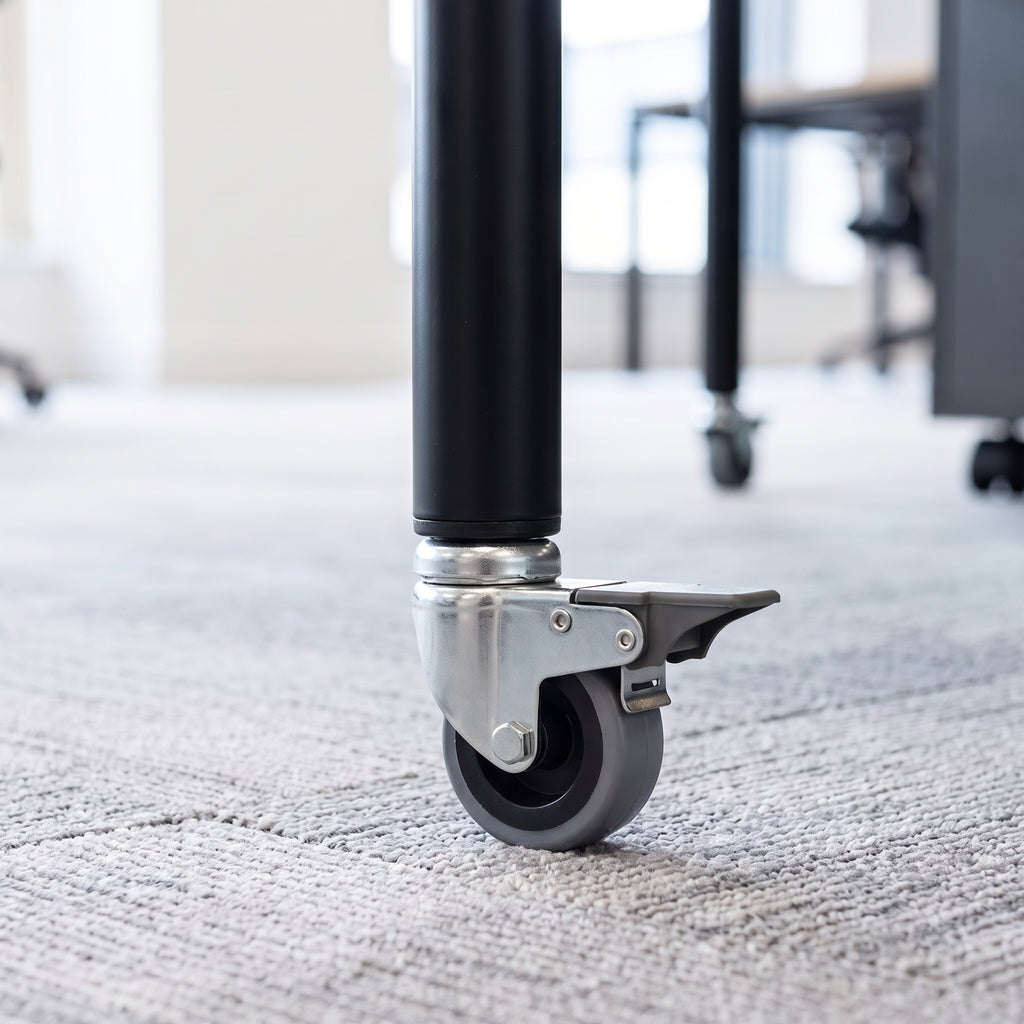

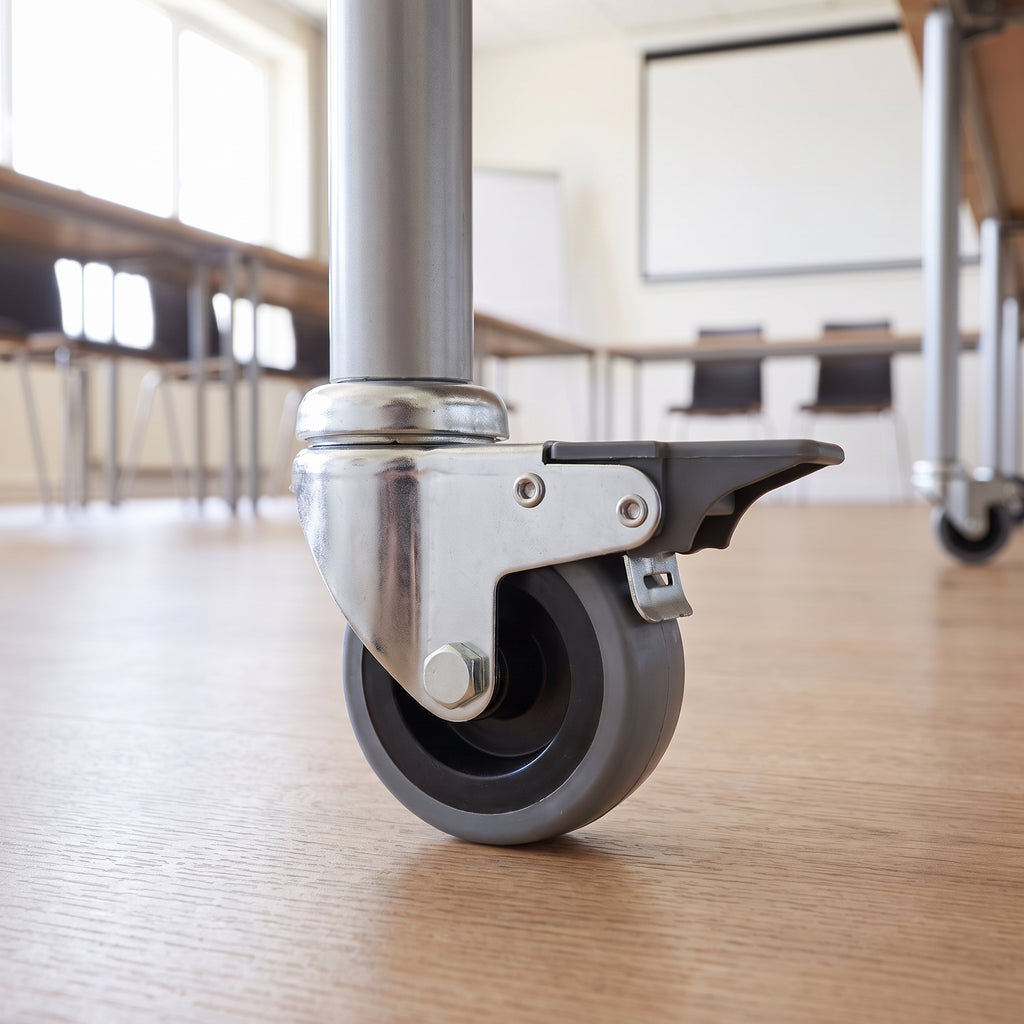

- ✓ Furniture movement: chairs, tables and other movable furniture.

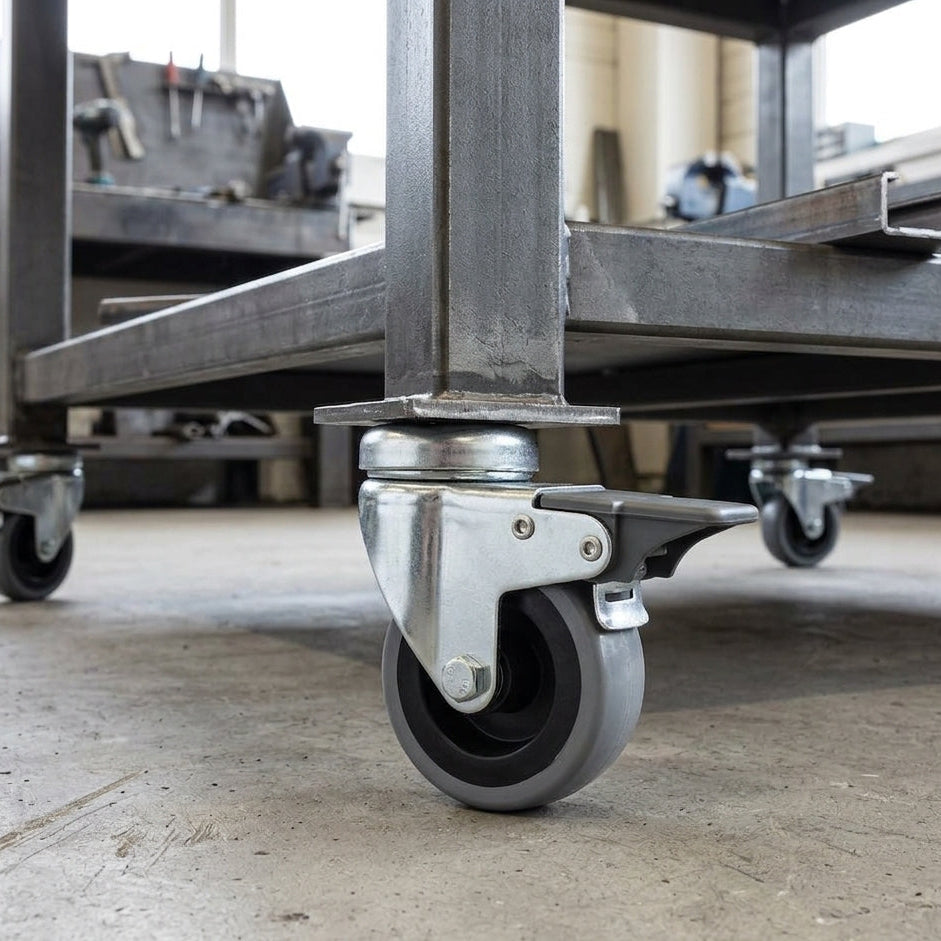

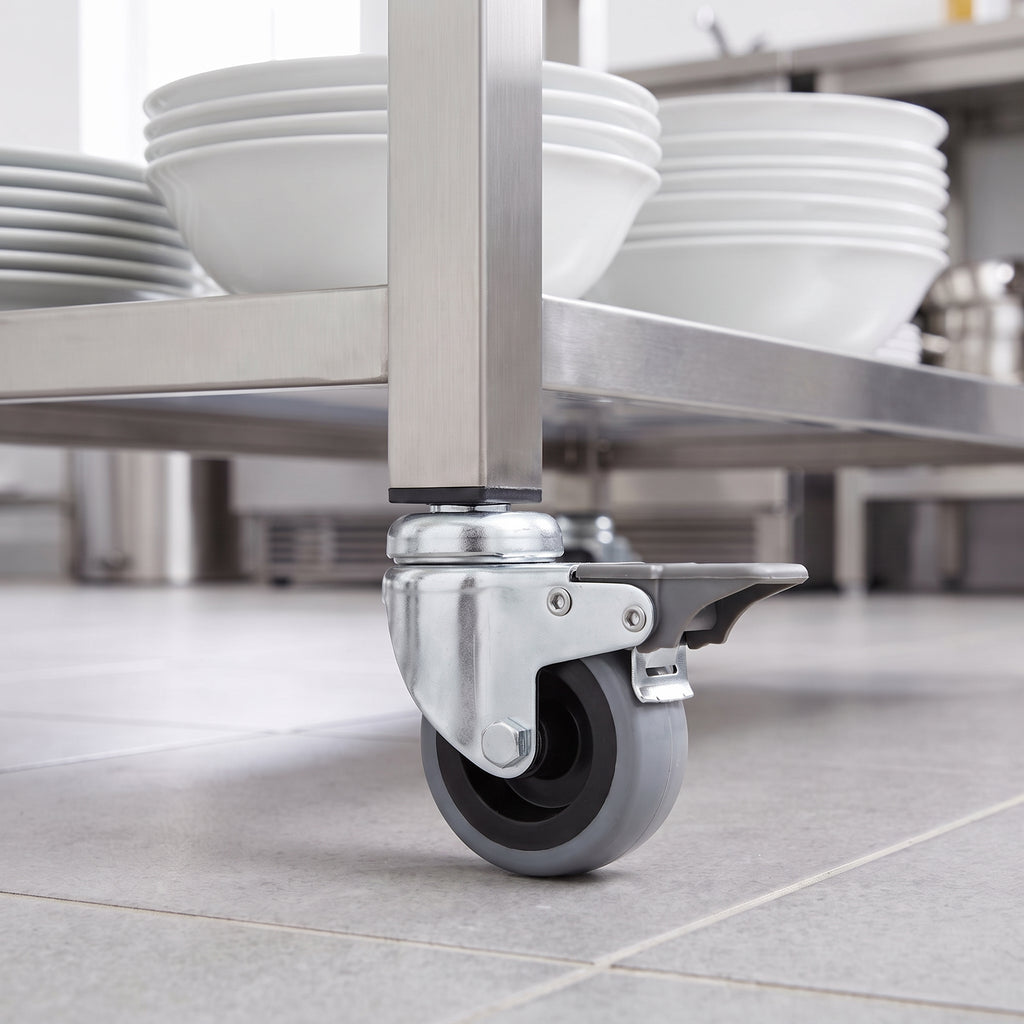

- ✓ Industrial equipment: carts and trolleys in warehouses and factories.
- ✓ Retail displays: easy repositioning of merchandise displays and shelving units.
- ✓ Home use: DIY projects and home organisation systems that need mobility.
Tube Adaptors Also Available
Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 65kg on a smooth, level floor.
What size bolt does it take?
It has a single 10mm bolt hole, so it suits an M10 bolt or threaded stud.
Can I fit it into a tube leg?
Yes. Use a round or square tube adaptor that matches the inside size of your tube, then bolt the castor into the adaptor.
How tall is the castor?
The total castor height is 82mm and the swivel radius is 82mm.
How does the brake work?
Press the foot pedal to lock the castor in place, and lift it to release.
