- Load per castor60kg per castor
- Wheel diameter50mm
- Overall height72mm
- WheelRubber on polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Twin wheel swivel, bolt hole fixing
- Bolt Hole Size
- 10mm (M10)
- Wheel Diameter
- 50mm
- Wheel Material
- Rubber on polypropylene
- Wheel Colour
- Grey
- Bearing Type
- Plain
- Load Capacity
- 60kg per castor
- Total Castor Height
- 72mm
- Swivel Radius
- 58mm
Will it fit?
- Bolt hole10mm (M10)
- Overall height72mm
- Swivel radius58mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Light Duty Twin Wheel Castors

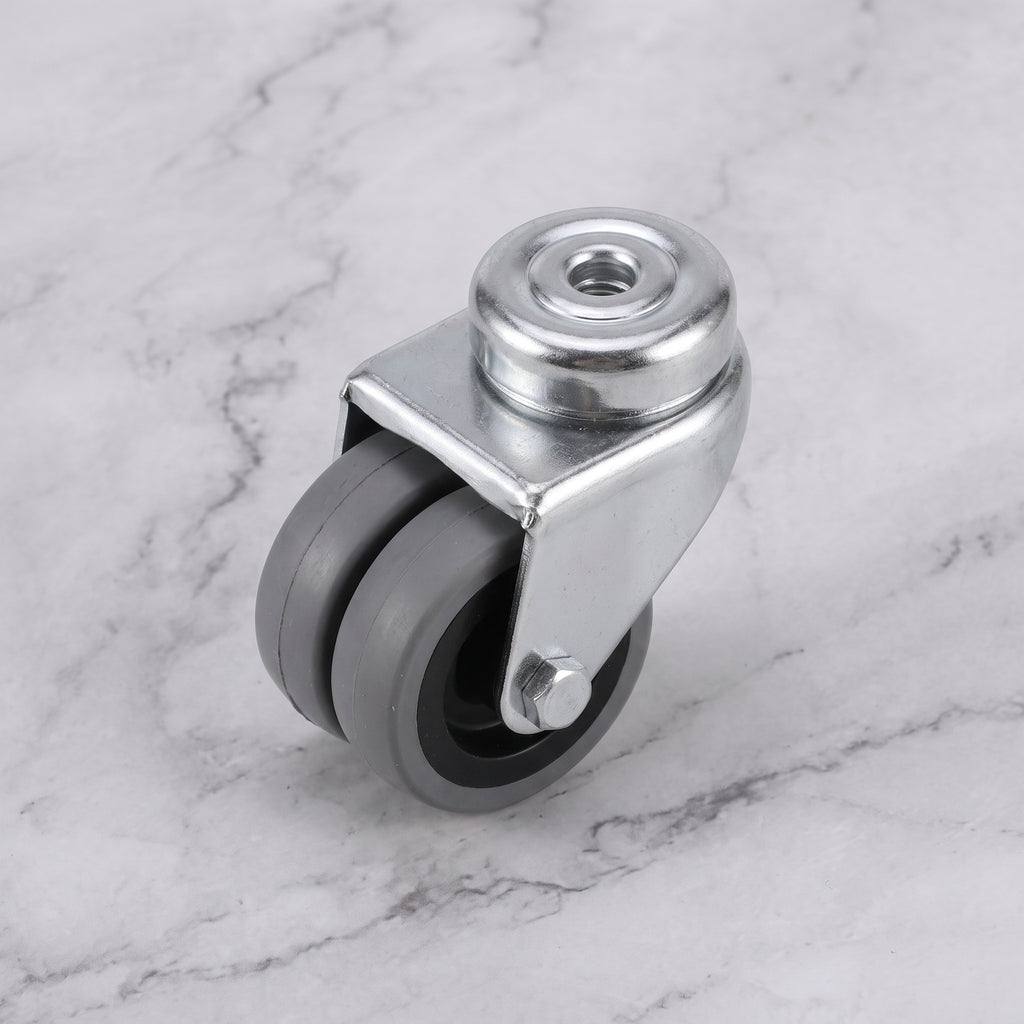

This 50mm twin wheel swivel castor has two grey rubber wheels on polypropylene centres and a single 10mm bolt hole fixing, so it fits straight into a tube leg or threaded insert with no top plate. The swivel head turns freely for smooth changes of direction, the rubber tread gives good grip and quiet running, and the castor carries up to 60kg with a compact 72mm total height. It is made for shop fitting equipment, retail carts and display units that need easy, reliable movement.
If you are looking for a 50mm twin wheel castor, a grey rubber bolt hole swivel castor, an M10 castor for shop fittings or small quiet-running castors for display stands and carts, this compact design is a neat, dependable choice.
Why Choose This Castor
- ✓ Grey rubber on polypropylene wheels for grip, quiet running and lightweight performance.
- ✓ Twin wheel swivel design for smooth, easy changes of direction.
- ✓ Single 10mm bolt hole for straightforward fixing into tube legs or threaded inserts.
- ✓ 60kg load capacity per castor.
- ✓ Compact 72mm height and 58mm swivel radius.
* The bolt hole size must match your mounting bolt. Fixing bolt not included.
Where It Works Best

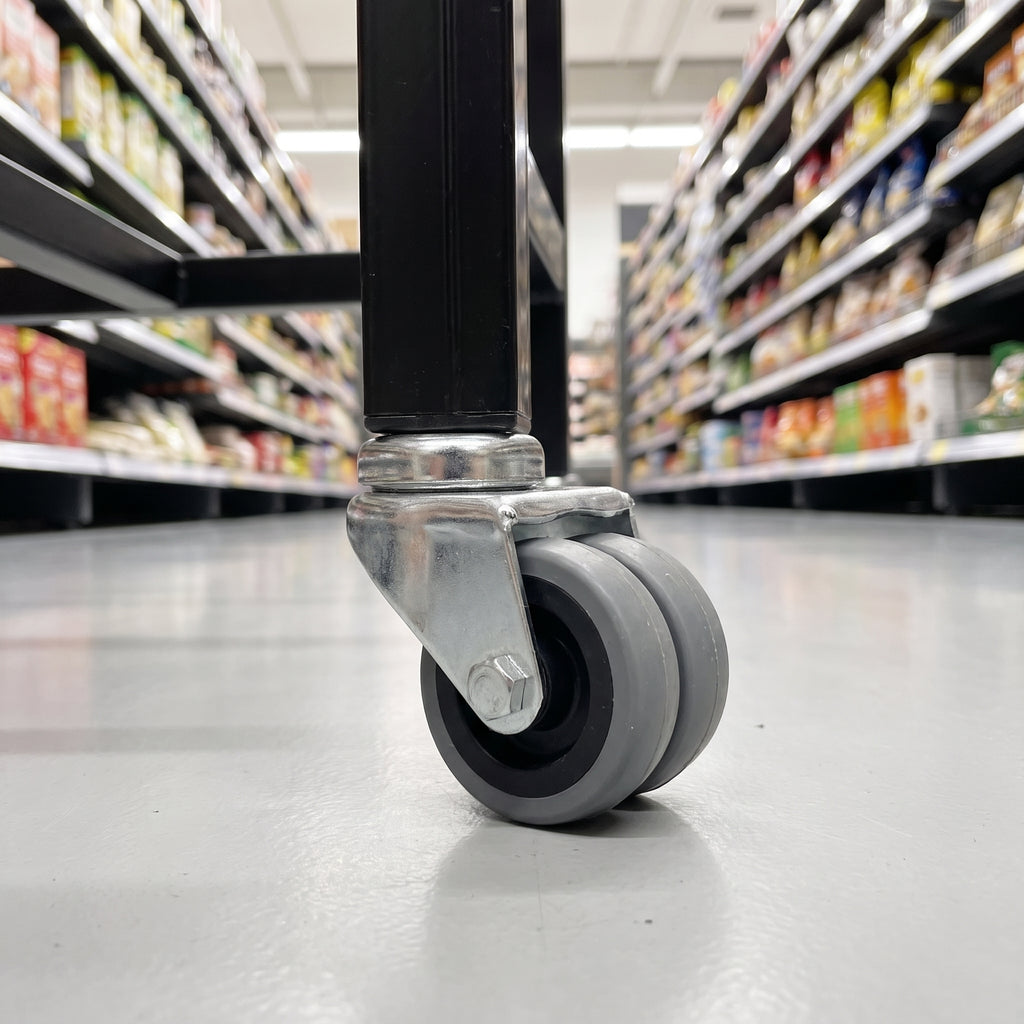

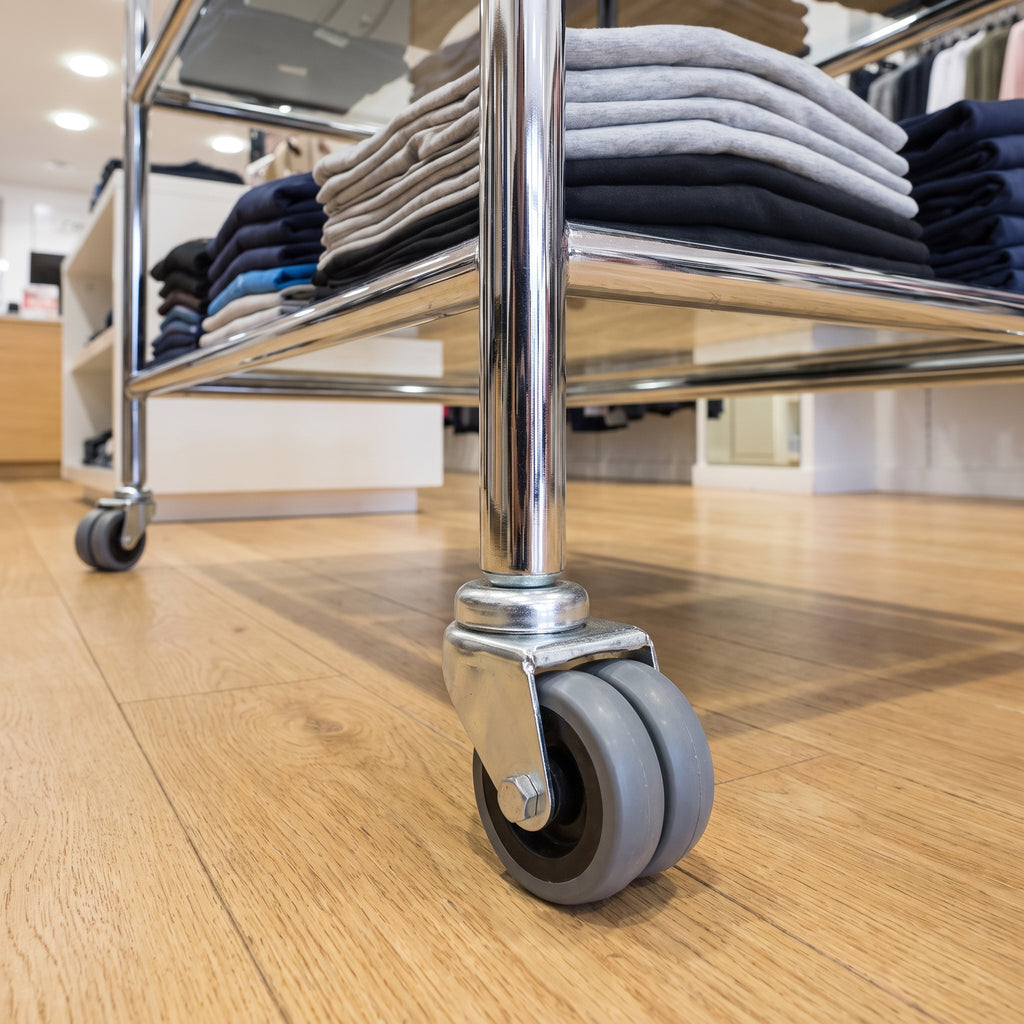

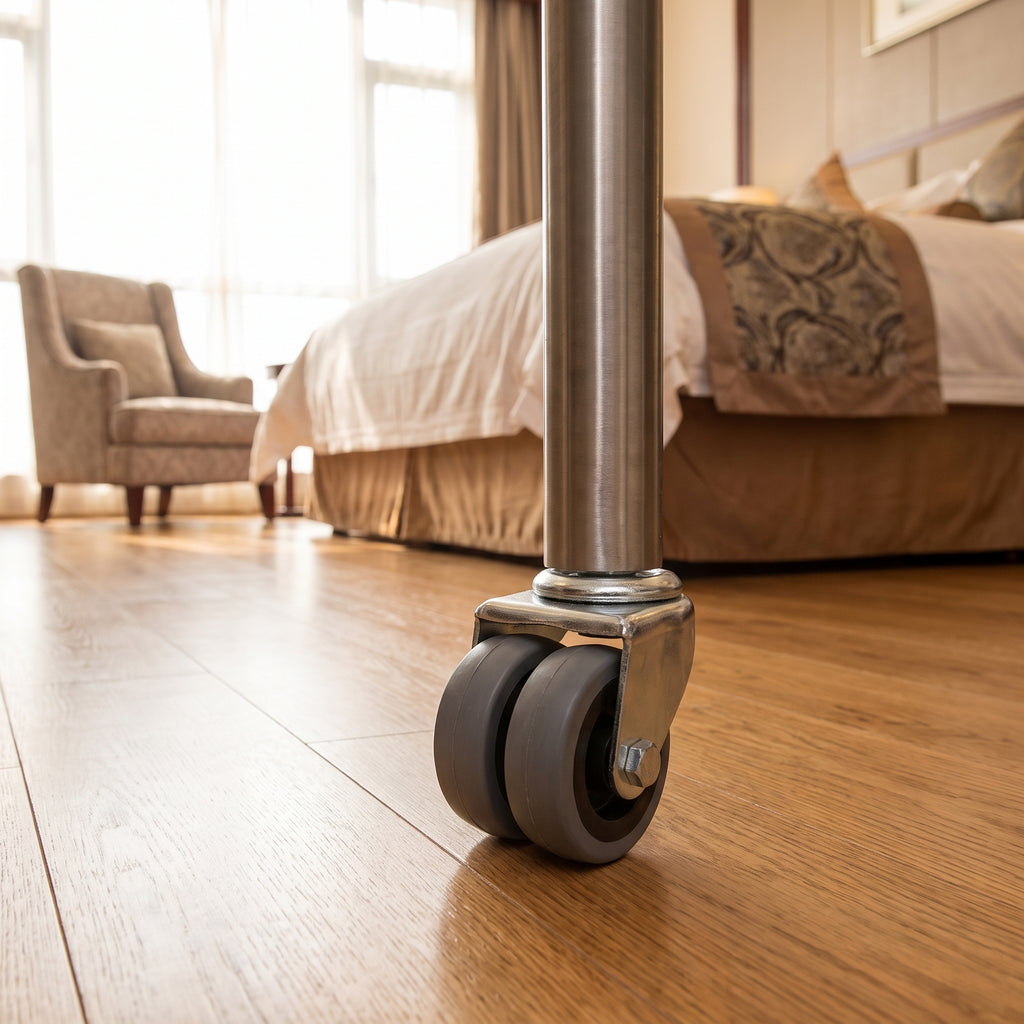

Designed for shop fitting equipment such as displays and fixtures that need easy movement, retail carts that must move smoothly around the shop floor, and adjustable display units. It also suits light trolleys, mobile stands and tube-framed furniture in shops, hotels, offices and light workshops, on smooth indoor floors.
Tube Adaptors Also Available
Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.
Frequently Asked Questions
What size bolt do I need?
The bolt hole is 10mm, so use an M10 bolt or M10 threaded insert. For open tube legs, use a matching round or square tube adaptor. Bolts are not supplied.
What is the load capacity?
Each castor is rated to carry up to 60kg.
What are the wheels made of?
Each wheel has a grey rubber tread on a polypropylene centre, giving good grip and quiet running with a light overall weight.
How much space does the castor need to swivel?
The swivel radius is 58mm, and the total height from floor to the top of the castor is 72mm.
Does this castor have a brake?
No, this is a plain swivel castor. Where equipment must stay in place, choose a braked version for at least two corners.
