- Load per castor60kg
- Wheel diameter50mm
- Overall height72mm
- WheelRubber on polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel
- Fixing Type
- Single Bolt Hole
- Bolt Hole Size
- 10mm (for M10 bolt)
- Top Plate
- None (bolt hole fitting)
- Wheel Diameter
- 50mm
- Tread Width
- 24mm
- Wheel Material
- Rubber on polypropylene
- Tyre Colour
- Grey
- Centre Colour
- Black
- Housing
- Zinc-plated pressed steel
- Bearing Type
- Plain
- Load Capacity (per castor)
- 60kg
- Max Load (set of 4 castors)
- 180kg *
- Total Castor Height
- 72mm
- Swivel Radius
- 48mm
Will it fit?
- Bolt hole10mm (for M10 bolt)
- Overall height72mm
- Swivel radius48mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Light Duty Bolt Hole Castors

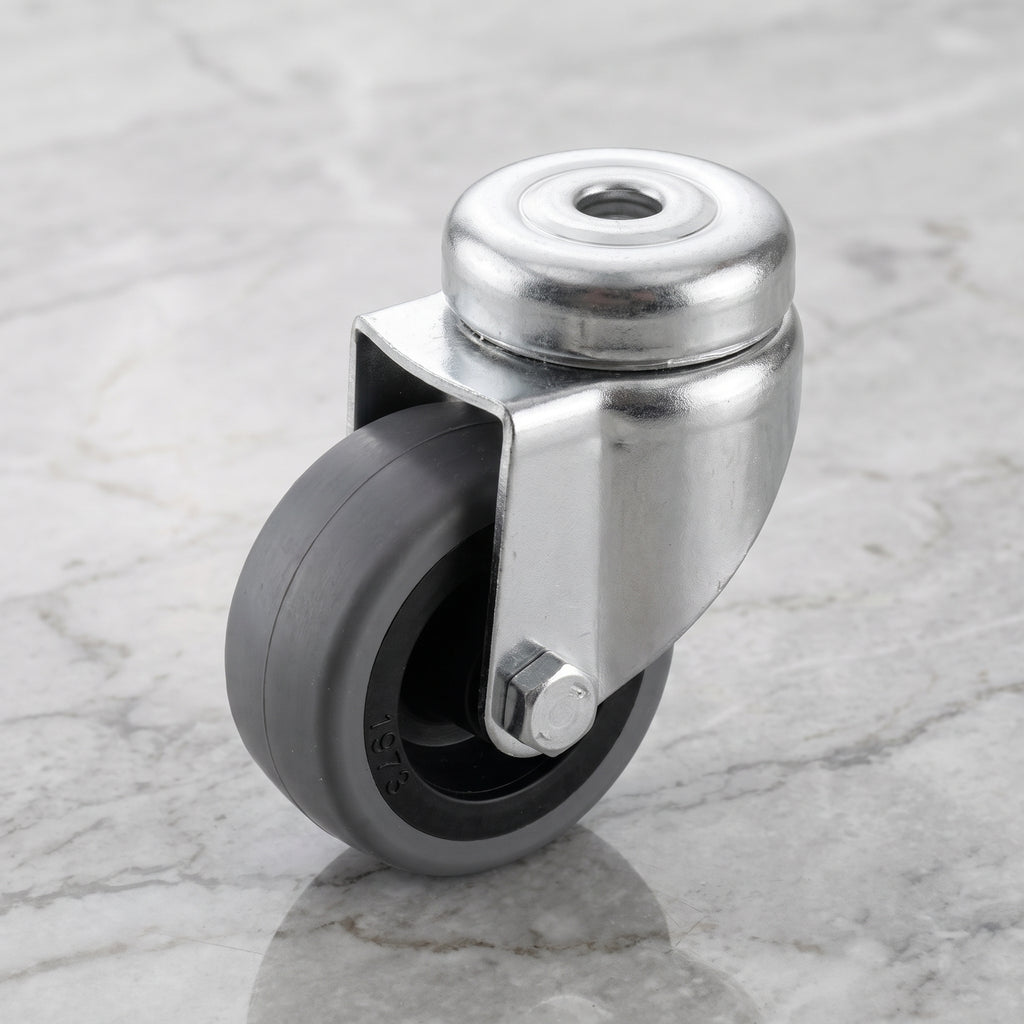

This 50mm swivel castor combines a quiet grey rubber tyre with a strong black polypropylene centre and a single 10mm bolt hole for an M10 bolt. It turns freely through 360 degrees, rolls smoothly on indoor floors and carries up to 60kg per castor, making it a dependable choice for shop fittings, display units, light trolleys and tube-leg furniture.
If you are searching for a 50mm grey rubber castor, an M10 bolt hole swivel castor, a quiet trolley castor or a floor-friendly castor for display stands, this castor gives you smooth, simple central mounting.
Why Choose This Castor
- ✓ Grey rubber tyre for quiet rolling that is kind to indoor floors.
- ✓ Black polypropylene centre keeps the wheel light, strong and true.
- ✓ Single bolt hole fitting for an M10 bolt, ideal for tube legs and tube adaptors.
- ✓ 60kg per castor with a 180kg rating for a set of four.
- ✓ Wide 24mm tread spreads the load for steady, smooth movement.
- ✓ Compact 72mm height with a tight 48mm swivel radius for easy steering.
* The set-of-four figure allows for only three castors being in full contact with the floor at any time (3 x 60kg), which gives a safer working load on real-world floors.
Where It Works Best

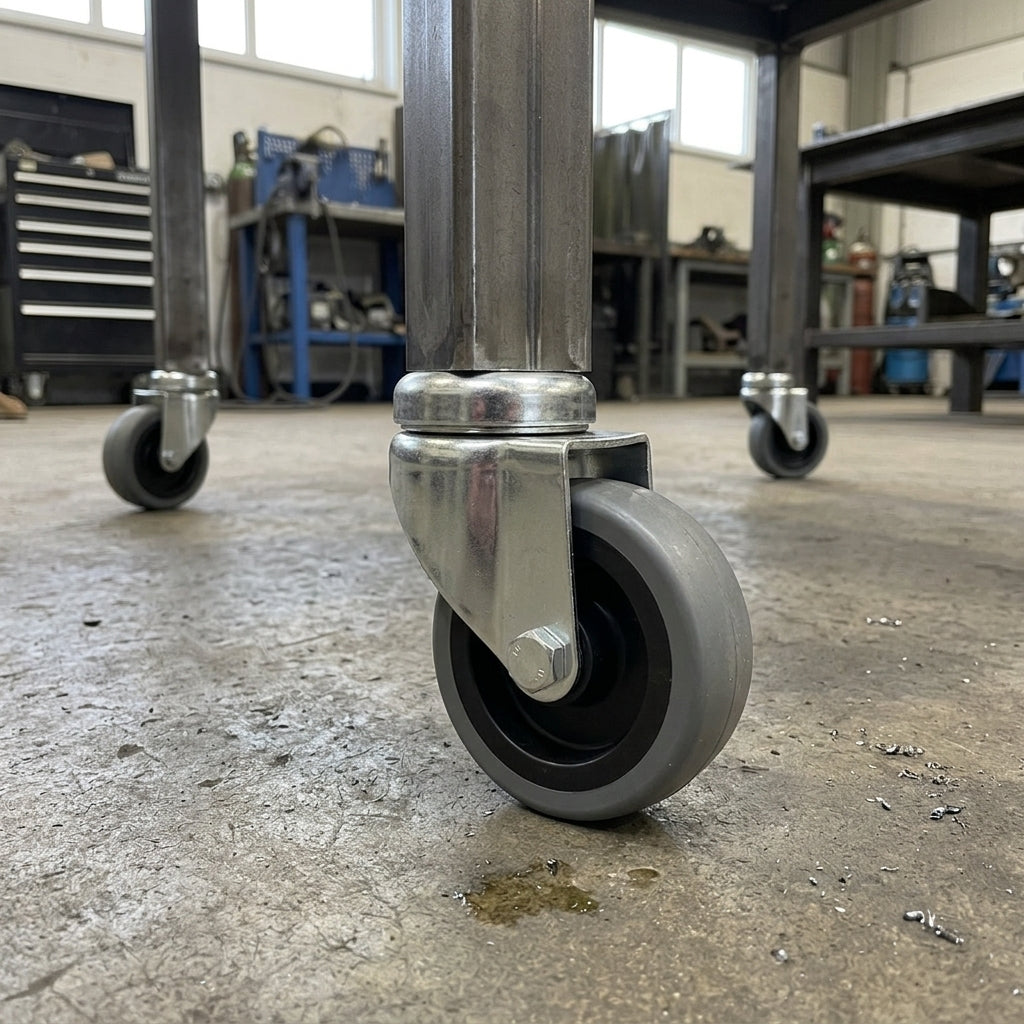

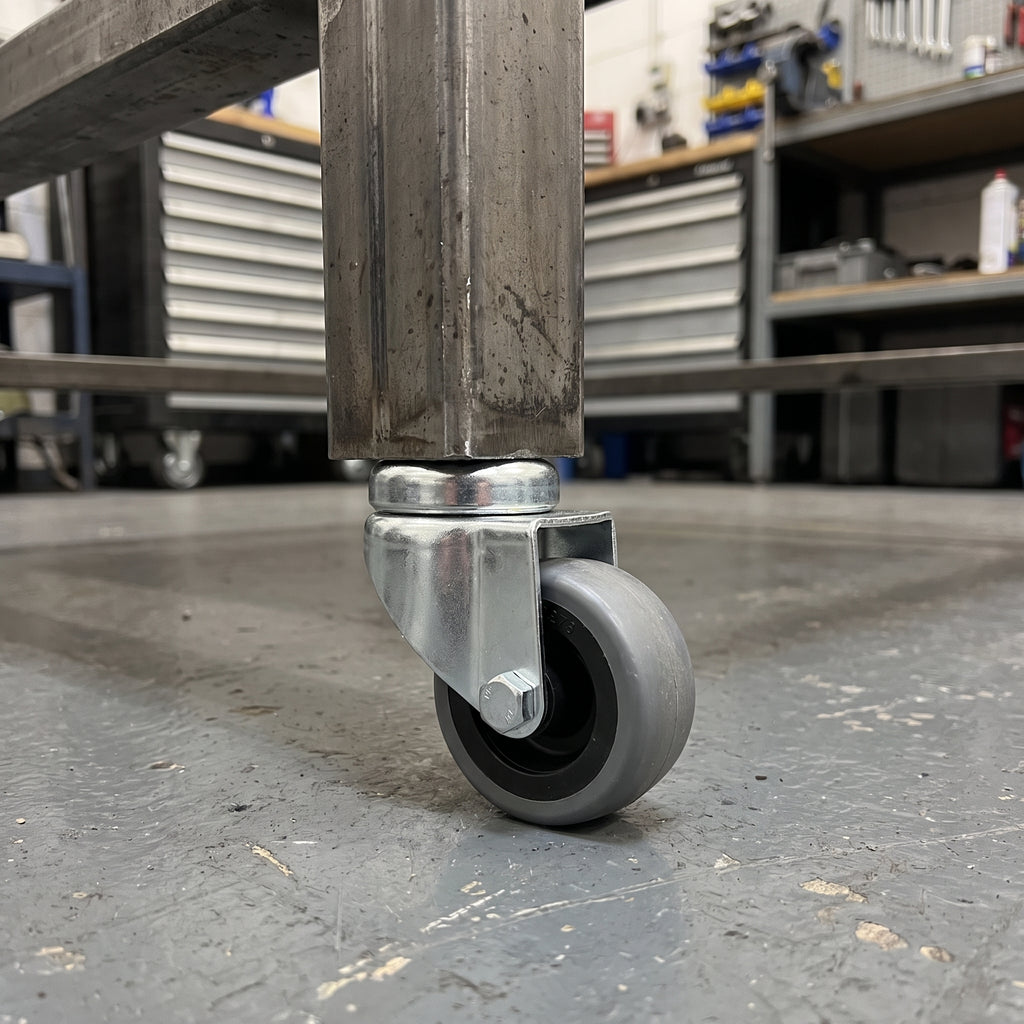

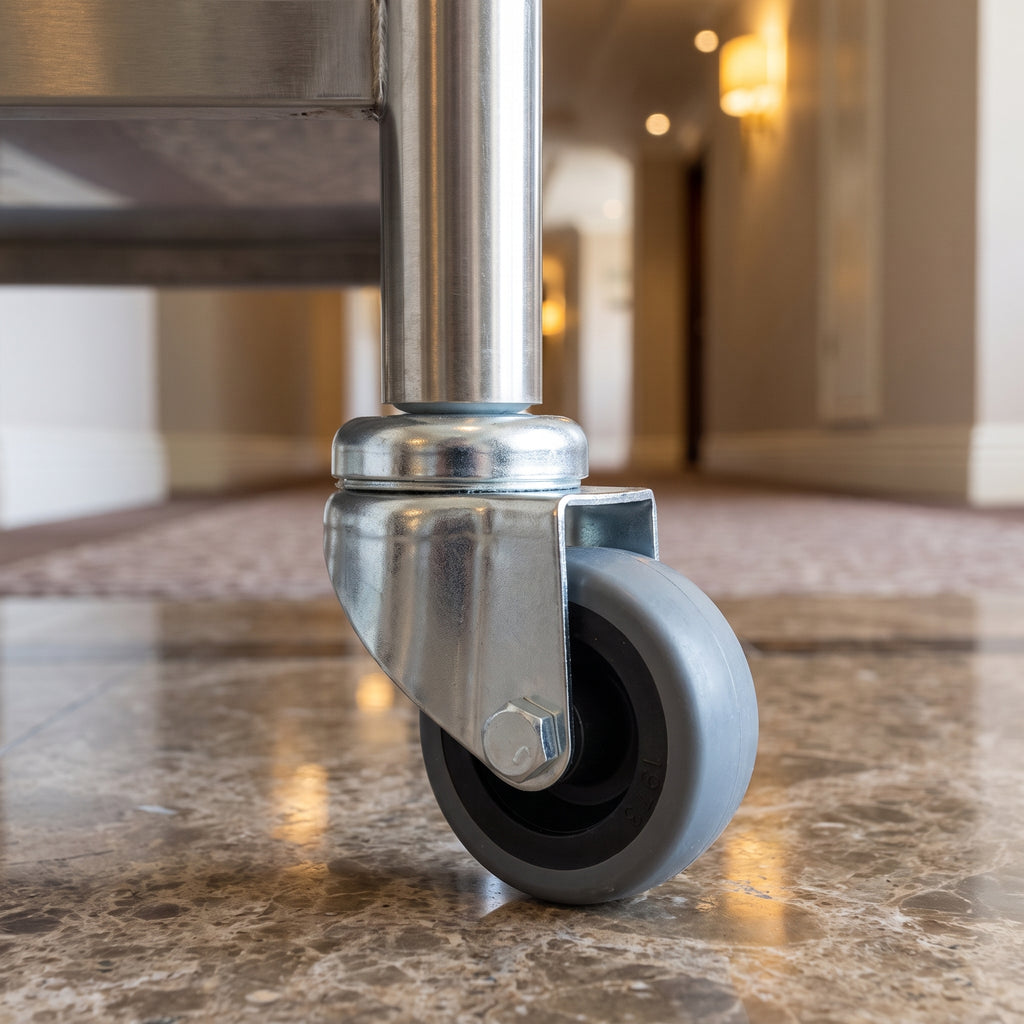

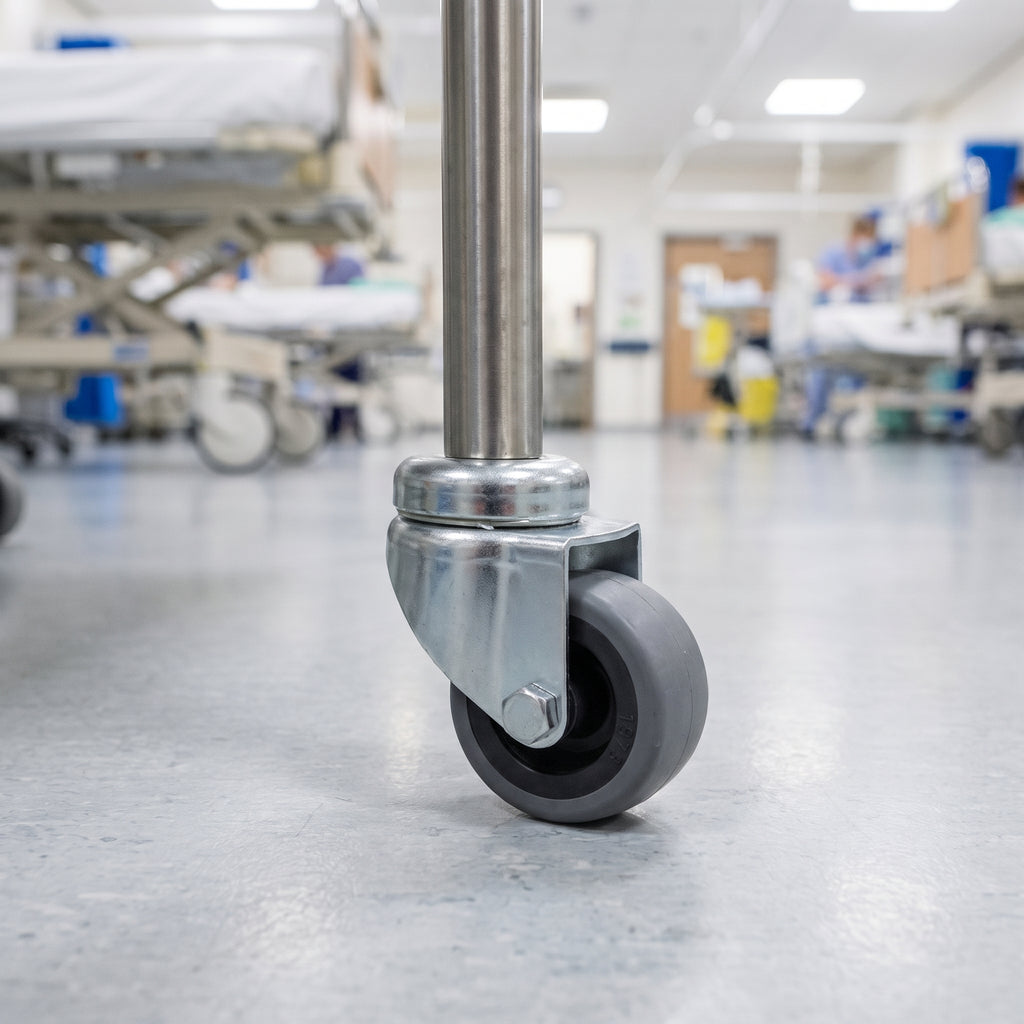

This grey rubber bolt hole castor suits shop display units and shelving, clothes rails, hotel and serving trolleys, medical and utility trolleys, mobile workbenches and tube-framed furniture. The rubber tyre makes it a good fit for offices, shops, hotels, clinics and workshops where quiet movement and floor care matter.
Tube Adaptors Also Available
Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.
✓ Shop Round Tube Adaptors
✓ Shop Square Tube Adaptors
Frequently Asked Questions
How do I fit a bolt hole castor?
Pass an M10 bolt through the 10mm hole in the top of the castor and secure it into your furniture, a threaded insert or a tube adaptor fitted inside the leg.
How much weight can a set of four carry?
Each castor is rated at 60kg. For a set of four we recommend a maximum of 180kg, as only three castors are usually in full contact with the floor at once.
Is the grey rubber wheel quiet and floor friendly?
Yes. The grey rubber tyre rolls quietly and is gentle on wood, vinyl, tiled and other smooth indoor floors.
Does this castor have a brake?
No, this is a plain swivel castor. For equipment that needs to stay in place, pair it with braked castors of the same size.
What is the total height of the castor?
The total castor height is 72mm from the floor to the top of the fitting, which keeps equipment low and stable.
Is this castor suitable for outdoor use?
It is best suited to indoor use on smooth, level floors. For rough ground or outdoor areas, choose a larger wheel.
