- Load per castor65kg
- Wheel diameter50mm
- Overall height72mm
- WheelPolypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel
- Brake Type
- Foot-operated wheel brake
- Fixing Type
- Single Bolt Hole
- Bolt Hole Size
- 10mm (for M10 bolt)
- Top Plate
- None (bolt hole fitting)
- Wheel Diameter
- 50mm
- Tread Width
- 22mm
- Wheel Material
- Polypropylene
- Wheel Colour
- Black
- Housing
- Zinc-plated pressed steel
- Bearing Type
- Plain
- Load Capacity (per castor)
- 65kg
- Max Load (set of 4 castors)
- 195kg *
- Total Castor Height
- 72mm
- Swivel Radius
- 80mm
Will it fit?
- Bolt hole10mm (for M10 bolt)
- Overall height72mm
- Swivel radius80mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Bolt Hole Castors

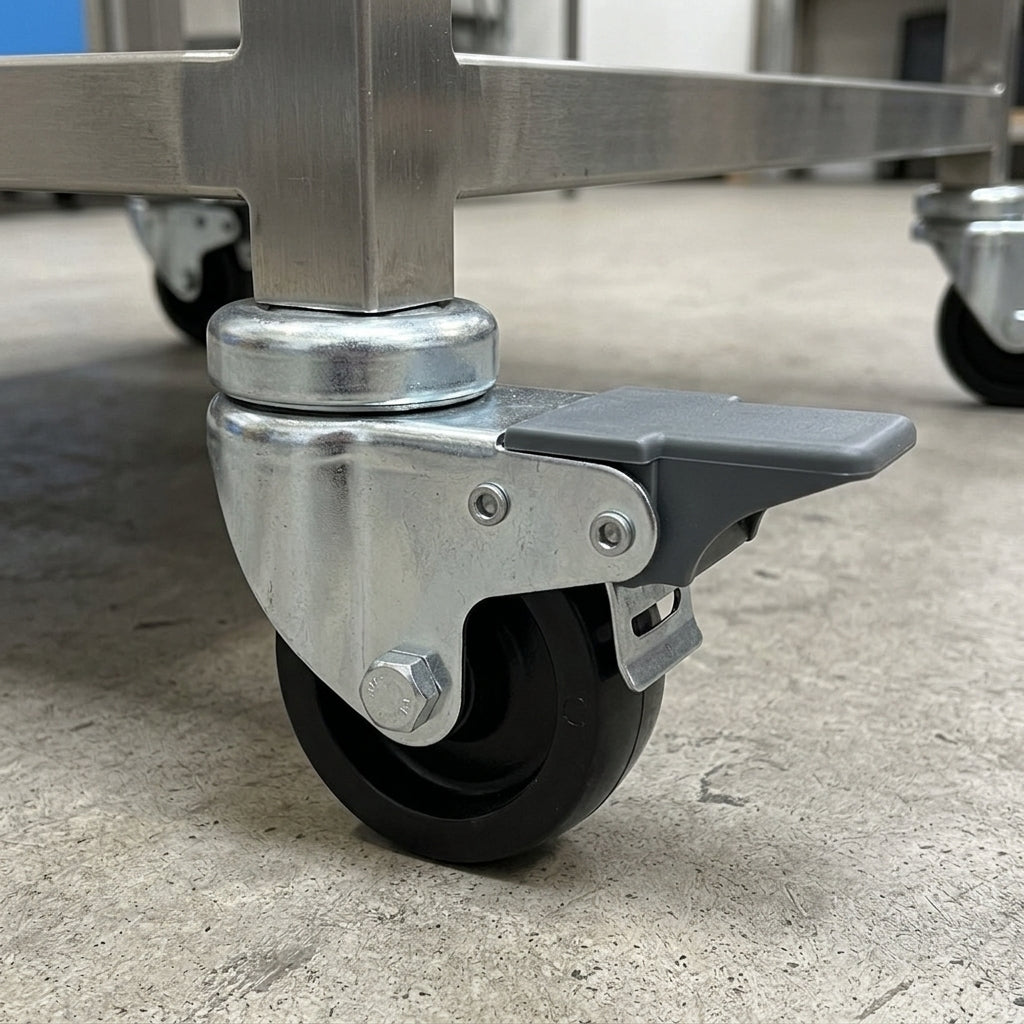

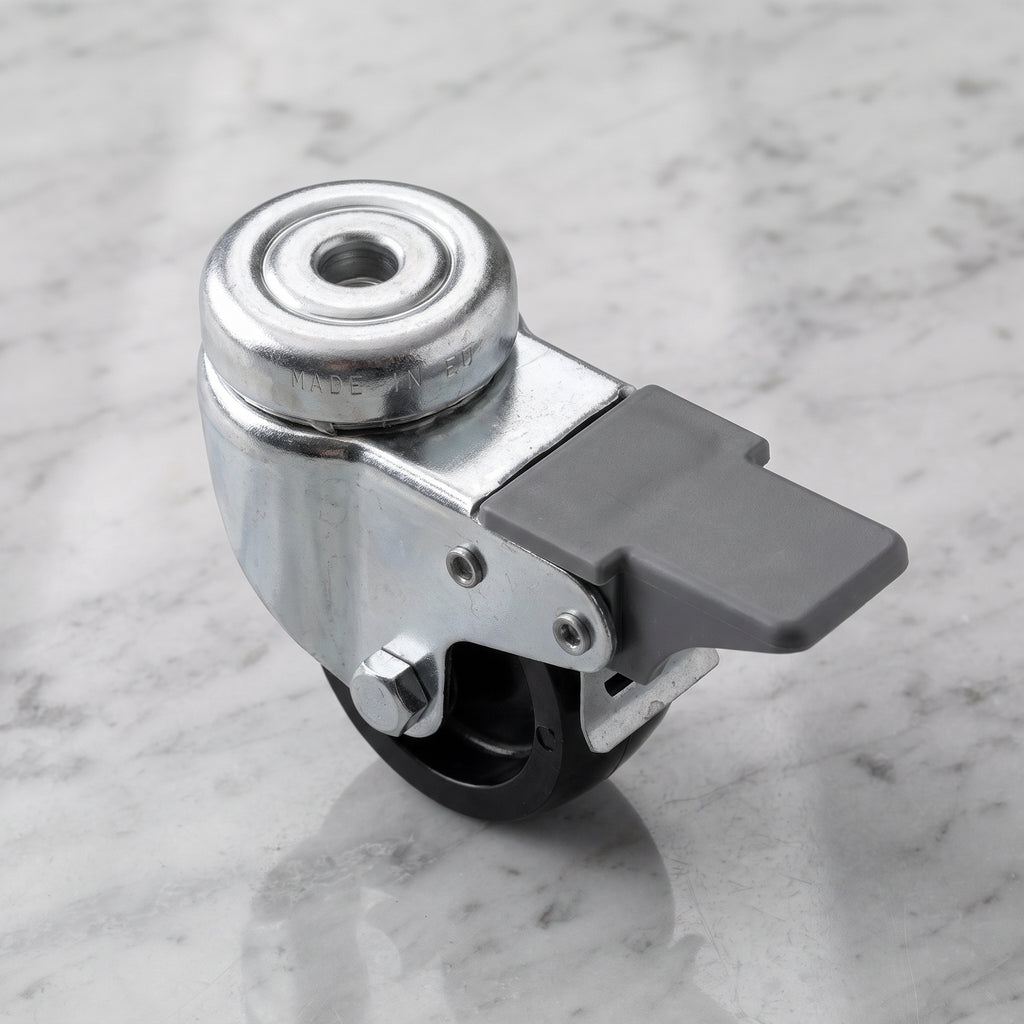

This compact 50mm braked swivel castor pairs a tough black polypropylene wheel with a single 10mm bolt hole for an M10 bolt and a foot-operated brake. It steers freely through 360 degrees, locks firmly when you need it to stay put, and carries up to 65kg per castor, making it a neat, secure choice for display stands, light trolleys, mobile units and tube-leg furniture.
If you are looking for a small bolt hole castor with brake, a 50mm lockable M10 castor, a black plastic braked swivel wheel or a replacement braked castor for a display unit or trolley, this castor is a simple, low-profile upgrade.
Why Choose This Castor
- ✓ Foot-operated brake locks the wheel so your equipment stays exactly where you park it.
- ✓ Single bolt hole fitting for an M10 bolt, ideal for tube legs and tube adaptors.
- ✓ Black polypropylene wheel that is light, hard-wearing and easy to wipe clean.
- ✓ 65kg per castor with a 195kg rating for a set of four.
- ✓ Zinc-plated pressed steel housing for a clean finish and good corrosion protection indoors.
- ✓ Low 72mm height keeps displays and furniture close to the floor.
* The set-of-four figure allows for only three castors being in full contact with the floor at any time (3 x 65kg), which gives a safer working load on real-world floors.
Where It Works Best

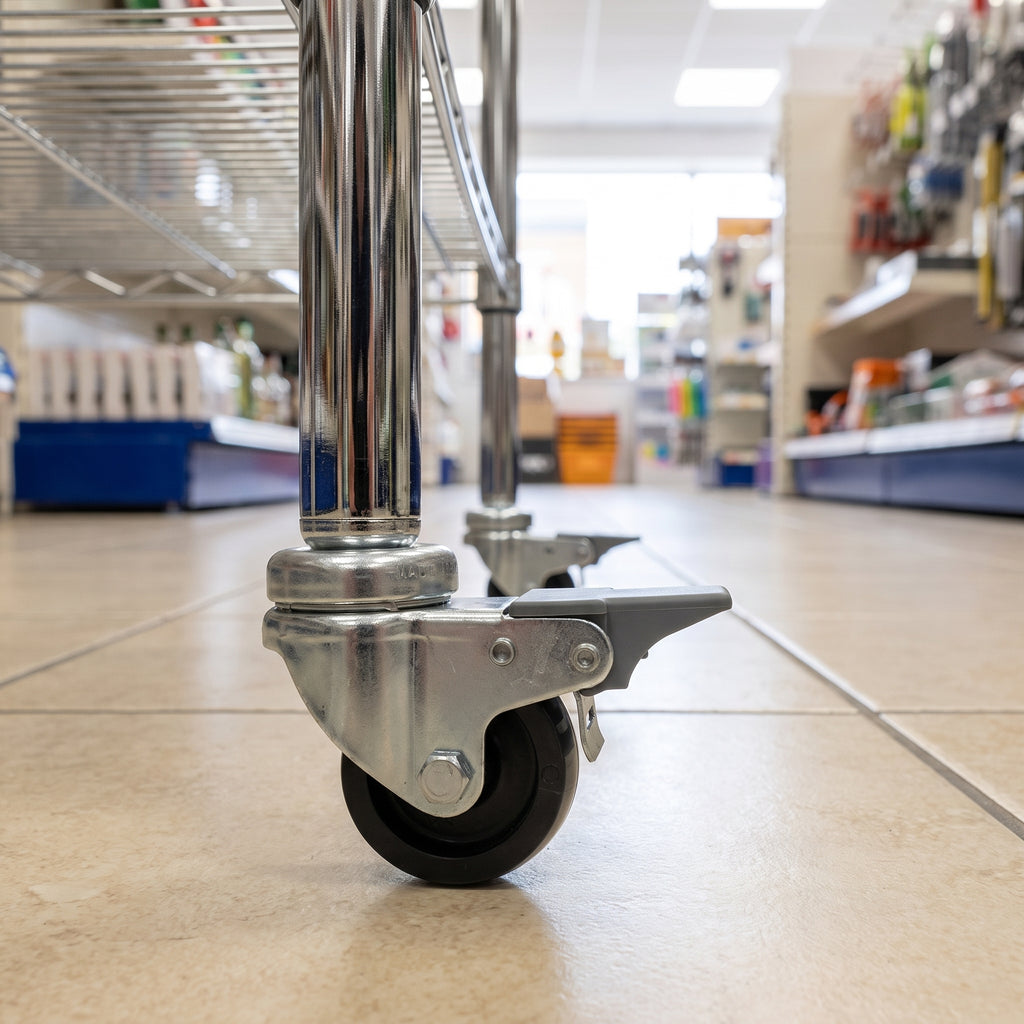

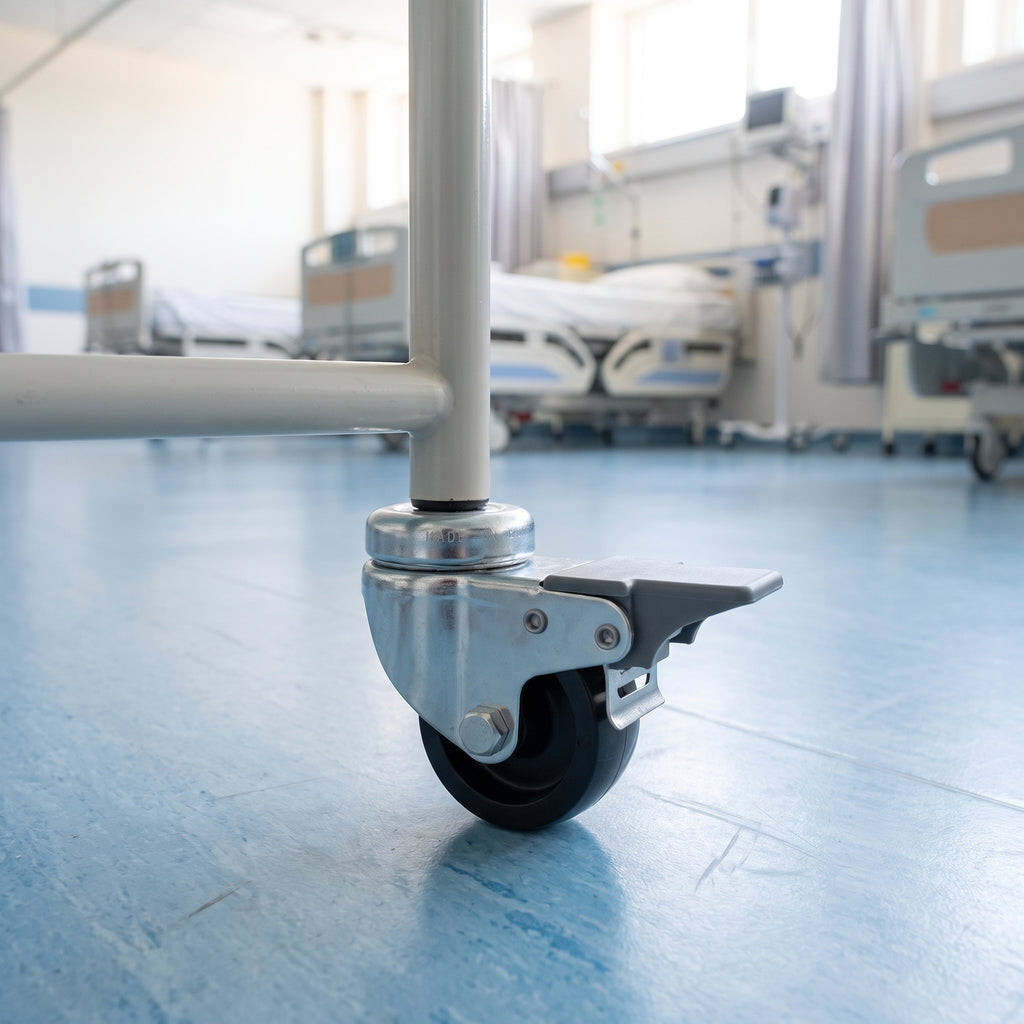

This braked bolt hole castor suits shop display stands and exhibition racks, clothes rails, medical and utility trolleys, serving trolleys, mobile office units and tube-framed furniture. The brake is especially useful on displays in busy shops, trolleys that need to stay put while loaded and equipment used on smooth indoor floors.
Tube Adaptors Also Available
Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.
✓ Shop Round Tube Adaptors
✓ Shop Square Tube Adaptors
Frequently Asked Questions
How do I fit a bolt hole castor?
Pass an M10 bolt through the 10mm hole in the top of the castor and secure it into your furniture, a threaded insert or a tube adaptor fitted inside the leg.
How does the brake work?
Press the pedal down with your foot to lock the wheel and lift it to release. The castor keeps its swivel movement, while the wheel itself stops rolling.
How much weight can a set of four carry?
Each castor is rated at 65kg. For a set of four we recommend a maximum of 195kg, as only three castors are usually in full contact with the floor at once.
Should I mix braked and swivel castors?
A popular setup is two braked swivel castors and two plain swivel castors, which gives full steering with secure parking. Four braked castors give the most holding power.
Will the polypropylene wheel mark my floor?
Polypropylene is a hard wheel that rolls easily on smooth floors. On delicate or polished surfaces, a rubber wheel will be quieter and gentler.
Is this castor suitable for outdoor use?
It is best suited to indoor use on smooth, level floors. For rough ground or outdoor areas, choose a larger wheel with a softer tyre.
