- Load per castor80kg per castor
- Wheel diameter100mm
- Overall height122mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Bolt Hole Castor
- Wheel Diameter
- 100mm
- Wheel Material
- Rubber on Polypropylene
- Wheel Colour
- Grey
- Tread Width
- 24mm
- Fixing
- Single Bolt Hole
- Bolt Hole Size
- 10mm (M10)
- Bearing Type
- Plain
- Swivel Radius
- 83mm
- Total Castor Height
- 122mm
- Load Capacity
- 80kg per castor
- Max Load of 4 Castors
- 240kg
- Brake
- No (swivel only)
Will it fit?
- Bolt hole10mm (M10)
- Overall height122mm
- Swivel radius83mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

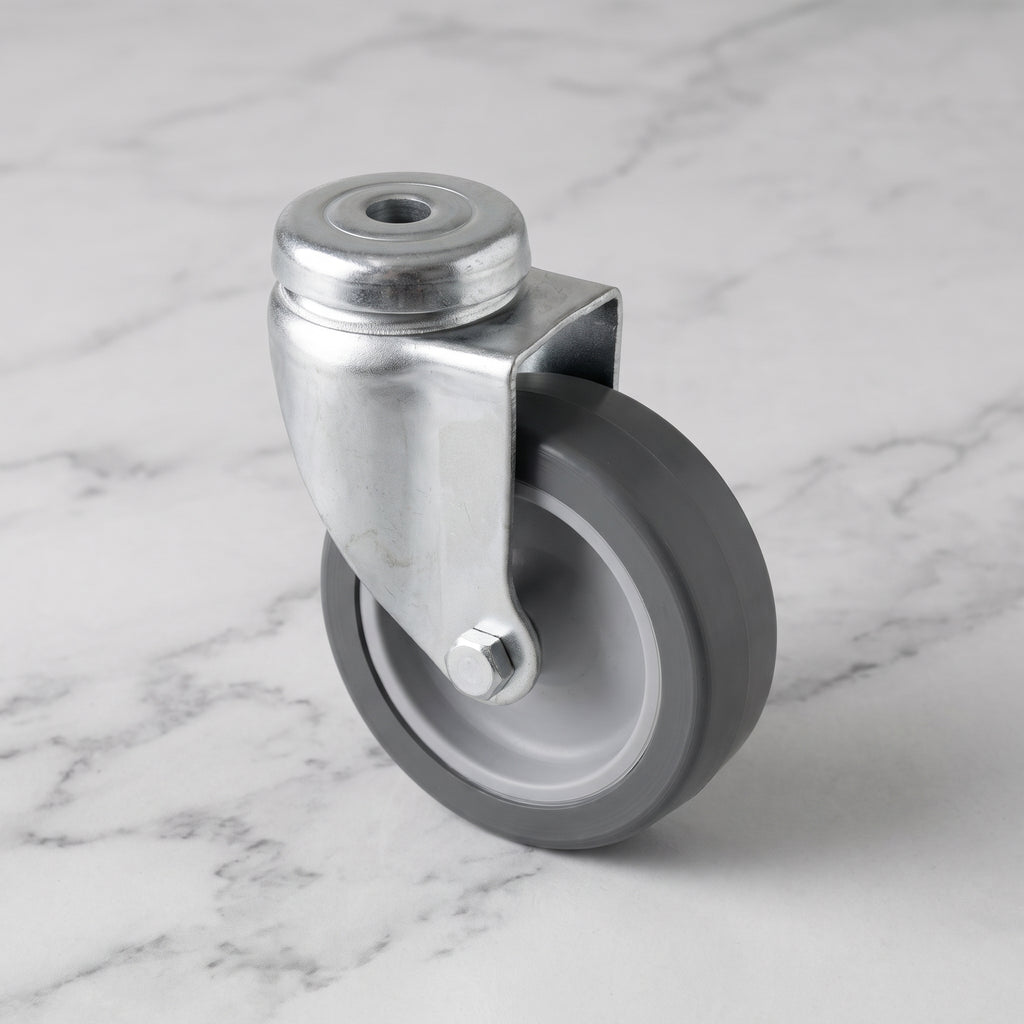

Medium Duty Bolt Hole Castors

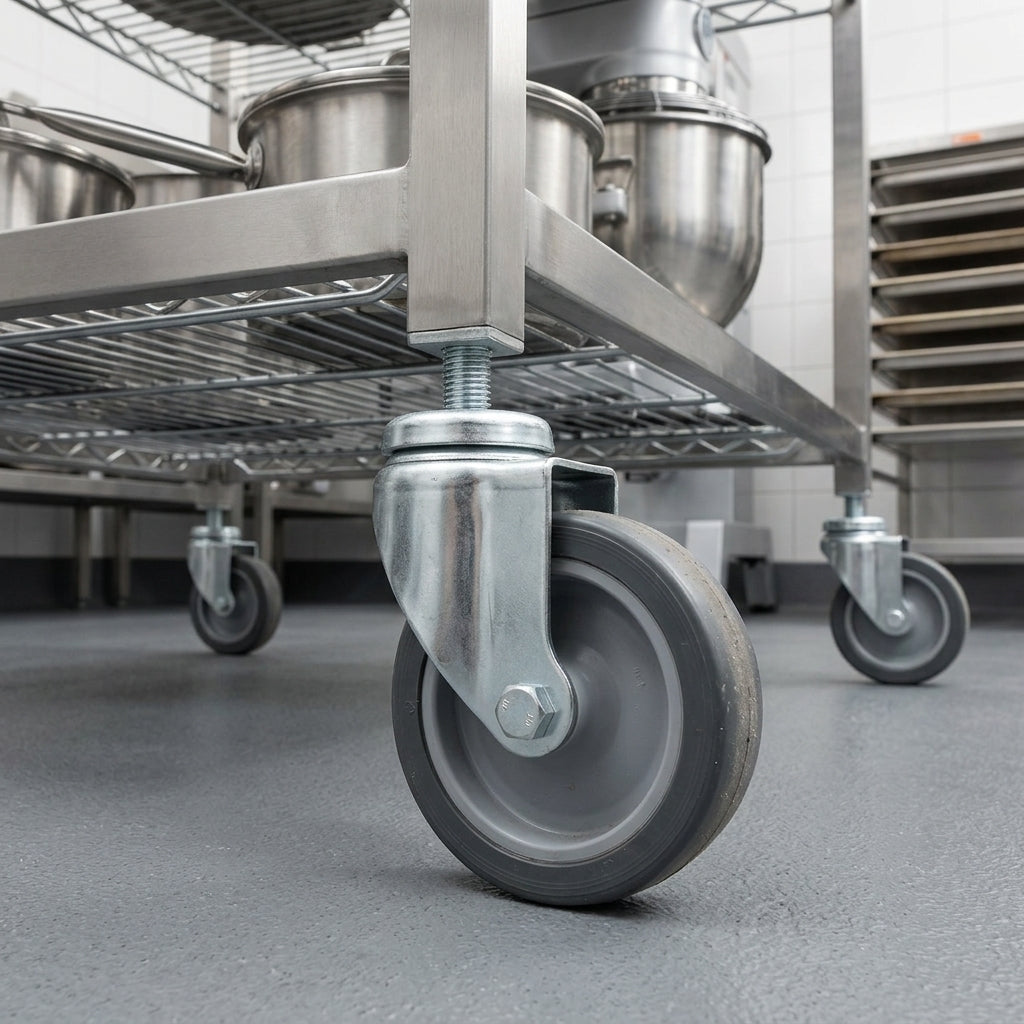

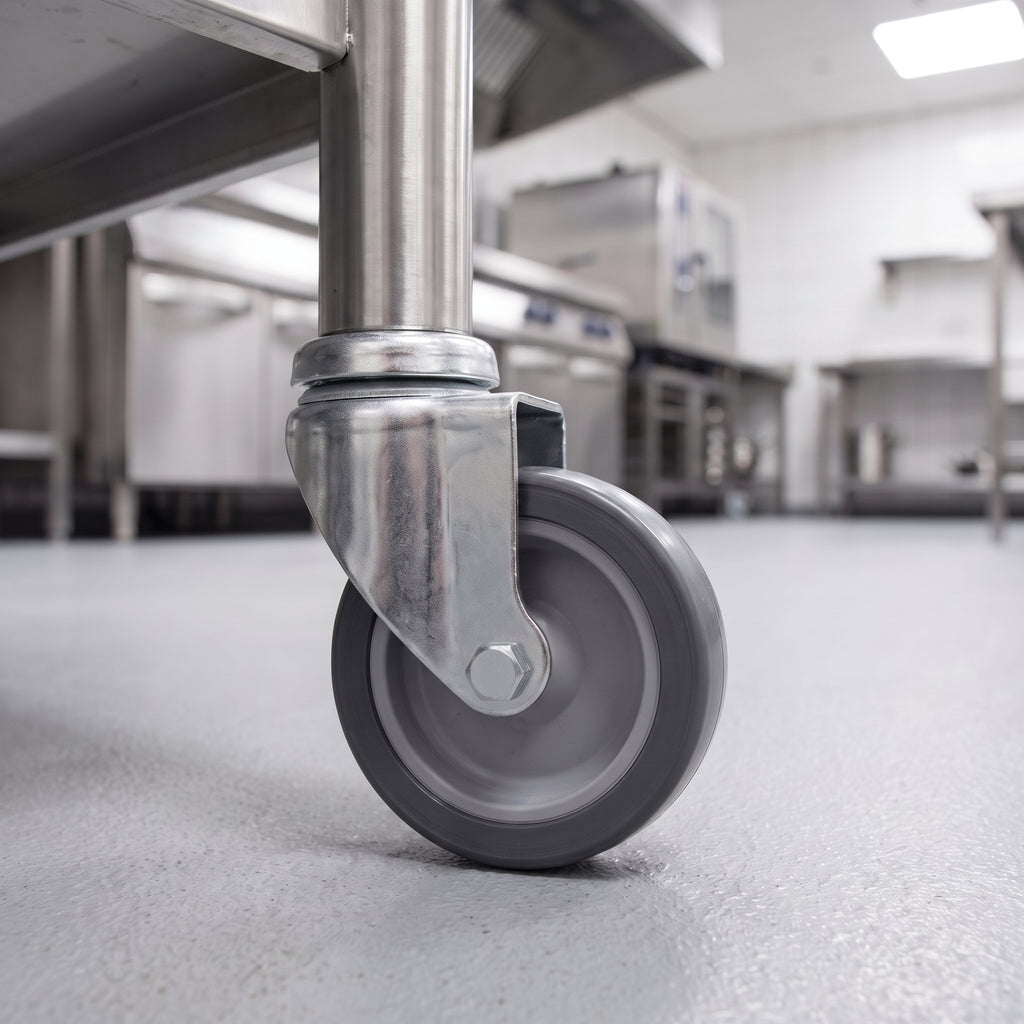

This 100mm swivel castor fits through a single 10mm bolt hole and carries up to 80kg per castor, or 240kg across a set of four. Its larger grey rubber wheel rolls quietly and easily over floor joints, so shop display units, carts, trolleys and workshop equipment move smoothly and turn freely.
A popular choice for retail shop fitting, light duty transport and workshop use, this grey rubber bolt hole castor combines a 122mm total height with an 83mm swivel radius and a 24mm tread. The rubber on polypropylene wheel grips well and runs quietly on indoor floors, and the plain bearing keeps the castor simple and low maintenance.
Why Choose This Castor
- ✓ Large 100mm wheel rolls easily over joints and small obstacles with less effort.
- ✓ 80kg load capacity per castor, 240kg for a set of four castors.
- ✓ Single 10mm bolt hole fixing for quick fitting into tube legs with a tube adaptor.
- ✓ Full swivel movement with an 83mm swivel radius for easy turning in confined areas.
- ✓ Grey rubber on polypropylene wheel with a 24mm tread for quiet running and good floor grip.
- ✓ Plain bearing for simple, low maintenance operation.
* Load capacity is per castor on a smooth, level floor. Choose a bolt and tube adaptor that match the 10mm bolt hole and the inside of your tube leg.
Where It Works Best
This bolt hole castor is made for everyday movement of light to medium loads indoors:
- ✓ Retail environments: shop fitting and display units, for easy repositioning of merchandise.

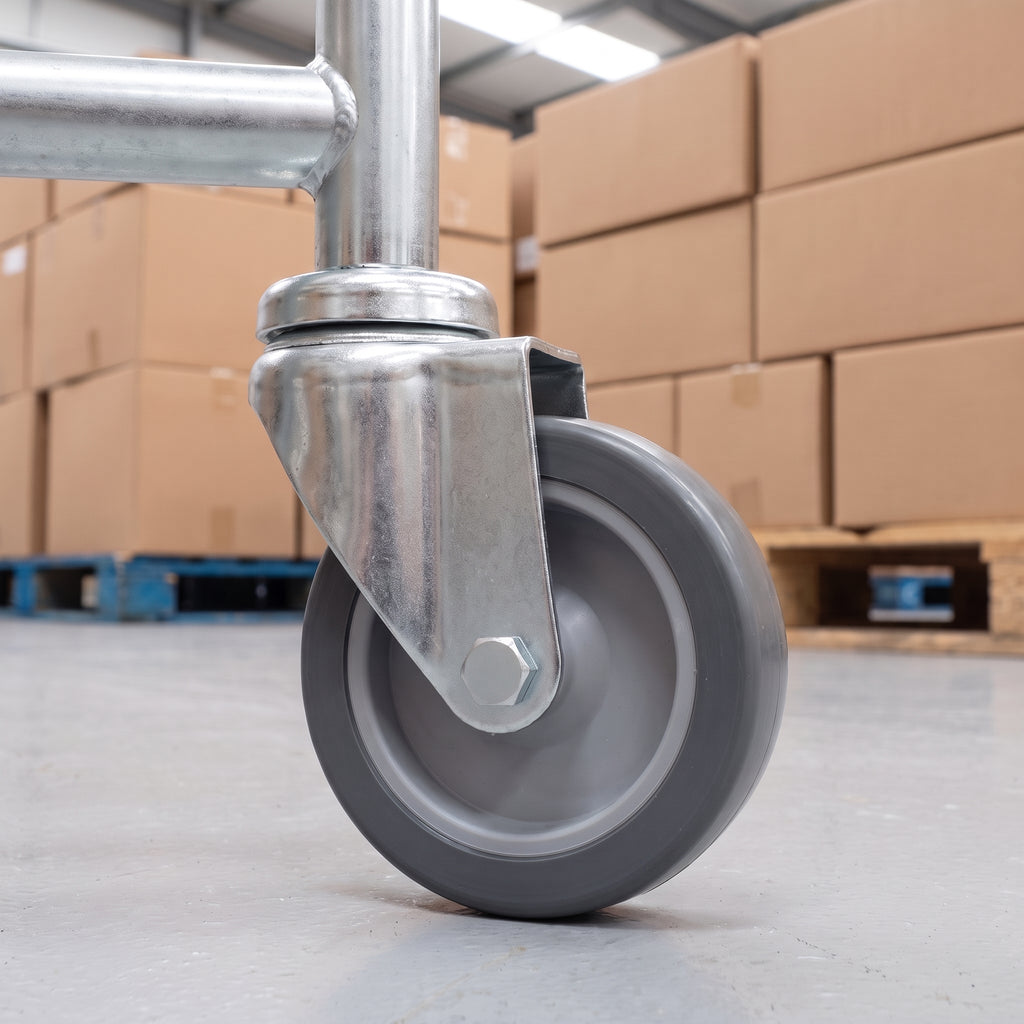

- ✓ Light duty transport: carts and trolleys that need mobility without heavy loads.

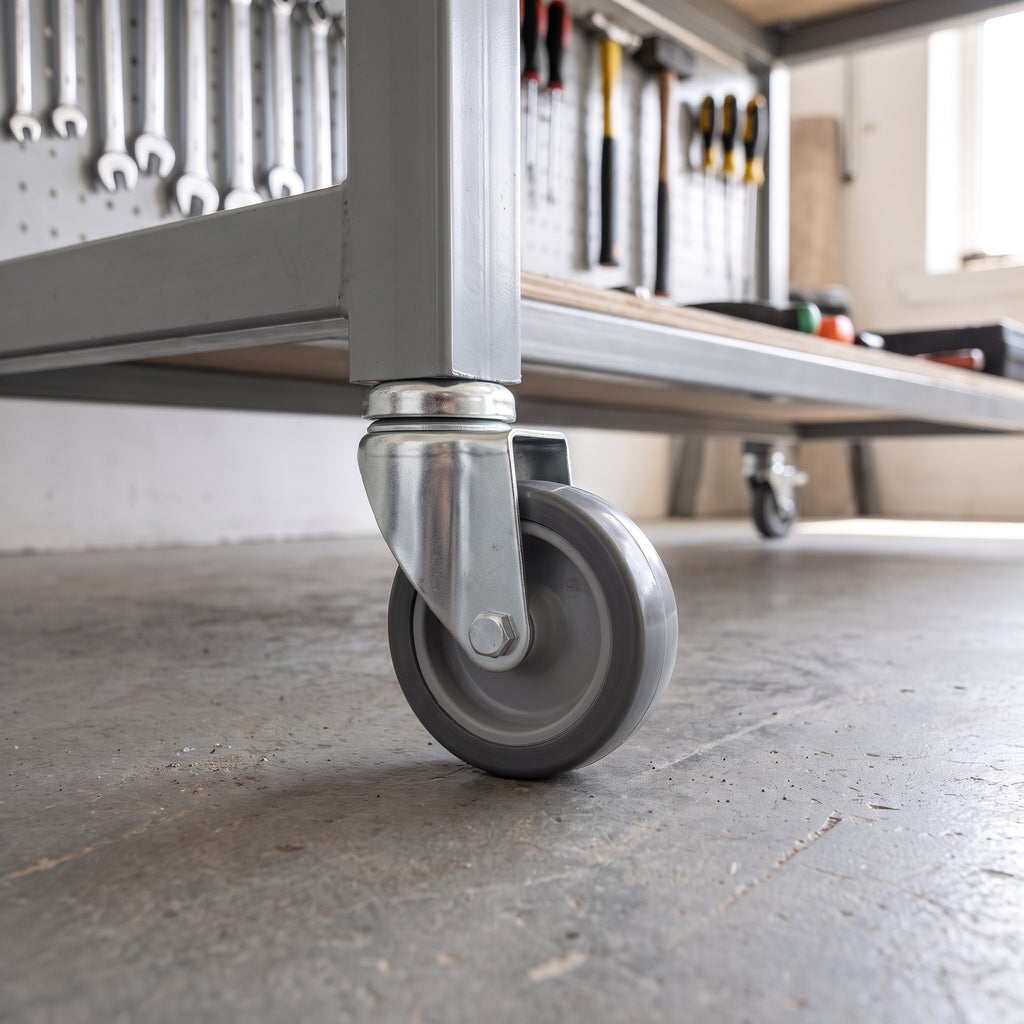

- ✓ Workshop use: moving equipment and tools around the workspace.
Tube Adaptors Also Available
Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 80kg on a smooth, level floor, giving 240kg for a set of four.
What size bolt does it take?
It has a single 10mm bolt hole, so it suits an M10 bolt or threaded stud.
Can I fit it into a tube leg?
Yes. Use a round or square tube adaptor that matches the inside size of your tube, then bolt the castor into the adaptor.
How tall is the castor?
The total castor height is 122mm and the swivel radius is 83mm.
Does this castor have a brake?
No, this is a swivel castor without a brake.
