- Load per castor85kg
- Wheel diameter100mm
- Overall height122mm
- WheelPolypropylene (one-piece plastic wheel)
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Castor
- Brake Type
- Foot-operated wheel brake
- Fixing Type
- Single bolt hole
- Bolt Hole Size
- 10mm (for M10 bolt)
- Top Plate
- None (bolt hole fitting)
- Wheel Diameter
- 100mm
- Tread Width
- 22mm
- Wheel Material
- Polypropylene (one-piece plastic wheel)
- Wheel Colour
- Black
- Housing
- Zinc-plated pressed steel
- Bearing Type
- Plain
- Load Capacity (per castor)
- 85kg
- Max Load (set of 4 castors)
- 255kg*
- Total Castor Height
- 122mm
- Swivel Radius
- 97mm
Will it fit?
- Bolt hole10mm (for M10 bolt)
- Overall height122mm
- Swivel radius97mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Light Duty Braked Castors

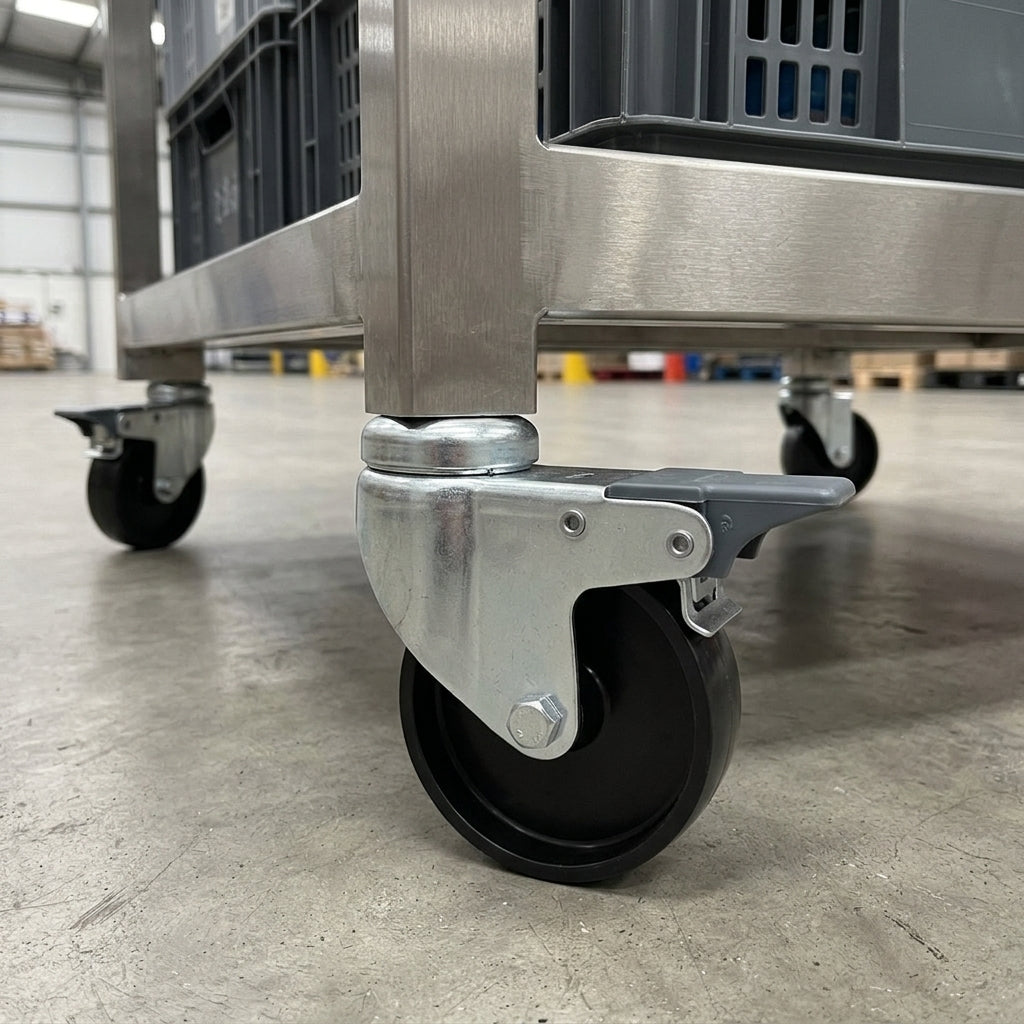

This 100mm braked swivel castor pairs a tough black polypropylene wheel with a foot-operated brake. It fixes through a single 10mm (M10) bolt hole, so there's no top plate to fit. It carries up to 85kg per castor, turns a full 360 degrees for easy steering, and locks firmly in place when you press the pedal. That makes it ideal for shop display units, trolleys, mobile workbenches, office furniture and home projects that need to stay put once positioned.
If you're looking for a light duty braked castor, a locking plastic wheel castor or a bolt hole castor with brake, this model gives you smooth rolling and a secure stop in one compact fitting. Fit it with an M10 bolt, or use a tube adaptor on round and square tube legs.
Why Choose This Castor
- ✓ Foot-operated brake: press to lock the wheel, lift to release
- ✓ 360-degree swivel for easy turning in tight spaces
- ✓ Single bolt hole fixing, 10mm (M10), with no top plate needed
- ✓ Black polypropylene wheel that is lightweight, hard-wearing and easy to clean
- ✓ 85kg load capacity per castor, 255kg for a set of four*
- ✓ Zinc-plated steel housing with a plain bearing that needs very little maintenance
* The set-of-four figure allows for only three castors being in full contact with the floor at any time (3 x 85kg), which is the standard way to rate castor sets.
Where It Works Best

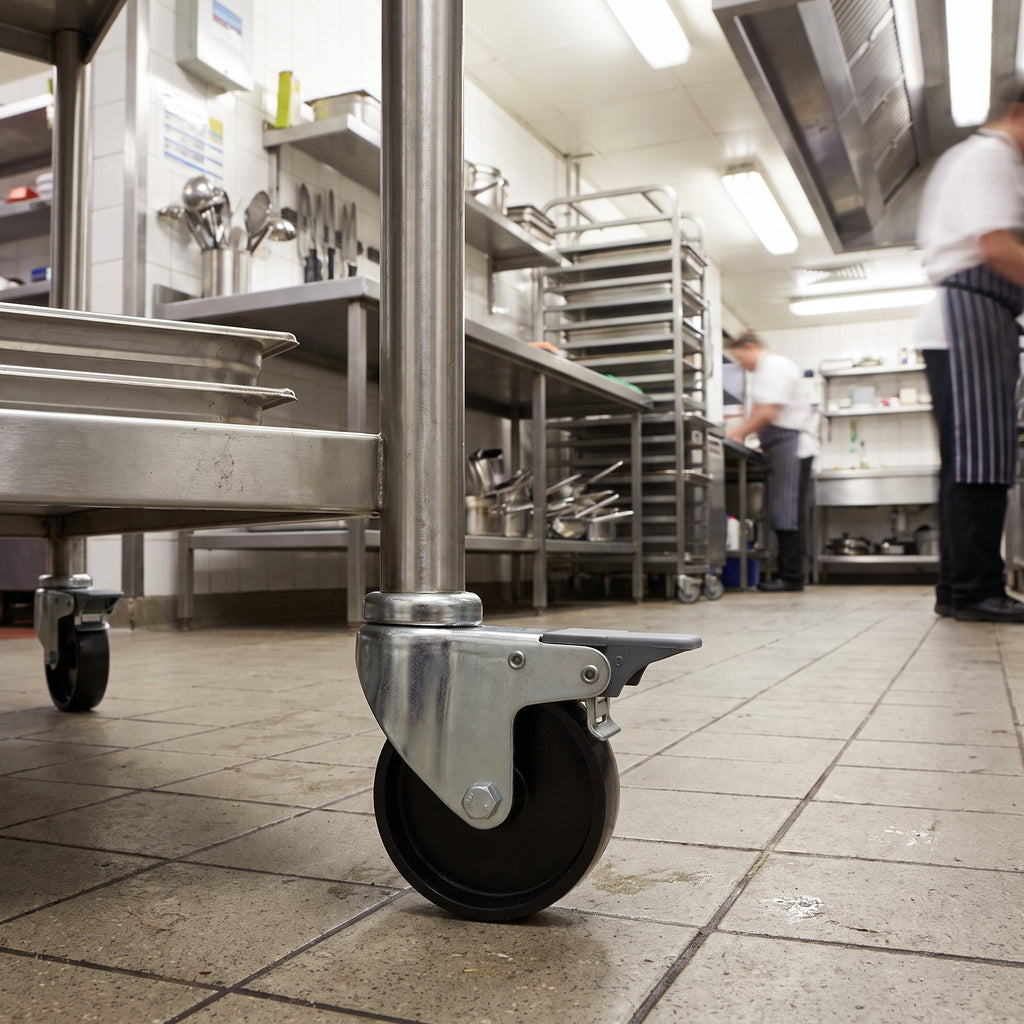

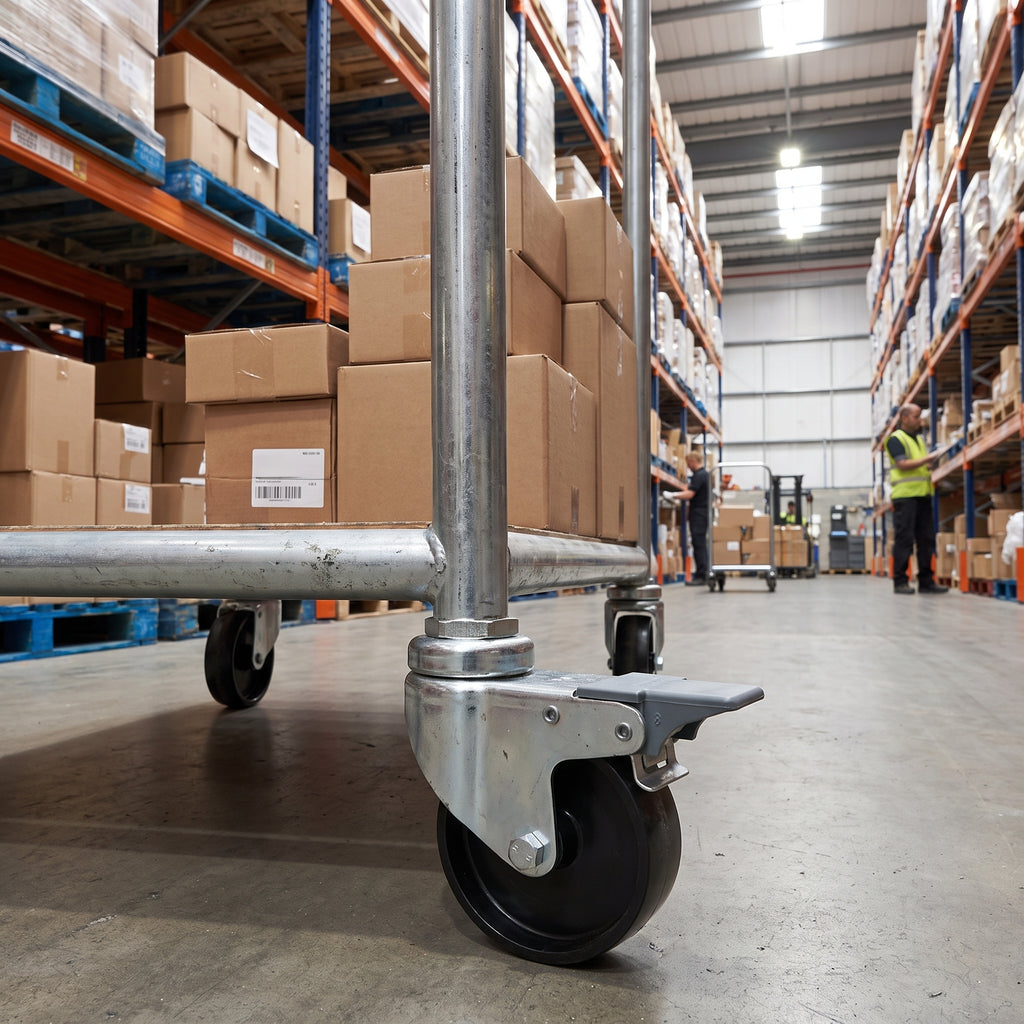

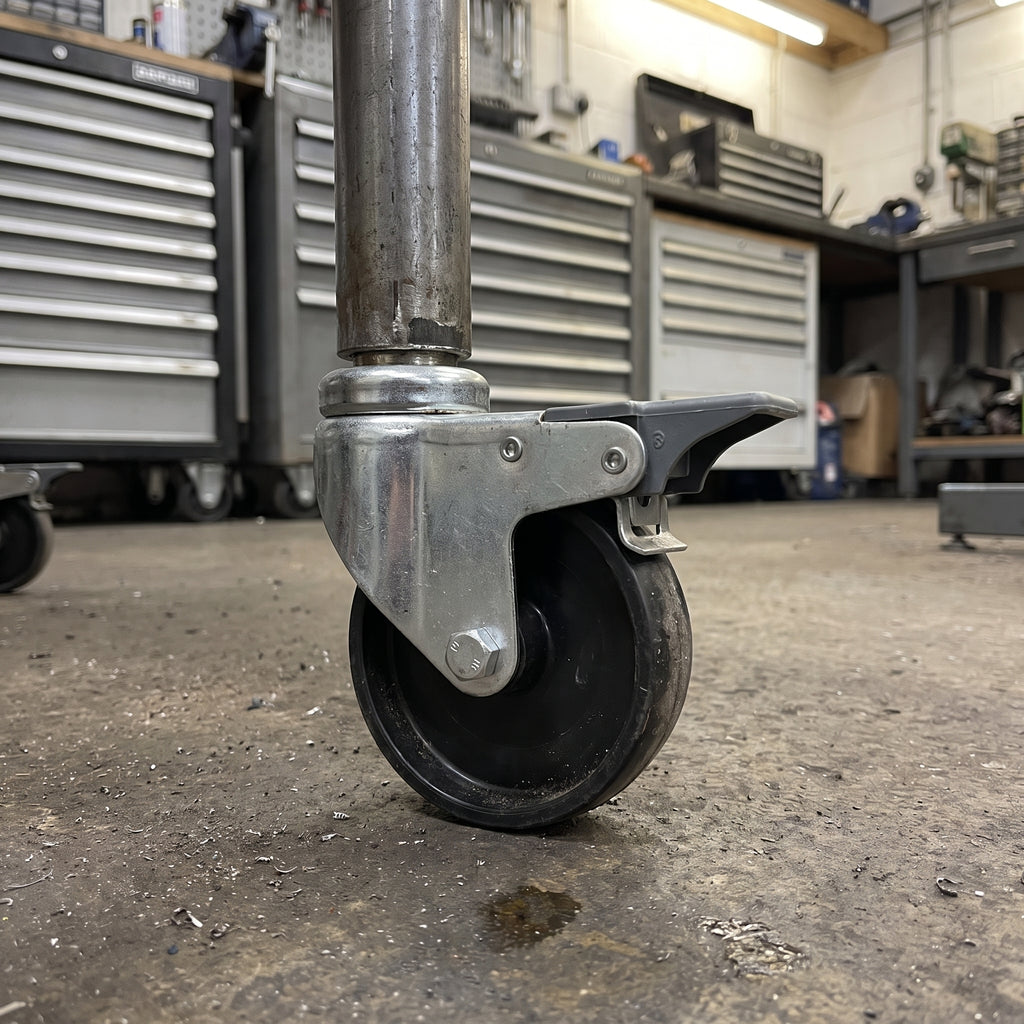

Shop display stands and exhibition racks, serving, luggage and medical trolleys, tool and storage cabinets, drawer units, mobile workbenches, office furniture, and DIY or home furniture projects. It suits smooth, level indoor floors such as concrete, vinyl, tiles and sealed wood.
Tube Adaptors Also Available
Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.
✓ Shop Round Tube Adaptors
✓ Shop Square Tube Adaptors
Frequently Asked Questions
How does the brake work?
Press the grey pedal down with your foot to lock the wheel, and lift it to release. It keeps equipment firmly in place once positioned.
How much weight can this castor carry?
Each castor is rated at 85kg. A set of four is rated at 255kg.
How do I fit a bolt hole castor?
Pass an M10 bolt through the 10mm centre hole and secure it with a nut. On tube legs, use a suitable tube adaptor for a neat, secure fit.
Should I use braked castors on all four corners?
Most setups use two braked and two non-braked swivel castors. That's enough to hold the load steady while keeping costs down. A matching non-braked version is also available.
What is the wheel made of?
Black polypropylene: a lightweight, hard-wearing plastic that is easy to wipe clean.
Which floors is it suitable for?
Smooth, level indoor floors. On rough or uneven surfaces, hard plastic wheels can be noisy, so a rubber tyred wheel is a better choice there.
