- Load rating60 kg
- Wheel diameter50 mm
- WheelRubber Tread on Polypropylene Core
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Wheel Diameter
- 50 mm
- Tread Width
- 22 mm
- Hub Length
- 27.5 mm
- Hub Bore (Axle Hole Diameter)
- 8 mm
- Load Capacity (per wheel)
- 60 kg
- Bearing Type
- Plain Bore (Unground)
- Wheel Material
- Rubber Tread on Polypropylene Core
- Wheel Colour
- Grey
- Duty Rating
- Light Duty
- Recommended Floor Types
- Smooth Hard Floors, Tiles, Concrete, Laminate
- Application Type
- Indoor Light-Duty Use
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
50mm Wheel Grey Rubber — 60kg Load Capacity
Light-Duty Castor Wheel | Rubber on Polypropylene | Plain Bore

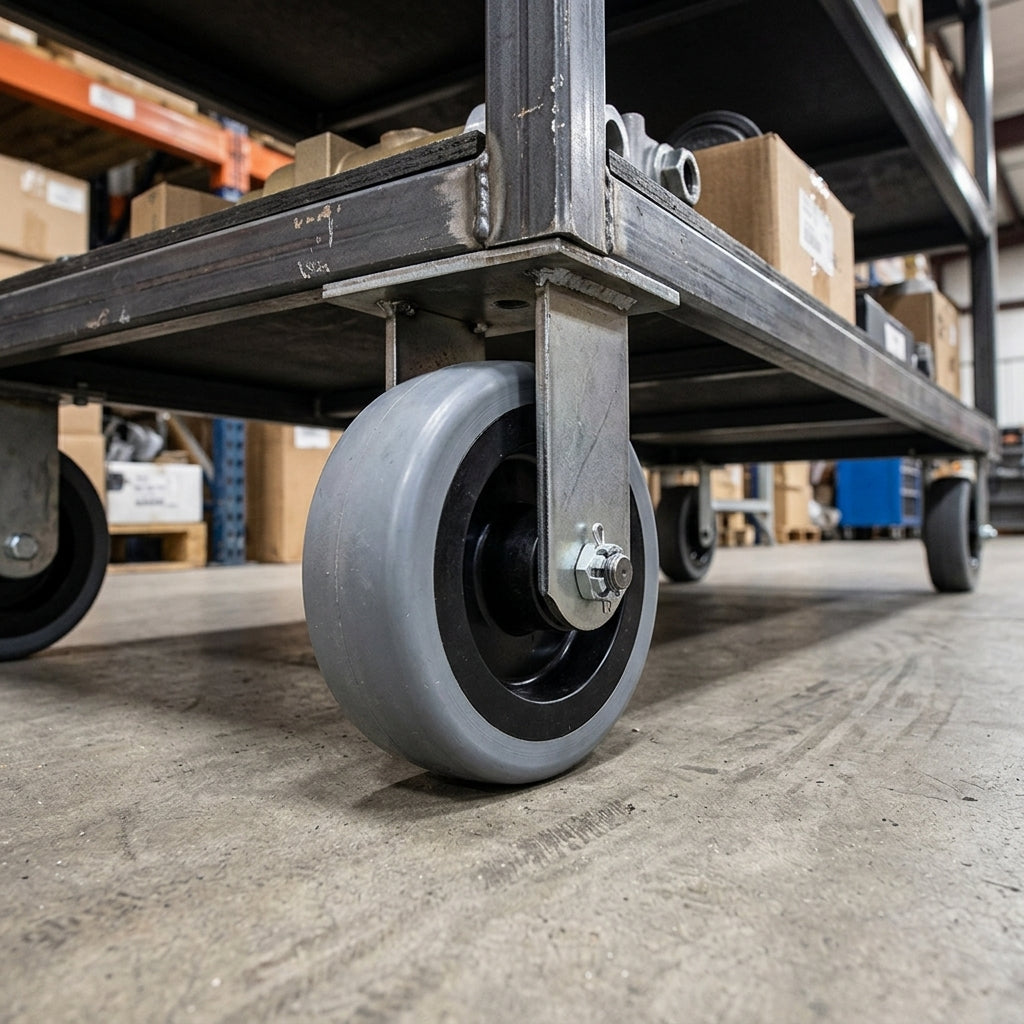

This 50mm grey rubber castor wheel is a compact, light-duty wheel designed for use on trolleys, dollies, shop-fitting rigs, display units, and general workshop equipment. Constructed with a rubber tread over a polypropylene core and fitted with a plain bore axle hole, it delivers smooth, quiet rolling on hard indoor surfaces while keeping floors free from marks and scuffs. With a rated load capacity of 60 kg per wheel, it is well suited to a broad range of light commercial and domestic mobility applications where reliability and floor protection are priorities.
Typical Applications
Key Performance Features
✓ Rubber tread absorbs vibration and reduces rolling noise on hard surfaces
✓ Polypropylene core provides structural rigidity at minimal weight
✓ 8 mm plain bore accommodates standard axle bolts and threaded stems
✓ Grey rubber compound is non-marking, protecting delicate floor finishes
✓ Compact 50 mm diameter suits low-clearance applications
✓ Rated to 60 kg per wheel for confident light-duty performance
Frequently Asked Questions
What is the load capacity of this rubber castor wheel?
Each wheel is rated to carry up to 60 kg. For multi-wheel assemblies, the total load should be calculated across all wheels, ensuring no single wheel exceeds its rated capacity under dynamic or static conditions.
What does “plain bore” mean and what axle size does this wheel accept?
Plain bore means the centre hole is unlined and unground — there is no roller bearing or bush fitted. This wheel accepts an 8 mm axle or bolt. It is suited to low-speed applications where a precision bearing is not required.
Will this rubber wheel leave marks on wood, tile, or vinyl flooring?
The grey rubber compound used on this wheel is non-marking, making it safe for use on wood, laminate, tile, and vinyl floors. It is designed specifically to protect finished floor surfaces in retail, domestic, and light commercial environments.
What are the key dimensions I need to know before fitting this wheel?
The wheel has an overall diameter of 50 mm, a tread width of 22 mm, and a hub length of 27.5 mm. The bore (axle hole) measures 8 mm in diameter. Always verify these dimensions against your existing castor rig or frame before ordering.
Is this wheel suitable for outdoor surfaces or wet conditions?
This wheel is primarily intended for indoor, smooth-surface use. While the rubber material offers some moisture resistance, it is not rated for prolonged outdoor exposure, gravel, or uneven terrain. For outdoor or rough-surface applications, a harder compound wheel or a larger diameter may be more appropriate.
Can this wheel be used as a direct replacement for an existing castor wheel?
Yes, provided the existing rig accepts a wheel with a 50 mm diameter, 8 mm bore, and 27.5 mm hub length. Measure your current wheel and compare all three dimensions carefully. If your rig has a different bore size or hub clearance, an alternative specification may be required.
Durable Wheels UK
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
This product does not have free shipping.
50mm Grey Rubber Castor Wheel • 60kg Load • Plain Bore 8mm • Light Duty
