- Load per castor6200kg per castor
- Wheel diameter400mm
- Overall height564mm
- WheelPolyurethane on cast iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Twin Wheel Fixed Gantry Castor, Top Plate
- Housing
- Fabricated steel
- Wheel Diameter
- 400mm
- Wheel Material
- Polyurethane on cast iron
- Wheel Colour
- Orange
- Tread Width
- 100mm
- Bearing Type
- Ball bearing
- Load Capacity
- 6200kg per castor
- Fixing
- 4 bolt hole top plate
- Plate Size
- 340 x 255mm
- Plate Hole Centres
- 210 x 160mm
- Plate Hole Diameter
- 20mm
- Total Castor Height
- 564mm
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs
Gantry Castors (Twin Wheel / Fabricated)

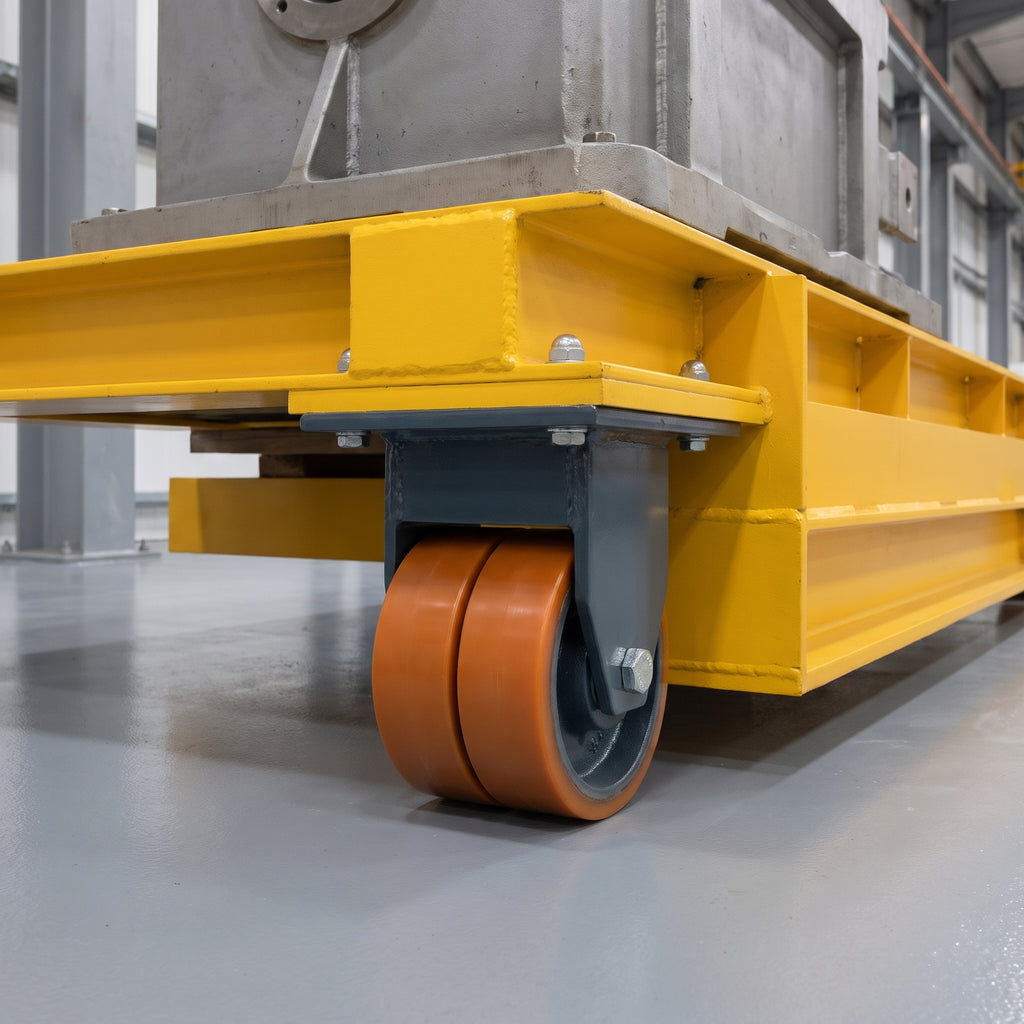

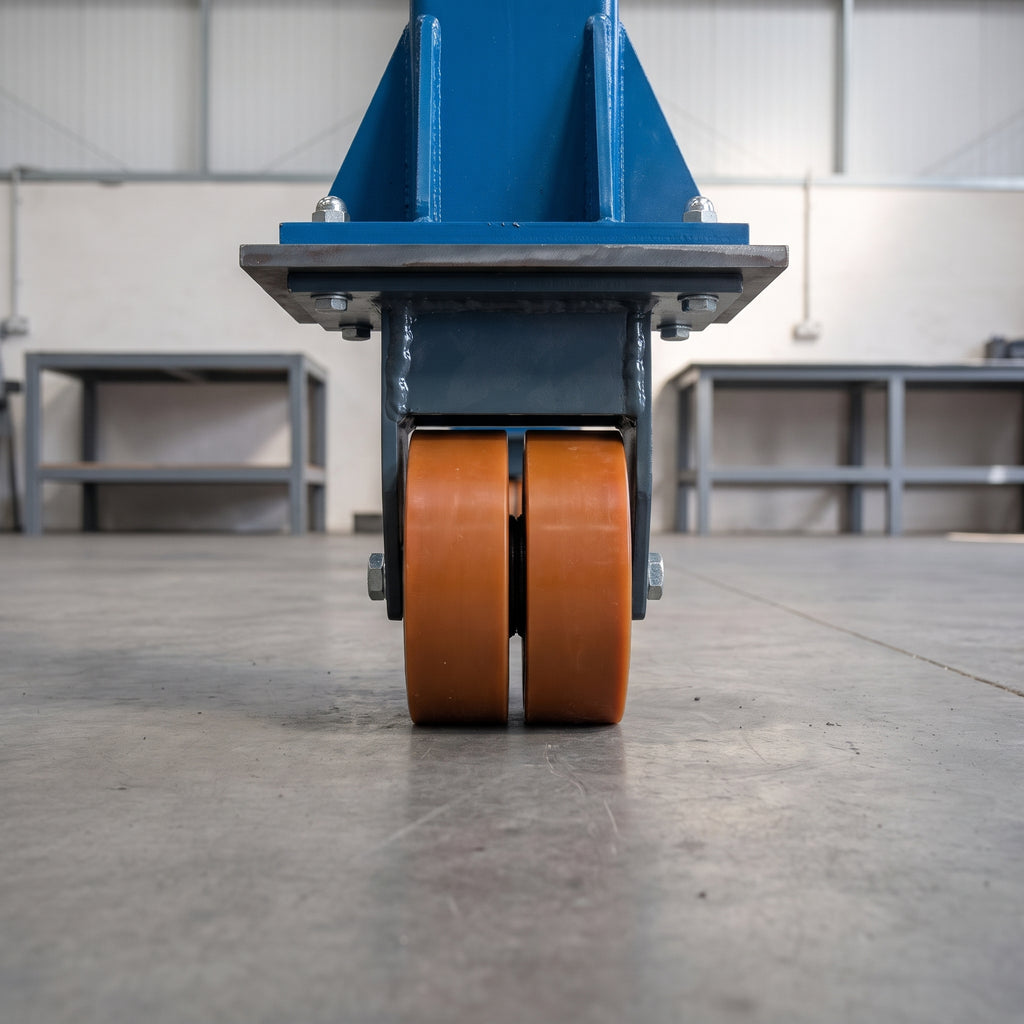

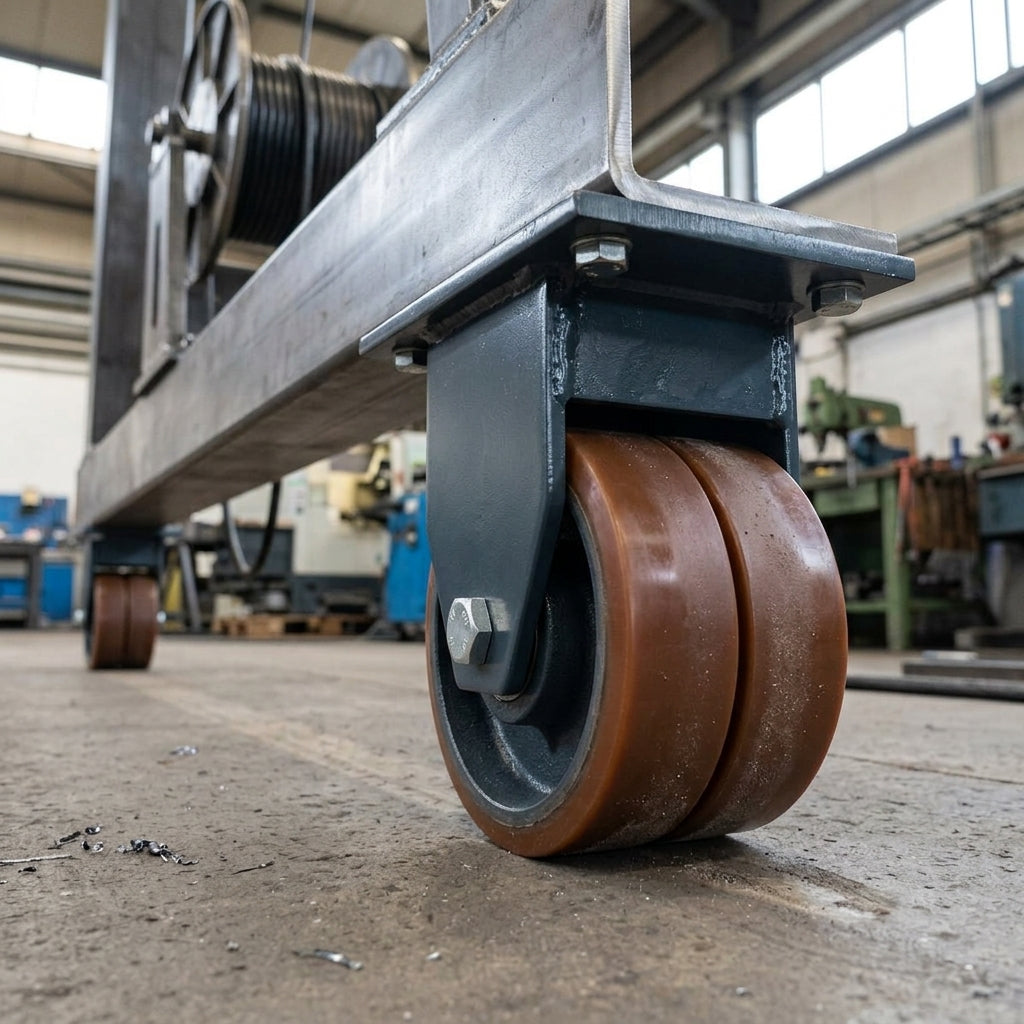

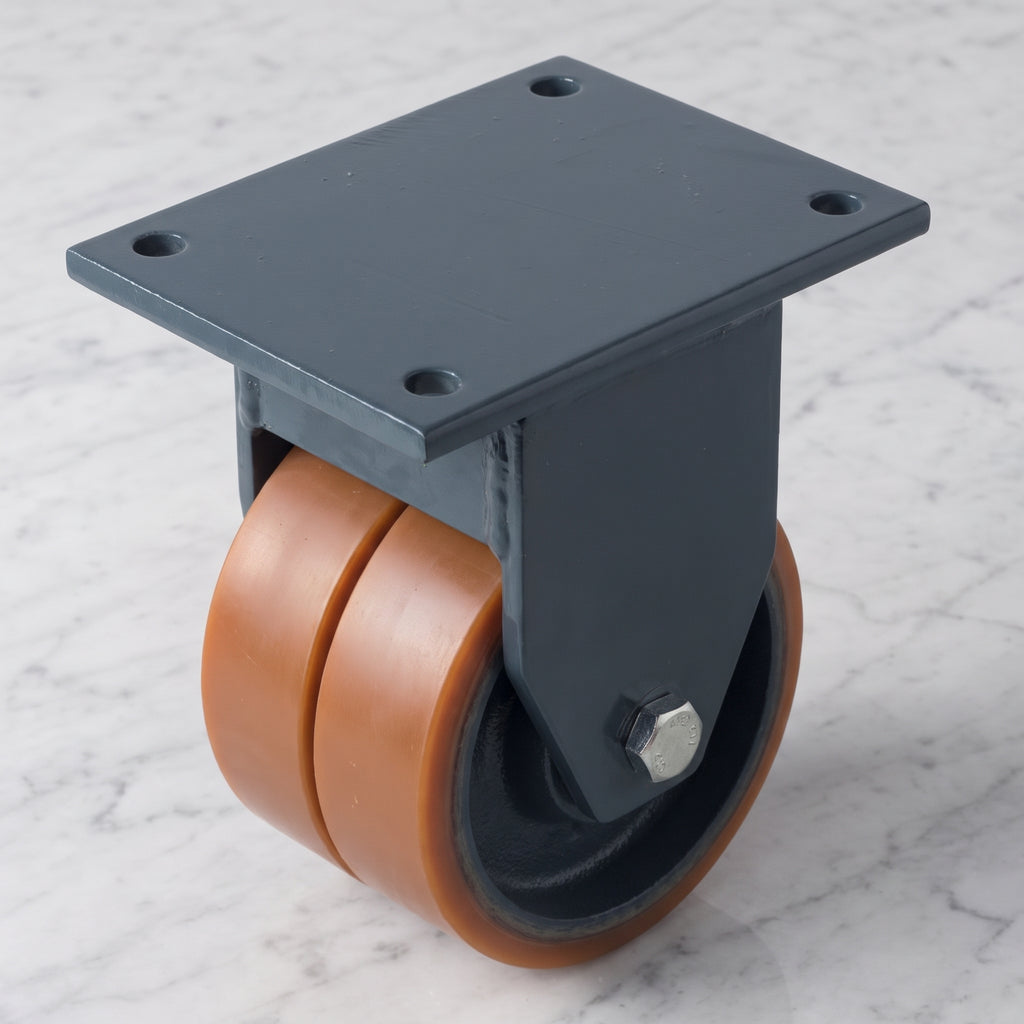

Built for the heaviest jobs on the shop floor. This 400mm fixed gantry castor runs on twin orange polyurethane wheels with cast iron centres in a heavy fabricated steel bracket, carrying up to 6200kg per castor. Its fixed design keeps a steady, straight direction of travel, ideal for gantry systems, industrial machinery and heavy warehouse trolleys, and the bright orange wheels aid visibility and safety.
The hard polyurethane treads suit smooth, hard floors and give a total tread width of 100mm, while ball bearings reduce friction for easy rolling. The castor fixes with a 340 x 255mm top plate with 20mm holes on 210 x 160mm centres and stands 564mm tall. Pair it with matching swivel castors for steering. Check the plate size and hole centres against your equipment before ordering.
Why Choose This Castor
- ✓ 6200kg load capacity per castor for heavy-duty equipment.
- ✓ Twin polyurethane on cast iron wheels with a 100mm total tread to spread the load.
- ✓ Fixed fabricated steel bracket for straight, stable tracking under heavy loads.
- ✓ Ball bearings for smooth rotation with less effort.
- ✓ 340 x 255mm top plate for a secure fixing to flat surfaces.
* Load capacity is per castor on a level surface. Check that the plate size and hole centres suit your equipment before fitting.
Where It Works Best
This 400mm twin wheel gantry castor suits:
- ✓ Gantry systems: stable, reliable movement for heavy loads.
- ✓ Industrial machinery: supporting and moving large equipment.
- ✓ Warehouse trolleys: moving goods within storage facilities.
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed castor, so it keeps a straight line of travel. Fit it with matching swivel castors when you need to steer.
How much weight can this castor carry?
Each castor is rated for 6200kg. Add up the castors fitted to your equipment to work out the total load.
Why twin wheels?
Two wheels side by side share the load, so the castor carries more weight and rolls more steadily than a single wheel of the same size.
How is the castor fitted?
It has a 340 x 255mm top plate with four 20mm holes on 210 x 160mm centres, bolted to the underside of your equipment.
What are the wheels made of?
Orange polyurethane treads bonded to cast iron centres, running on ball bearings. The hard tread suits smooth, hard floors.
How tall is the castor?
The castor is 564mm tall overall, from the floor to the top of the plate.
