- Load per castor3500kg per castor
- Wheel diameter300mm
- Overall height380mm
- WheelPolyurethane on cast iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Twin Wheel Swivel Gantry Castor, Top Plate
- Housing
- Fabricated steel
- Wheel Diameter
- 300mm
- Wheel Material
- Polyurethane on cast iron
- Wheel Colour
- Orange
- Tread Width
- 70mm
- Bearing Type
- Ball bearing
- Load Capacity
- 3500kg per castor
- Fixing
- 4 bolt hole top plate
- Plate Size
- 255 x 205mm
- Plate Hole Centres
- 210 x 160mm
- Plate Hole Diameter
- 16mm
- Total Castor Height
- 380mm
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

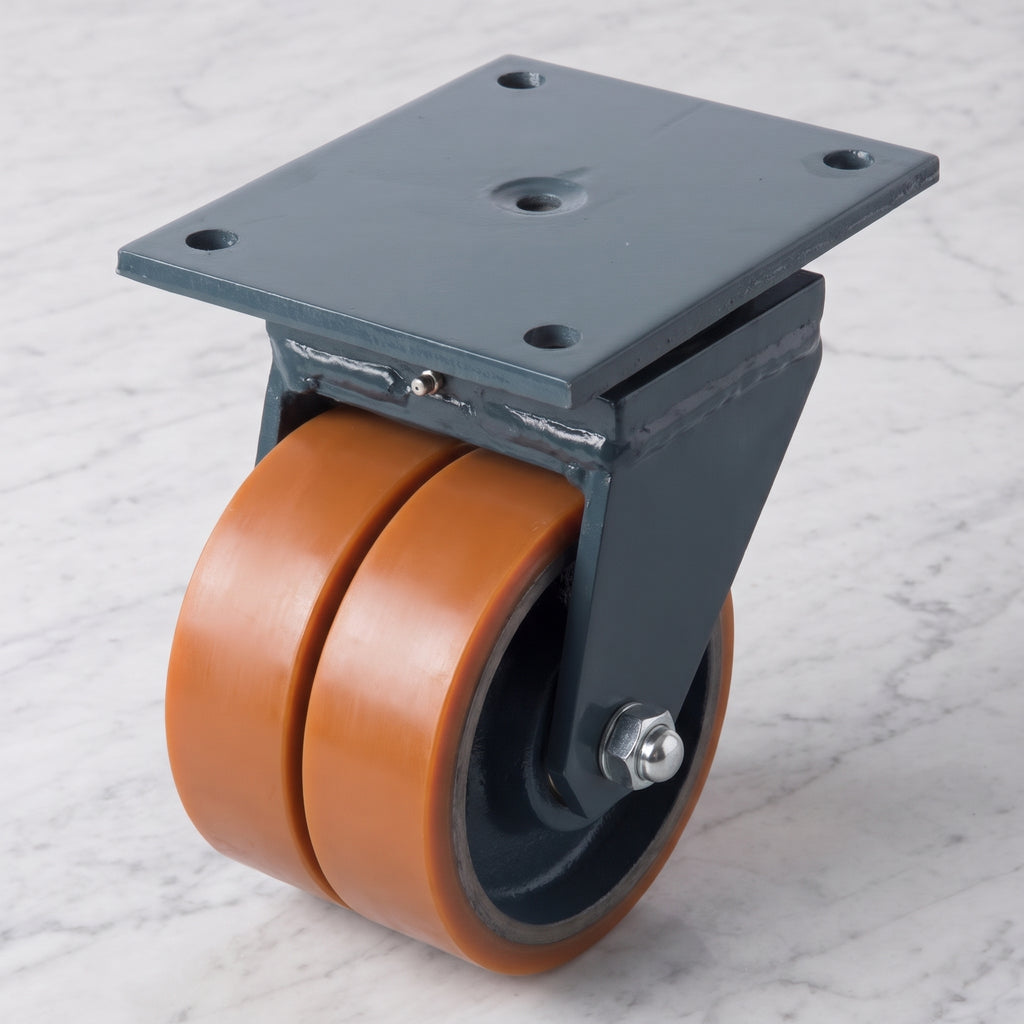

Gantry Castors (Twin Wheel / Fabricated)

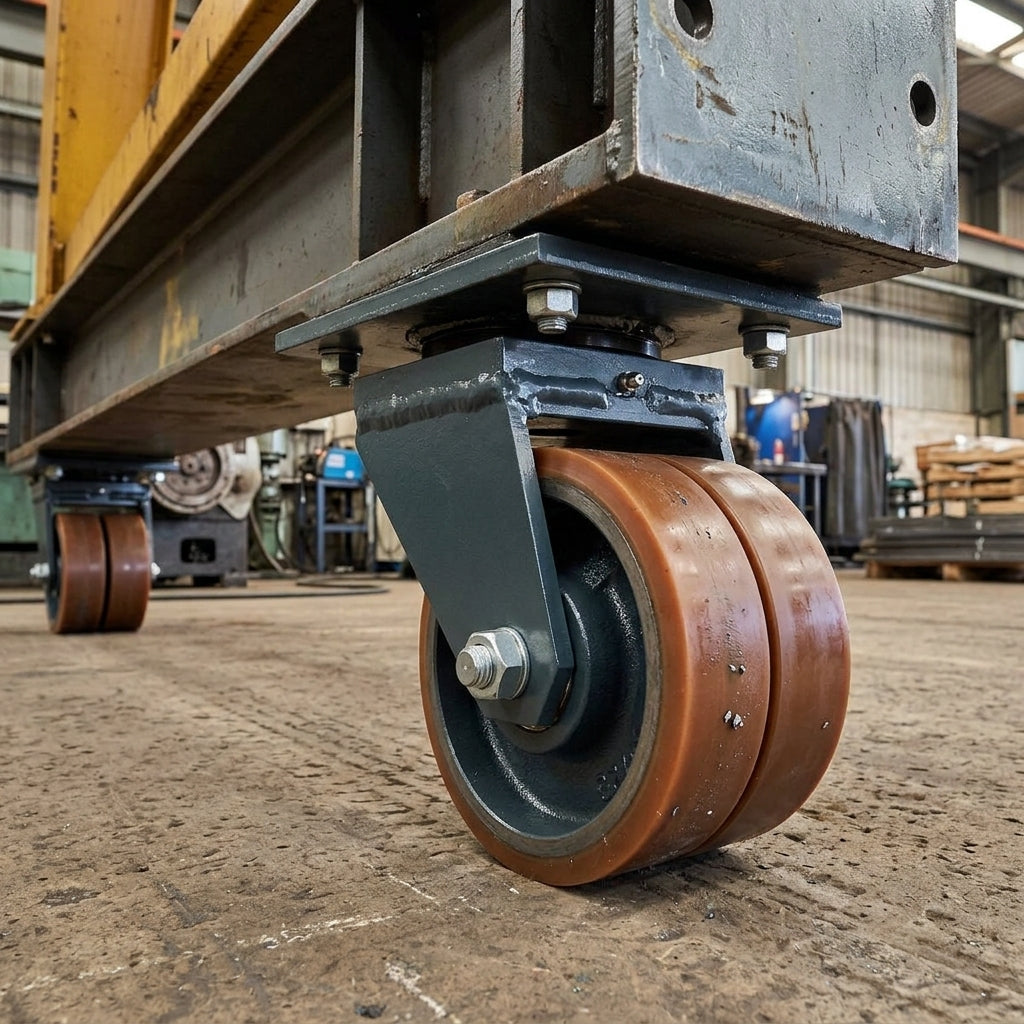

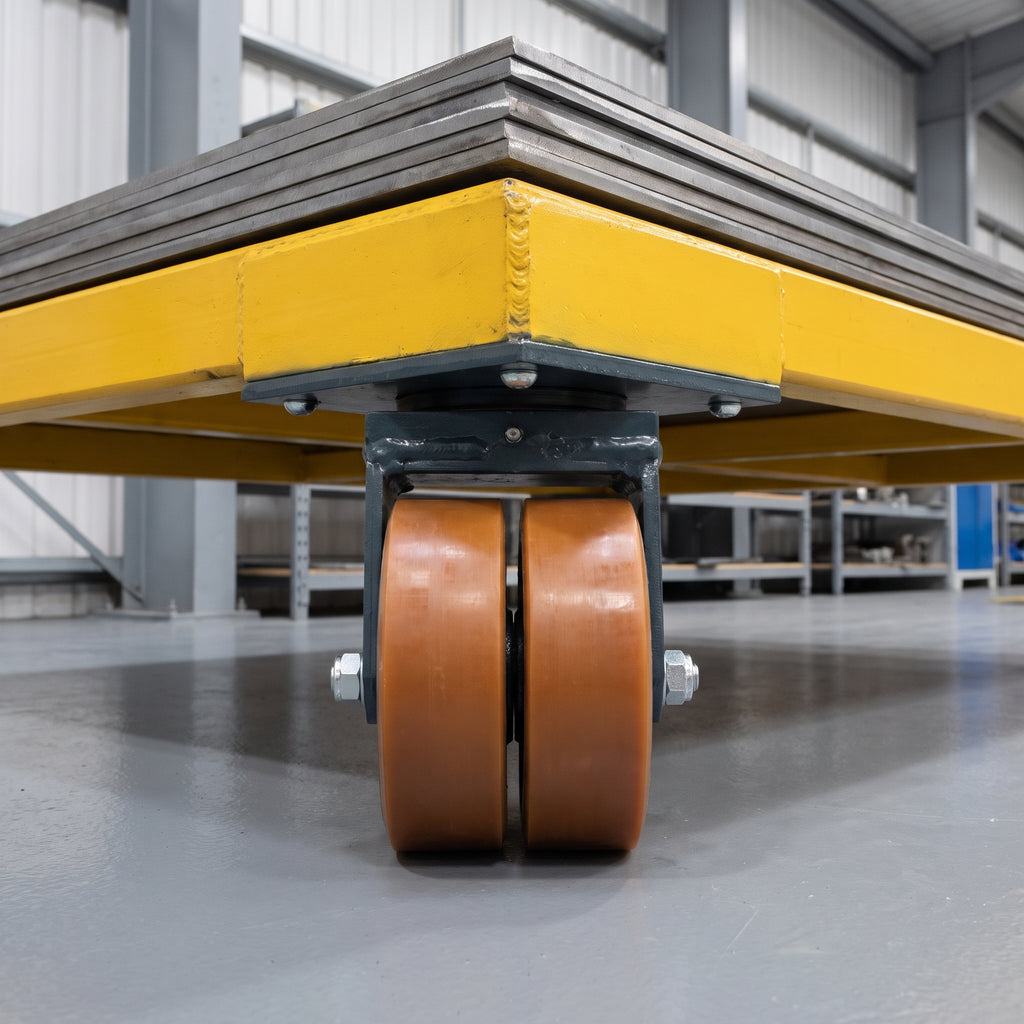

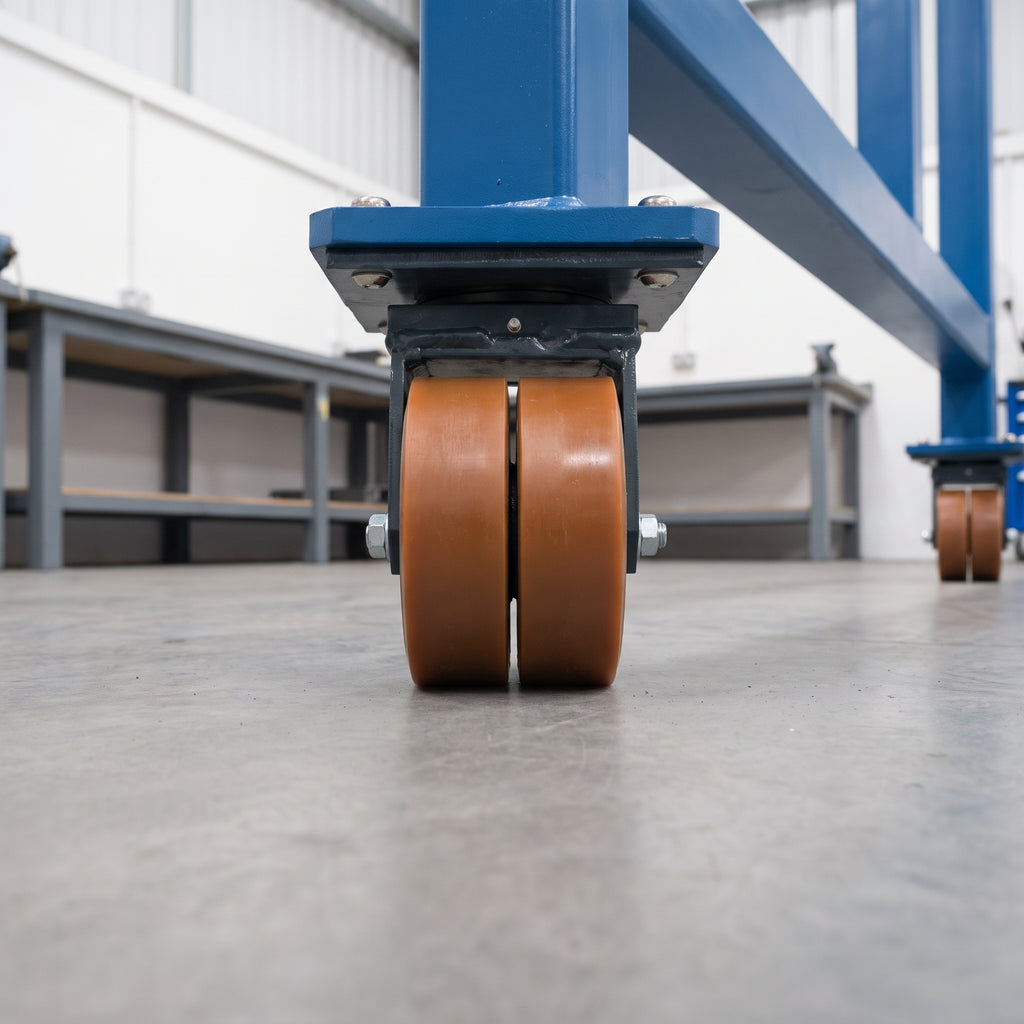

Built for the heaviest jobs on the shop floor. This 300mm swivel gantry castor runs on twin bright orange polyurethane wheels with cast iron centres in a heavy fabricated steel bracket, carrying up to 3500kg per castor. It is made for industrial trolleys, machinery dollies, gantry systems and heavy-duty carts that move very large loads.
The polyurethane treads give a firm, smooth ride on hard floors with a total tread width of 70mm, while ball bearings make it easier to swivel and change direction. The castor fixes with a 255 x 205mm top plate with 16mm holes on 210 x 160mm centres and stands 380mm tall. Check the plate size and hole centres against your equipment before ordering.
Why Choose This Castor
- ✓ 3500kg load capacity per castor for heavy-duty equipment.
- ✓ Twin polyurethane on cast iron wheels with a 70mm total tread to spread the load.
- ✓ Fabricated steel gantry bracket for strength under heavy loads.
- ✓ Ball bearings for smooth rotation with less effort.
- ✓ 255 x 205mm top plate for a secure fixing to flat surfaces.
* Load capacity is per castor on a level surface. Check that the plate size and hole centres suit your equipment before fitting.
Where It Works Best
This 300mm twin wheel gantry castor suits:
- ✓ Industrial trolleys: transporting heavy loads in warehouses and factories.
- ✓ Machinery dollies: easy manoeuvring of heavy equipment.
- ✓ Gantry systems: stable support and movement for overhead lifting equipment.
- ✓ Heavy-duty carts: smooth transport of bulky items.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 3500kg. Add up the castors fitted to your equipment to work out the total load.
Why twin wheels?
Two wheels side by side share the load, so the castor carries more weight and rolls more steadily than a single wheel of the same size.
How is the castor fitted?
It has a 255 x 205mm top plate with four 16mm holes on 210 x 160mm centres, bolted to the underside of your equipment.
What are the wheels made of?
Bright orange polyurethane treads bonded to cast iron centres, running on ball bearings. Polyurethane gives a firm, smooth tread on hard floors.
How tall is the castor?
The castor is 380mm tall overall, from the floor to the top of the plate.
