- Load per castor350kg per castor
- Wheel diameter260mm
- Overall height306mm
- WheelPuncture-proof tyre on steel centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor
- Wheel Diameter
- 260mm
- Wheel Material
- Puncture-proof tyre on steel centre
- Wheel Colour
- Black
- Tread Width
- 85mm
- Hardness of Tread
- 82 Shore A
- Bearing Type
- Roller bearing
- Temperature Range
- -20°C to +60°C
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 200 x 160mm
- Hole Centres
- 160 x 120mm
- Hole Diameter
- 14mm
- Swivel Radius
- 221mm
- Total Castor Height
- 306mm
- Load Capacity
- 350kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Cast iron / steel wheel · working temperature -20°C to +60°C
- Carries very heavy loads
- Tolerates heat and sharp debris
- Suits concrete, steel and foundry floors
- Noisy
- Will mark or damage finished floors
Details & FAQs

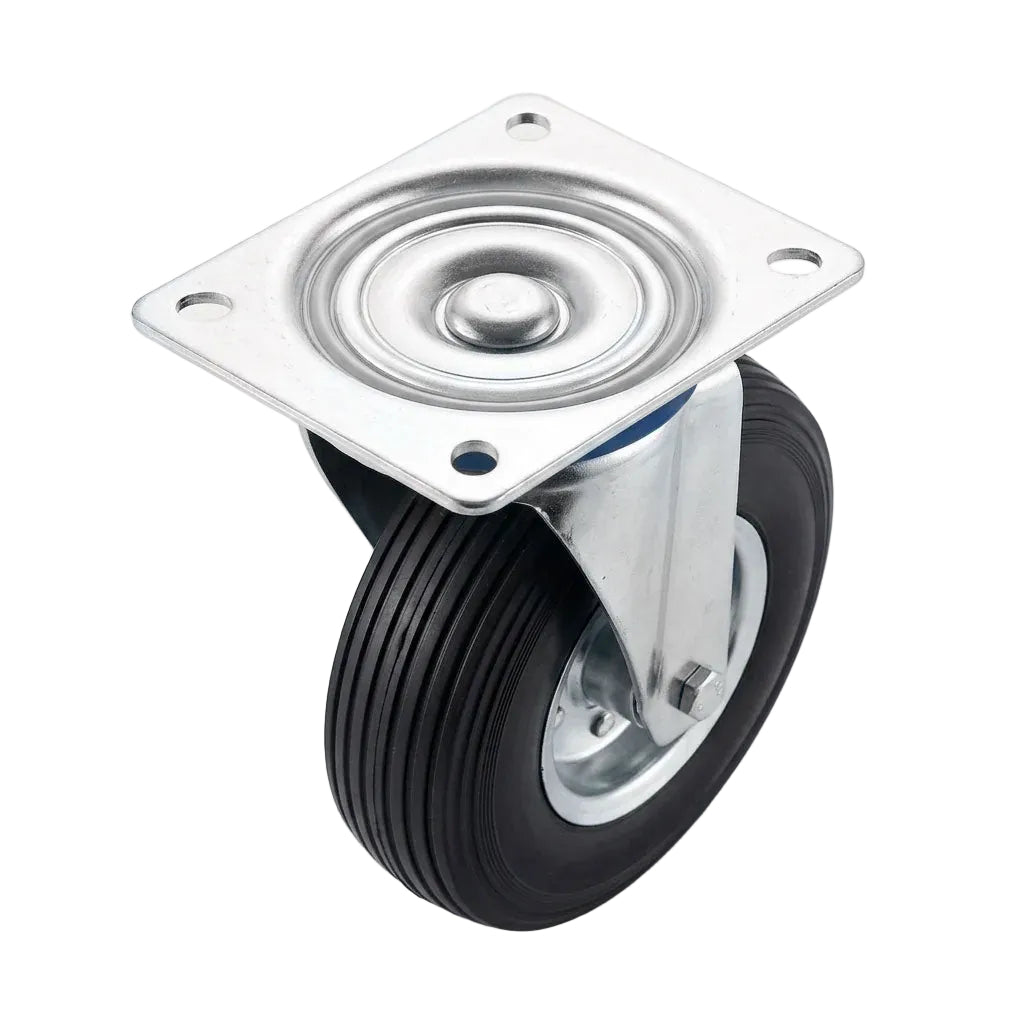

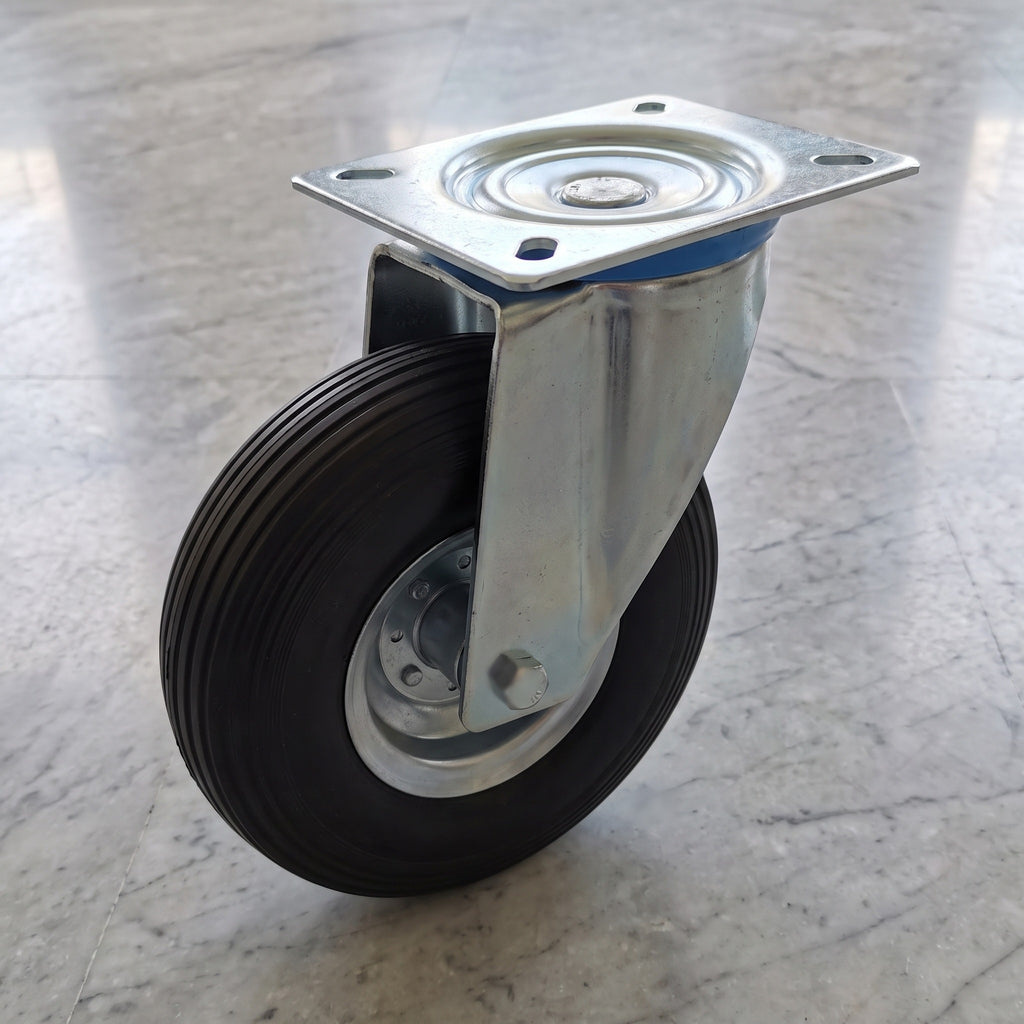

Heavy Duty Puncture-Proof Castors
This heavy duty 260mm swivel castor has a black puncture-proof tyre on a steel centre, built for demanding work with a dynamic load of up to 350kg per castor. The 82 Shore A tread balances grip and wear resistance, the roller bearing reduces friction for smooth rolling, and the swivel head makes frequent changes of direction easy. It suits warehouse trolleys, industrial carts and workshop machinery.
It fixes with a 200 x 160mm top plate, has a 221mm swivel radius and stands 306mm tall.
Why Choose This Castor
- ✓ Puncture-proof tyre that cannot go flat.
- ✓ Roller bearing for smooth rotation.
- ✓ Swivel head for easy turning in tight spaces.
- ✓ 350kg load capacity per castor.
- ✓ 260mm wheel with 85mm tread with 82 Shore A hardness for grip and durability.
- ✓ 200 x 160mm top plate with four 14mm holes.
* Load capacity is the dynamic rating per castor on a smooth, level floor. Check that the plate size, hole centres and swivel clearance suit your mounting area before fitting.
Where It Works Best
This heavy duty swivel castor suits:

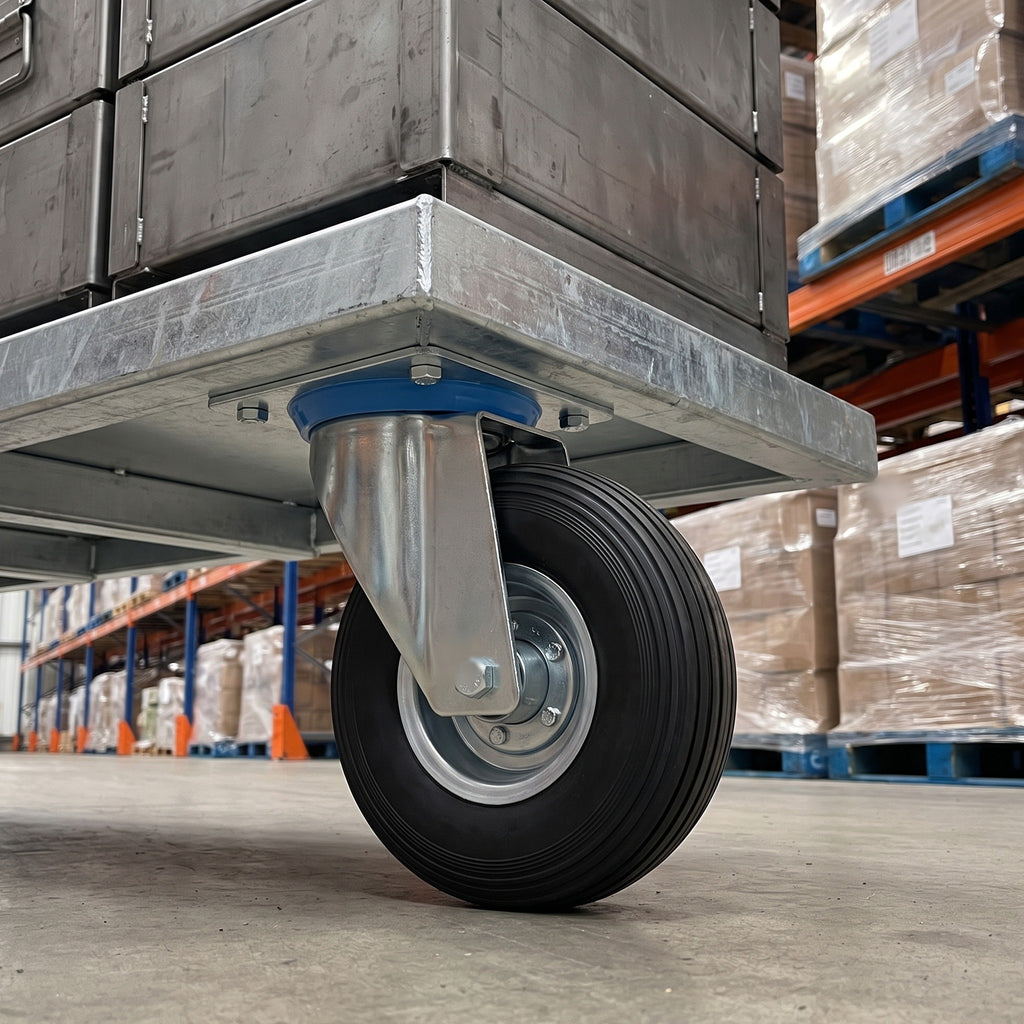

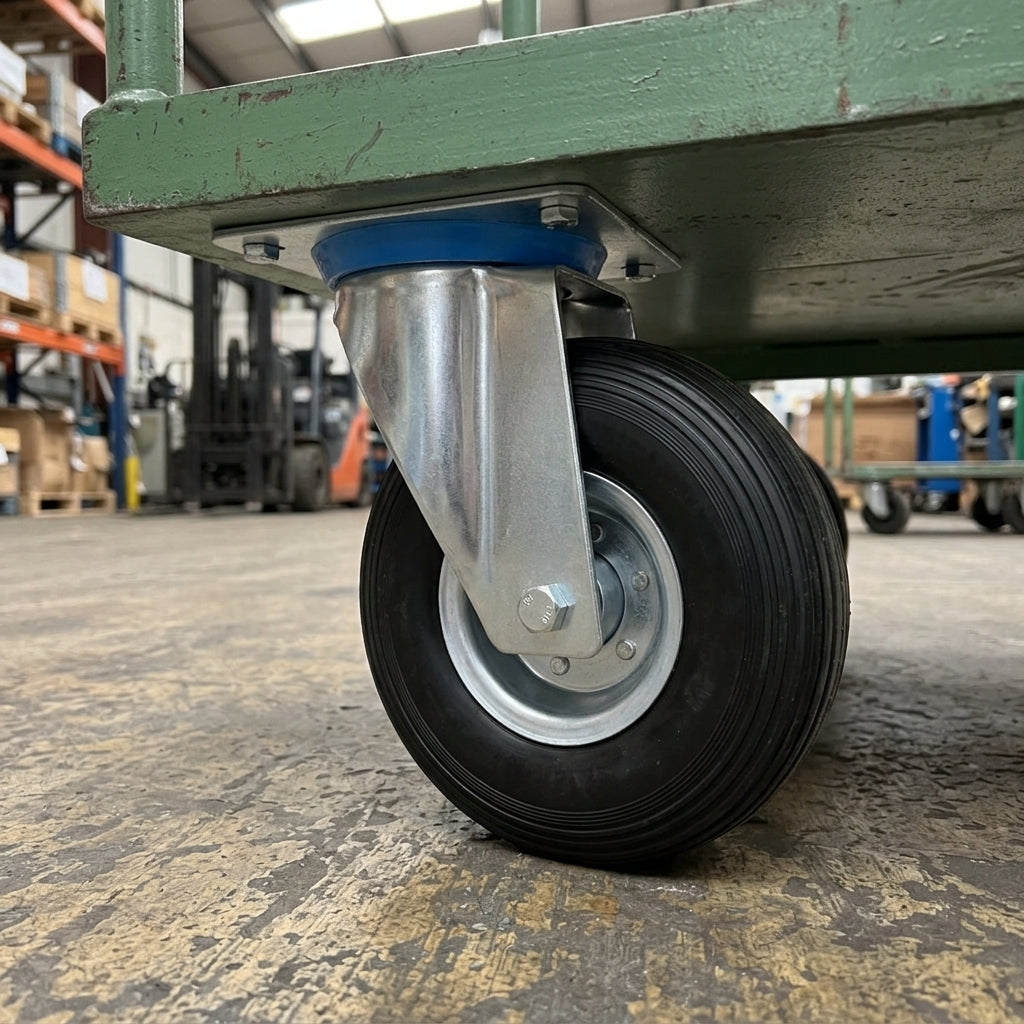

- ✓ Warehouse trolleys: smooth and reliable movement for heavy loads.
- ✓ Industrial carts: easy manoeuvrability in confined spaces.
- ✓ Material handling equipment: efficient transport of goods.

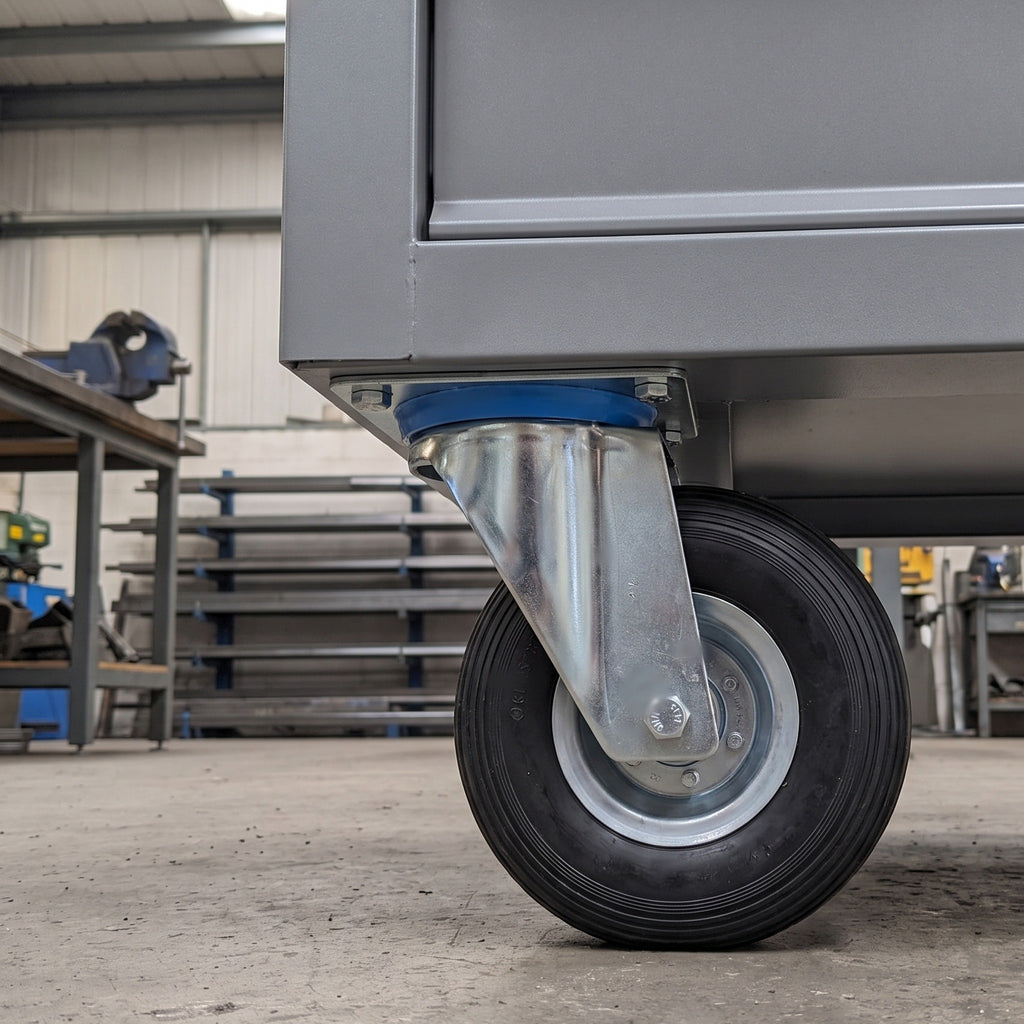

- ✓ Workshop machinery: support for heavy equipment.
Frequently Asked Questions
What is a puncture-proof tyre?
It is a tyre that cannot go flat, so it keeps working even where nails, screws or other sharp objects are on the floor. There is no air to check or top up.
Does this castor have a brake?
No. This is a plain swivel castor without a brake. For parking, pair it with the matching 260mm heavy duty braked puncture-proof castor.
How much weight can this castor carry?
Each castor is rated for 350kg.
How is the castor fitted?
It has a 200 x 160mm top plate with four 14mm holes on 160 x 120mm hole centres, bolted flat to the underside of your trolley, cart or equipment.
How much space does it need to swivel?
The swivel radius is 221mm and the total castor height is 306mm.
What temperatures can it work in?
It is suitable for use from -20°C up to +60°C.
