- Load per castor500kg per castor
- Wheel diameter200mm
- Overall height240mm
- WheelRubber on aluminium centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Fixed Top Plate Castor
- Brake
- None
- Wheel Diameter
- 200mm
- Wheel Material
- Rubber on aluminium centre
- Wheel Colour
- Black
- Tread Width
- 40mm
- Hardness of Tread
- A67
- Bearing Type
- Ball bearing
- Temperature Range
- -20°C to +85°C
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 140 x 110mm
- Hole Centres
- 105 x 80/75mm
- Hole Diameter
- 10mm
- Total Castor Height
- 240mm
- Load Capacity
- 500kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +85°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

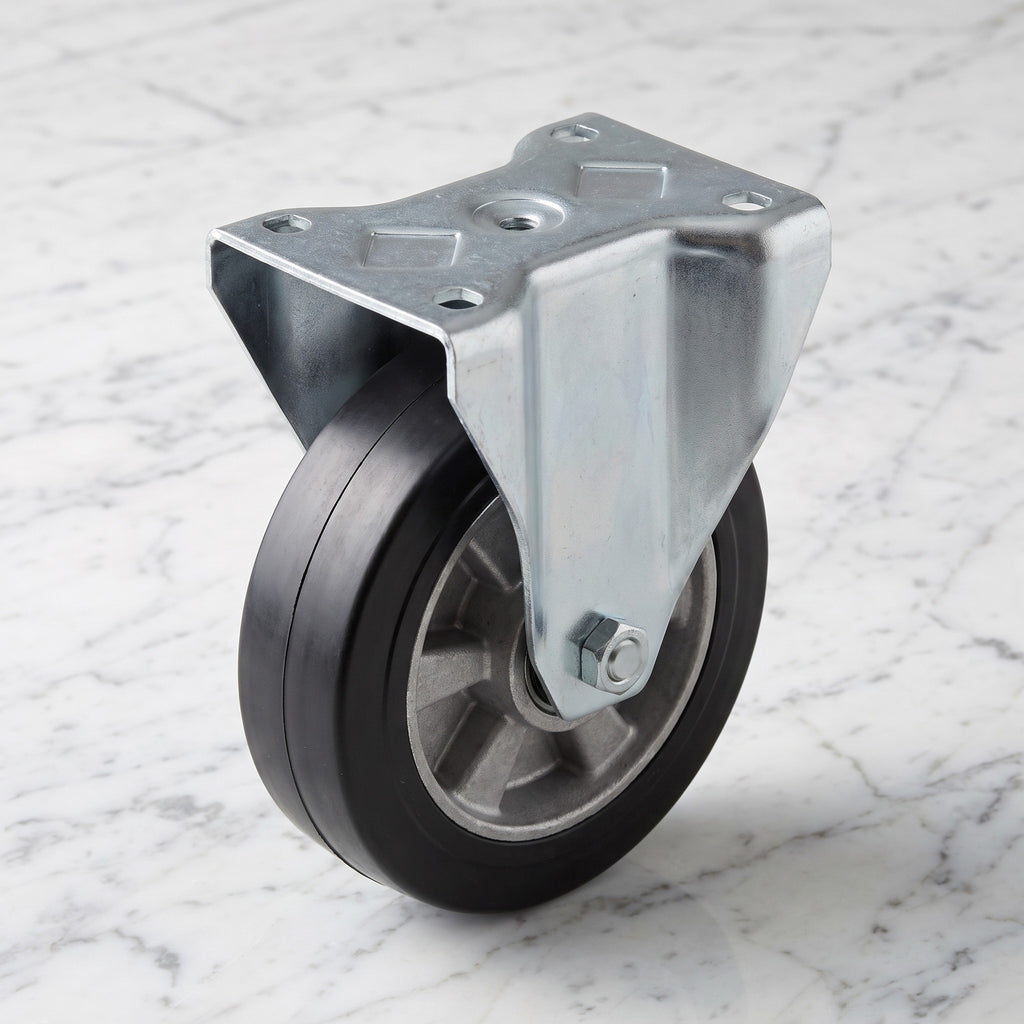

Heavy Duty Top Plate Castors
This 200mm heavy duty fixed castor has a black rubber wheel on an aluminium centre, made for industrial use and rated for 500kg per castor. The A67 rubber tread balances grip and load-bearing ability, the aluminium centre adds strength, and the ball bearing gives smooth rotation with less friction.
It fixes securely to flat surfaces with a 140 x 110mm top plate, stands 240mm tall and works from -20°C to +85°C.
Why Choose This Castor
- ✓ 500kg load capacity per castor for heavy industrial loads.
- ✓ Rubber on aluminium wheel with a 40mm tread and A67 hardness.
- ✓ Ball bearing for smooth rotation and reduced friction.
- ✓ Fixed bracket for straight, steady tracking.
- ✓ 140 x 110mm top plate with four 10mm holes for a secure, stable fixing.
- ✓ Temperature range from -20°C to +85°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and clearance suit your mounting area before fitting.
Where It Works Best
This heavy duty fixed top plate castor suits:
- ✓ Warehouse trolleys: stable movement for heavy loads.
- ✓ Industrial carts: environments that need reliable load-bearing wheels.
- ✓ Material handling equipment: efficient transport of goods.
- ✓ Factory machinery: smooth operation under substantial weight.
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed castor, so the wheel stays in line for straight, steady travel. Pair it with swivel castors to steer your equipment.
How much weight can this castor carry?
Each castor is rated for 500kg. Add up the castors under your equipment to work out the total load.
How is the castor fitted?
It has a 140 x 110mm top plate with four 10mm holes on 105 x 80/75mm hole centres, bolted flat to the underside of your trolley, cart or machine.
How tall is the castor?
The total castor height is 240mm.
What is the wheel made of?
A 200mm black rubber tread on an aluminium centre, 40mm wide with A67 hardness, running on a ball bearing.
What floors is it suited to?
The A67 rubber tread gives a balance of grip and load-bearing ability on flat industrial floors.
What temperatures can it work in?
The castor is suitable for use from -20°C to +85°C.
