- Load per castor800kg per castor *
- Wheel diameter125mm (twin)
- Overall height196mm
- WheelPolyurethane on Cast Iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Twin Wheel Swivel Gantry Castor, Top Plate
- Wheel Diameter
- 125mm (twin)
- Wheel Material
- Polyurethane on Cast Iron
- Wheel Colour
- Brown
- Tread Width
- 40mm
- Bearing Type
- Ball Bearing
- Load Capacity
- 800kg per castor *
- Top Plate Size
- 200 x 160mm
- Bolt Hole Centres
- 160 x 120mm
- Bolt Hole Diameter
- 14mm
- Overall Height
- 196mm
Will it fit?
- Bolt hole160 x 120mm
- Overall height196mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs
Heavy Duty Twin Wheel Gantry Castor

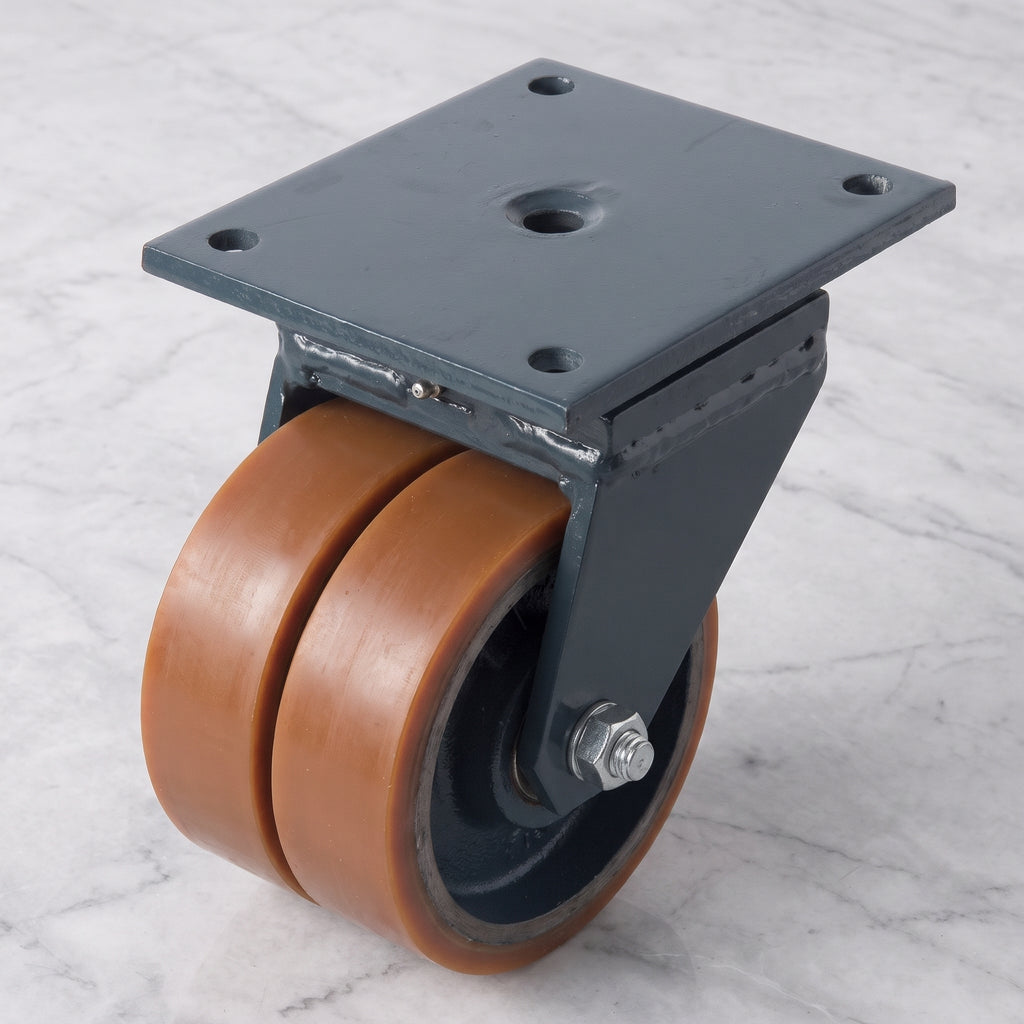

This 125mm twin wheel swivel gantry castor carries up to 800kg per castor on two brown polyurethane wheels with cast iron centres. A heavy fabricated, welded steel housing and a ball bearing swivel head let it turn smoothly under heavy loads on gantries, machinery platforms and industrial carts.
The polyurethane tread gives a hard, smooth-rolling surface that suits smooth floors, while the cast iron centres give a sturdy core. A large 200 x 160mm top plate with four 14mm holes bolts flat under the frame, and the overall height is 196mm.
Why Choose This Castor
- ✓ 800kg load capacity per castor
- ✓ Twin wheels for easier steering and better load spread
- ✓ Brown polyurethane on cast iron wheels for smooth floors
- ✓ Heavy fabricated, welded steel housing
- ✓ Ball bearing swivel head for smooth turning
- ✓ Large 200 x 160mm top plate with 14mm holes
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Warehouse trolleys carrying heavy loads
- ✓ Industrial carts that need high load capacity and easy steering

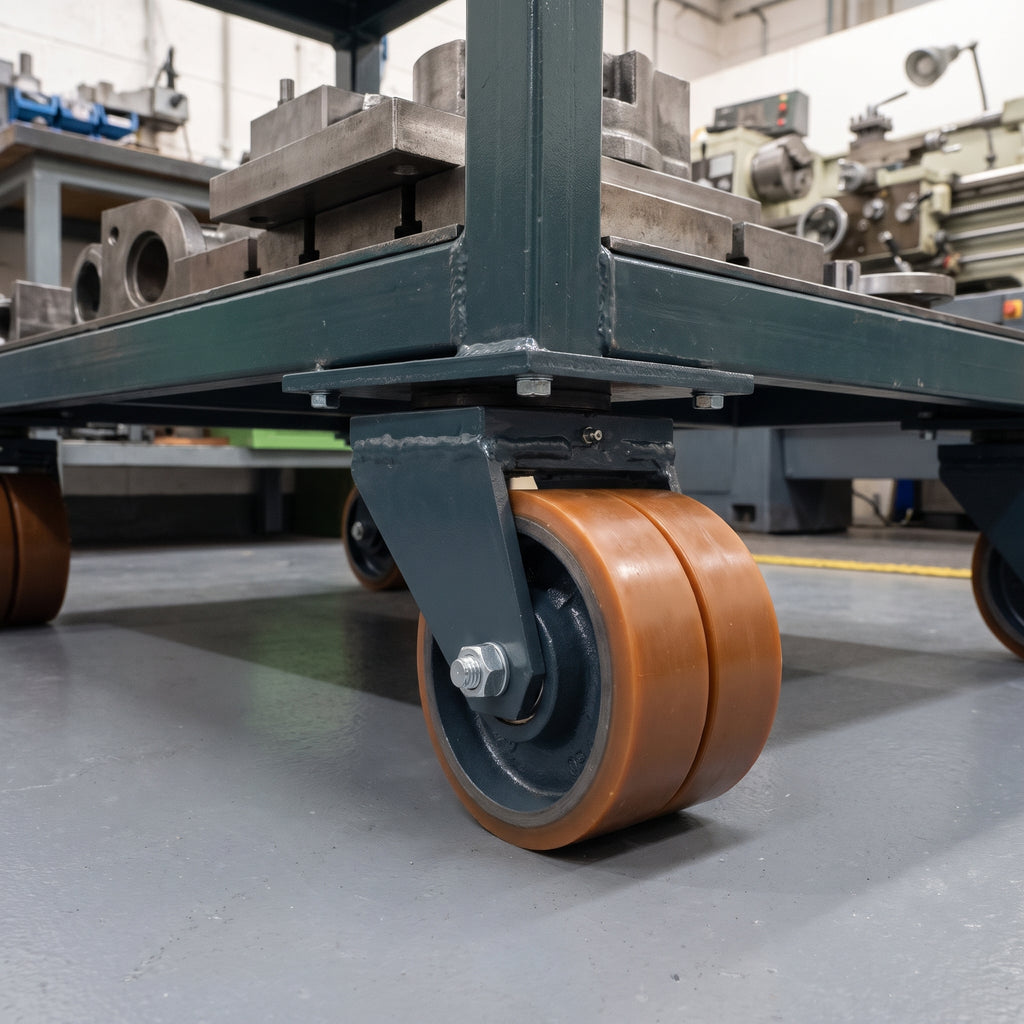

- ✓ Machinery platforms and gantries that support and move heavy equipment
Looking for other sizes? See our gantry castor range.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated at 800kg. A set of four is best used for loads up to around 2400kg, allowing for uneven floors.
Why choose twin wheels?
Two wheels share the load, spread it over a wider footprint and turn more easily under heavy weight than a single wide wheel.
How is it fitted?
The 200 x 160mm top plate has four 14mm holes on 160 x 120mm centres. Bolt it flat to the underside of your trolley, cart or platform with bolts, nuts and washers that suit 14mm holes.
What floors does it suit?
The hard polyurethane tread is made for smooth floors such as sealed concrete and epoxy.
How tall is the castor once fitted?
The overall height from floor to top plate is 196mm.
