- Load per castor700kg per castor
- Wheel diameter125mm
- Overall height164mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Fixed Top Plate Castor
- Brake
- None
- Wheel Diameter
- 125mm
- Wheel Material
- Nylon
- Wheel Colour
- White
- Tread Width
- 40mm
- Hardness of Tread
- D75
- Bearing Type
- Ball journal bearing
- Temperature Range
- -40°C to +80°C
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 140 x 110mm
- Hole Centres
- 105 x 80/75mm
- Hole Diameter
- 10mm
- Total Castor Height
- 164mm
- Load Capacity
- 700kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel · working temperature -40°C to +80°C
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Heavy Duty Top Plate Castors

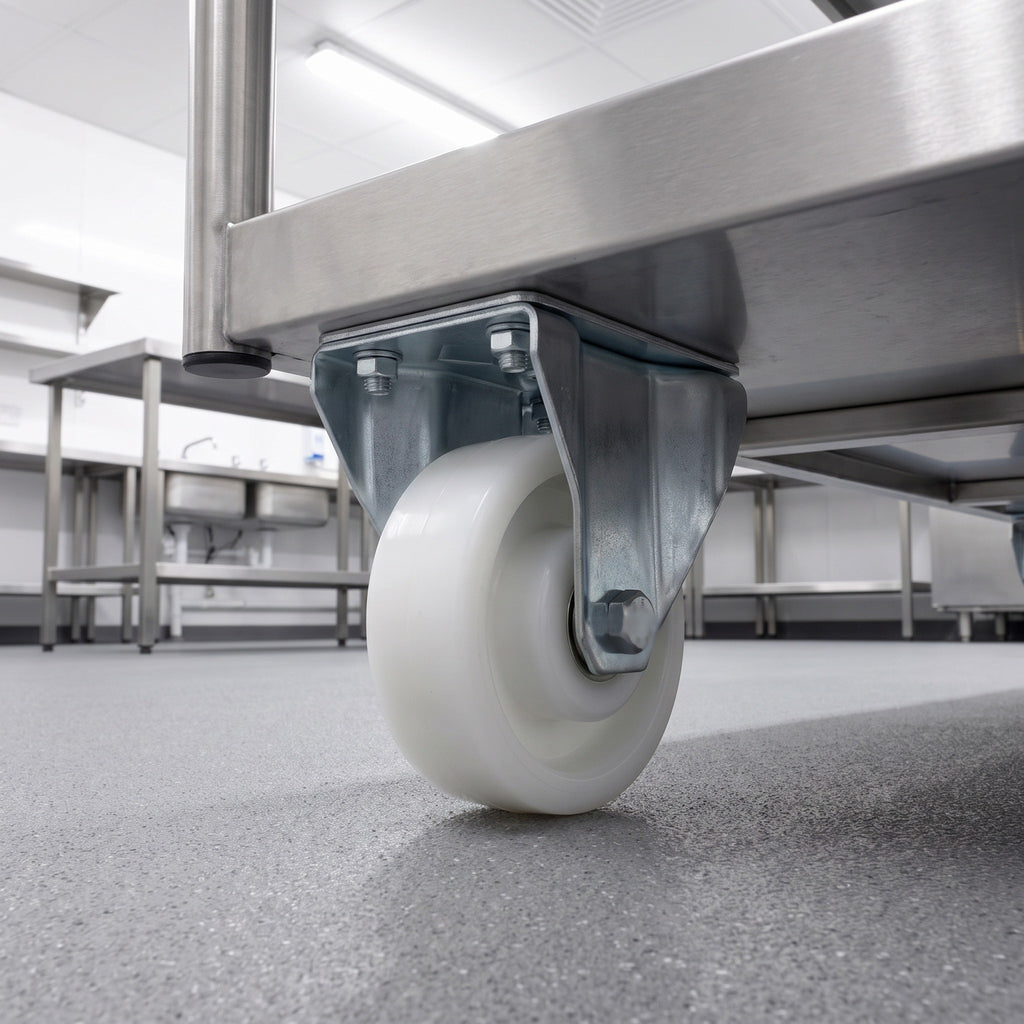

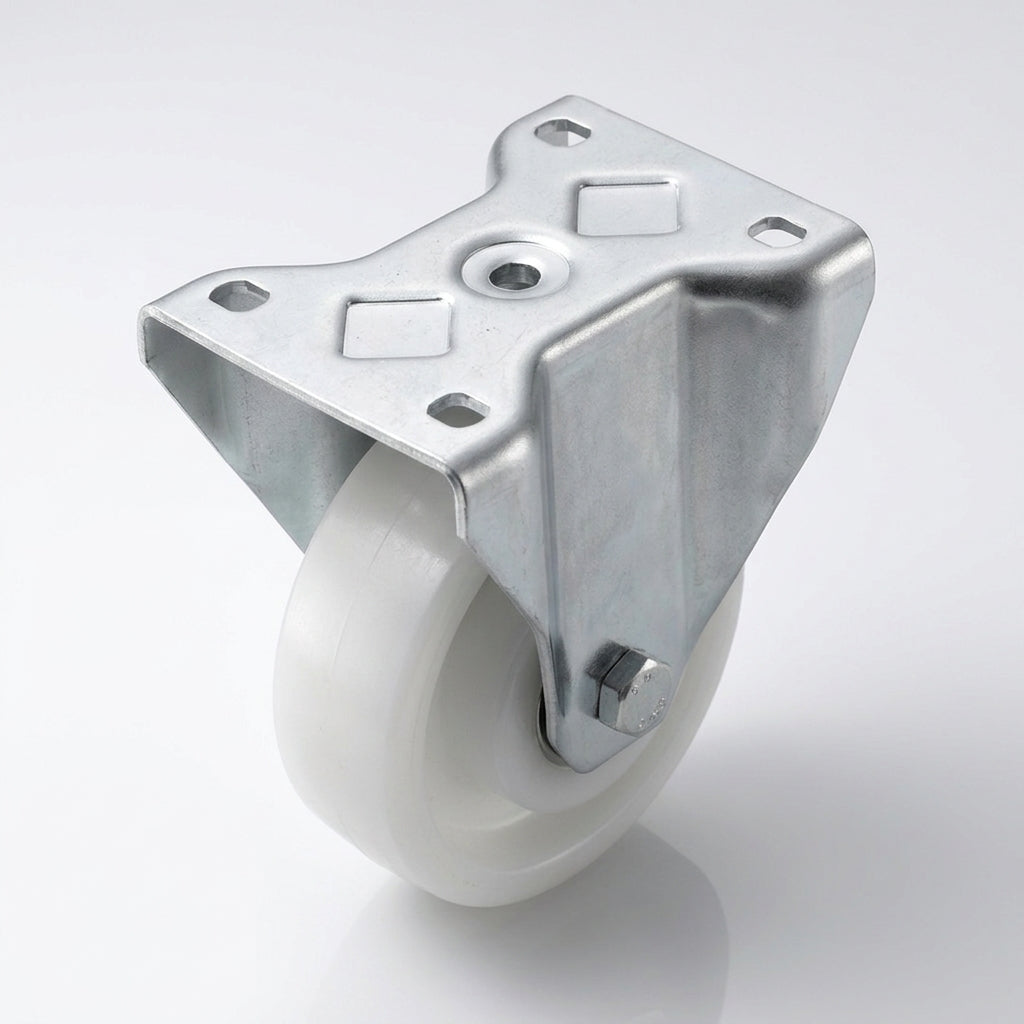

This 125mm heavy duty fixed castor has a white nylon wheel, made for industrial equipment and rated for 700kg per castor. The D75 nylon tread is hard-wearing, and the ball journal bearing gives a smooth, efficient rolling action.
It fixes securely to flat surfaces with a 140 x 110mm top plate, stands 164mm tall and works from -40°C to +80°C. The fixed design keeps a consistent direction of travel for stable, straight-line movement.
Why Choose This Castor
- ✓ 700kg load capacity per castor for heavy industrial loads.
- ✓ White nylon wheel with a 40mm tread and D75 hardness.
- ✓ Ball journal bearing for a smooth, efficient rolling action.
- ✓ Fixed design that keeps a consistent direction of travel.
- ✓ 140 x 110mm top plate with four 10mm holes for a secure, stable fixing.
- ✓ Temperature range from -40°C to +80°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size and hole centres suit your mounting area before fitting.
Where It Works Best
This heavy duty fixed top plate castor suits:
- ✓ Warehouse trolleys: transporting heavy loads efficiently.
- ✓ Industrial carts: stable directional movement.
- ✓ Factory equipment: machinery that needs fixed directional travel.
- ✓ Material handling units: units that carry substantial weight.
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed castor, so the wheel only rolls in a straight line.
How much weight can this castor carry?
Each castor is rated for 700kg. Add up the castors under your equipment to work out the total load.
How is the castor fitted?
It has a 140 x 110mm top plate with four 10mm holes on 105 x 80/75mm hole centres, bolted flat to the underside of your trolley, cart or machine.
How tall is the castor?
The total castor height is 164mm from the top plate to the floor.
What is the wheel made of?
A 125mm white nylon wheel, 40mm wide with D75 hardness, running on a ball journal bearing.
What temperatures can it work in?
The castor is suitable for use from -40°C to +80°C.
