- Load per castor700kg per castor
- Wheel diameter125mm
- Overall height164mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Swivel Top Plate Castor with Brake
- Brake
- Locks wheel and swivel head
- Wheel Diameter
- 125mm
- Wheel Material
- Nylon
- Wheel Colour
- White
- Tread Width
- 40mm
- Hardness of Tread
- D75
- Bearing Type
- Ball journal bearing
- Temperature Range
- -40°C to +80°C
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 140 x 110mm
- Hole Centres
- 105 x 80/75mm
- Hole Diameter
- 10mm
- Swivel Radius
- 148mm
- Total Castor Height
- 164mm
- Load Capacity
- 700kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel · working temperature -40°C to +80°C
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Heavy Duty Top Plate Castors

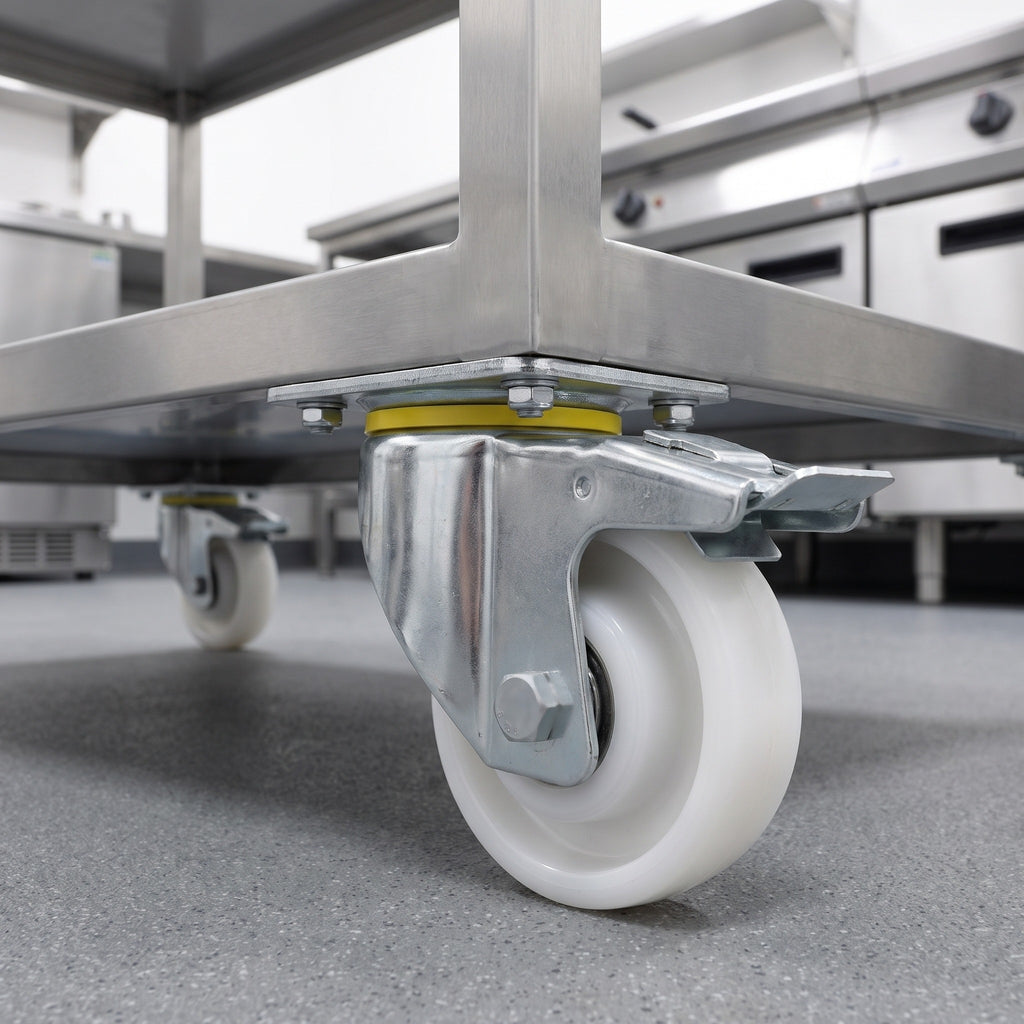

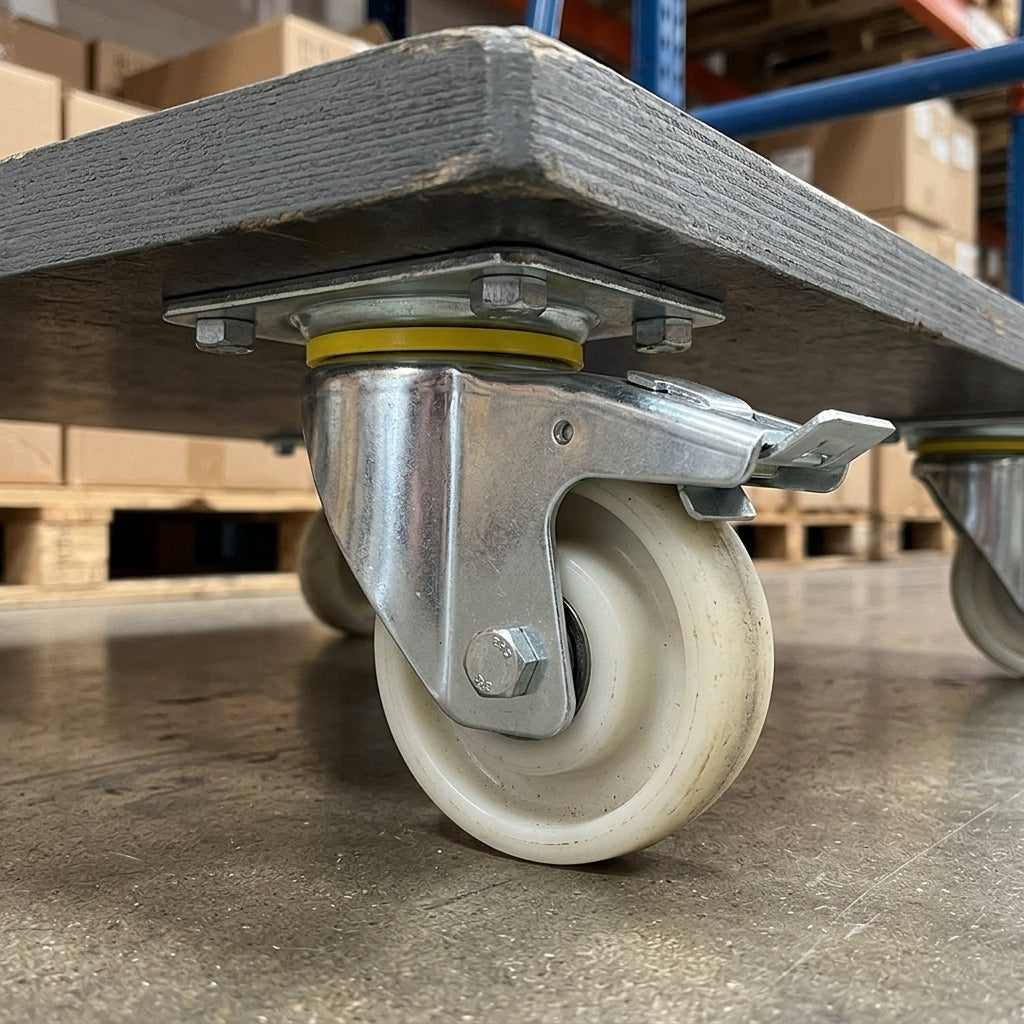

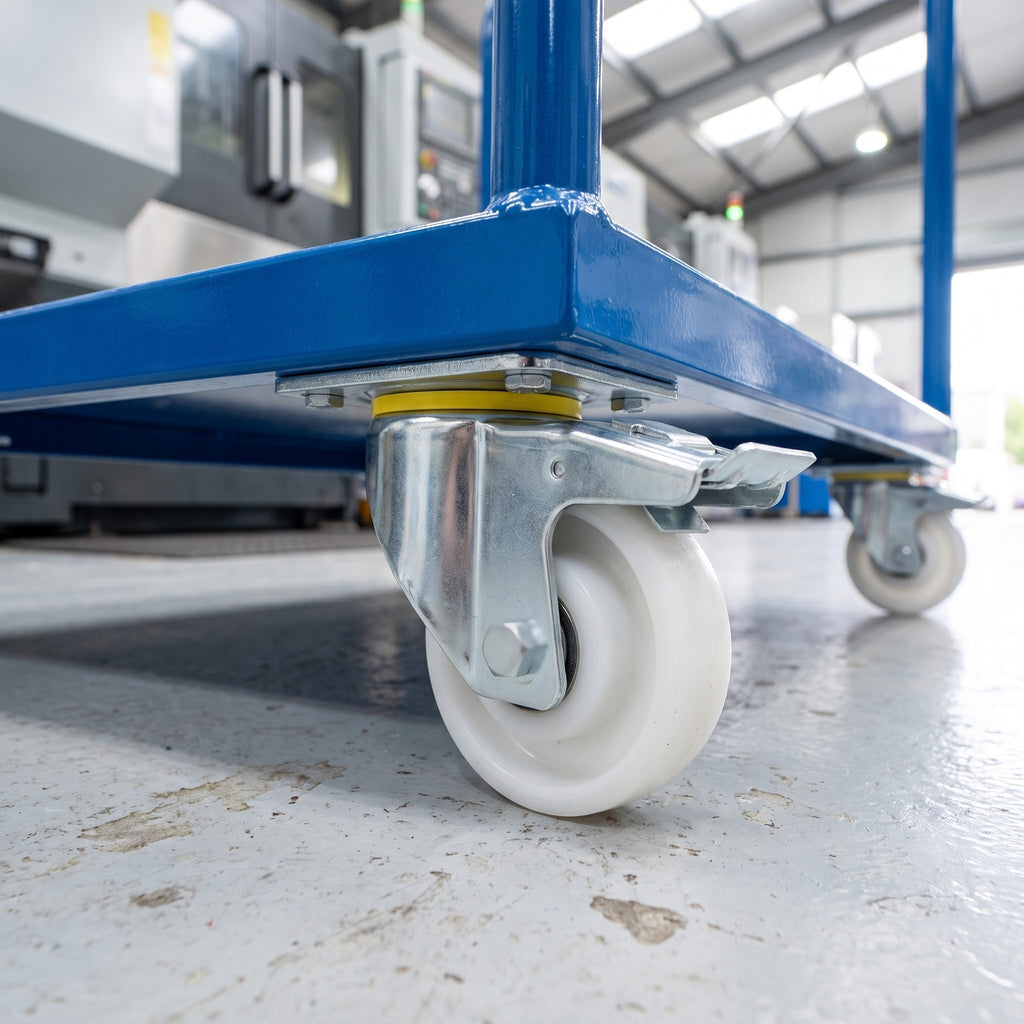

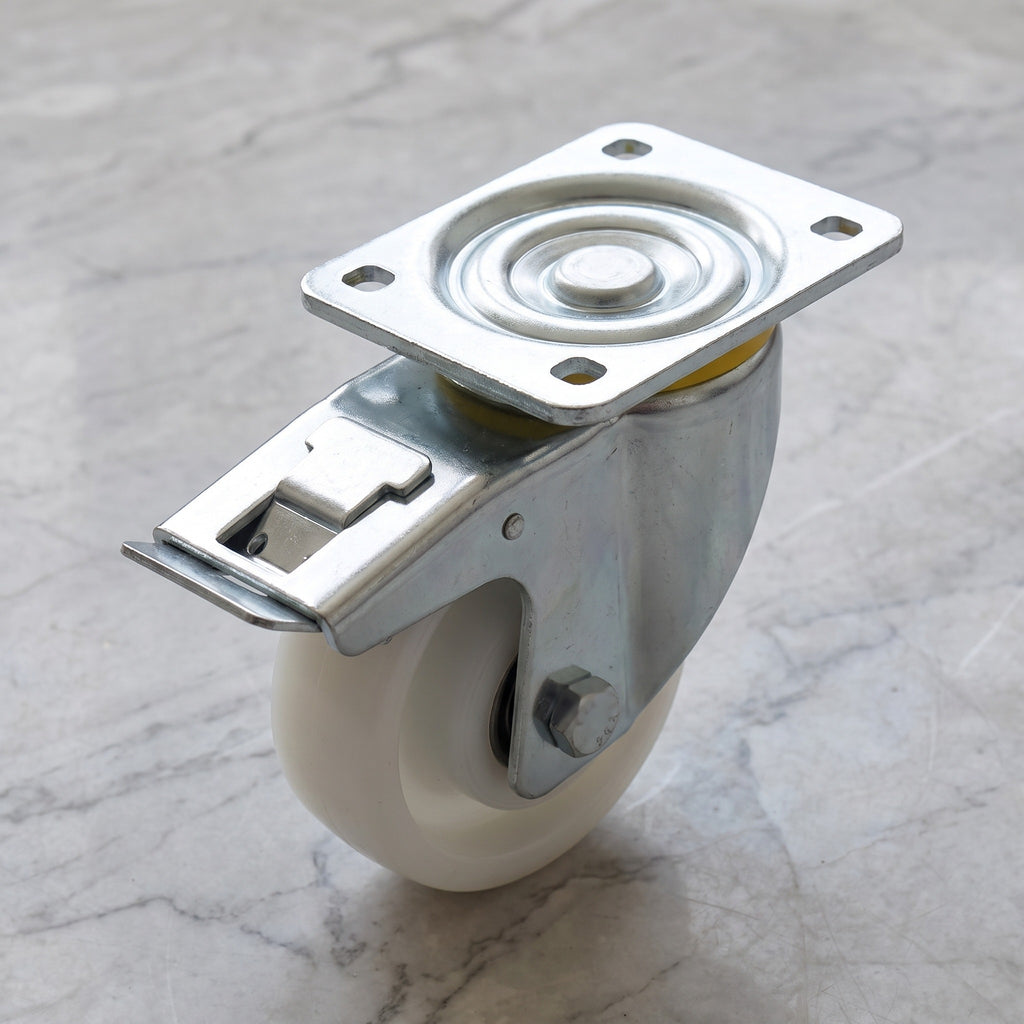

This 125mm heavy duty swivel castor has a white nylon wheel and a brake that acts on both the wheel and the swivel head, giving stability when stationary. Rated for 700kg per castor, its ball journal bearings give smooth rotation for industrial settings where manoeuvrability matters.
It fixes securely to flat surfaces with a 140 x 110mm top plate, has a 148mm swivel radius, stands 164mm tall and works from -40°C to +80°C.
Why Choose This Castor
- ✓ 700kg load capacity per castor for heavy industrial loads.
- ✓ White nylon wheel with a 40mm tread and D75 hardness.
- ✓ Ball journal bearings for smooth rotation.
- ✓ Swivel head for easy manoeuvring, with a 148mm swivel radius.
- ✓ Brake that locks both the wheel and the swivel head.
- ✓ 140 x 110mm top plate with four 10mm holes for a secure, stable fixing.
- ✓ Temperature range from -40°C to +80°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and swivel clearance suit your mounting area before fitting.
Where It Works Best
This heavy duty braked top plate castor suits:
- ✓ Industrial trolleys: transporting heavy loads in warehouses and factories.
- ✓ Machinery bases: mobility for heavy equipment.
- ✓ Workbenches: easy repositioning in workshop environments.
- ✓ Storage racks: moving loaded racks in storage facilities.
Frequently Asked Questions
What does the brake lock?
The brake acts on both the wheel and the swivel head, so the castor cannot roll or turn while your equipment is parked. Release it to move again.
How much weight can this castor carry?
Each castor is rated for 700kg. Add up the castors under your equipment to work out the total load.
How is the castor fitted?
It has a 140 x 110mm top plate with four 10mm holes on 105 x 80/75mm hole centres, bolted flat to the underside of your trolley, cart or machine.
How much space does it need to swivel?
The swivel radius is 148mm and the total castor height is 164mm.
What is the wheel made of?
A 125mm white nylon wheel, 40mm wide with D75 hardness, running on ball journal bearings.
What temperatures can it work in?
The castor is suitable for use from -40°C to +80°C.
