- Load per castor250kg per castor
- Wheel diameter100mm
- Overall height130mm
- WheelPolyurethane on aluminium centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Swivel Top Plate Castor
- Brake
- None
- Wheel Diameter
- 100mm
- Wheel Material
- Polyurethane on aluminium centre
- Wheel Colour
- Yellow
- Tread Width
- 40mm
- Hardness of Tread
- 91 Shore A
- Bearing Type
- Ball bearing
- Temperature Range
- -20°C to +80°C
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 105 x 85mm
- Hole Centres
- 80/60mm
- Hole Diameter
- 9mm
- Swivel Radius
- 90mm
- Total Castor Height
- 130mm
- Load Capacity
- 250kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -20°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs
Heavy Duty Top Plate Castors

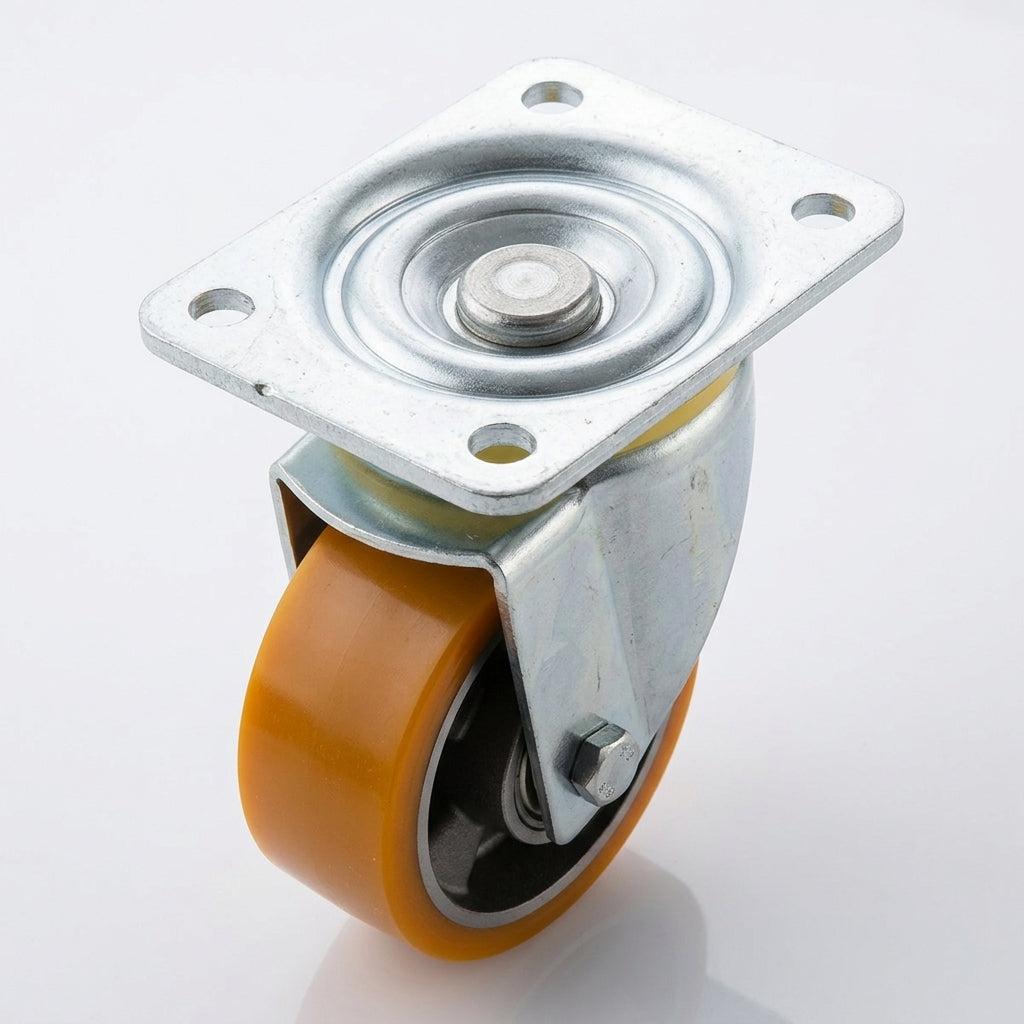

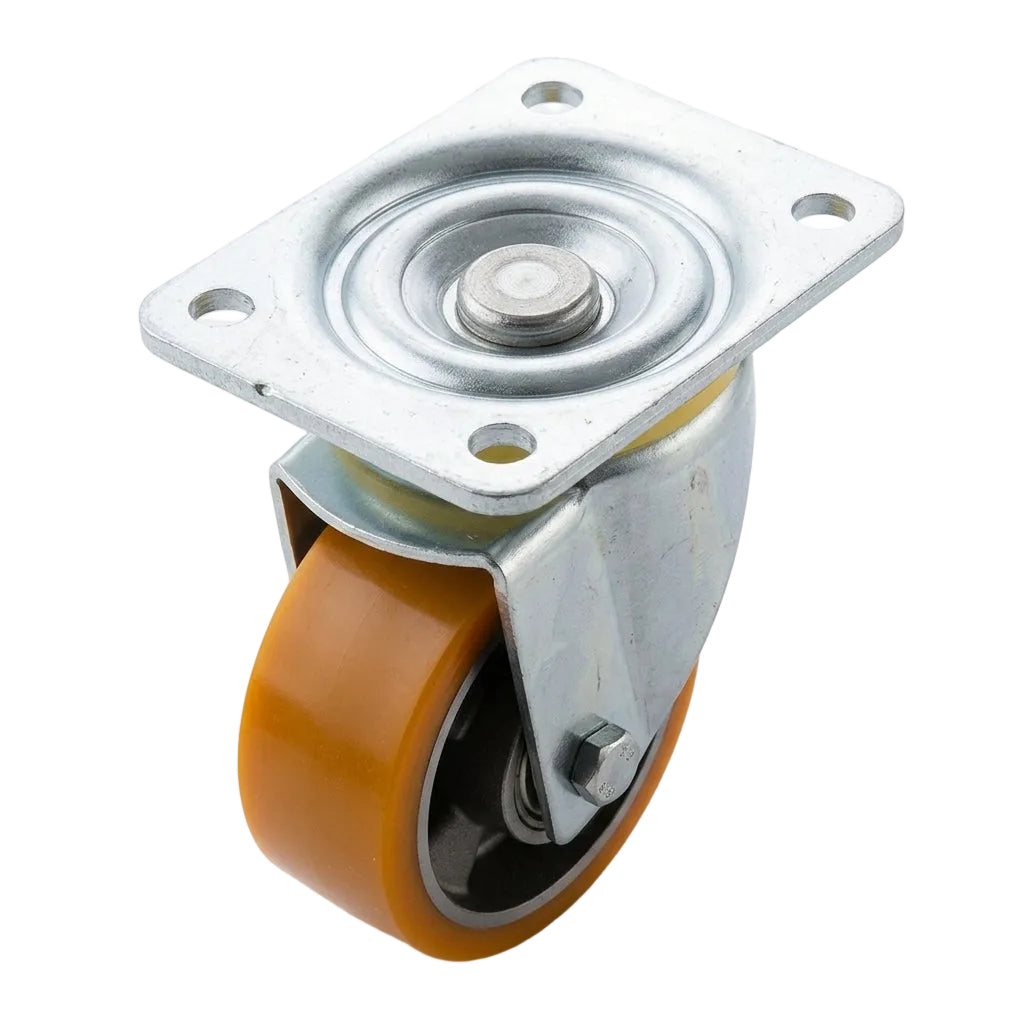

This 100mm heavy duty swivel castor has a yellow polyurethane wheel on an aluminium centre, made for industrial use and rated for 250kg per castor. The 91 Shore A tread balances grip and durability on smooth, hard surfaces, and the ball bearing gives smooth rotation with less friction.
It fixes securely to flat surfaces with a 105 x 85mm top plate, has a 90mm swivel radius, stands 130mm tall and works from -20°C to +80°C.
Why Choose This Castor
- ✓ 250kg load capacity per castor for heavy industrial loads.
- ✓ Polyurethane on aluminium wheel with a 40mm tread and 91 Shore A hardness.
- ✓ Ball bearing for smooth rotation and reduced friction.
- ✓ Swivel head for easy manoeuvring, with a 90mm swivel radius.
- ✓ 105 x 85mm top plate with four 9mm holes for a secure, stable fixing.
- ✓ Temperature range from -20°C to +80°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and swivel clearance suit your mounting area before fitting.
Where It Works Best
This heavy duty swivel top plate castor suits:

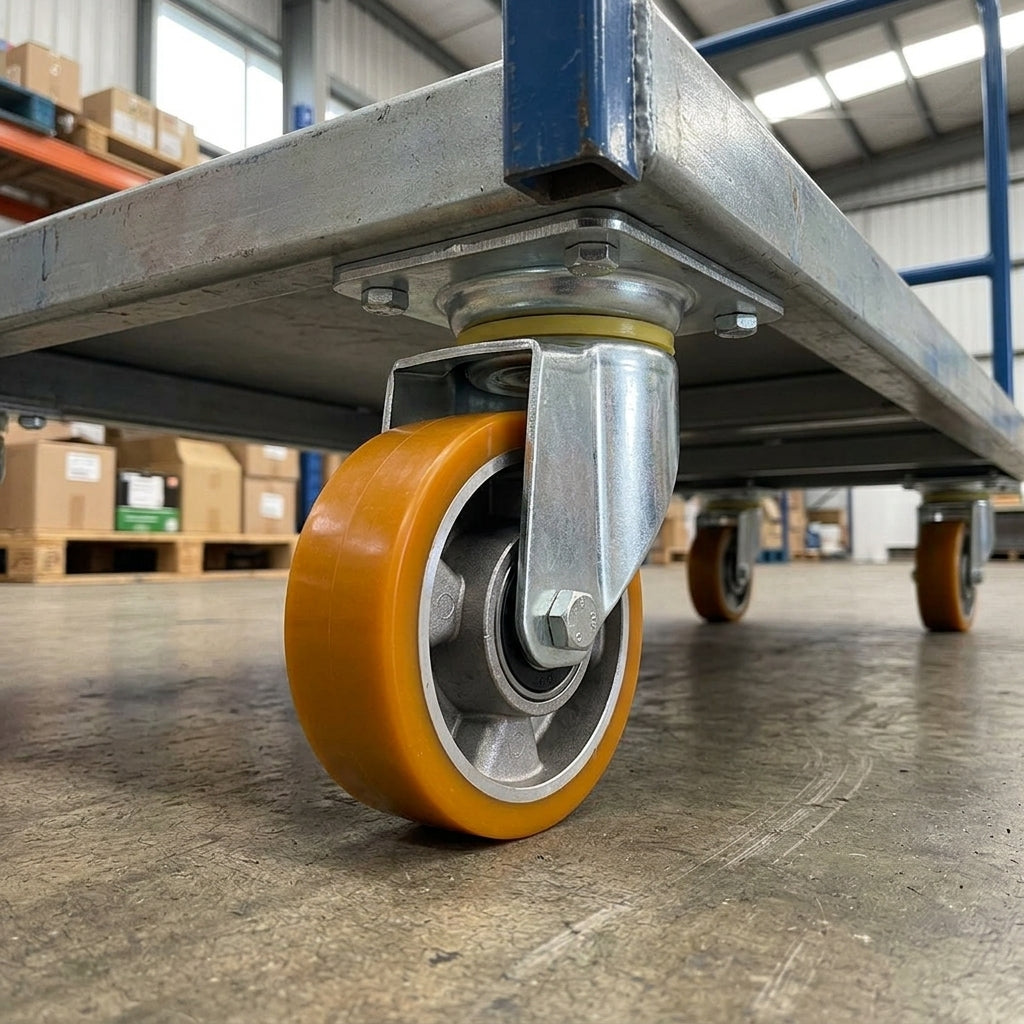

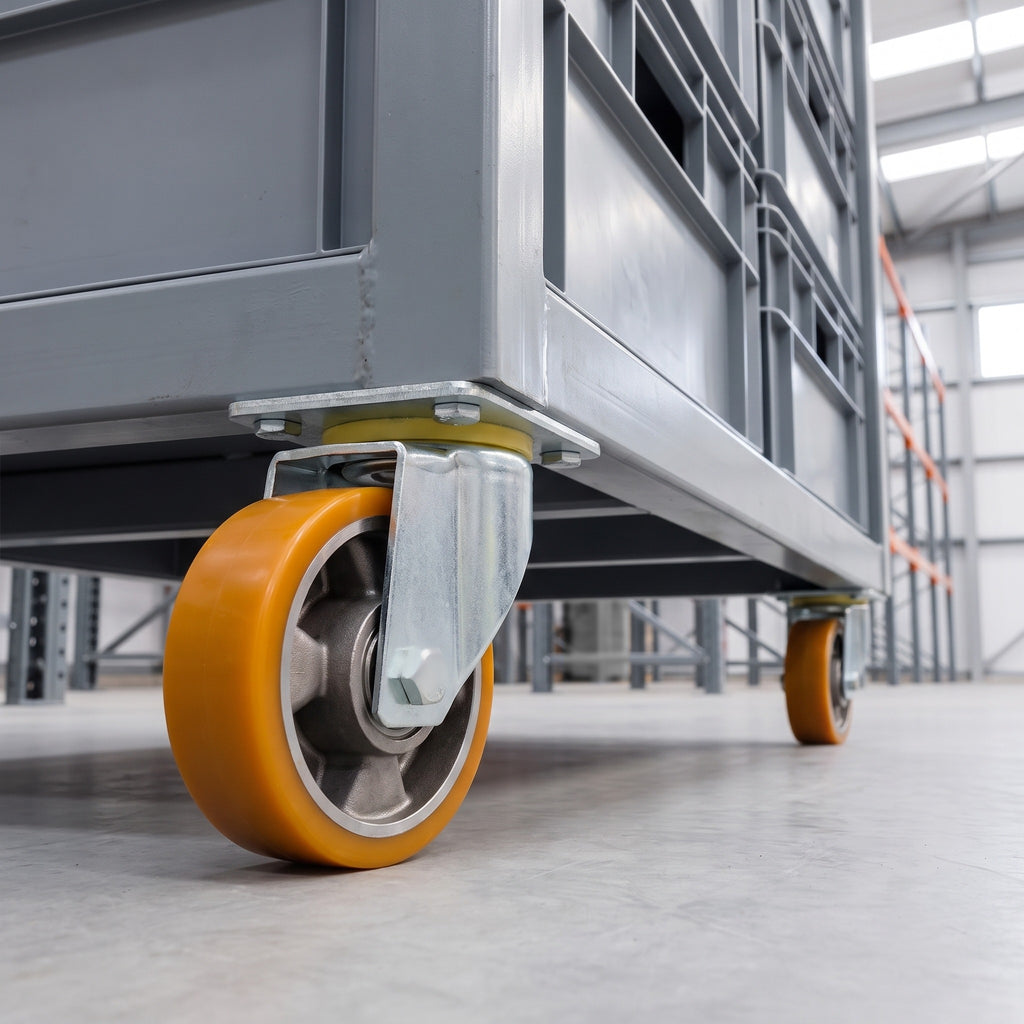

- ✓ Warehouse trolleys: reliable movement for transporting goods.
- ✓ Industrial carts: easy manoeuvring in manufacturing settings.
- ✓ Material handling equipment: supporting heavy loads in logistics operations.

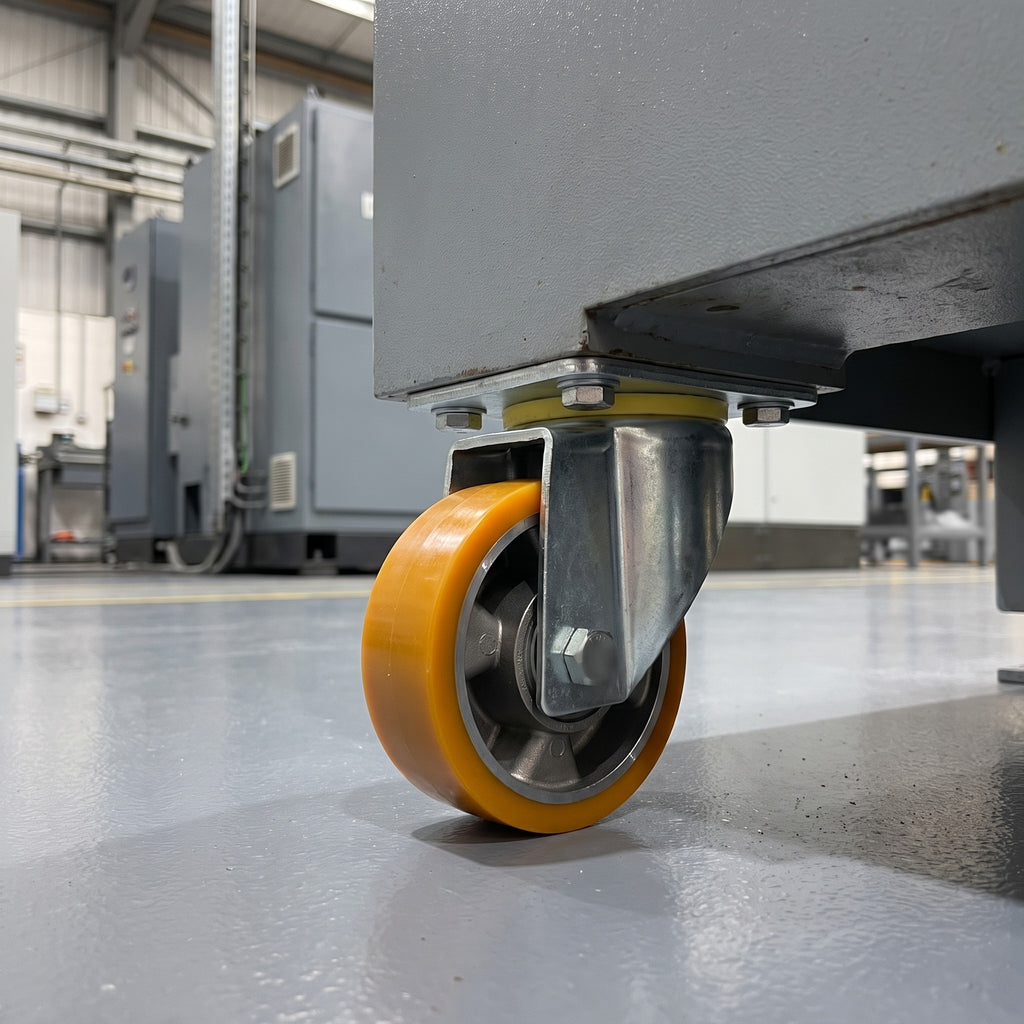

- ✓ Factory machinery: equipment that needs frequent repositioning.
Frequently Asked Questions
Does this castor have a brake?
No. This is a free-swivelling castor without a brake, made for easy turning and repositioning.
How much weight can this castor carry?
Each castor is rated for 250kg. Add up the castors under your equipment to work out the total load.
How is the castor fitted?
It has a 105 x 85mm top plate with four 9mm holes on 80/60mm hole centres, bolted flat to the underside of your trolley, cart or machine.
How much space does it need to swivel?
The swivel radius is 90mm and the total castor height is 130mm.
What is the wheel made of?
A 100mm yellow polyurethane tread on an aluminium centre, 40mm wide with 91 Shore A hardness, running on a ball bearing.
What floors is it suited to?
The polyurethane tread balances grip and durability and is made for smooth, hard surfaces.
What temperatures can it work in?
The castor is suitable for use from -20°C to +80°C.
