- Load per castor900kg per castor *
- Wheel diameter100mm (twin)
- Overall height147mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Twin Wheel Swivel Gantry Castor, Top Plate
- Wheel Diameter
- 100mm (twin)
- Wheel Material
- Nylon
- Wheel Colour
- White
- Tread Width
- 37mm
- Bearing Type
- Ball Bearing
- Load Capacity
- 900kg per castor *
- Top Plate Size
- 135 x 110mm
- Bolt Hole Centres
- 105 x 75mm
- Bolt Hole Diameter
- 12mm
- Overall Height
- 147mm
Will it fit?
- Bolt hole105 x 75mm
- Overall height147mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Heavy Duty Twin Wheel Gantry Castor

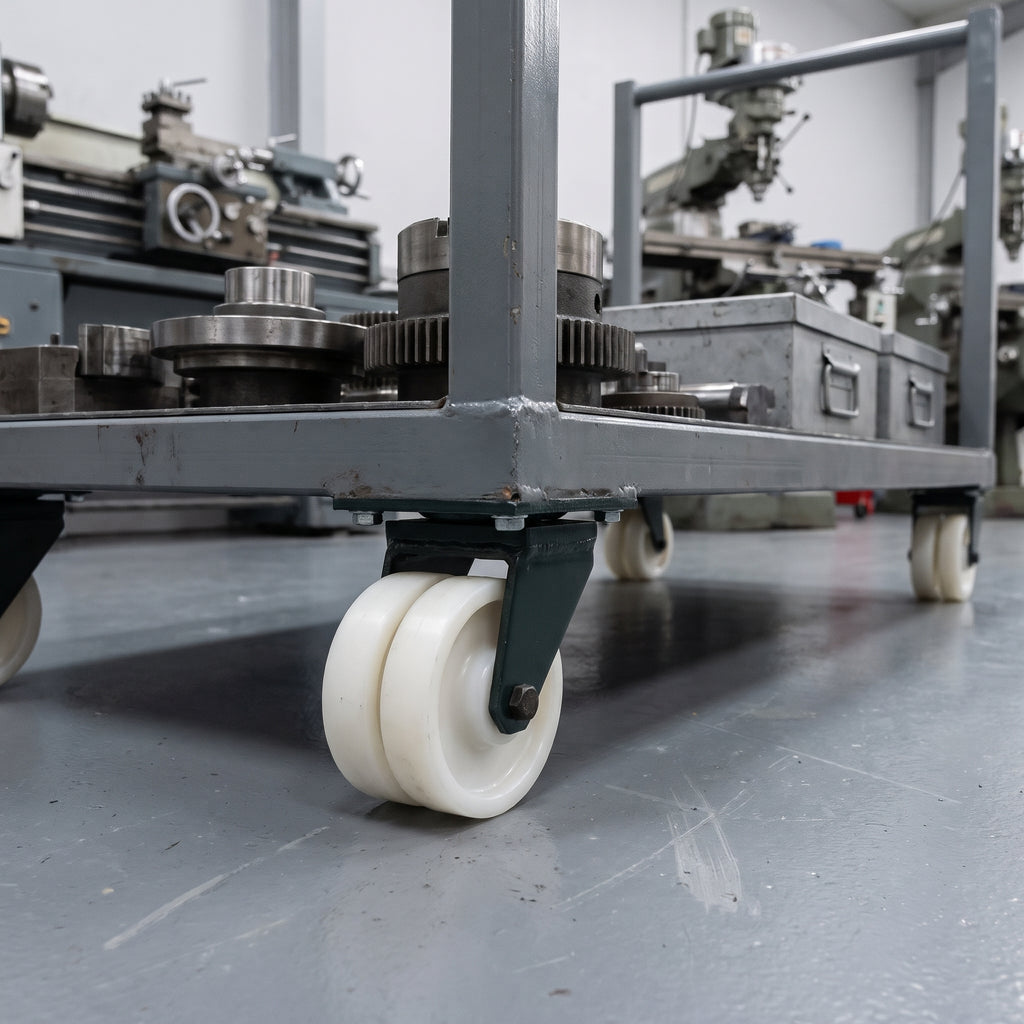

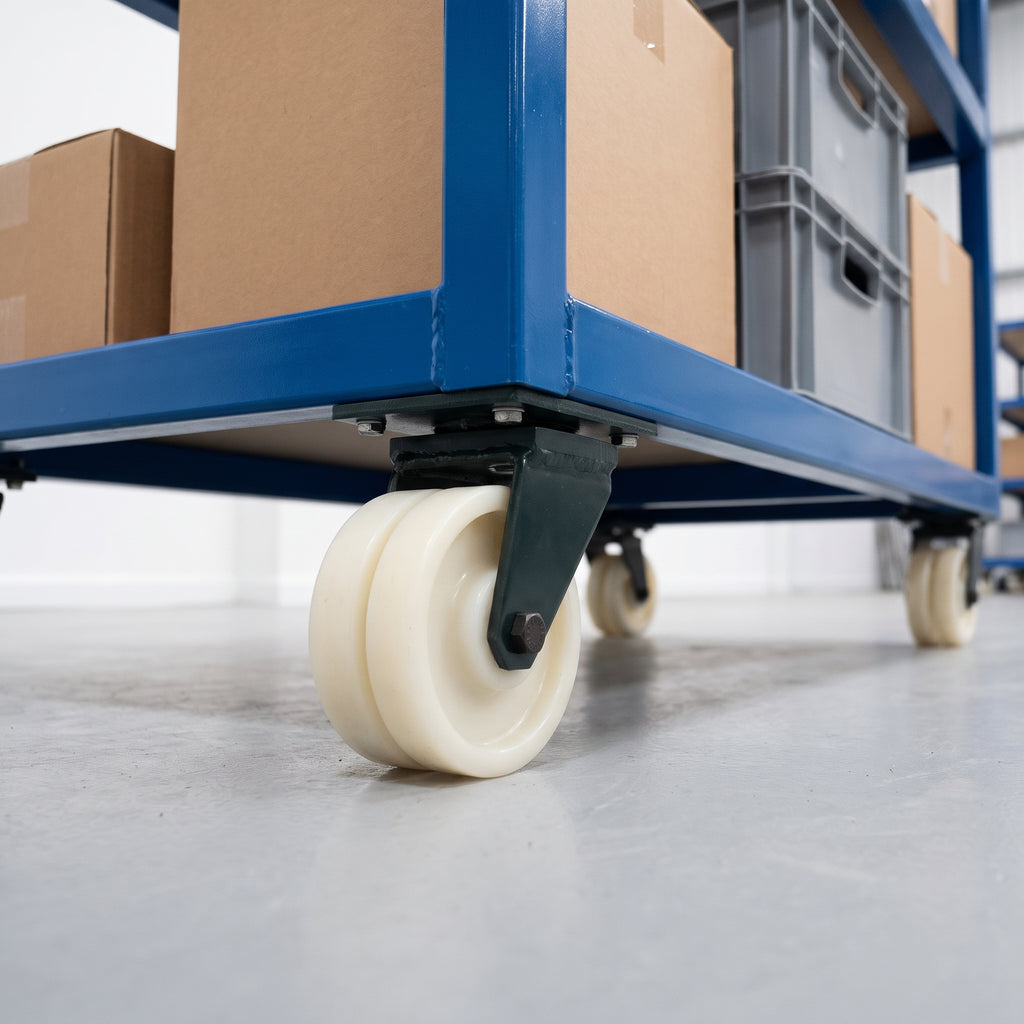

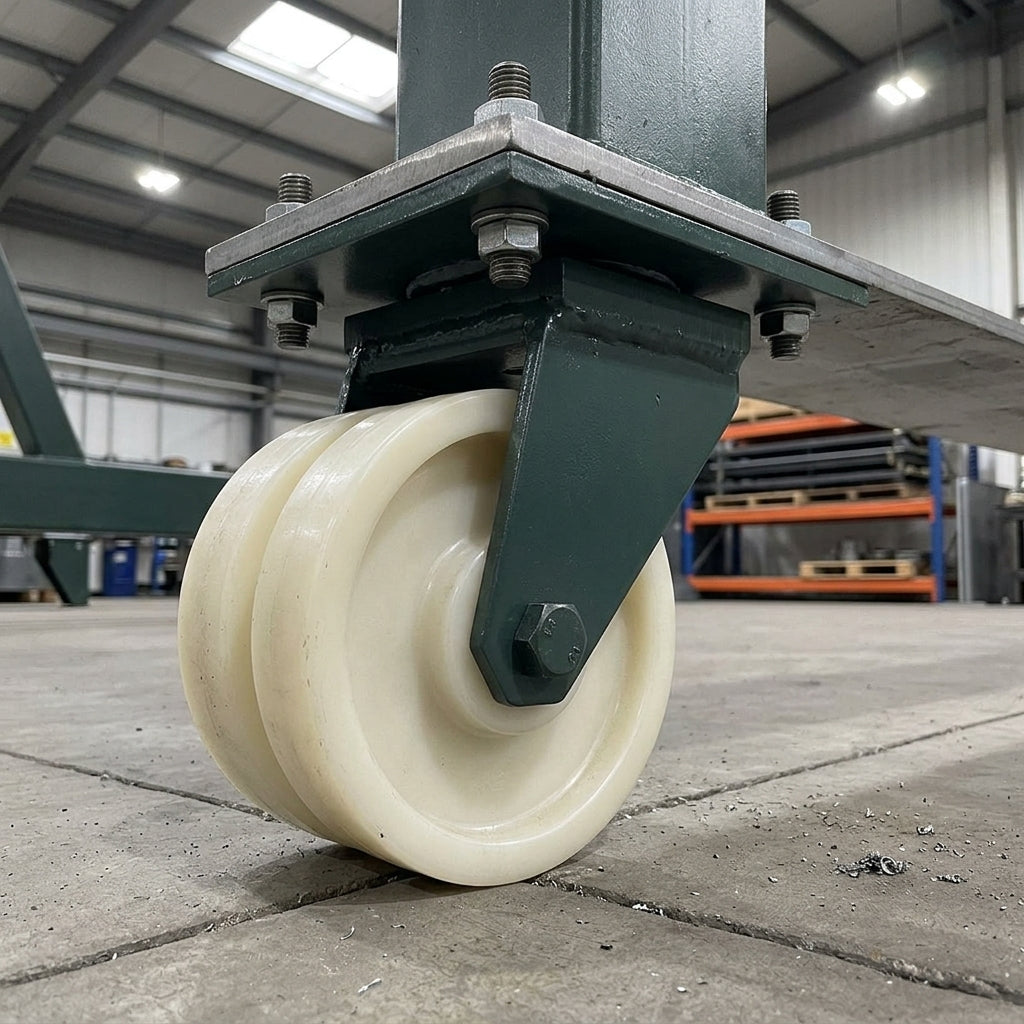

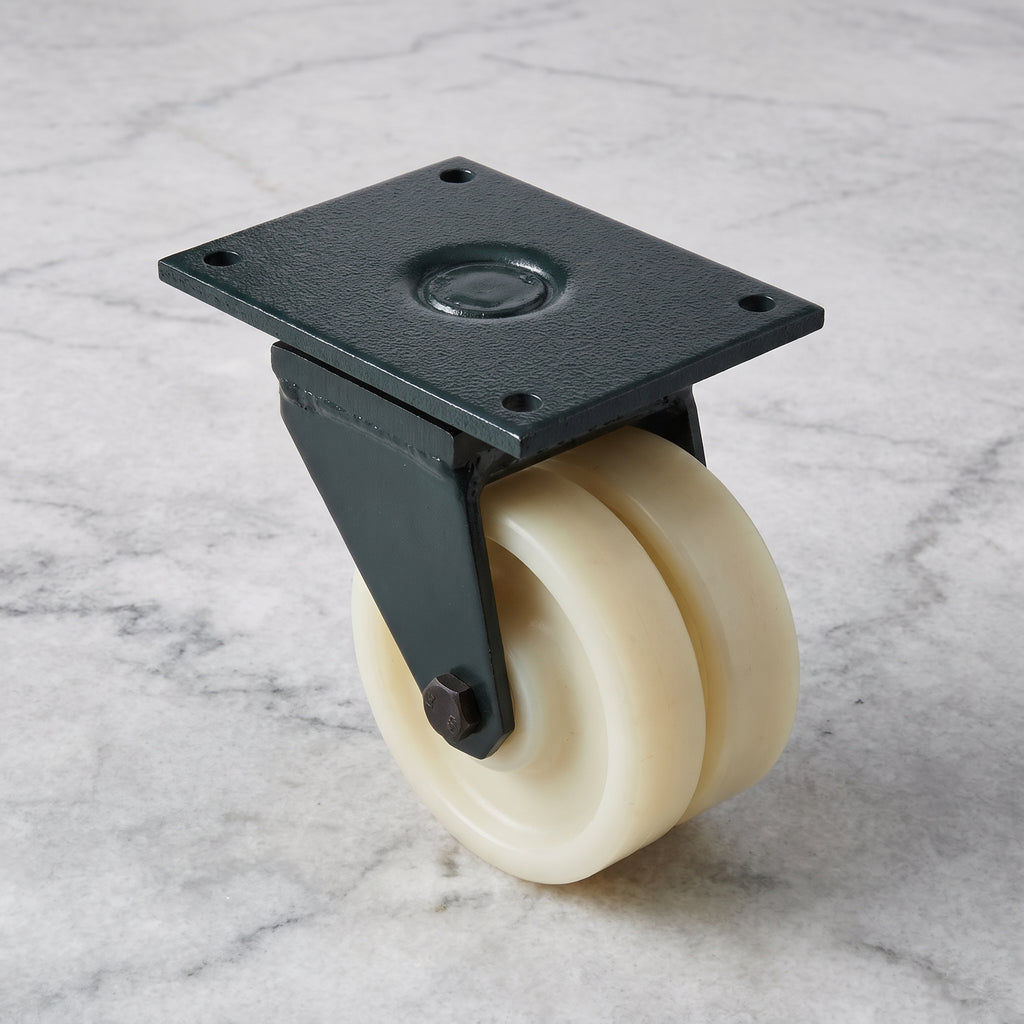

This 100mm twin wheel swivel gantry castor carries up to 900kg per castor on two hard white nylon wheels. A heavy fabricated, welded steel housing and a ball bearing swivel head let it turn smoothly in tight spaces under heavy loads on trolleys, carts and workshop equipment.
The hard nylon wheels give low rolling resistance on smooth floors, and the ball bearings keep rotation smooth with reduced friction. A strong 135 x 110mm top plate with four 12mm holes bolts flat under the frame, and the overall height is 147mm.
Why Choose This Castor
- ✓ 900kg load capacity per castor
- ✓ Twin wheels for easier steering and better load spread
- ✓ Hard white nylon wheels that roll easily on smooth floors
- ✓ Heavy fabricated, welded steel housing
- ✓ Ball bearing swivel head for smooth turning
- ✓ Strong 135 x 110mm top plate with 12mm holes
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Warehouse trolleys transporting heavy loads
- ✓ Industrial carts that need smooth mobility for handling equipment
- ✓ Manufacturing equipment and machinery components
- ✓ Retail display units that need easy repositioning
- ✓ Workshop benches for a flexible workspace
Looking for other sizes? See our gantry castor range.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated at 900kg. A set of four is best used for loads up to around 2700kg, allowing for uneven floors.
Why choose twin wheels?
Two wheels share the load, spread it over a wider footprint and turn more easily under heavy weight than a single wide wheel.
How is it fitted?
The 135 x 110mm top plate has four 12mm holes on 105 x 75mm centres. Bolt it flat to the underside of your trolley, cart or platform with bolts, nuts and washers that suit 12mm holes.
What floors does it suit?
The hard nylon wheels roll most easily on smooth, hard floors such as sealed concrete and epoxy.
How tall is the castor once fitted?
The overall height from floor to top plate is 147mm.
