- Load per castor460kg per scene shifter
- Wheel diameter100mm
- Overall height162mm
- WheelPolyurethane on Aluminium
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Scene Shifter (3 swivel wheels)
- Wheel Diameter
- 100mm
- Wheel Material
- Polyurethane on Aluminium
- Wheel Colour
- Orange
- Bearing Type
- Ball Bearing
- Load Capacity
- 460kg per scene shifter
- Top Plate Size
- 150 x 110mm
- Bolt Hole Centres
- 121/105 x 80/59mm (slotted)
- Bolt Hole Diameter
- 12mm
- Overall Height
- 162mm
Will it fit?
- Bolt hole121/105 x 80/59mm (slotted)
- Overall height162mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs
Scene Shifter Castor

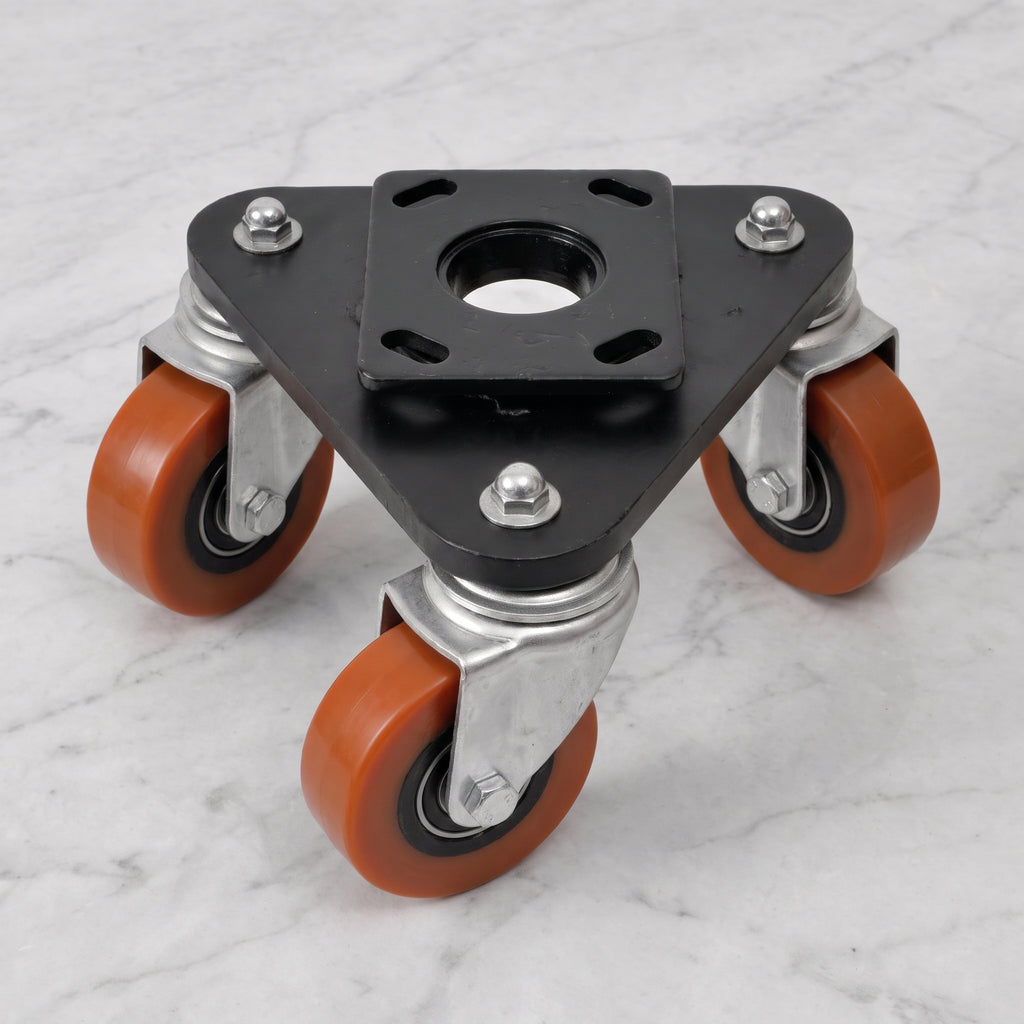

This 100mm scene shifter castor mounts three swivel castors with orange polyurethane on aluminium wheels under one strong black steel triangular frame, carrying up to 460kg per unit. It is built to move heavy stage sets, trucks and platforms smoothly in any direction with very little effort.
A swivelling 150 x 110mm top plate with slotted 12mm holes bolts flat under the set or platform, while the three ball bearing wheels share the load and roll quietly across stage floors. Polyurethane treads protect painted decks and give a smooth, controlled push.
Why Choose This Castor
- ✓ 460kg load capacity per scene shifter
- ✓ Three wheels spread the load and turn easily under weight
- ✓ Orange polyurethane on aluminium wheels: quiet and floor friendly
- ✓ Ball bearings for smooth, low effort movement
- ✓ Swivelling 150 x 110mm top plate with dual slotted hole centres
- ✓ Strong black steel triangular frame
Load capacity is per scene shifter unit. For a set of four, allow for uneven floors by planning on three units carrying the load.
Where It Works Best

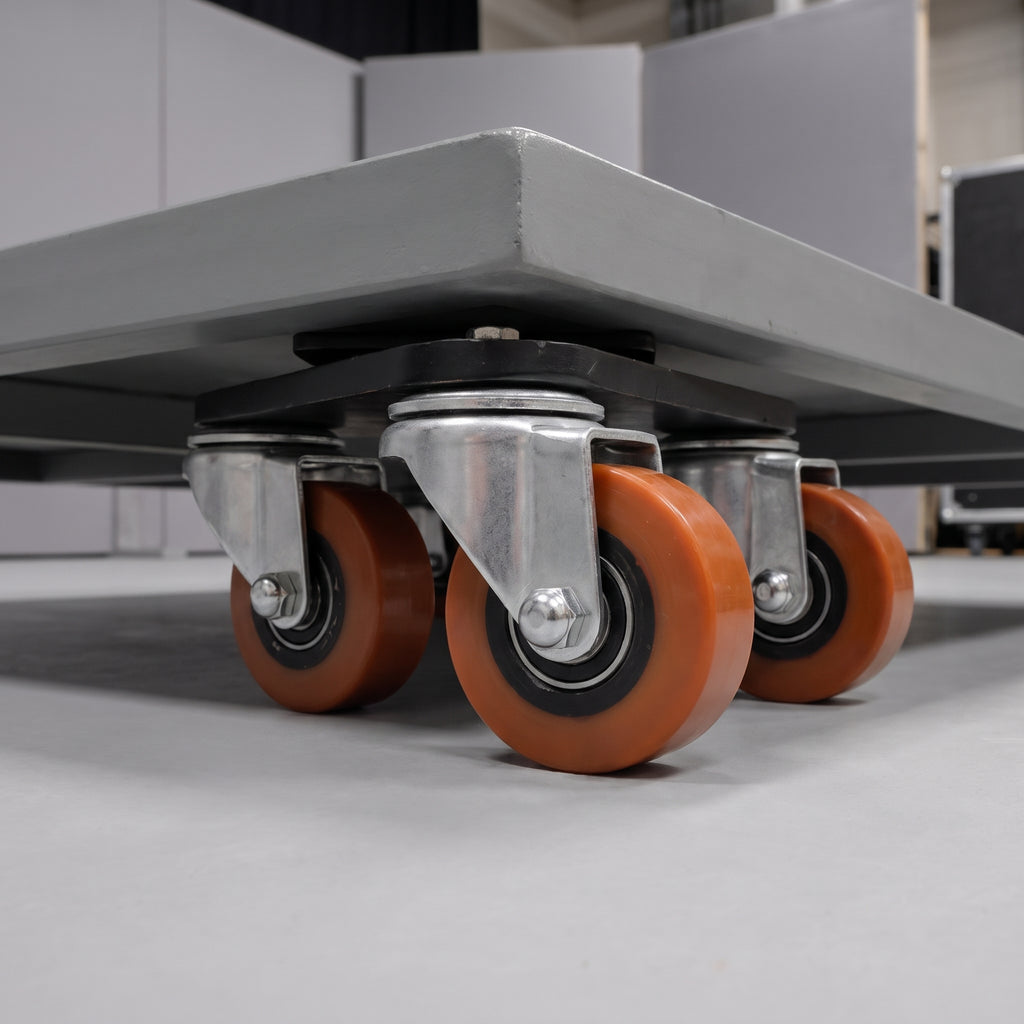

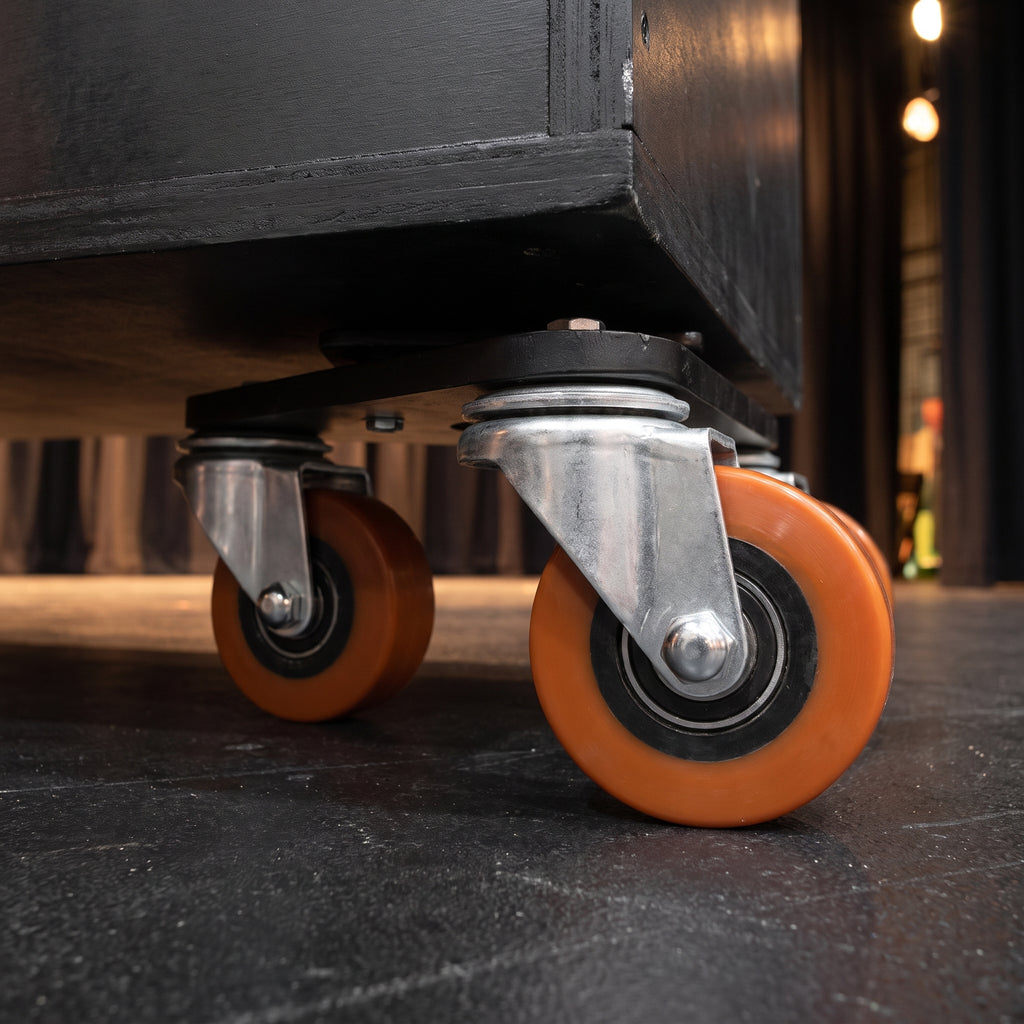

Theatre and stage scenery trucks, rolling stage platforms and risers, TV and film studio sets, exhibition stands, heavy display units and any large structure that must be pushed smoothly in any direction. Best on smooth stage decks, sealed concrete and vinyl floors.
Frequently Asked Questions
What is a scene shifter castor?
It is a heavy duty castor unit with three swivel wheels under one frame and a swivelling top plate. The three wheels share the load and make large sets easy to steer in any direction.
How much weight can it carry?
Each scene shifter is rated at 460kg. A set of four is best used for loads up to around 1380kg, allowing for uneven floors.
How is it fitted?
The 150 x 110mm top plate has four 12mm slotted holes on 121/105 x 80/59mm centres. Use M10 or M12 bolts through the base of your set or platform.
Will the wheels mark a stage floor?
The orange polyurethane treads are non-marking on most painted and sealed floors and run much more quietly than nylon or steel wheels.
How tall is it once fitted?
The overall height from floor to top plate is 162mm.
