- Load per castor27 kg
- Wheel diameter50 mm
- Overall height64 mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Plain
- Load Capacity
- 27 kg
- Tread Width
- 22 mm
- Load Capacity Dynamic
- 22 kg
- Max Load Capacity of 4 Castors
- 66 kg
- Plate Length
- 67 mm
- Plate Width
- 45 mm
- Plate Hole Centres Length
- 54 mm
- Plate Hole Centres Width
- 25 mm
- Plate Hole Diameter
- 6 mm
- Total Castor Height
- 64 mm
- Wheel Colour
- Blue
- Wheel Diameter
- 50 mm
- Wheel Material
- Rubber on Polypropylene
Will it fit?
- Top plate67 mm × 45 mm
- Hole centres54 mm × 25 mm
- Fixing holeØ 6 mm
- Overall height64 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

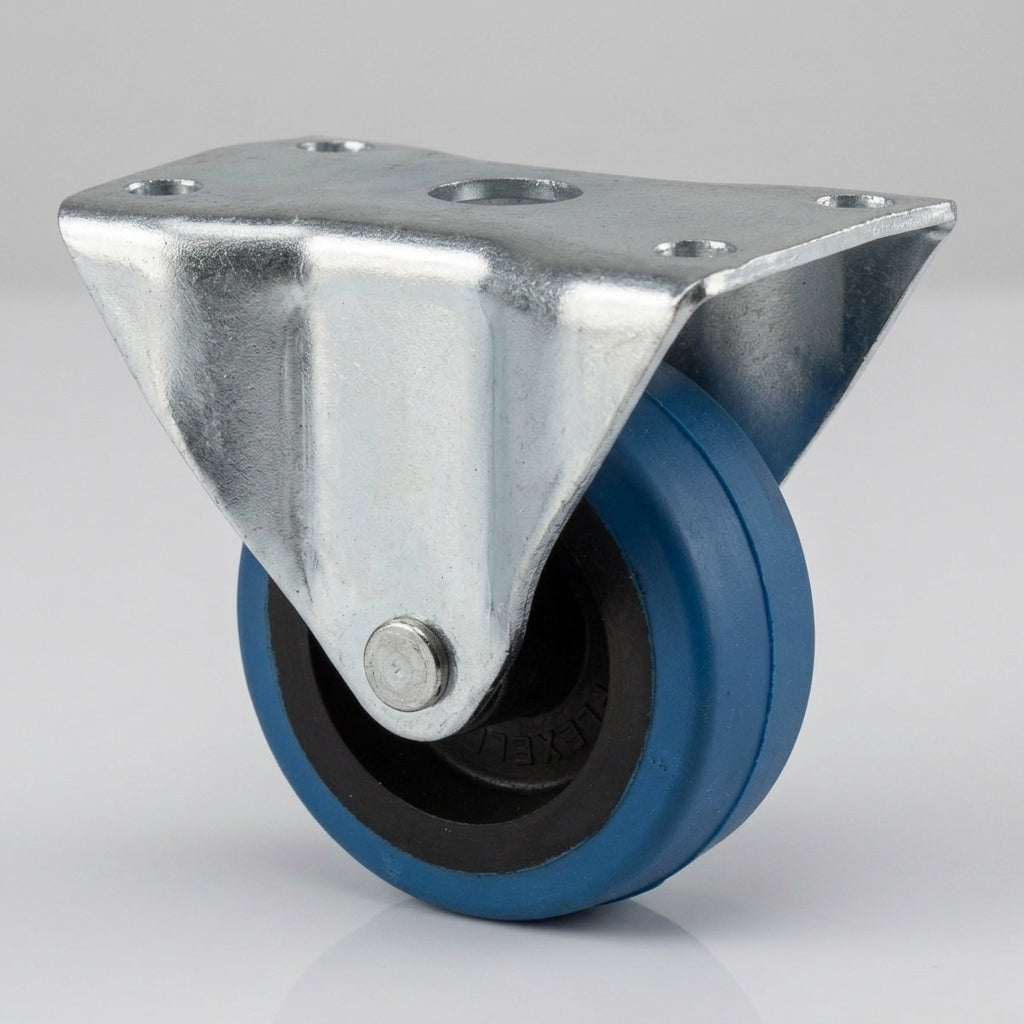

The 50mm fixed castor with a blue rubber wheel is expertly designed for smooth, stable movement of light-duty loads in commercial, office, and workshop settings. With a robust load capacity of 27 kg per castor, it is perfect for small trolleys, display units, mobile furniture, and lightweight equipment where controlled movement and floor protection are paramount.
Applications
This versatile castor is ideal for:
- Light-duty trolleys and carts
- Display and retail units
- Mobile furniture and fixtures
- Office and workshop equipment
Frequently Asked Questions
The 50mm fixed castor has a load capacity of 27 kg per castor.
Yes, the rubber tread is designed to protect floor finishes and minimize noise, making it suitable for tiles, vinyl, and laminate.
The fixed design ensures stable, straight-line movement, ideal for lightweight loads.
Yes, the castor features a top plate design that simplifies installation on various surfaces.
The wheel diameter is 50mm, making it suitable for various light-duty applications.
The rubber on polypropylene provides effective shock absorption and reduces vibration during use, enhancing overall performance.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
