- Load per castor2950 kg
- Wheel diameter250 mm
- Overall height368 mm
- WheelPolyurethane on Cast Iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Bearing Type
- Taper Roller
- Load Capacity
- 2950 kg
- Tread Width
- 76 mm
- Temperature Range
- -20°C to +80°C
- Max Load Capacity of 4 Castors
- 8850 kg
- Plate Length
- 178 mm
- Plate Width
- 153 mm
- Plate Hole Centres Length
- 127 mm
- Plate Hole Centres Width
- 102 mm
- Plate Hole Diameter
- 16 mm
- Swivel Radius
- 197 mm
- Total Castor Height
- 368 mm
- Wheel Colour
- Red
- Wheel Diameter
- 250 mm
- Wheel Material
- Polyurethane on Cast Iron
Will it fit?
- Top plate178 mm × 153 mm
- Hole centres127 mm × 102 mm
- Fixing holeØ 16 mm
- Overall height368 mm
- Swivel radius197 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -20°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

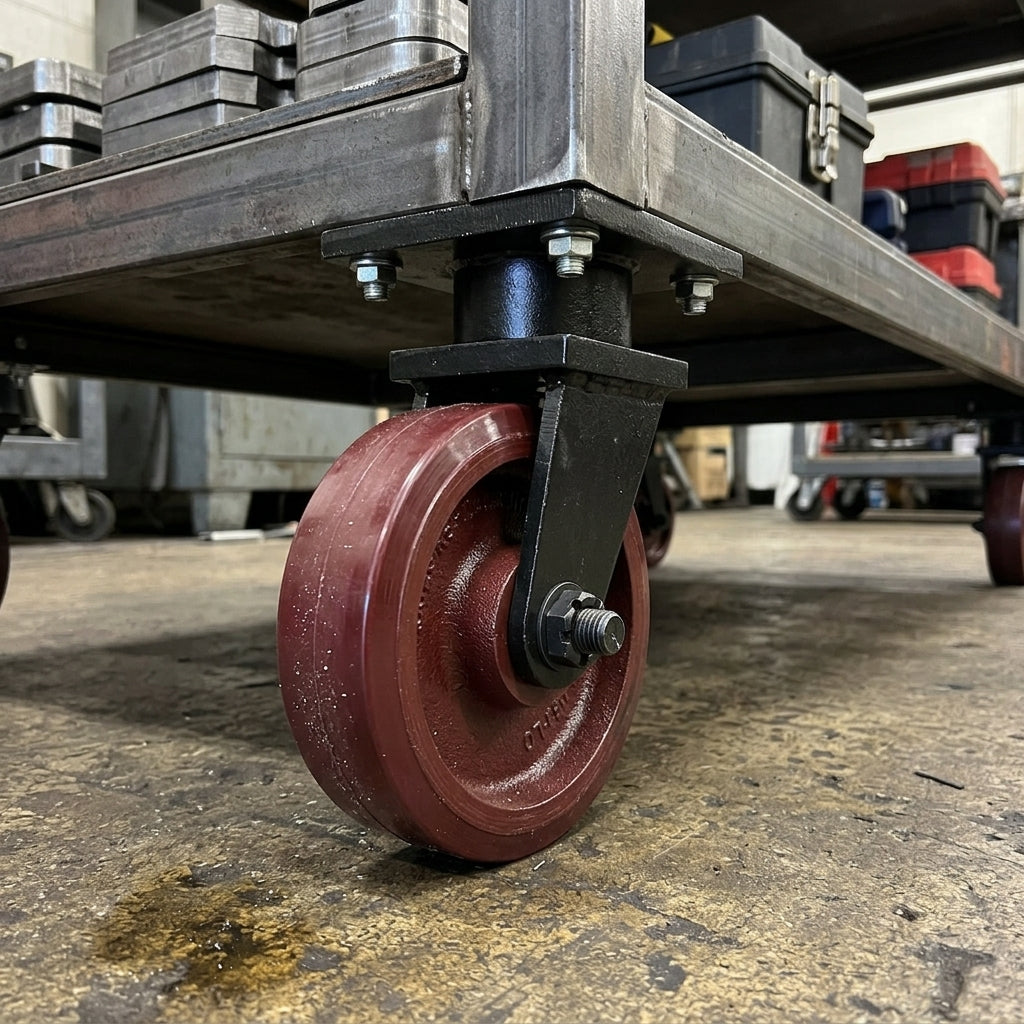

This 250mm swivel castor, featuring a robust red polyurethane tread mounted on a durable cast iron core, is expertly designed for high load applications. With a remarkable load capacity of 2950kg per castor, it is ideal for heavy-duty trolleys, industrial machinery, and material handling carts, ensuring smooth movement on hard surfaces.
Applications
This versatile castor is perfect for:
- Heavy-duty trolleys for transporting substantial loads in warehouses.
- Industrial machinery that requires high load capacity and stability.
- Material handling carts that provide smooth movement on hard surfaces.
- Manufacturing equipment supporting machinery in production environments.
FAQs
What is the load capacity of this castor?
The load capacity is 2950 kg per castor, making it suitable for heavy-duty applications.
What surfaces is this castor suitable for?
This castor is designed for smooth, hard surfaces, providing excellent grip and stability.
Can this castor be used in outdoor environments?
Yes, the temperature range of -20°C to +80°C allows for outdoor use in various conditions.
How is the castor mounted?
The castor is mounted using a top plate, ensuring a secure attachment to various equipment.
What is the swivel radius of this castor?
The swivel radius is 197 mm, facilitating easy maneuverability.
Is this castor suitable for industrial use?
Absolutely, it is specifically engineered for high load applications in industrial settings.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
