- Load per castor100 kg
- Wheel diameter80 mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Plain
- Load Capacity
- 100 kg
- Tread Width
- 30 mm
- Temperature Range
- -40°C to +80°C
- Max Load Capacity of 4 Castors
- 300 kg
- Plate Length
- 100 mm
- Plate Width
- 85 mm
- Plate Hole Centres Length
- 80 mm
- Plate Hole Centres Width
- 60 mm
- Plate Hole Diameter
- 9 mm
- Swivel Radius
- 52 mm
- Wheel Colour
- White
- Wheel Diameter
- 80 mm
- Wheel Material
- Nylon
Will it fit?
- Top plate100 mm × 85 mm
- Hole centres80 mm × 60 mm
- Fixing holeØ 9 mm
- Swivel radius52 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel · working temperature -40°C to +80°C
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs

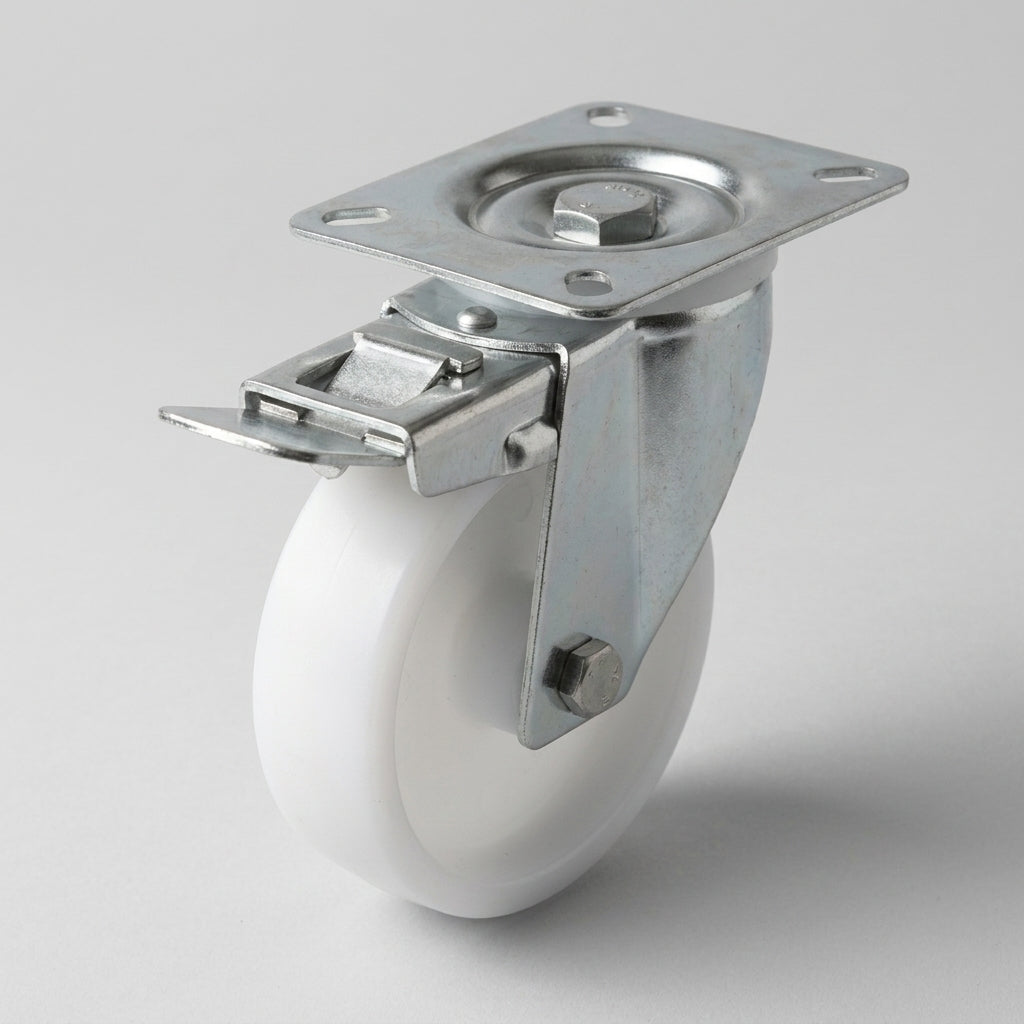

The 80mm Braked Castor with a Nylon Wheel is a vital component designed for applications that demand both mobility and stability. Ideal for environments where heavy loads need to be maneuvered safely, this castor features a robust dynamic load capacity of 100kg, making it perfect for equipment and furniture that require frequent movement. Crafted from high-quality 316 stainless steel, it ensures excellent resistance to corrosion and wear, making it suitable for both indoor and outdoor use.
Applications
This versatile braked castor is perfect for a wide range of applications, including:
- Furniture Mobility: Ideal for chairs, tables, and cabinets requiring easy movement.

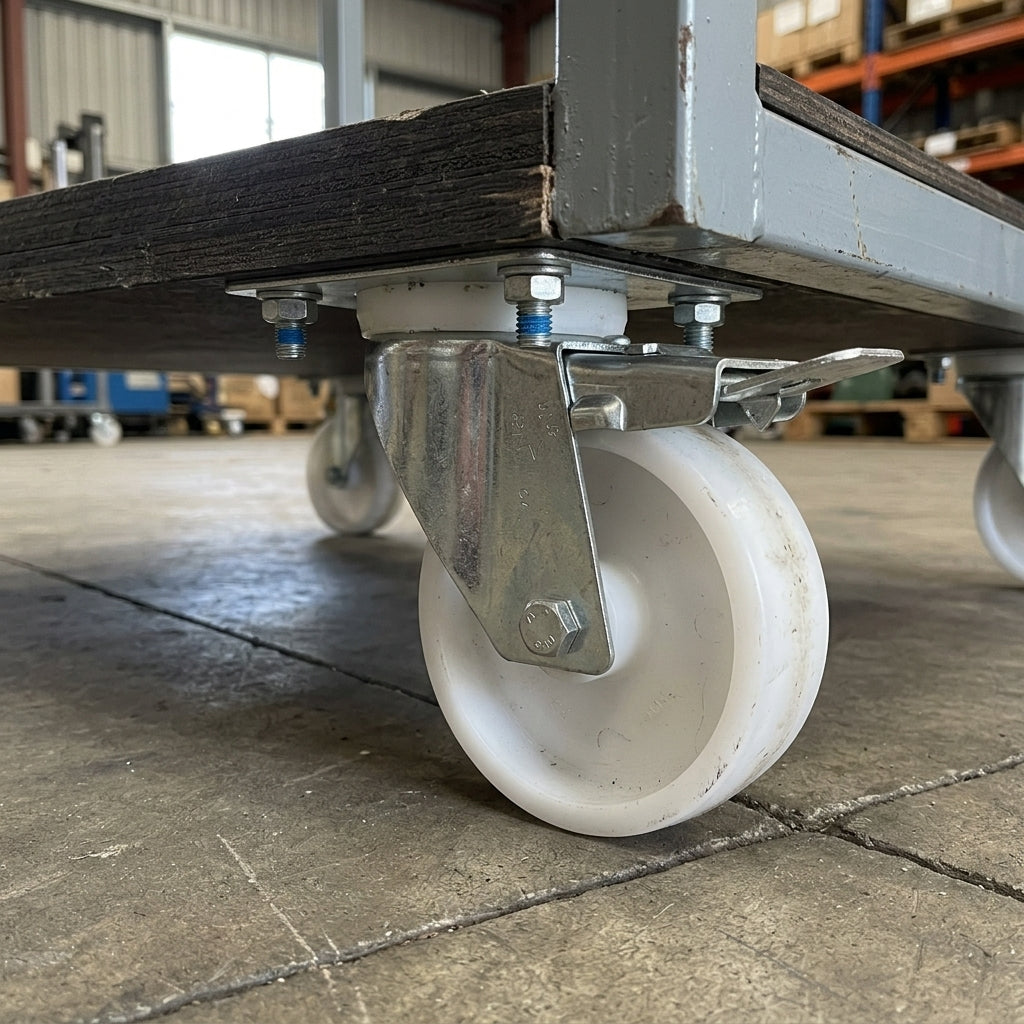

- Industrial Equipment: Suitable for trolleys and carts in warehouses and workshops.
- Medical Equipment: Effective for hospital beds and mobile medical devices.
- Retail Displays: Useful for movable display units in shops and exhibitions.
FAQs
The 80mm braked castor has a load capacity of 100 kg, making it suitable for heavy equipment and furniture.
Yes, the 316 stainless steel construction provides excellent corrosion resistance, making it ideal for outdoor use.
This castor operates effectively in temperatures ranging from -40°C to +80°C.
The integrated brake secures the castor in place, preventing unintended movement when stationary.
The nylon wheel provides smooth rolling on various surfaces, making it versatile for different applications.
Yes, with a plate size of 100mm x 85mm, it is compatible with various mounting setups for easy installation.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
