- Load per castor800 kg
- Wheel diameter200 mm
- Overall height240 mm
- WheelPolyurethane on Aluminium
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Ball Bearing
- Load Capacity
- 800 kg
- Tread Width
- 50 mm
- Temperature Range
- -20°C to +60°C
- Hardness of Tread
- 92 shore A
- Max Load Capacity of 4 Castors
- 2400 kg
- Plate Length
- 140 mm
- Plate Width
- 110 mm
- Plate Hole Centres Length
- 105 mm
- Plate Hole Centres Width
- 80/75 mm
- Plate Hole Diameter
- 10 mm
- Swivel Radius
- 180 mm
- Total Castor Height
- 240 mm
- Wheel Colour
- Yellow
- Wheel Diameter
- 200 mm
- Wheel Material
- Polyurethane on Aluminium
Will it fit?
- Top plate140 mm × 110 mm
- Hole centres105 mm × 80/75 mm
- Fixing holeØ 10 mm
- Overall height240 mm
- Swivel radius180 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -20°C to +60°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

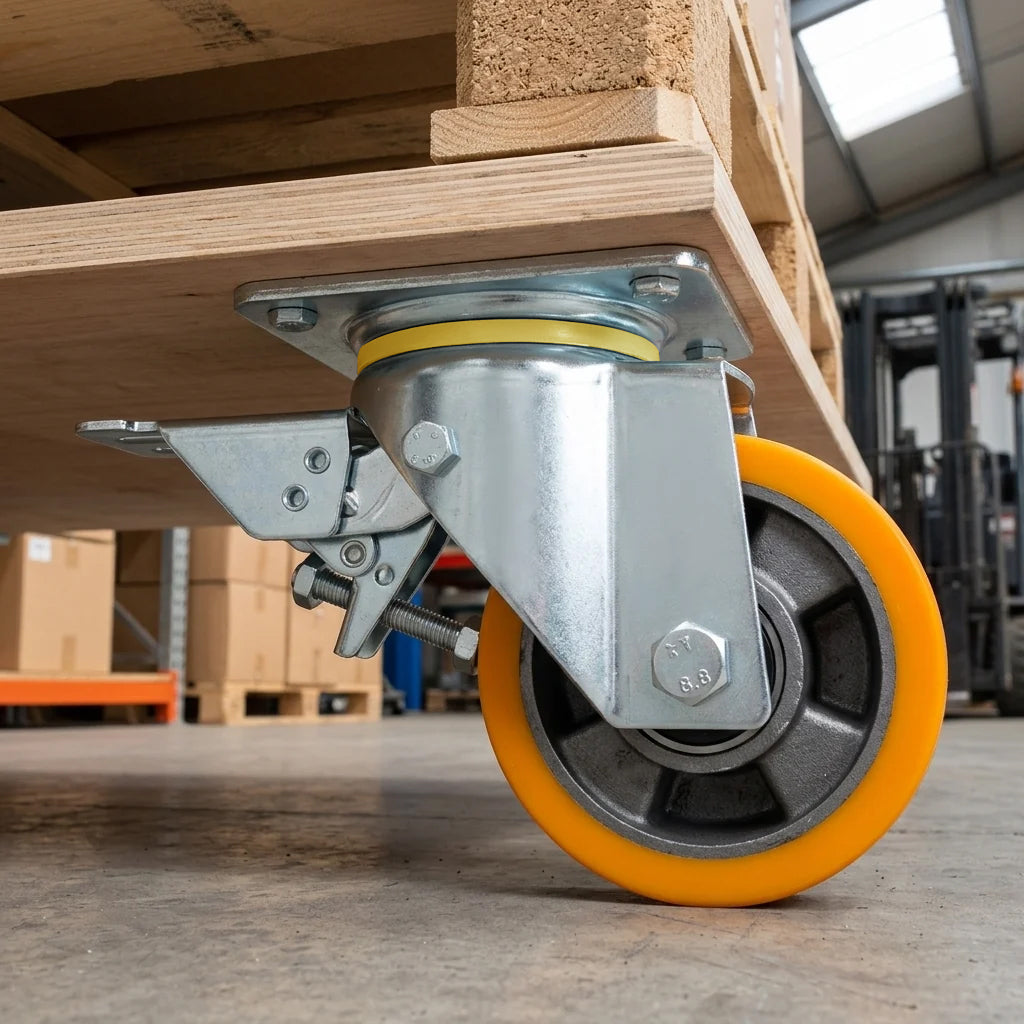

This 200mm heavy-duty braked castor is designed for maximum control and stability in various industrial applications. Featuring a leading brake mechanism, it locks both the wheel and swivel head independently, making it ideal for transporting heavy loads with precision and ease.
Applications
This versatile castor is perfect for a variety of applications, including:
- Warehouse Trolleys: Enhances stability and control for heavy loads.
- Industrial Carts: Facilitates efficient movement of equipment and materials.
- Manufacturing Equipment: Ideal for machinery requiring mobility and secure positioning.
- Hospital Beds: Ensures smooth movement and precise positioning in medical environments.
- Heavy-Duty Workbenches: Allows for easy relocation and secure placement.
FAQs
- What is the load capacity of this castor?
- The load capacity is 800 kg, making it suitable for heavy-duty applications.
- What surfaces is this castor suitable for?
- It is designed for smooth, hard surfaces due to its 92 Shore A tread hardness.
- Can this castor be used in outdoor environments?
- Yes, it operates efficiently within a temperature range of -20°C to +60°C.
- How is this castor mounted?
- The castor is mounted using a top plate for secure attachment to flat surfaces.
- What is the swivel radius of this castor?
- The swivel radius is 180 mm, allowing for easy maneuverability.
- What materials are used in this castor?
- The wheel is made from polyurethane on an aluminium core for strength and resilience.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
