- Load per castor800 kg
- Wheel diameter200 mm
- Overall height240 mm
- WheelPolyurethane on Aluminium
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Ball Bearing
- Load Capacity
- 800 kg
- Tread Width
- 50 mm
- Temperature Range
- -20 min to +60 max
- Hardness of Tread
- A92
- Max Load Capacity of 4 Castors
- 2400 kg
- Plate Length
- 140 mm
- Plate Width
- 110 mm
- Plate Hole Centres Length
- 105 mm
- Plate Hole Centres Width
- 80/75 mm
- Plate Hole Diameter
- 10 mm
- Swivel Radius
- 160 mm
- Total Castor Height
- 240 mm
- Wheel Colour
- Yellow
- Wheel Diameter
- 200 mm
- Wheel Material
- Polyurethane on Aluminium
Will it fit?
- Top plate140 mm × 110 mm
- Hole centres105 mm × 80/75 mm
- Fixing holeØ 10 mm
- Overall height240 mm
- Swivel radius160 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -20 min to +60 max
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

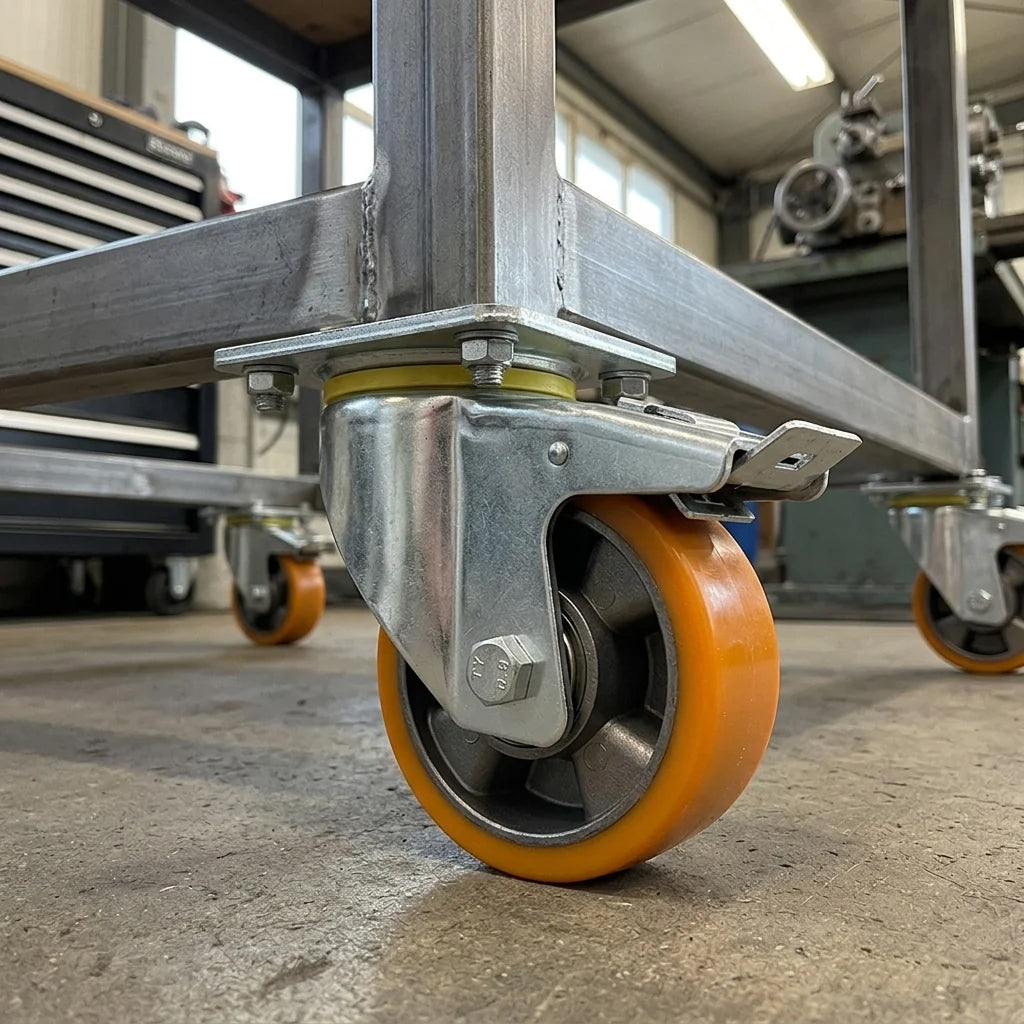

This 200mm braked heavy duty castor is designed for industrial applications where precise control and durability are essential. Featuring a robust polyurethane tread mounted on an aluminium wheel, it offers exceptional strength and performance on smooth, hard surfaces. Ideal for transporting heavy loads, this castor ensures safe and reliable movement in various settings.
Applications
This versatile castor is perfect for:
- Warehouse trolleys for controlled transport of heavy loads.
- Industrial carts requiring high load capacity and braking capabilities.
- Manufacturing equipment that demands stable positioning and mobility.
- Material handling units operating on smooth surfaces.
FAQs
What is the load capacity of this castor?
The load capacity is 800 kg, making it suitable for heavy-duty applications.
Can this castor be used on uneven surfaces?
This castor is designed for smooth, hard surfaces and may not perform optimally on uneven terrain.
What is the significance of the braked mechanism?
The braked mechanism allows for precise control and prevents unintended movement when stationary.
Is this castor suitable for outdoor use?
Yes, it can be used outdoors, provided it operates within the specified temperature range of -20 to +60 degrees Celsius.
How do I install this castor?
The castor is mounted using a top plate, making installation straightforward on flat surfaces.
What maintenance does this castor require?
Regular checks for wear and tear, along with occasional lubrication of the bearings, are recommended for optimal performance.
