- Load per castor200 kg
- Wheel diameter125 mm
- Overall height155 mm
- WheelElectrically Conductive Polyurethane
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Ball Bearing
- Load Capacity
- 200 kg
- Tread Width
- 30 mm
- Temperature Range
- -40°C to +80°C
- Hardness of Tread
- 95 shore A
- Max Load Capacity of 4 Castors
- 600 kg
- Plate Length
- 105 mm
- Plate Width
- 85 mm
- Plate Hole Centres Length
- 80 mm
- Plate Hole Centres Width
- 60 mm
- Plate Hole Diameter
- 8 mm
- Swivel Radius
- 103 mm
- Total Castor Height
- 155 mm
- Wheel Colour
- Grey
- Wheel Diameter
- 125 mm
- Wheel Material
- Electrically Conductive Polyurethane
Will it fit?
- Top plate105 mm × 85 mm
- Hole centres80 mm × 60 mm
- Fixing holeØ 8 mm
- Overall height155 mm
- Swivel radius103 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

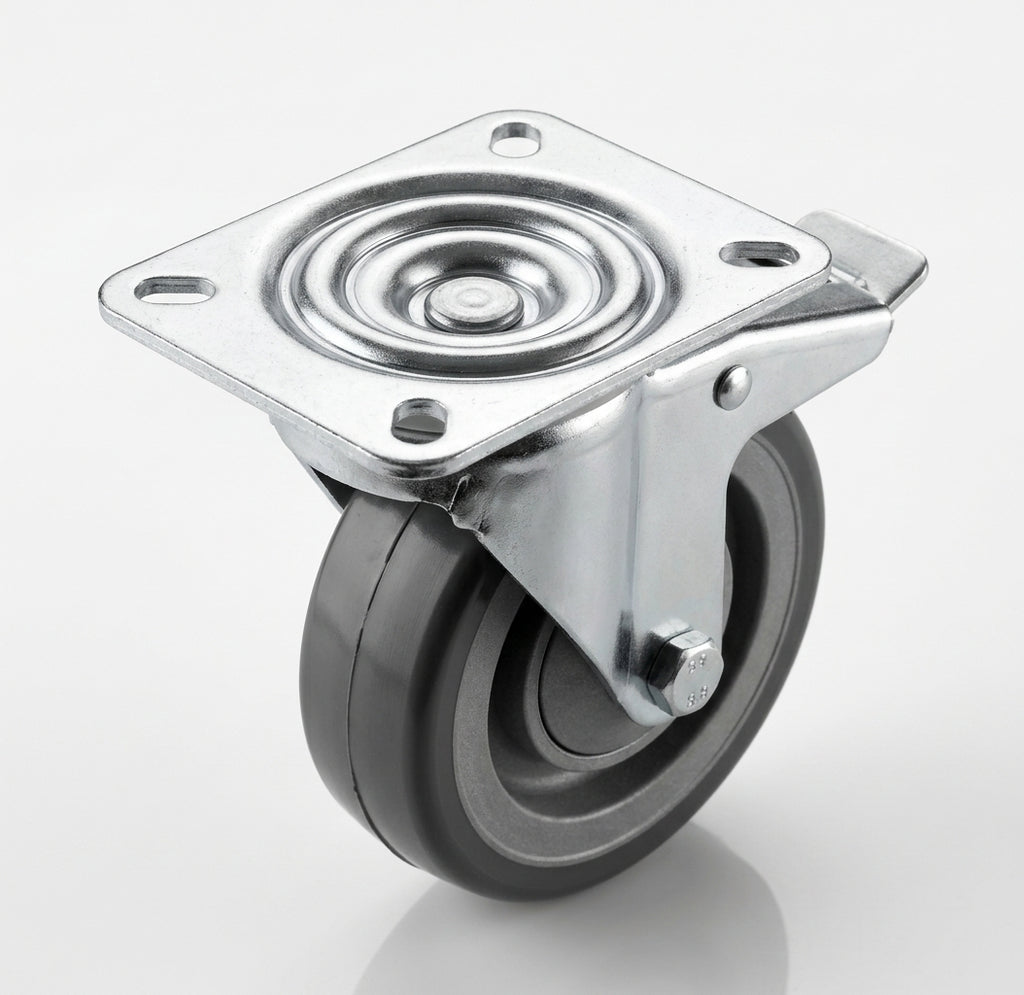

This 125mm electro conductive braked castor is expertly designed for environments where the safe dissipation of static electricity is crucial. Featuring a robust polyurethane wheel with a hardness of 95 shore A, this castor supports a substantial load capacity of 200 kg, making it ideal for various industrial applications.
Applications
This electro conductive braked castor is perfect for use in:
- Electronic Workshops: Safeguarding sensitive components from static discharge.
- Laboratories: Ensuring static control on critical equipment.
- Assembly Lines: Ideal for trolleys transporting delicate electronic parts.
FAQs
- What is the load capacity of this castor?
- The load capacity is 200 kg per castor.
- What type of bearing does this castor use?
- This castor features a ball journal bearing for smooth swivelling and braking.
- What is the hardness of the wheel?
- The wheel has a hardness rating of 95 shore A.
- What temperature range can this castor operate in?
- It operates effectively within a temperature range of -40°C to +80°C.
- Where can I use this electro conductive castor?
- It is suitable for electronic workshops, laboratories, and assembly lines.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
