- Load per castor200kg per castor
- Wheel diameter125mm
- Overall height155mm
- WheelRubber on Polypropylene (non-marking)
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Top Plate Castor
- Wheel Diameter
- 125mm
- Wheel Material
- Rubber on Polypropylene (non-marking)
- Wheel Colour
- Blue
- Tread Width
- 34mm
- Hardness of Tread
- A64
- Bearing Type
- Roller Bearing
- Fixing
- Top Plate
- Plate Size
- 105 x 85mm
- Plate Hole Centres
- 80/77 x 60mm
- Plate Hole Diameter
- 8mm
- Swivel Radius
- 123mm
- Total Castor Height
- 155mm
- Load Capacity
- 200kg per castor
- Temperature Range
- -20°C to +80°C
- Brake
- Yes, locks wheel and swivel head
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +80°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

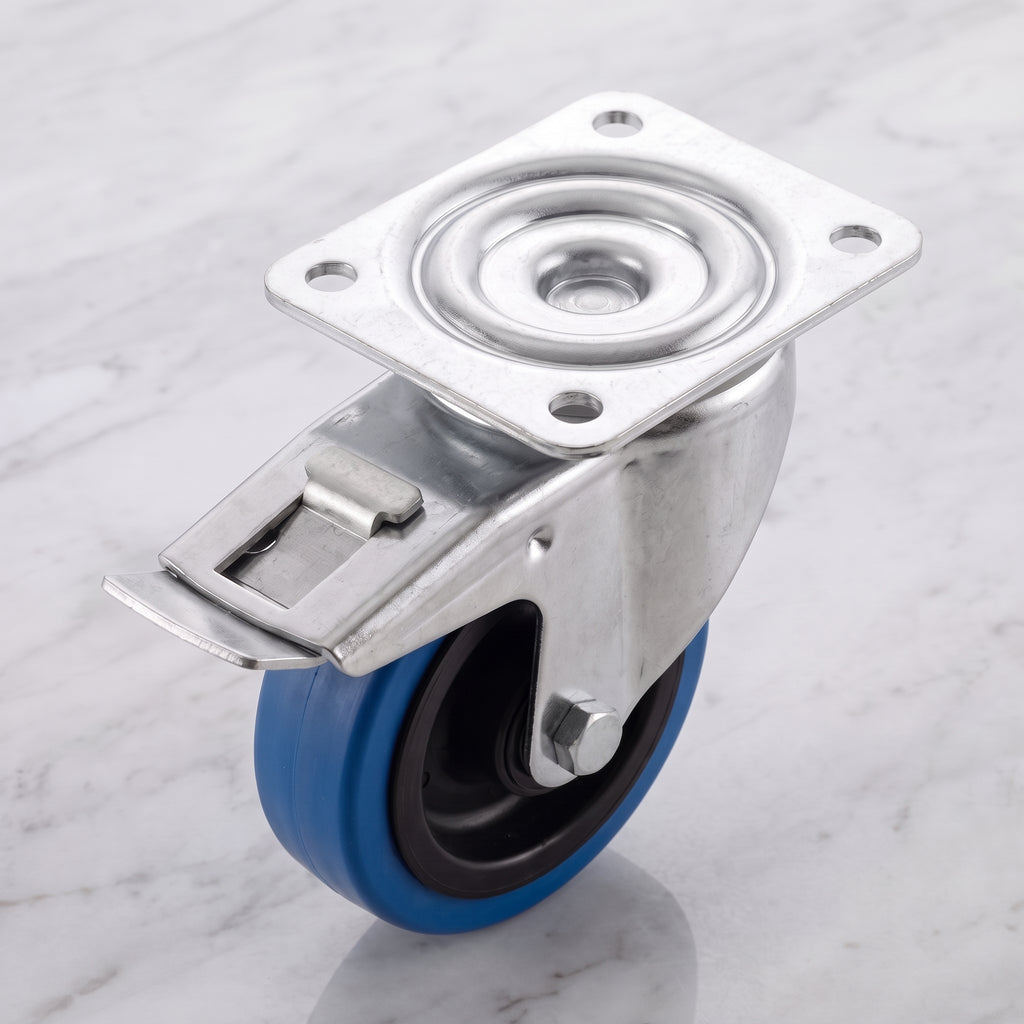

Blue Non-Marking Rubber Castors
This 125mm braked swivel castor has a blue non-marking rubber wheel on a polypropylene centre and is designed for industrial environments where floor protection is crucial. It carries up to 200kg per castor, bolts on with a 105 x 85mm top plate, and its foot brake locks both the wheel and the swivel head, making it ideal for warehouse trolleys, industrial carts, hospital equipment and retail display units.
The A64 rubber tread gives a balance between grip and manoeuvrability, while the roller bearing ensures smooth rotation. With a 155mm total height, a 123mm swivel radius and a 34mm tread, this blue rubber braked top plate castor works from -20°C to +80°C.
Why Choose This Castor
- ✓ Blue non-marking rubber wheel designed for industrial environments where floor protection is crucial.
- ✓ 200kg load capacity per castor for supporting substantial weights.
- ✓ Foot brake locks both the wheel and the swivel head, providing stability when needed.
- ✓ Roller bearing for smooth rotation.
- ✓ A64 tread hardness balances grip and manoeuvrability.
- ✓ 105 x 85mm top plate with four 8mm holes for secure attachment to flat surfaces.
* Load capacity is per castor on a smooth, level floor. Check that the plate size and hole centres match your mounting area before fitting.
Where It Works Best
This braked top plate castor is made for equipment that must move easily, protect floors and then stay put:

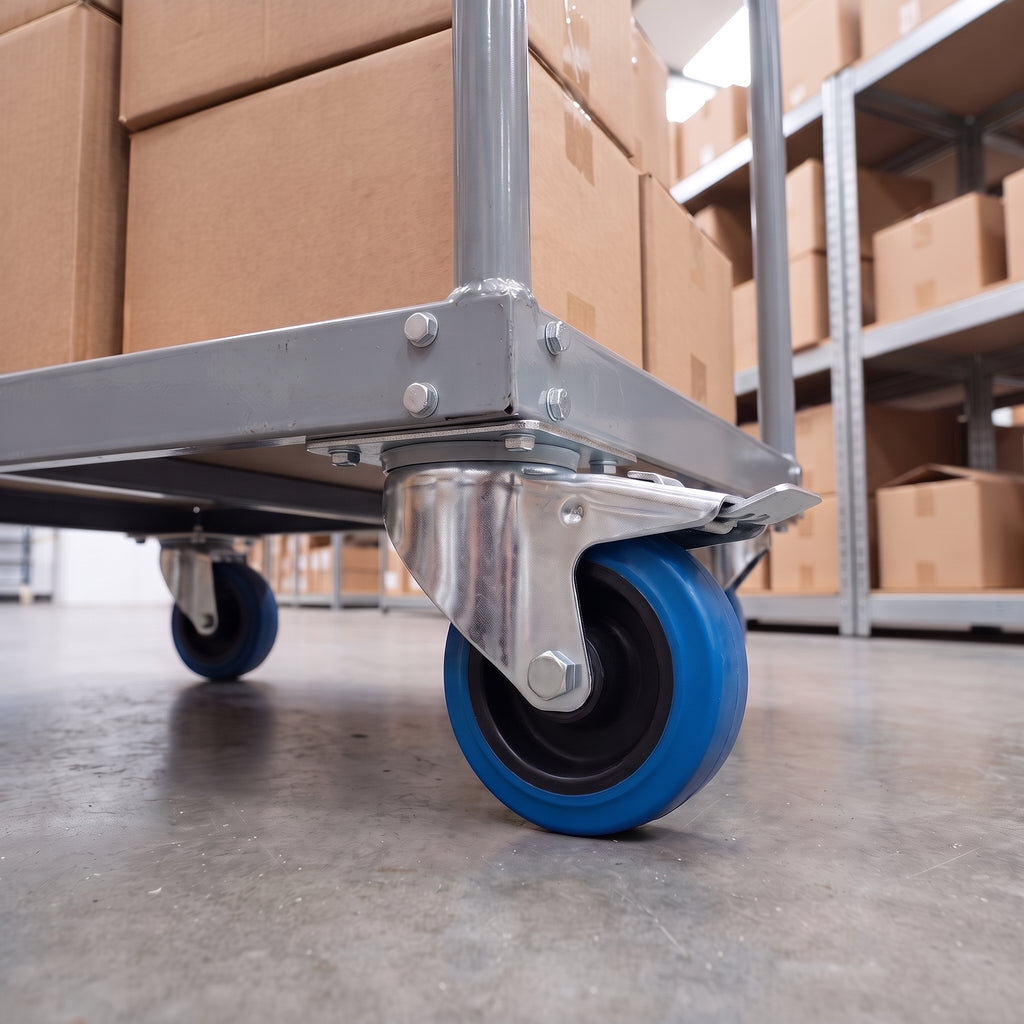

- ✓ Warehouse trolleys: smooth movement and stability for transporting goods.
- ✓ Industrial carts: handling heavy loads with ease.
- ✓ Hospital equipment: non-marking movement on sensitive flooring.
- ✓ Retail display units: easy repositioning of displays.
Frequently Asked Questions
Will the blue wheel mark my floor?
No. The blue rubber wheel is non-marking, so it is a good choice where floor protection is crucial.
How much weight can this castor carry?
Each castor is rated for 200kg.
What does the brake lock?
The foot brake locks both the wheel and the swivel head, so the castor can neither roll nor turn.
What size bolts do I need?
The top plate has four 8mm holes, so it suits M8 bolts. The hole centres are 80/77 x 60mm on a 105 x 85mm plate.
How tall is the castor?
The total castor height is 155mm and the swivel radius is 123mm.
What temperatures can it work in?
The castor is suitable for use from -20°C to +80°C.
