50mm Twin Wheel Swivel Bolt Hole Castor – Black Polypropylene, M10, 60kg

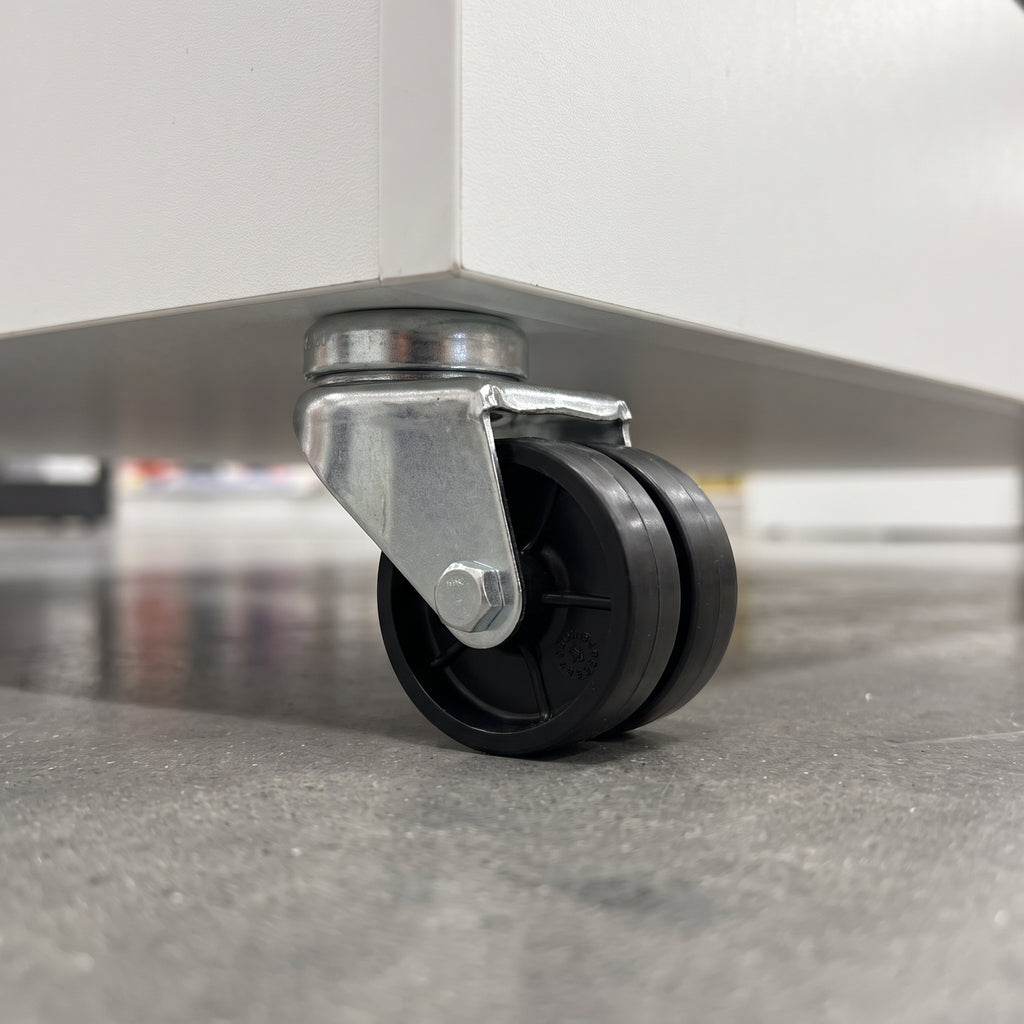

If you are building or repairing light-duty kit that needs to roll smoothly and turn in its own footprint, this is the castor to fit. It is a 50mm twin wheel swivel castor with a single M10 bolt hole fixing, a zinc-plated pressed steel housing and two black polypropylene wheels. Each castor is rated to 60kg, it stands 72mm tall, and it bolts straight into the bottom of a tube leg, a threaded insert or a drilled base with no top plate to line up. Shop fitters, furniture makers and anyone putting wheels on display stands, trolleys or cabinets use it where a neat, low-profile fixing matters.

Why it works

Two wheels instead of one

Splitting the load across two narrow wheels means each wheel turns independently as the castor swivels. That reduces the scrubbing you get from a single wide wheel, so the castor changes direction more easily and puts less wear on the floor. The overall width across both wheels is 38mm, which keeps the castor stable without looking bulky.

Bolt hole fixing

The domed swivel head has one central M10 hole. A single bolt goes up through it into your equipment, so the castor sits directly under a leg with nothing sticking out sideways. It is the tidiest fixing where there is no room for a plate, such as square or round tube legs fitted with threaded inserts.

Polypropylene wheels, zinc-plated housing

Polypropylene is light, hard wearing and does not absorb water, which suits indoor floors that get mopped. The zinc plating protects the steel housing against corrosion in normal indoor conditions.

• 60kg per castor, 180kg for a set of four
• M10 bolt hole, no top plate
• Twin 50mm black polypropylene wheels, plain bearing
• 72mm total height, 58mm swivel radius

Where it's used

Retail display units and shop fittings, light workshop trolleys, mobile cabinets and pedestals, small equipment stands, and furniture that needs to move for cleaning. It suits smooth, hard indoor floors such as vinyl, tiles, sealed concrete and laminate.

Choosing the right option

Check three things before you order. First, the fixing: this castor needs an M10 bolt or threaded insert. If your equipment has a flat base and no threaded fixing, a top plate castor is usually easier to fit. Second, the load: add up the weight of the item and everything it will carry, then divide by three rather than four, because on an uneven floor one castor is often lifted. If the answer is over 60kg, choose a larger castor. Third, the floor: hard polypropylene wheels roll easily but are firmer and noisier than rubber, so for quiet running or delicate floors choose a rubber or polyurethane wheel instead. This castor has no brake; where equipment must stay put, fit braked castors on at least two corners.

Installation, use and care

Fit an M10 bolt of the right length up through the swivel head into the leg or threaded insert, and tighten until the head sits flat and firm. The bolt is not included. Check the fixings after the first few weeks of use, keep the wheels free of threads and debris, and wipe them clean with a damp cloth. Avoid dragging the equipment sideways over steps or thresholds, as shock loads can damage the wheels.

Frequently asked questions

What is the load capacity?
Each castor is rated to 60kg. A set of four is rated to 180kg, because the load is calculated on three castors to allow for uneven floors.

What are the wheels made of?
Both wheels are solid black polypropylene. They are hard wearing and roll easily on smooth indoor floors, but they are firmer than rubber wheels.

How do I fit it?
With one M10 bolt through the central hole in the domed swivel head, straight into your equipment. There is no top plate. The bolt is not supplied.

Does it have a brake?
No. This is a plain swivel castor. Use braked castors where equipment must be held in place.

Ordering and delivery

Sold individually, so order the number of castors you need. Delivery charges are shown at checkout; this product does not have free shipping.
