- Load per castor125 kg
- Wheel diameter50 mm
- Overall height92 mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Footmaster Castors
- Load Capacity Dynamic
- 125 kg
- Load Capacity Static
- 250 kg
- Max Load Capacity for 2 Jacking Castors
- 250 kg
- Plate Length
- 73 mm
- Plate Width
- 73 mm
- Plate Hole Centres Length
- 58 mm
- Plate Hole Centres Width
- 58 mm
- Plate Hole Diameter
- 6.5 mm
- Total Castor Height
- 92 mm
- Wheel Colour
- Black
- Wheel Diameter
- 50 mm
- Wheel Material
- Nylon
Will it fit?
- Top plate73 mm × 73 mm
- Hole centres58 mm × 58 mm
- Fixing holeØ 6.5 mm
- Overall height92 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs

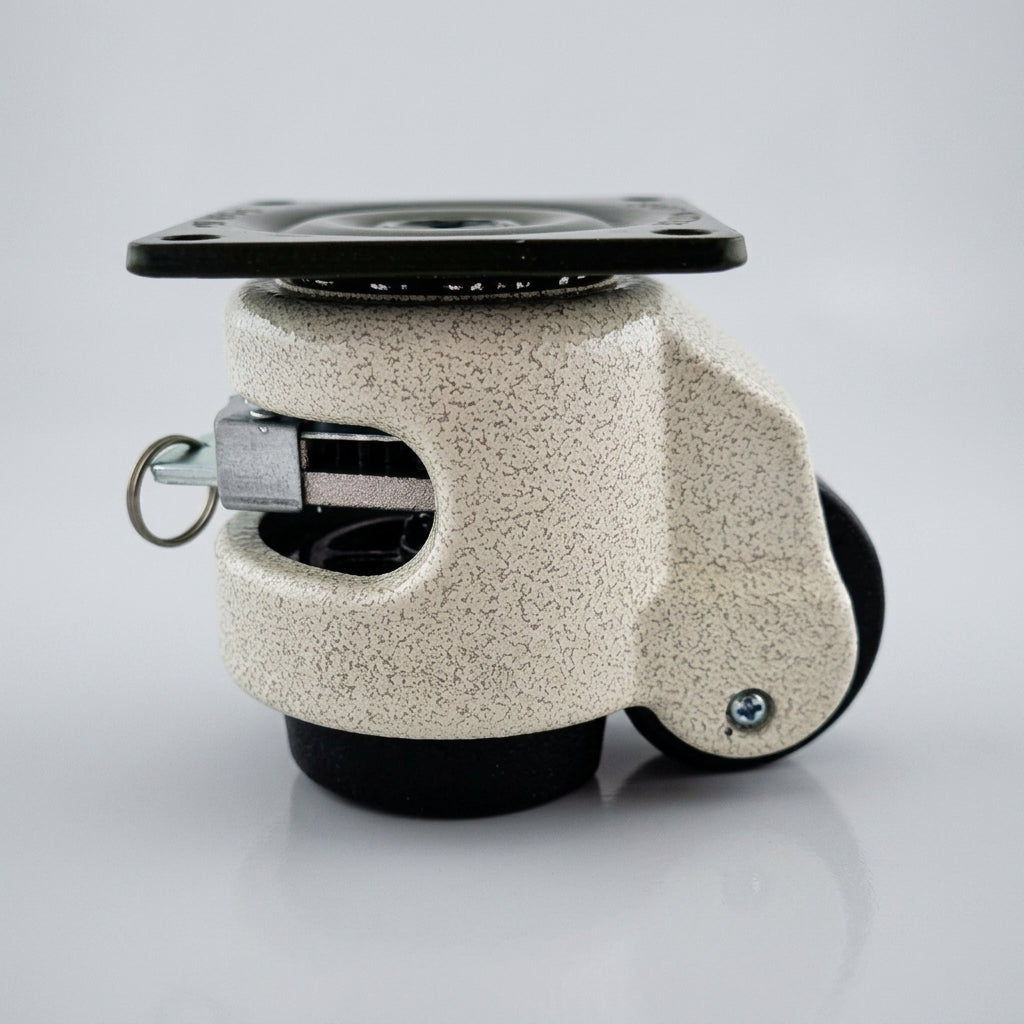

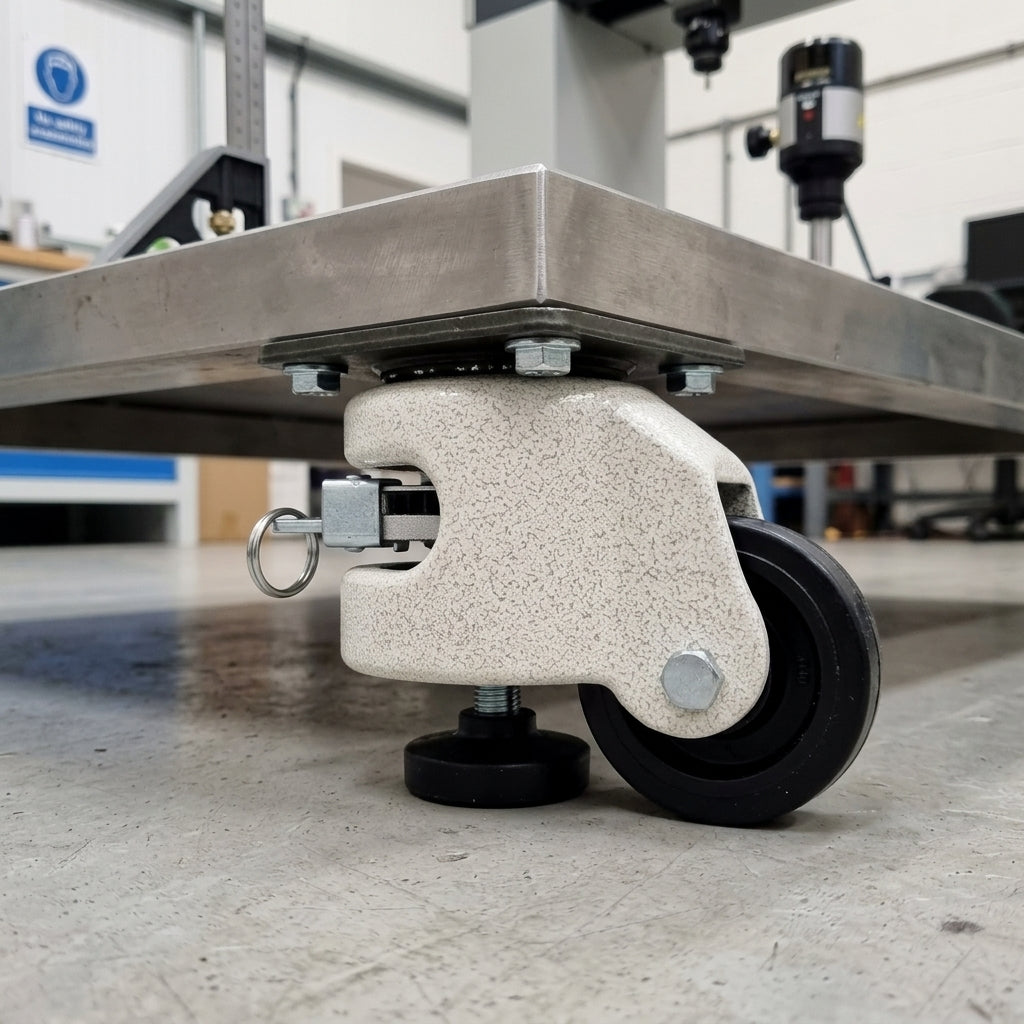

The 50mm Levelling Castor with Ratchet Adjustment is engineered for industrial applications, providing exceptional support and stability on uneven surfaces. Its innovative ratchet adjustment mechanism allows for precise levelling, making it ideal for a wide range of uses, from workshops to laboratories.
Applications
This castor is perfect for various industrial applications, including:
- Supporting machinery and equipment in industrial settings.
- Levelling workbenches and heavy-duty tables in workshops.
- Stabilising lab equipment in laboratories.
FAQs
A: The dynamic load capacity is 125kg, while the static load capacity is 250kg.
Q: Can this castor be used on uneven surfaces?
A: Yes, the ratchet adjustment allows for precise levelling on uneven surfaces.
Q: What material is the wheel made from?
A: The wheel is constructed from durable nylon, suitable for various applications.
Q: What are the dimensions of the plate fitting?
A: The plate dimensions are 73mm x 73mm with hole centres of 58mm.
Q: Is this castor suitable for laboratory use?
A: Yes, it is commonly used for levelling and stabilising lab equipment.
Q: How high is the total castor?
A: The total height of the castor is 92mm.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
