- Load per castor800 kg
- Wheel diameter200 mm
- Overall height240 mm
- WheelCast Iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Roller
- Load Capacity
- 800 kg
- Tread Width
- 45 mm
- Temperature Range
- -20°C to +60°C
- Max Load Capacity of 4 Castors
- 2400 kg
- Plate Length
- 140 mm
- Plate Width
- 110 mm
- Plate Hole Centres Length
- 105 mm
- Plate Hole Centres Width
- 80/75 mm
- Plate Hole Diameter
- 10 mm
- Swivel Radius
- 155 mm
- Total Castor Height
- 240 mm
- Wheel Diameter
- 200 mm
- Wheel Material
- Cast Iron
Will it fit?
- Top plate140 mm × 110 mm
- Hole centres105 mm × 80/75 mm
- Fixing holeØ 10 mm
- Overall height240 mm
- Swivel radius155 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Cast iron / steel wheel · working temperature -20°C to +60°C
- Carries very heavy loads
- Tolerates heat and sharp debris
- Suits concrete, steel and foundry floors
- Noisy
- Will mark or damage finished floors
Details & FAQs

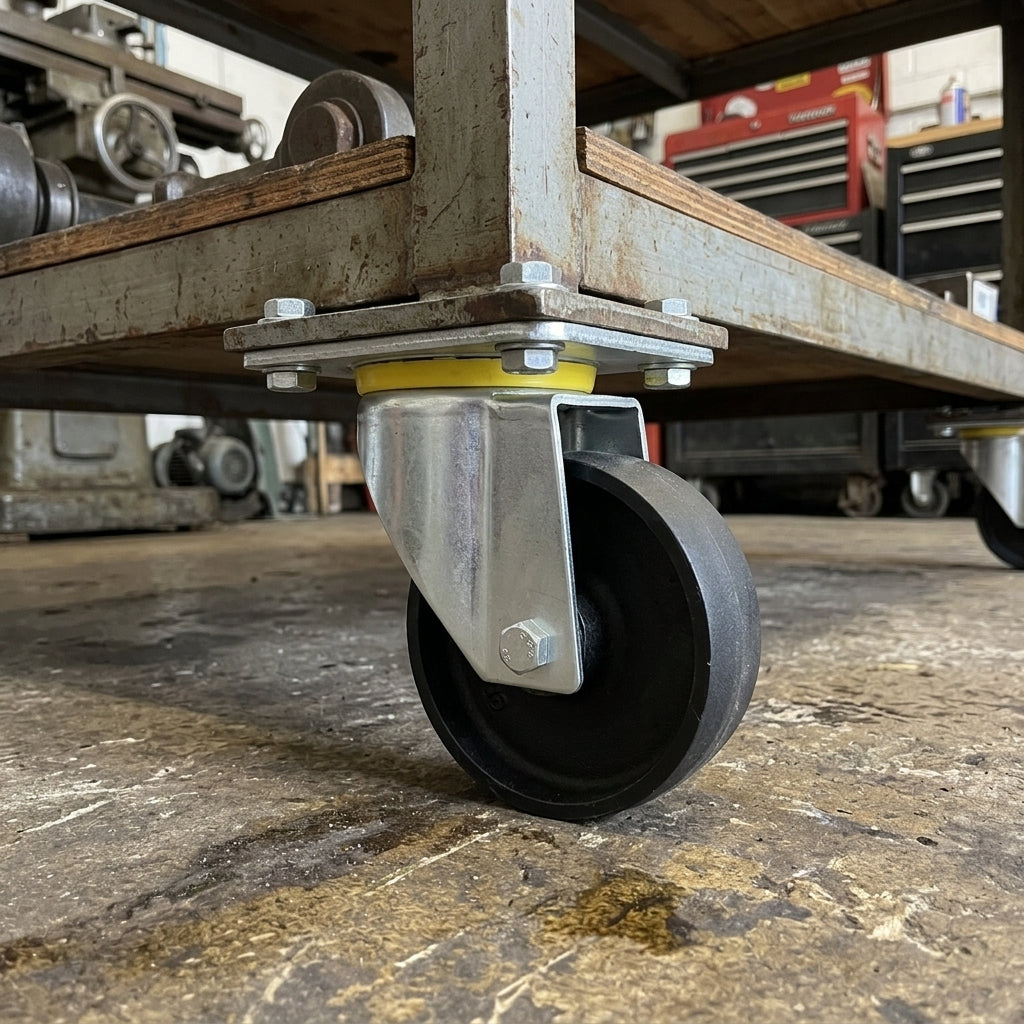

This robust 200mm swivel heavy duty castor is expertly crafted from durable cast iron, designed specifically for industrial applications. With a remarkable load capacity of 800kg, this castor is ideal for transporting substantial materials in various settings, ensuring smooth mobility and reliability.
Applications
This heavy duty castor is ideal for:
- Industrial Trolleys: Efficiently transporting heavy materials.
- Warehouse Carts: Enhancing mobility for goods movement.
- Manufacturing Equipment: Facilitating operational flexibility.
- Heavy Duty Racks: Supporting loaded racks for easy transport.
Frequently Asked Questions
- What is the load capacity of this castor? The 200mm swivel heavy duty castor can support up to 800kg.
- Can this castor be used outdoors? Yes, it is suitable for various environments, including outdoor use.
- How do I install this castor? The castor features a top plate for secure attachment to flat surfaces.
- What is the swivel radius of this castor? The swivel radius is 155mm, allowing for easy maneuverability.
- Is the wheel resistant to temperature changes? Yes, it operates effectively within a temperature range of -20°C to +60°C.
- What type of bearing does this castor use? It is equipped with roller bearings for smooth rotation.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
