- Load per castor400 kg
- Wheel diameter200 mm
- Overall height236 mm
- WheelPolyurethane on Nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Roller
- Load Capacity
- 400 kg
- Tread Width
- 50 mm
- Temperature Range
- -40 min to +80 max
- Hardness of Tread
- D60
- Max Load Capacity of 4 Castors
- 1200 kg
- Plate Length
- 140 mm
- Plate Width
- 110 mm
- Plate Hole Centres Length
- 105 mm
- Plate Hole Centres Width
- 80/75 mm
- Plate Hole Diameter
- 10 mm
- Total Castor Height
- 236 mm
- Wheel Colour
- Red
- Wheel Diameter
- 200 mm
- Wheel Material
- Polyurethane on Nylon
Will it fit?
- Top plate140 mm × 110 mm
- Hole centres105 mm × 80/75 mm
- Fixing holeØ 10 mm
- Overall height236 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40 min to +80 max
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

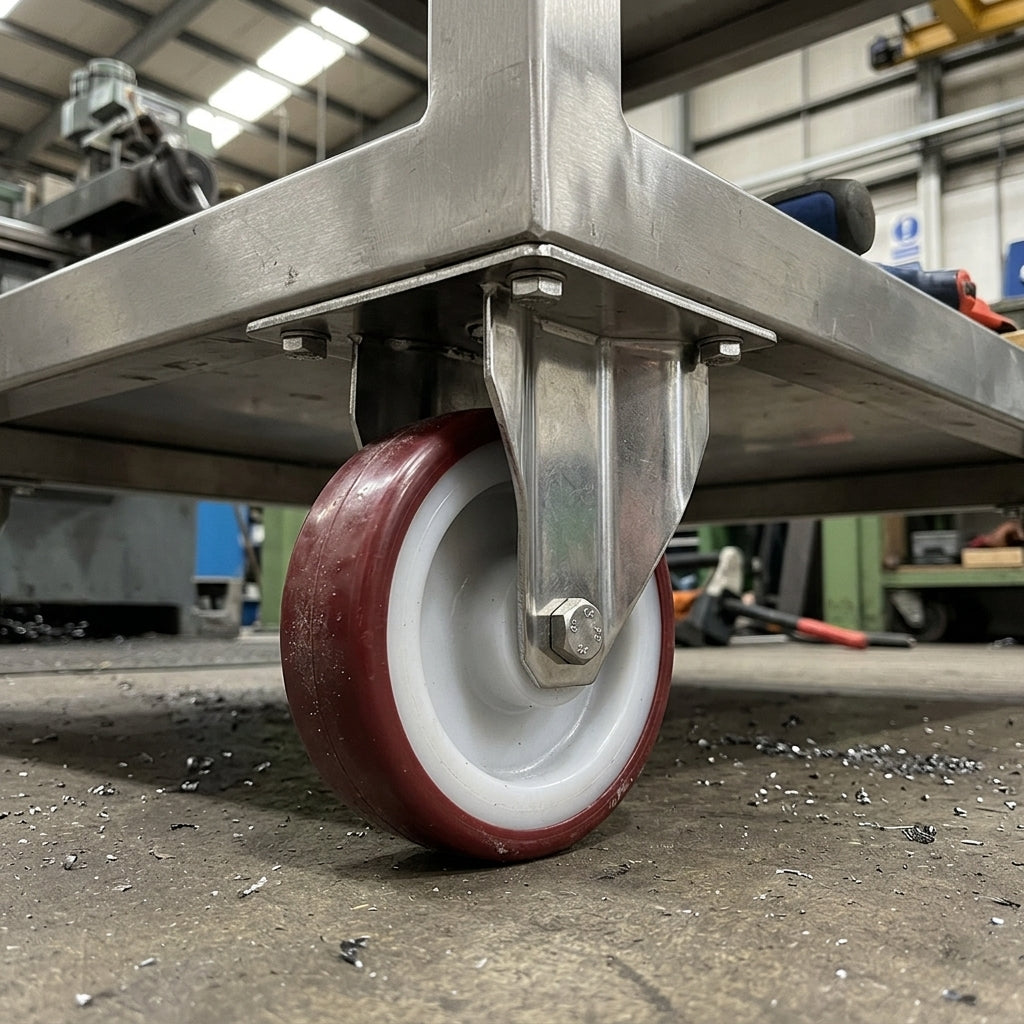

This premium 200mm fixed castor features a durable stainless steel frame paired with a resilient polyurethane wheel, specifically designed for the demanding food manufacturing sector. With a remarkable load capacity of 400kg per castor and a maximum load capacity of 1200kg when using four castors, it is ideal for facilitating the movement of heavy equipment and machinery in various industrial applications.
Applications
These castors are perfect for:
- Food Manufacturing: Essential for transporting equipment and materials within food processing facilities.
- Warehouse Logistics: Facilitating the movement of heavy carts and trolleys in storage areas.
- Cleanroom Environments: Suitable for use in areas requiring stringent hygiene standards.
- Industrial Settings: Ideal for various manufacturing processes that require durable and reliable mobility solutions.
Frequently Asked Questions
- What is the load capacity of this castor?
- The castor has a load capacity of 400kg, with a maximum load capacity of 1200kg when using four castors.
- What materials are used in the construction?
- The castor features a stainless steel frame and a polyurethane wheel mounted on a nylon core.
- Can these castors be used in extreme temperatures?
- Yes, they can operate effectively in temperatures ranging from -40°C to +80°C.
- What types of environments are these castors suitable for?
- They are ideal for food manufacturing, warehouse logistics, cleanroom environments, and various industrial settings.
- How do these castors enhance mobility?
- The roller bearing type allows for smooth and effortless movement, making them easy to transport heavy loads.
- What is the tread hardness, and why is it important?
- The tread hardness is D60, providing excellent grip and resilience against the wear and tear of daily use.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
