- Load per castor800 kg
- Wheel diameter200 mm
- Overall height240 mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Ball Bearing
- Load Capacity
- 800 kg
- Tread Width
- 50 mm
- Temperature Range
- -40 min to +80 max
- Hardness of Tread
- D75
- Max Load Capacity of 4 Castors
- 2400 kg
- Plate Length
- 140 mm
- Plate Width
- 110 mm
- Plate Hole Centres Length
- 105 mm
- Plate Hole Centres Width
- 80/75 mm
- Plate Hole Diameter
- 10 mm
- Total Castor Height
- 240 mm
- Wheel Colour
- White
- Wheel Diameter
- 200 mm
- Wheel Material
- Nylon
Will it fit?
- Top plate140 mm × 110 mm
- Hole centres105 mm × 80/75 mm
- Fixing holeØ 10 mm
- Overall height240 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel · working temperature -40 min to +80 max
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs

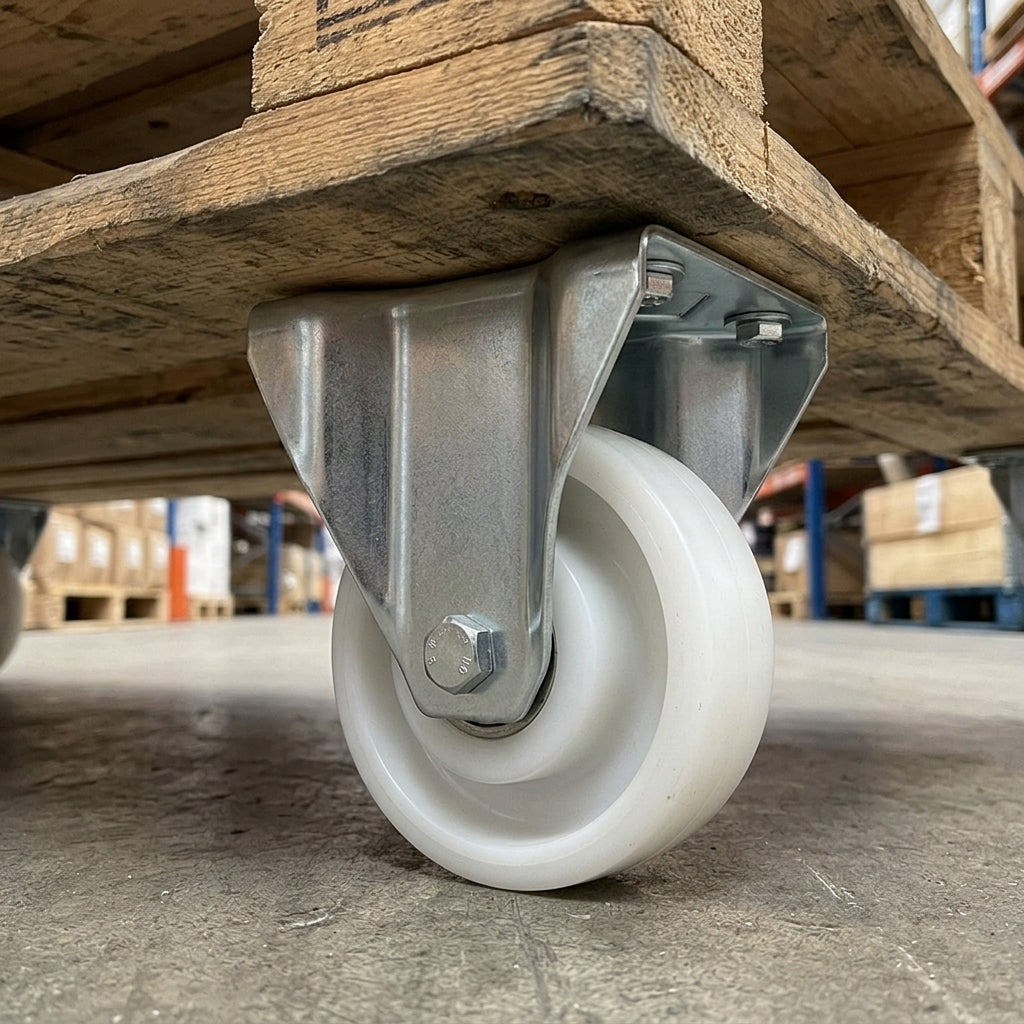

This robust 200mm fixed heavy-duty castor is designed for controlled directional movement, making it ideal for various industrial applications. Featuring a durable nylon wheel, it ensures smooth operation while supporting substantial loads, making it perfect for warehouse trolleys, industrial carts, and machinery bases.
Applications
- Warehouse Trolleys: Ideal for transporting heavy goods across smooth surfaces.
- Industrial Carts: Perfect for carts requiring stable directional movement.
- Machinery Bases: Provides essential support and mobility for heavy machinery.
- Factory Equipment: Suitable for equipment needing reliable load-bearing wheels.
FAQs
- What is the load capacity of this castor?
- The load capacity is 800 kg per castor.
- What surfaces are suitable for this nylon wheel?
- This castor is ideal for smooth surfaces.
- Can this castor be used in outdoor environments?
- Yes, it can operate in temperatures ranging from -40°C to +80°C.
- What is the diameter of the wheel?
- The wheel diameter is 200 mm.
- How is this castor mounted?
- It is mounted using a top plate for a secure fit.
- Is the wheel resistant to deformation?
- Yes, with a tread hardness of D75, it is designed to resist deformation under load.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
