- Load per castor250 kg
- Wheel diameter160 mm
- Overall height196 mm
- WheelHigh Temperature Phenolic
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Plain
- Load Capacity
- 250 kg
- Tread Width
- 40 mm
- Temperature Range
- -40°C to +180°C
- Hardness of Tread
- D85
- Max Load Capacity of 4 Castors
- 750 kg
- Plate Length
- 140 mm
- Plate Width
- 110 mm
- Plate Hole Centres Length
- 105 mm
- Plate Hole Centres Width
- 80/75 mm
- Plate Hole Diameter
- 10 mm
- Swivel Radius
- 170 mm
- Total Castor Height
- 196 mm
- Wheel Colour
- Black
- Wheel Diameter
- 160 mm
- Wheel Material
- High Temperature Phenolic
Will it fit?
- Top plate140 mm × 110 mm
- Hole centres105 mm × 80/75 mm
- Fixing holeØ 10 mm
- Overall height196 mm
- Swivel radius170 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Phenolic wheel · working temperature -40°C to +180°C
- High load capacity
- Handles heat, e.g. oven and bakery trolleys
- Easy to push
- Hard tread is noisy on rough floors
Details & FAQs

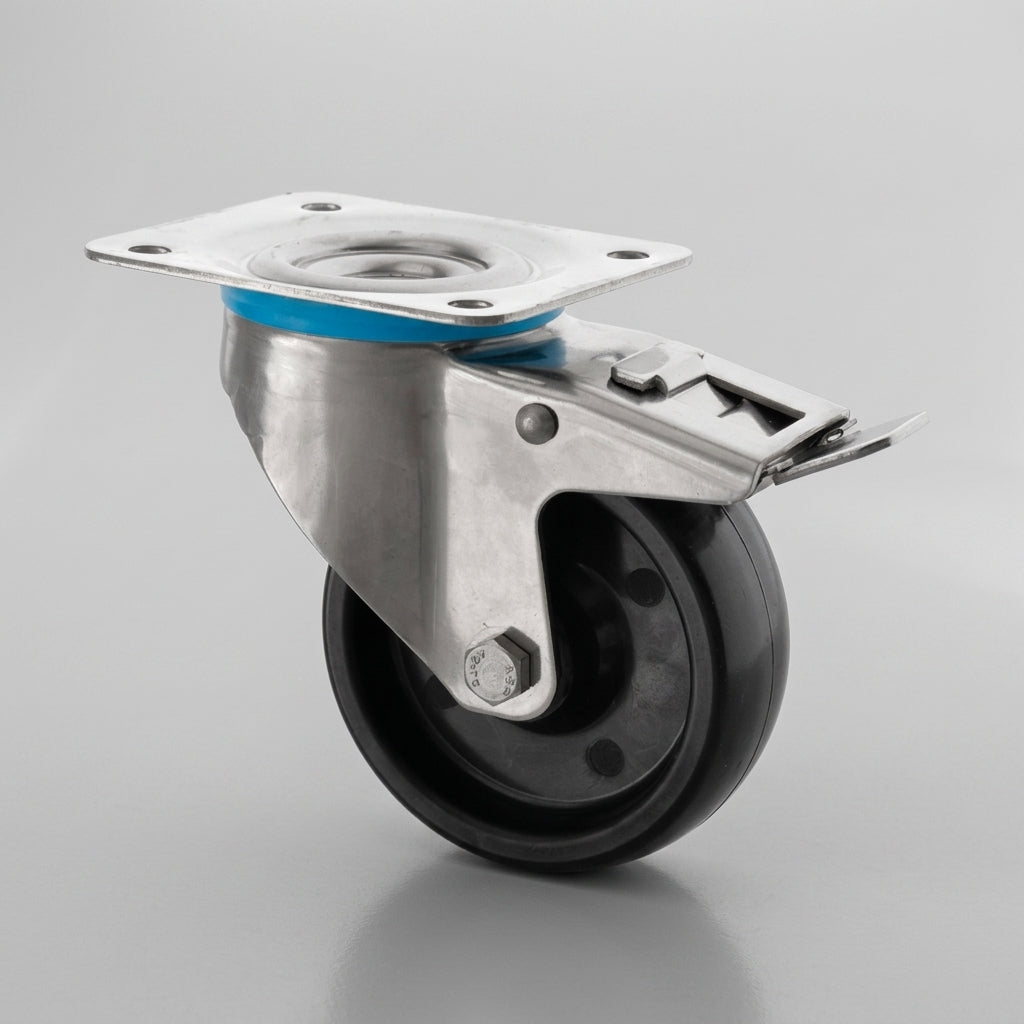

The 160mm Stainless Steel Braked Castor is expertly designed for demanding environments, particularly in food manufacturing and high-temperature applications. Featuring a robust high-temperature phenolic wheel, this castor can efficiently transport heavy equipment and materials, boasting a substantial load capacity of 250kg. The integrated brake feature ensures enhanced control and stability, making it a reliable choice for safe operation in various settings.
Applications
- Food Manufacturing: Perfect for transporting goods in hygienic environments where temperature control is essential.
- Heavy Equipment Mobility: Ideal for moving heavy machinery and carts in warehouses or production areas.
- High-Temperature Environments: Effective in settings where exposure to extreme heat is common.
FAQs
- What is the load capacity of this castor?
- The load capacity is 250 kg, making it suitable for heavy-duty applications.
- Can this castor be used in food manufacturing?
- Yes, it is designed for use in food manufacturing environments, ensuring hygiene and safety.
- What temperature range can this castor handle?
- This castor can operate in temperatures ranging from -40°C to +180°C.
- Is the brake feature easy to use?
- Yes, the integrated brake provides added stability and control when the castor is stationary.
- What material is the wheel made from?
- The wheel is made from high-temperature phenolic, designed to withstand extreme conditions.
- What is the swivel radius of this castor?
- The swivel radius is 170 mm, allowing for easy maneuverability in tight spaces.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
