- Load per castor350kg per castor
- Wheel diameter160mm
- Overall height200mm
- WheelPolyurethane on Nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Top Plate Castor
- Brake
- Acts on both the wheel and the swivel head
- Wheel Diameter
- 160mm
- Wheel Type
- Polyurethane
- Wheel Material
- Polyurethane on Nylon
- Wheel Colour
- Maroon (red)
- Tread Width
- 40mm
- Tyre Hardness
- D60
- Bearing Type
- Roller Bearing
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 137 x 105mm
- Hole Centres
- 105 x 80/75mm
- Hole Diameter
- 10mm
- Swivel Radius
- 167mm
- Total Castor Height
- 200mm
- Load Capacity
- 350kg per castor
- Temperature Range
- -40°C to +80°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

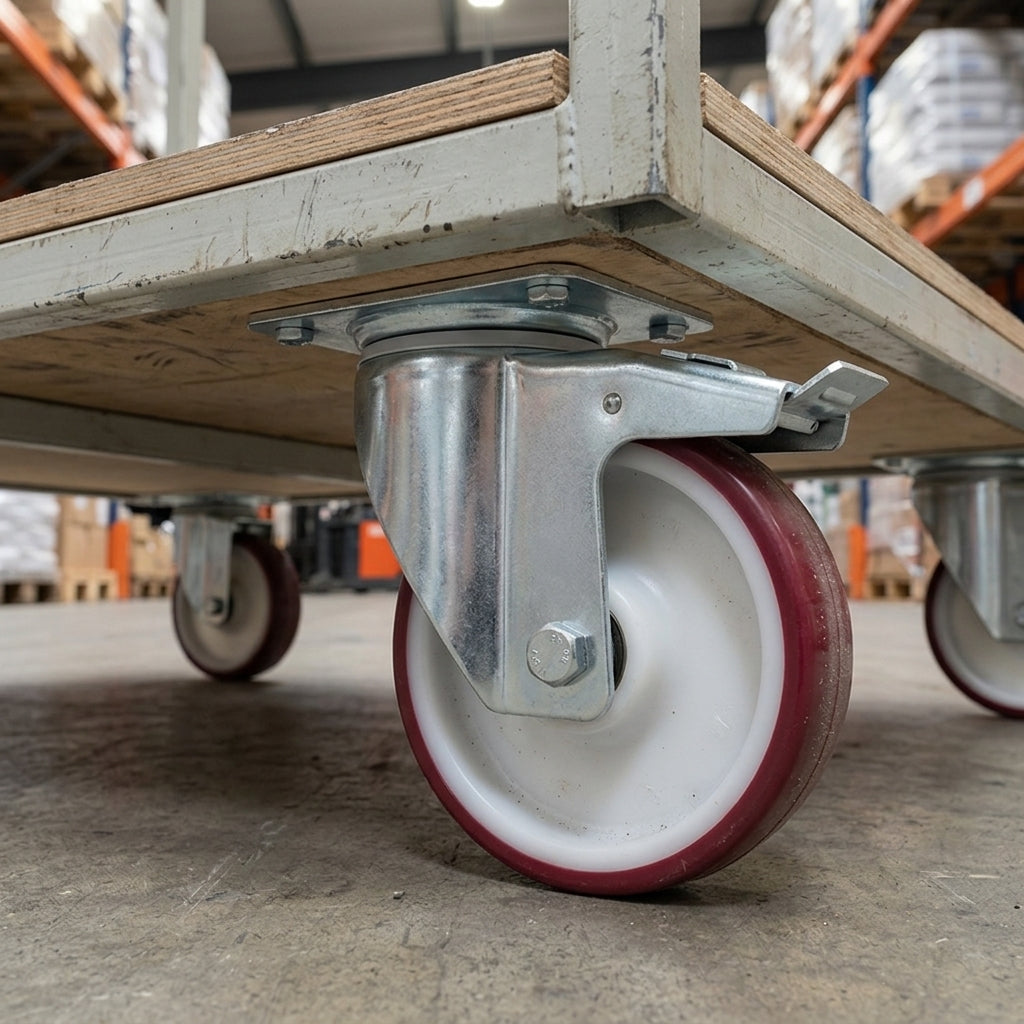

Red Polyurethane Braked Castors
This 160mm braked swivel castor gives controlled movement with a brake that locks both the wheel and the swivel head. Rated at 350kg per castor, it is well suited to industrial settings where reliable support is needed, from warehouse trolleys and industrial carts to material handling equipment and factory machinery.
The maroon-red polyurethane on nylon wheel offers a balance of strength and quiet operation, with a D60 tread hardness and a roller bearing for smooth rotation. The 137 x 105mm top plate gives secure attachment to flat surfaces; the castor has a 167mm swivel radius, stands 200mm tall and works from -40°C to +80°C.
Why Choose This Castor
- ✓ Brake on wheel and swivel head for stability when stationary.
- ✓ Red polyurethane on nylon wheel for a balance of strength and quiet operation.
- ✓ 350kg load capacity per castor for industrial use.
- ✓ Roller bearing for smooth rotation.
- ✓ 160mm wheel with 40mm tread and D60 tread hardness.
- ✓ 137 x 105mm top plate with four 10mm holes.
- ✓ Wide temperature range from -40°C to +80°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and swivel clearance suit your mounting area before fitting.
Where It Works Best
This braked top plate castor suits equipment that needs to move easily and then stay put:
- ✓ Warehouse trolleys: stable and controlled movement.
- ✓ Industrial carts: supporting heavy loads with ease.
- ✓ Material handling equipment: smooth and quiet operation.
- ✓ Factory machinery: reliable support and mobility.
Frequently Asked Questions
What does the brake lock?
The brake acts on both the wheel and the swivel head, so the castor holds its position once the brake is applied.
How much weight can this castor carry?
Each castor is rated for 350kg.
How is the castor fitted?
It has a 137 x 105mm top plate with four 10mm holes on 105 x 80/75mm hole centres, bolted flat to the underside of your trolley, cart or equipment.
How much space does it need to swivel?
The swivel radius is 167mm and the total castor height is 200mm.
What is the wheel made of?
A 160mm maroon-red polyurethane tread on a nylon centre, 40mm wide with D60 hardness, running on a roller bearing.
What temperatures can it work in?
The castor is suitable for use from -40°C to +80°C.
