- Load per castor100 kg
- Wheel diameter125 mm
- Overall height162 mm
- WheelElectrically Conductive Rubber
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Roller
- Load Capacity
- 100 kg
- Tread Width
- 30 mm
- Temperature Range
- -20°C to +60°C
- Hardness of Tread
- A85
- Max Load Capacity of 4 Castors
- 300 kg
- Plate Length
- 90 mm
- Plate Width
- 70 mm
- Plate Hole Centres Length
- 70 mm
- Plate Hole Centres Width
- 50 mm
- Plate Hole Diameter
- 8 mm
- Swivel Radius
- 106 mm
- Total Castor Height
- 162 mm
- Wheel Colour
- Grey
- Wheel Diameter
- 125 mm
- Wheel Material
- Electrically Conductive Rubber
Will it fit?
- Top plate90 mm × 70 mm
- Hole centres70 mm × 50 mm
- Fixing holeØ 8 mm
- Overall height162 mm
- Swivel radius106 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +60°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

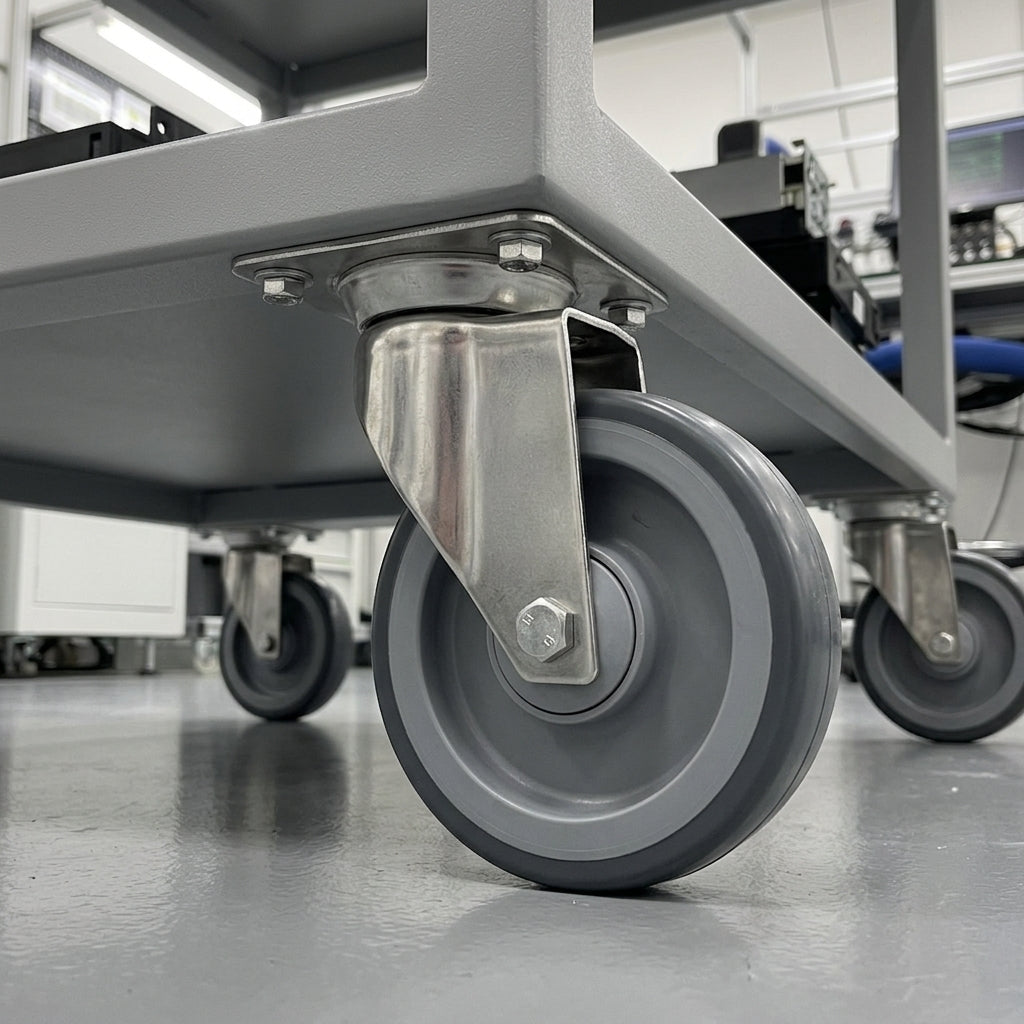

The 125mm Stainless Steel Swivel Castor featuring an ESD Rubber Wheel is designed for optimal performance in environments sensitive to static electricity. This castor is ideal for healthcare facilities, laboratories, and clean rooms, providing safe and efficient mobility for heavy equipment while minimizing the risk of static discharge.
Applications
- Healthcare Facilities: Essential for moving medical equipment safely and efficiently.
- Laboratories: Prevents static accumulation, protecting sensitive instruments and materials.
- Manufacturing: Ideal for transporting goods in assembly lines, ensuring smooth operations.
- Clean Rooms: Supports equipment movement without compromising cleanliness and safety.
Frequently Asked Questions
- What is the load capacity of this castor?
- The load capacity is 100 kg per castor, with a maximum of 300 kg when using four castors together.
- Is this castor suitable for static-sensitive environments?
- Yes, the ESD rubber wheel is designed to dissipate static electricity, making it ideal for such environments.
- What temperature range can this castor operate in?
- This castor operates effectively within a temperature range of -20°C to +60°C.
- Can this castor be used on outdoor surfaces?
- Yes, it is versatile enough for various indoor and outdoor applications.
- What type of bearing does this castor use?
- This castor uses a roller bearing type for enhanced durability and performance.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
