- Load per castor200 kg
- Wheel diameter125 mm
- Overall height155 mm
- WheelElectrically Conductive Polyurethane
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Ball Bearing
- Load Capacity
- 200 kg
- Tread Width
- 30 mm
- Temperature Range
- -40°C to +80°C
- Hardness of Tread
- 95 shore A
- Max Load Capacity of 4 Castors
- 600 kg
- Plate Length
- 105 mm
- Plate Width
- 85 mm
- Plate Hole Centres Length
- 80 mm
- Plate Hole Centres Width
- 60 mm
- Plate Hole Diameter
- 8 mm
- Swivel Radius
- 103 mm
- Total Castor Height
- 155 mm
- Wheel Colour
- Grey
- Wheel Diameter
- 125 mm
- Wheel Material
- Electrically Conductive Polyurethane
Will it fit?
- Top plate105 mm × 85 mm
- Hole centres80 mm × 60 mm
- Fixing holeØ 8 mm
- Overall height155 mm
- Swivel radius103 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

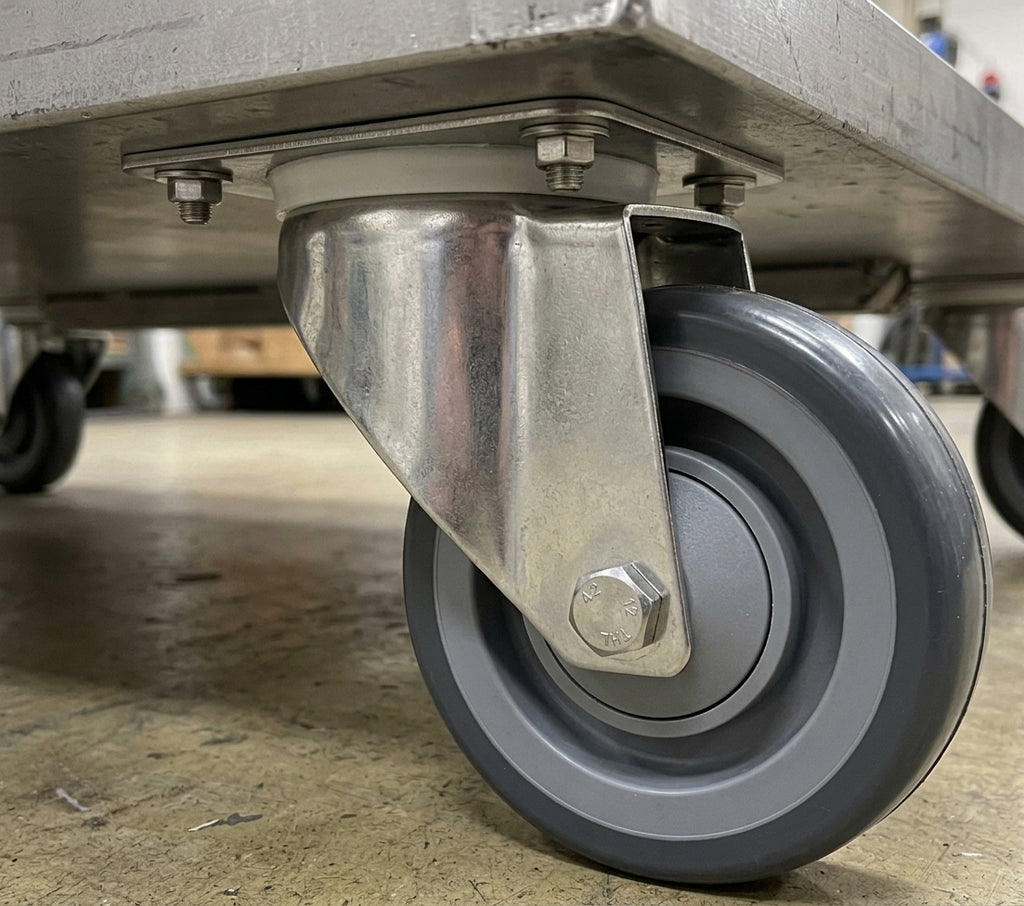

This 125mm diameter Stainless Steel Swivel Castor with ESD Wheel is expertly designed for mobility in environments sensitive to static electricity. Constructed with electrically conductive rubber, it effectively mitigates static charge build-up, making it an ideal choice for electronic manufacturing and assembly areas. With a robust load capacity of 200kg per castor, it ensures reliable support for heavy equipment and tools while facilitating smooth operation across various surfaces.
Applications
- Electronics Manufacturing: Essential for moving sensitive equipment without risking damage from static electricity.
- Industrial Equipment: Ideal for use on trolleys and carts transporting heavy machinery or tools.
- Warehouse Operations: Facilitates the movement of goods in storage areas, enhancing efficiency.
- Laboratories: Useful in environments requiring careful handling of sensitive materials and instruments.
FAQs
A: The castor has a load capacity of 200kg.
A: Yes, it is suitable for temperatures ranging from -40°C to +80°C.
A: The tread hardness of 95 shore A provides a balance of grip and durability for various flooring types.
A: Yes, the electrically conductive rubber reduces the risk of electrostatic discharge, making it safe for sensitive equipment.
A: The 360-degree swivel radius allows for easy maneuverability in tight spaces.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
