- Load per castor200 kg
- Wheel diameter125 mm
- Overall height155 mm
- WheelElectrically Conductive Polyurethane
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Ball Bearing
- Load Capacity
- 200 kg
- Tread Width
- 30 mm
- Temperature Range
- -40°C to +80°C
- Hardness of Tread
- 95 shore A
- Max Load Capacity of 4 Castors
- 600 kg
- Plate Length
- 105 mm
- Plate Width
- 85 mm
- Plate Hole Centres Length
- 80 mm
- Plate Hole Centres Width
- 60 mm
- Plate Hole Diameter
- 8 mm
- Swivel Radius
- 103 mm
- Total Castor Height
- 155 mm
- Wheel Colour
- Grey
- Wheel Diameter
- 125 mm
- Wheel Material
- Electrically Conductive Polyurethane
Will it fit?
- Top plate105 mm × 85 mm
- Hole centres80 mm × 60 mm
- Fixing holeØ 8 mm
- Overall height155 mm
- Swivel radius103 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

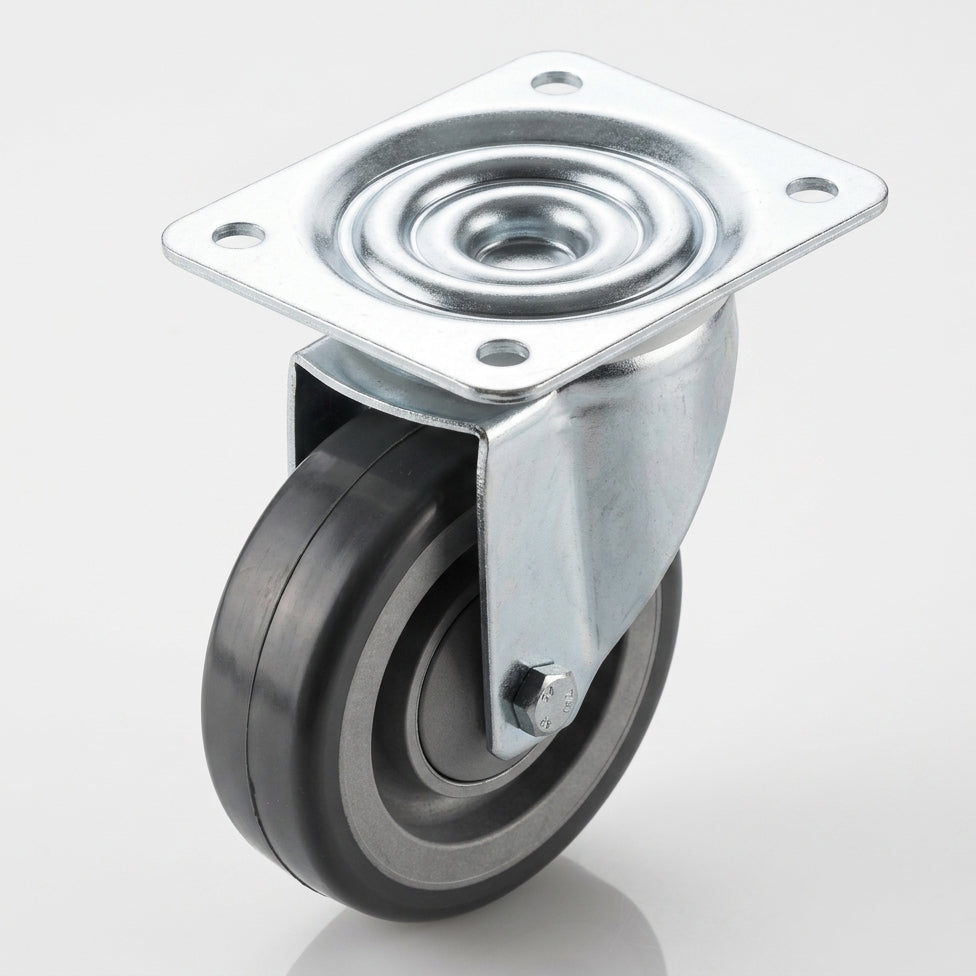

The 125mm Electro Conductive Swivel Castor is expertly engineered to prevent static build-up, making it an ideal choice for environments where electrostatic discharge is a concern. Featuring a durable polyurethane wheel, this castor is designed for a load capacity of 200kg, ensuring reliable performance in various applications.
Applications
This castor is ideal for a variety of applications including:
- Electronic Equipment: Prevents static discharge during movement.
- Laboratory Trolleys: Essential for environments where static control is critical.
- Cleanroom Equipment: Perfect for settings requiring electrostatic discharge prevention.
Frequently Asked Questions
A: The load capacity is 200 kg per castor.
A: Yes, it operates within a temperature range of -40°C to +80°C.
A: The wheel is made from electrically conductive polyurethane.
A: Yes, it is designed to prevent electrostatic discharge, making it suitable for cleanrooms.
A: The swivel radius is 103 mm, allowing for smooth rotation.
A: The plate dimensions are 105 mm in length and 85 mm in width.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
