- Load per castor80 kg
- Wheel diameter100 mm
- Overall height128 mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Bolt Hole Castors
- Bearing Type
- Plain
- Load Capacity
- 80 kg
- Tread Width
- 22 mm
- Temperature Range
- -20 to +60 °C
- Bolt Hole Size
- 12 mm
- Hardness of Tread
- A80
- Max Load Capacity of 4 Castors
- 240 kg
- Swivel Radius
- 80 mm
- Total Castor Height
- 128 mm
- Wheel Colour
- Grey
- Wheel Diameter
- 100 mm
- Bolt Hole Size
- 12 mm
- Wheel Material
- Rubber on Polypropylene
Will it fit?
- Bolt hole12 mm
- Overall height128 mm
- Swivel radius80 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20 to +60 °C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

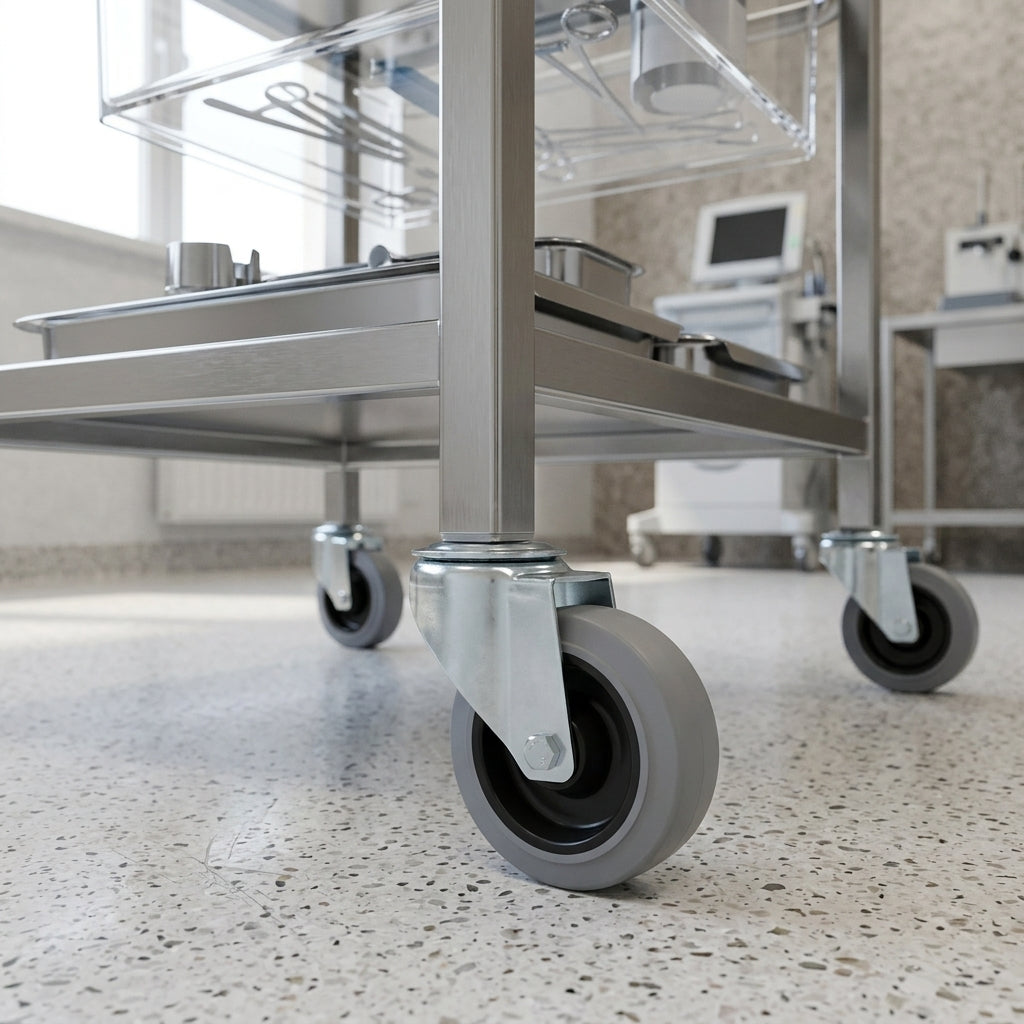

The 100mm Swivel Bolt Hole Castor with a grey rubber wheel is expertly designed for industrial environments, providing smooth and efficient manoeuvrability. This castor features a swivel mechanism that allows for easy navigation in tight spaces, making it ideal for various applications where reliable movement is essential.
Applications
- Warehousing: Enhances the movement of goods and equipment.
- Manufacturing: Facilitates the transportation of materials and tools.
- Retail: Supports the manoeuvrability of display units and stock trolleys.
FAQs
- What is the load capacity of this castor? The load capacity is 80 kg per castor.
- Can this castor be used outdoors? Yes, it operates efficiently in temperatures ranging from -20 to +60 °C.
- What type of surface is this castor suitable for? The grey rubber wheel is designed for smooth surfaces, ideal for industrial and retail environments.
- Is this castor easy to install? Yes, it features a bolt hole design for straightforward installation.
- What is the swivel radius of this castor? The swivel radius is 80 mm, allowing for smooth directional changes.
- How does the tread hardness affect performance? The A80 tread hardness ensures durability and resistance to wear during regular use.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
