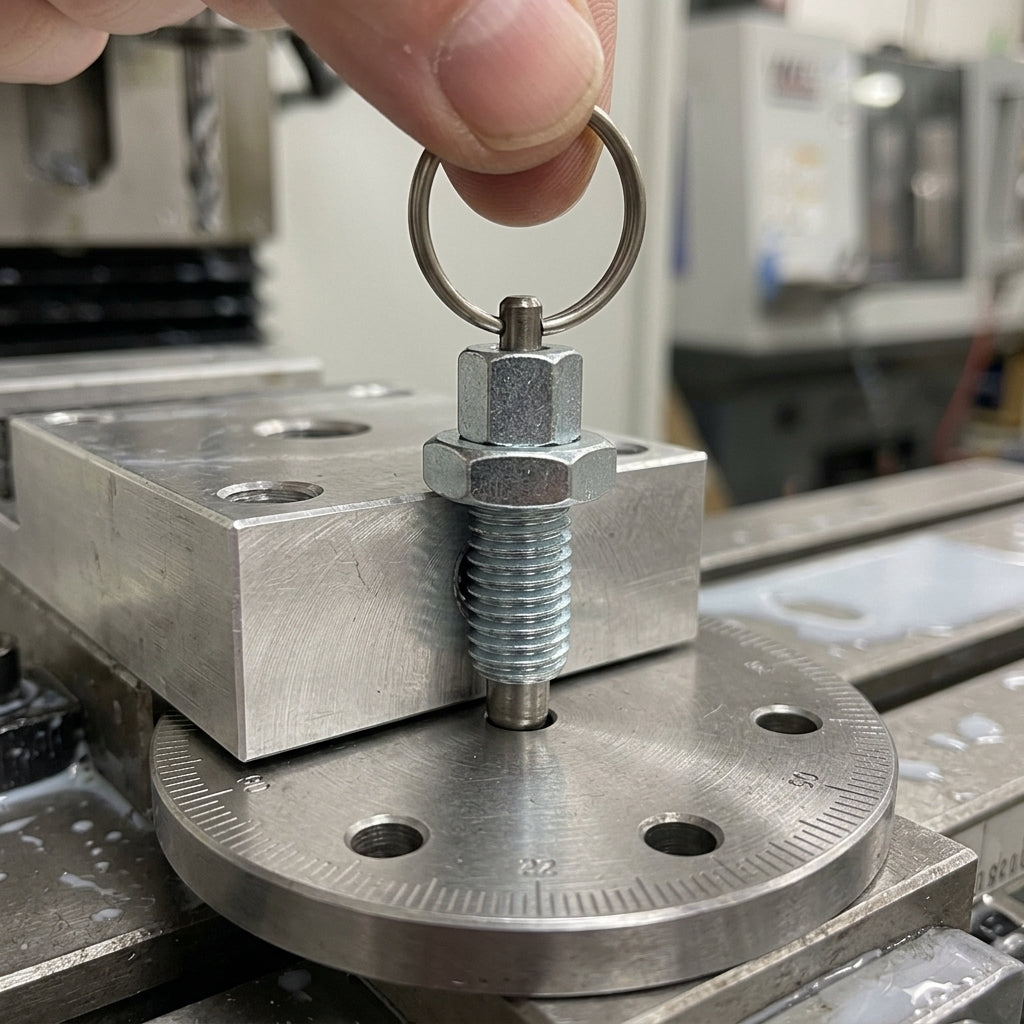

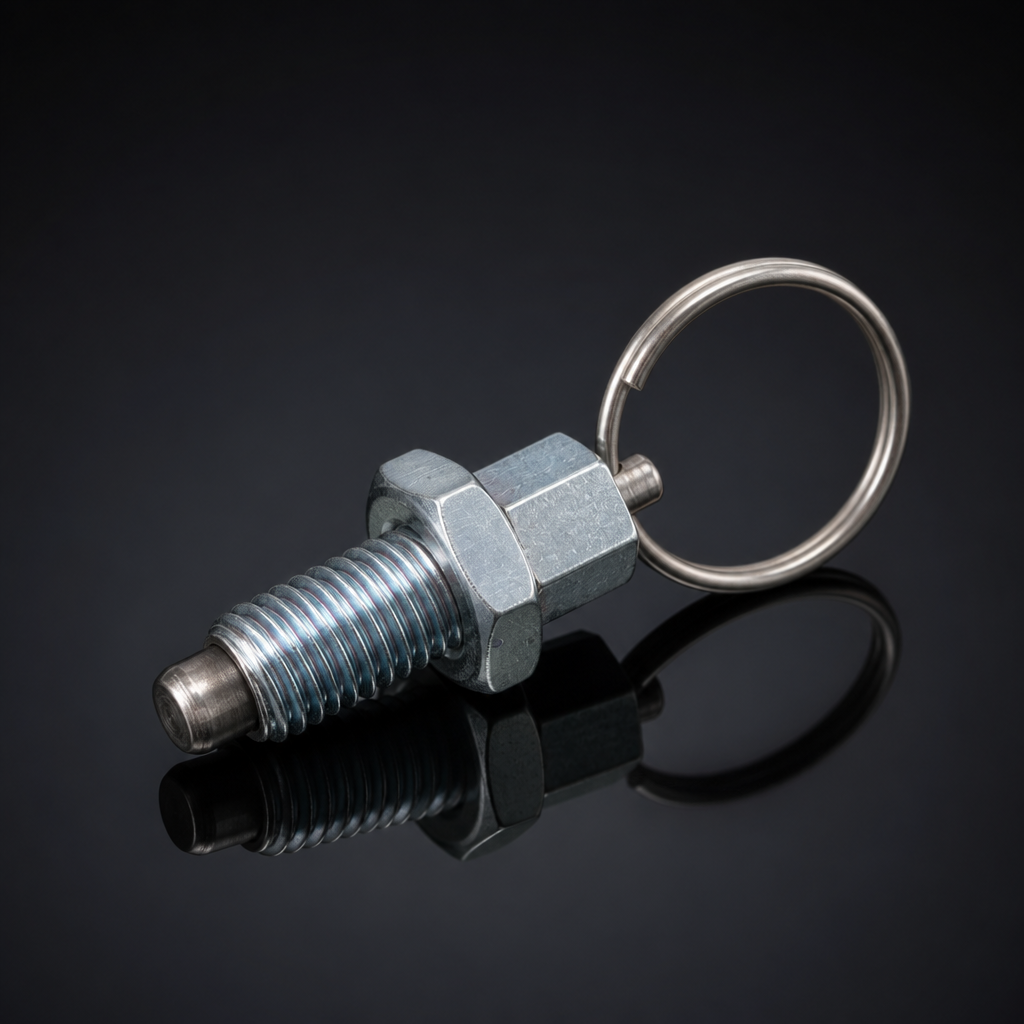

Spring Loaded Index M6 with Pull Ring - 4mm Height

The Spring Loaded Index with Pull Ring M6 is an essential component designed for precision and reliability in various applications.

Its spring-loaded mechanism ensures efficient indexing, while the pull ring offers ease of use, making it ideal for tasks that require quick adjustments and secure positioning. This product is particularly suitable for general industrial applications, where durability and functionality are paramount.

Key Features

• Base Nut Height: 4mm – This compact height allows for seamless integration into tight spaces.
• Base To Thread Height: 12mm – Provides adequate clearance for effective operation.
• Handle Diameter: 14mm – The ergonomic design ensures a comfortable grip during use.
• Thread Size: M6 – Standardised threading ensures compatibility with a wide range of applications.

Specifications

• Base Nut Height: 4mm
• Base To Thread Height: 12mm
• Handle Diameter: 14mm
• Thread Size: M6

Applications

• General industrial applications: Ideal for machinery and equipment where precise indexing is required.
• Furniture assembly: Useful in adjustable furniture designs for secure positioning.
• Automotive applications: Suitable for securing components in vehicles.
