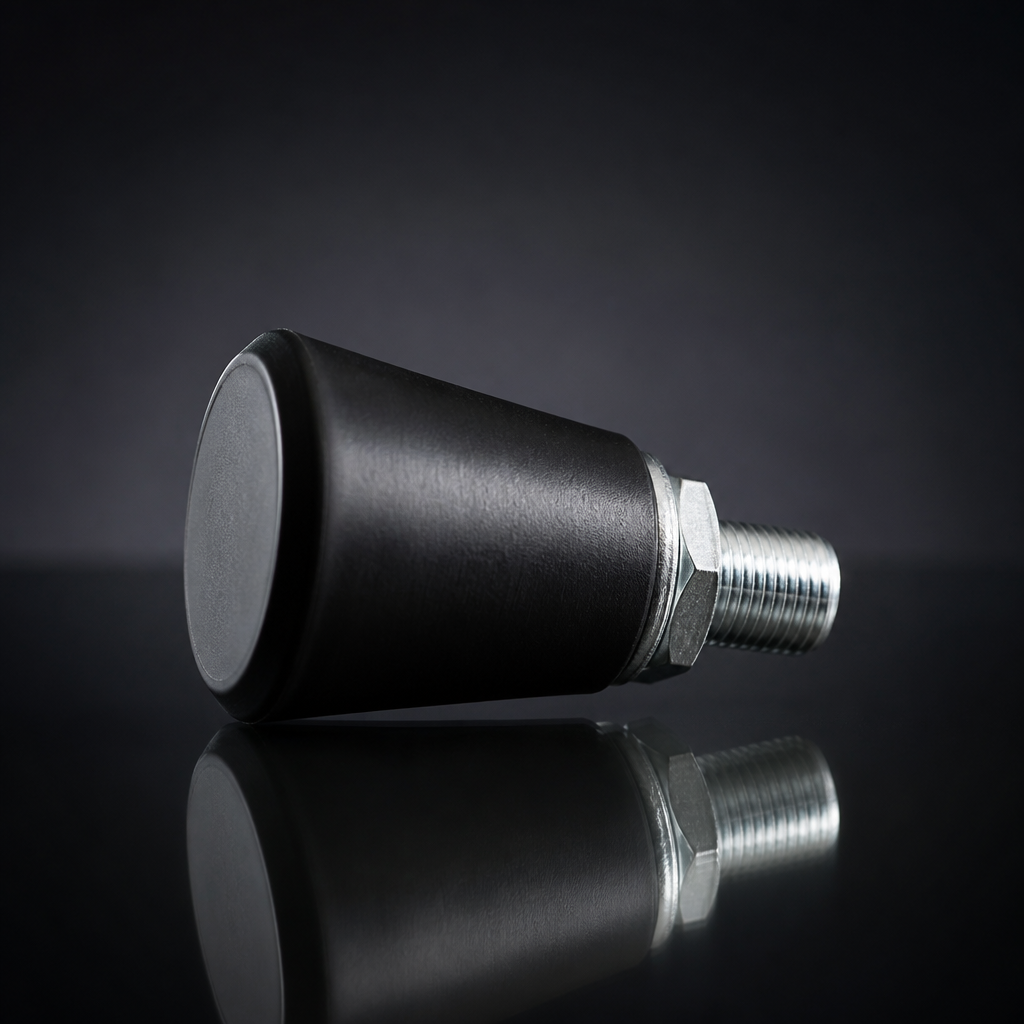

Mini Index Plunger M9 - 26mm Length, 17mm Handle Diameter

Mini Index Plunger for Thin-Walled Material in Black M9

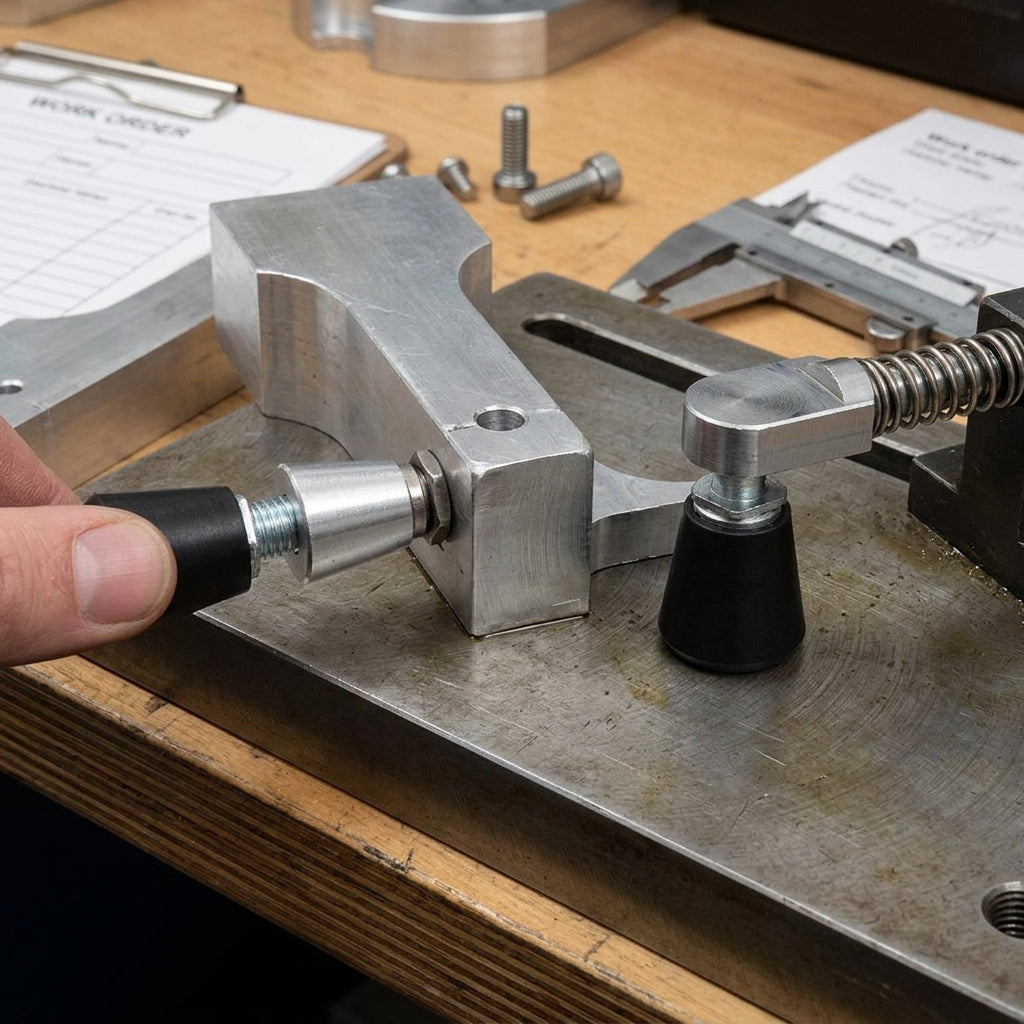

This Mini Index Plunger is designed specifically for effectively securing and positioning thin-walled materials. Its robust design and compact size make it ideal for applications requiring reliable indexing in industrial and mechanical settings.

Key Features

• Base Nut Height: 17mm for stability and secure mounting.
• Base To Thread Height: 2mm for easy integration into tight spaces.
• Colour: Black finish complements various applications.
• Handle Diameter: 17mm for comfortable grip and operation.
• Length: 26mm compact for versatile use.
• Overall Plunger Height: 26mm for effective indexing reach.
• Plunger Height: 8mm for precise positioning adjustments.
• Thread Size: M9 for compatibility with standard fittings.

Specifications

• Material: Steel
• Finish: Black
• Thread Type: Metric
• Operating Temperature: -20°C to +80°C

Applications

• Securing thin-walled materials in assembly processes.
• Positioning components in machinery.
• Indexing in jigs and fixtures.
• Use in automotive and manufacturing industries.
