Mini Index Plunger Black M7 - 20mm Length, 14mm Handle Diameter

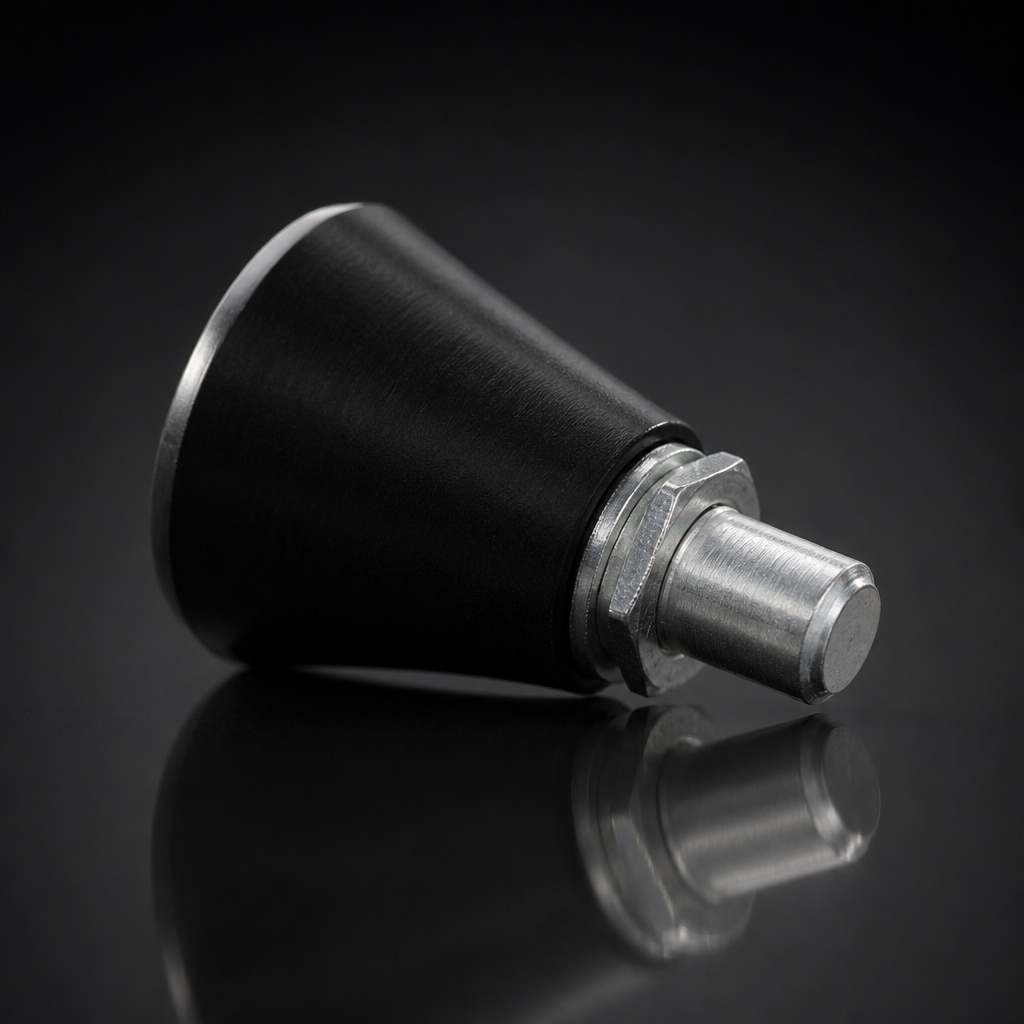

Mini Index Plunger for Thin-Walled Material Black M7

The Mini Index Plunger for Thin-Walled Material in Black M7 is an essential component designed for applications requiring precise positioning and secure locking mechanisms. Its compact dimensions and robust construction make it ideal for use in various thin-walled materials, providing users with reliability and ease of operation in their projects.

Key Features

• Base Nut Height: 12mm – This height ensures a secure fit within your assembly, enhancing stability.
• Base To Thread Height: 2mm – This compact height allows for efficient space management in thin-walled applications.
• Colour: Black – The sleek black finish adds a professional aesthetic to your equipment.
• Handle Diameter: 14mm – The comfortable handle diameter provides ease of use and manipulation.
• Length: 20mm – A compact length that fits seamlessly into tight spaces.
• Overall Plunger Height: 20mm – This height supports effective engagement and disengagement operations.
• Plunger Height: 7mm – A suitable plunger height for precise locking.

Specifications

• Base Nut Height: 12mm
• Base To Thread Height: 2mm
• Colour: Black
• Handle Diameter: 14mm
• Length: 20mm
• Overall Plunger Height: 20mm
• Plunger Height: 7mm

Applications

• Precision machinery requiring secure locking mechanisms
• Thin-walled material assemblies
• Automated equipment with compact space constraints

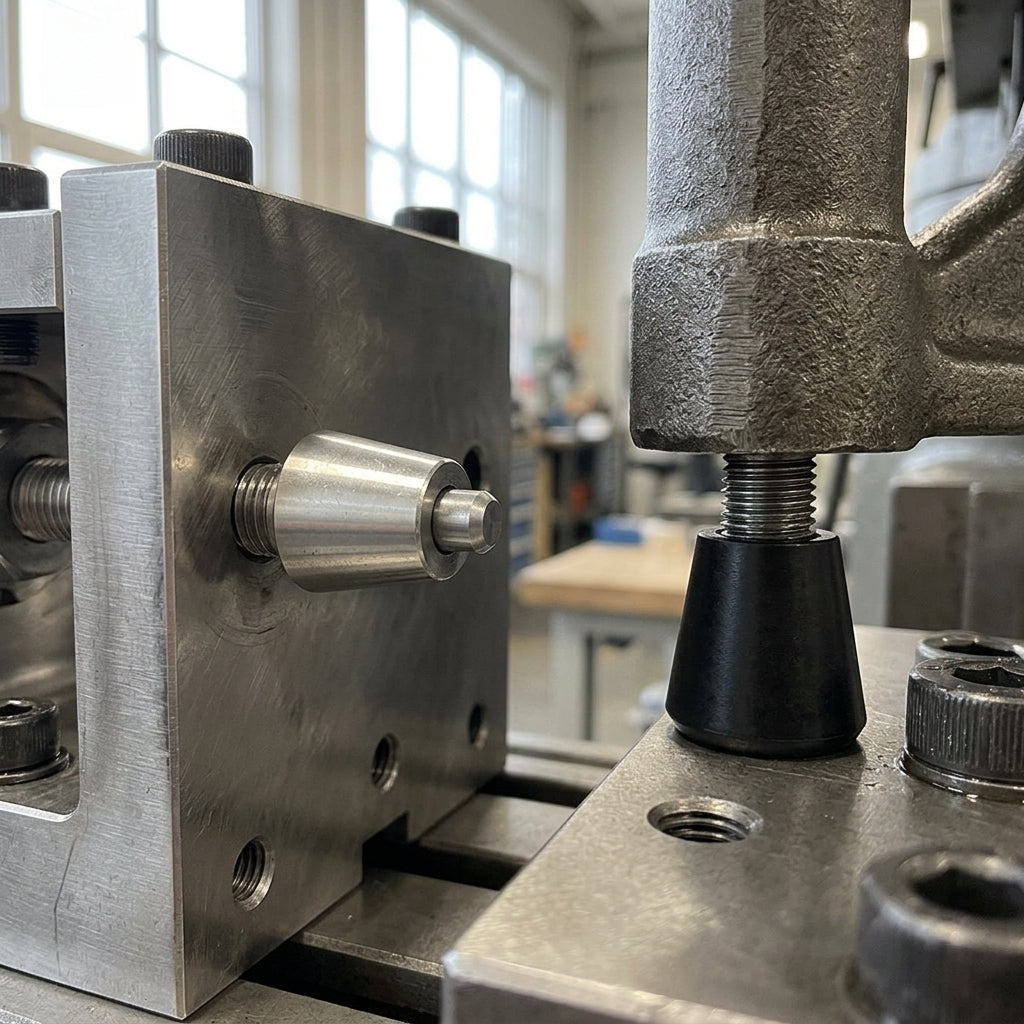

• Custom fixtures and jigs in manufacturing
• Prototyping and design projects needing reliable locking solutions
